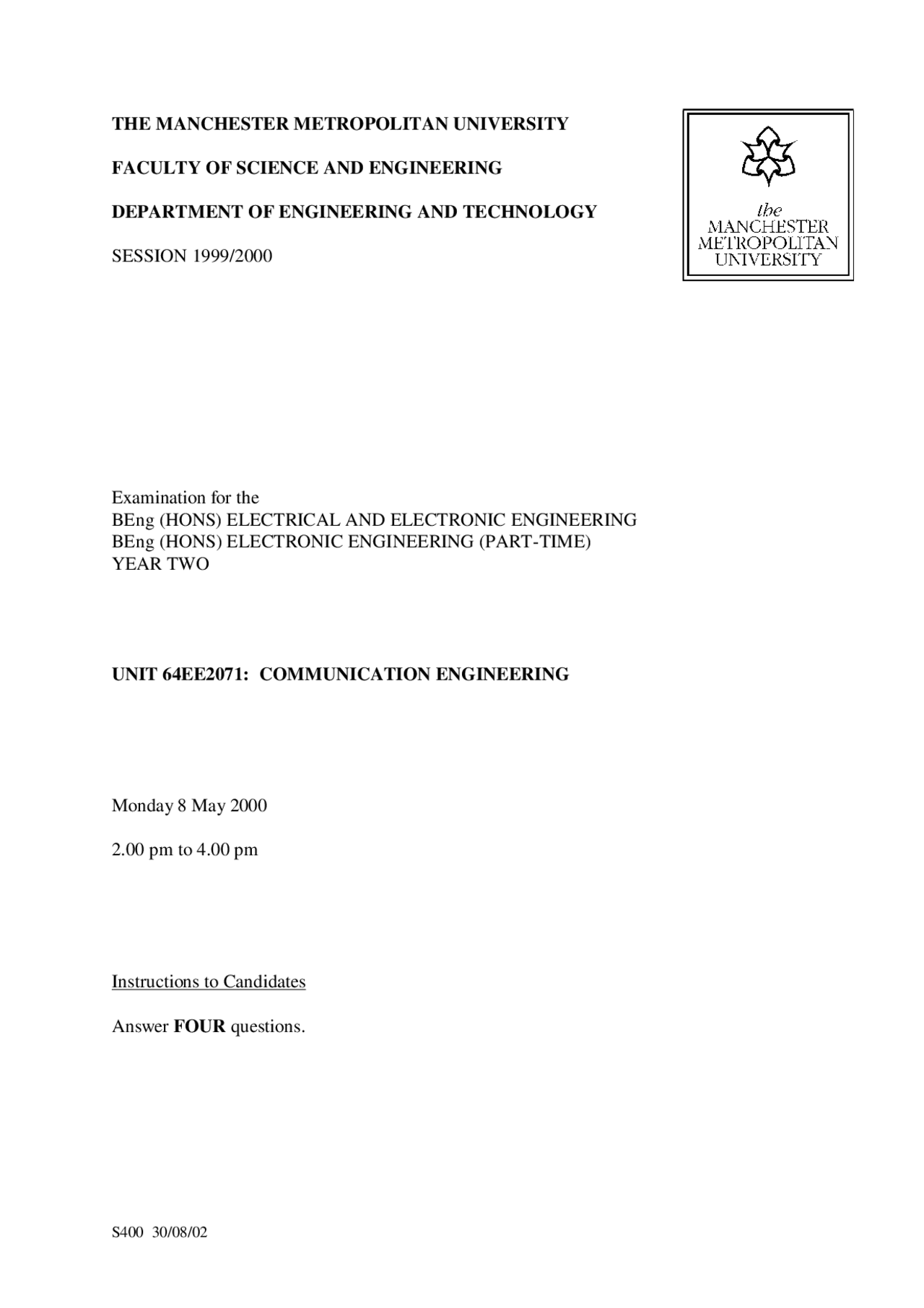

S400 30/08/02
THE MANCHESTER METROPOLITAN UNIVERSITY
FACULTY OF SCIENCE AND ENGINEERING
DEPARTMENT OF ENGINEERING AND TECHNOLOGY
SESSION 1999/2000
Examination for the
BEng (HONS) ELECTRICAL AND ELECTRONIC ENGINEERING
BEng (HONS) ELECTRONIC ENGINEERING (PART-TIME)
YEAR TWO
UNIT 64EE2071: COMMUNICATION ENGINEERING
Monday 8 May 2000
2.00 pm to 4.00 pm
Instructions to Candidates
Answer FOUR questions.
pf3
pf4

Partial preview of the text

Download Communication Engineering Exam Instructions - Unit 64EE2071, Manchester Met Uni, 1999/2000 and more Exams Electrical Engineering in PDF only on Docsity!

S400 30/08/

THE MANCHESTER METROPOLITAN UNIVERSITY

FACULTY OF SCIENCE AND ENGINEERING

DEPARTMENT OF ENGINEERING AND TECHNOLOGY

SESSION 1999/

Examination for the BEng (HONS) ELECTRICAL AND ELECTRONIC ENGINEERING BEng (HONS) ELECTRONIC ENGINEERING (PART-TIME) YEAR TWO

UNIT 64EE2071: COMMUNICATION ENGINEERING

Monday 8 May 2000

2.00 pm to 4.00 pm

Instructions to Candidates

Answer FOUR questions.

30/08/02 continued

  1. a) Discuss the major advantages of digital transmission in telecommunications systems. [4]

b) Indicate the limitations of such transmission when compared to analogue systems. [4]

c) State the Nyquist sampling theorem used during analogue to digital conversion, and comment on the result if it is not adhered to. [4]

d) A UK-32 channel bipolar PCM system has the following parameters:

Maximum baseband frequency = 3.4 KHz Maximum decoded voltage at Receiver = 2.55 V Minimum dynamic range = 40 dB.

Calculate:

(i) the sampling rate required; [2] (ii) the minimum number of bits used in the PCM coding; [9] (iii) the quantization error. [2]

  1. a) Using a block diagram explain the basic operation of a typical AM radio High Level Transmitter, and corresponding Superheterodyne Receiver. Indicate briefly the function of each block. [12]

b) An AM transmitter has an output of 50 kW with a modulation of 100% applied to the carrier. Calculate the output power after the modulation is reduced to 45%, one sideband is suppressed and the carrier is reduced by 15 dB. [10]

c) Sketch and label the spectral content of the transmitted wave, if the carrier frequency is 1MHz and the audio 4 kHz. [3]

S400 30/08/

  1. A communications satellite has a 20 dB aerial for reception of a 0.05m wavelength microwave signal from an earth station radiating 1.2 kW. The 120 dB gain satellite is 30,000 km from the earth transmitter and receiver stations, each having a 60 dB aerial. The power density at the satellite can be assumed to be 6 x 10-8^ W/m^2.

Calculate:

a) the power transmitted from the satellite to earth via its 30 dB aerial, at 0.08m wavelength; [9]

b) the ground station signal power; [10]

c) the S/N ratio in dBs at the ground station. [6]

Assume:- Aperture A =

G

λ^2 π

Signal Bandwidth = 50 MHz

Noise power/Hz = 0.4 x 10-20W

END
