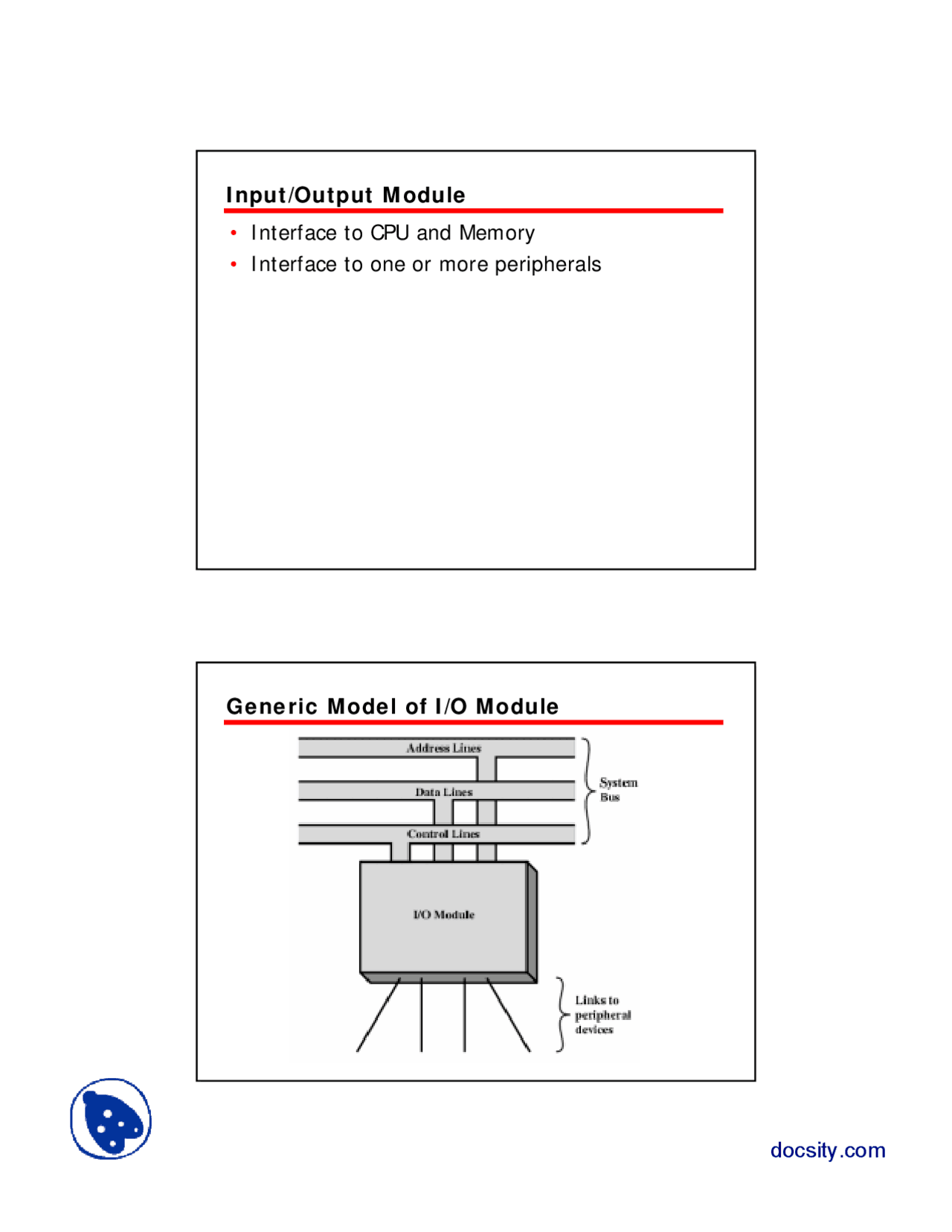

Input/Output Module
Interface to CPU and Memory
Interface to one or more peripherals
Generic Model of I/O Module
docsity.com
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b

Partial preview of the text

Download Input Output Module-Assembly Language, Microprocessors and Computer Architecture-Lecture Slides and more Slides Computer Architecture and Organization in PDF only on Docsity!

Input/Output Module

  • Interface to CPU and Memory
  • Interface to one or more peripherals

Generic Model of I/O Module

External Devices

  • Human readable —Screen, printer, keyboard
  • Machine readable —Monitoring and control
  • Communication —Modem —Network Interface Card (NIC)

External Device Block Diagram

I/O Steps

  • CPU checks I/O module device status
  • I/O module returns status
  • If ready, CPU requests data transfer
  • I/O module gets data from device
  • I/O module transfers data to CPU
  • Variations for output, DMA, etc.

I/O Module Diagram

I/O Module Decisions

  • Hide or reveal device properties to CPU
  • Support multiple or single device
  • Control device functions or leave for CPU
  • Also O/S decisions —e.g. Unix treats everything it can as a file

Input Output Techniques

  • Programmed
  • Interrupt driven
  • Direct Memory Access (DMA)

I/O Commands

  • CPU issues address —Identifies module (& device if >1 per module)
  • CPU issues command —Control - telling module what to do - e.g. spin up disk —Test - check status - e.g. power? Error? —Read/Write - Module transfers data via buffer from/to device

Addressing I/O Devices

  • Under programmed I/O data transfer is very like memory access (CPU viewpoint)
  • Each device given unique identifier
  • CPU commands contain identifier (address)

I/O Mapping

  • Memory mapped I/O — Devices and memory share an address space — I/O looks just like memory read/write — No special commands for I/O - Large selection of memory access commands available
  • Isolated I/O — Separate address spaces — Need I/O or memory select lines — Special commands for I/O - Limited set

Interrupt Driven I/O

  • Overcomes CPU waiting
  • No repeated CPU checking of device
  • I/O module interrupts when ready

Design Issues

  • How do you identify the module issuing the interrupt?
  • How do you deal with multiple interrupts? —i.e. an interrupt handler being interrupted

Identifying Interrupting Module (1)

  • Different line for each module —PC —Limits number of devices
  • Software poll —CPU asks each module in turn —Slow

Identifying Interrupting Module (2)

  • Daisy Chain or Hardware poll —Interrupt Acknowledge sent down a chain —Module responsible places vector on bus —CPU uses vector to identify handler routine
  • Bus Master —Module must claim the bus before it can raise interrupt —e.g. PCI & SCSI

Multiple Interrupts

  • Each interrupt line has a priority
  • Higher priority lines can interrupt lower priority lines
  • If bus mastering only current master can interrupt

ISA Bus Interrupt System

  • ISA bus chains two 8259As together
  • Link is via interrupt 2
  • Gives 15 lines —16 lines less one for link
  • IRQ 9 is used to re-route anything trying to use IRQ 2 —Backwards compatibility
  • Incorporated in chip set

82C59A Interrupt Controller

Intel 82C55A Programmable Peripheral Interface

Using 82C55A To Control Keyboard/Display

DMA Module Diagram

DMA Operation

  • CPU tells DMA controller:- —Read/Write —Device address —Starting address of memory block for data —Amount of data to be transferred
  • CPU carries on with other work
  • DMA controller deals with transfer
  • DMA controller sends interrupt when finished

DMA Transfer Cycle Stealing

  • DMA controller takes over bus for a cycle
  • Transfer of one word of data
  • Not an interrupt —CPU does not switch context
  • CPU suspended just before it accesses bus —i.e. before an operand or data fetch or a data write
  • Slows down CPU but not as much as CPU doing transfer

Aside

  • What effect does caching memory have on DMA?
  • Hint: how much are the system buses available?

DMA Configurations (3)

  • Separate I/O Bus
  • Bus supports all DMA enabled devices
  • Each transfer uses bus once —DMA to memory
  • CPU is suspended once

I/O Channels

  • I/O devices getting more sophisticated
  • e.g. 3D graphics cards
  • CPU instructs I/O controller to do transfer
  • I/O controller does entire transfer
  • Improves speed —Takes load off CPU —Dedicated processor is faster

I/O Channel Architecture

Interfacing

  • Connecting devices together
  • Bit of wire?
  • Dedicated processor/memory/buses?
  • E.g. FireWire, InfiniBand
