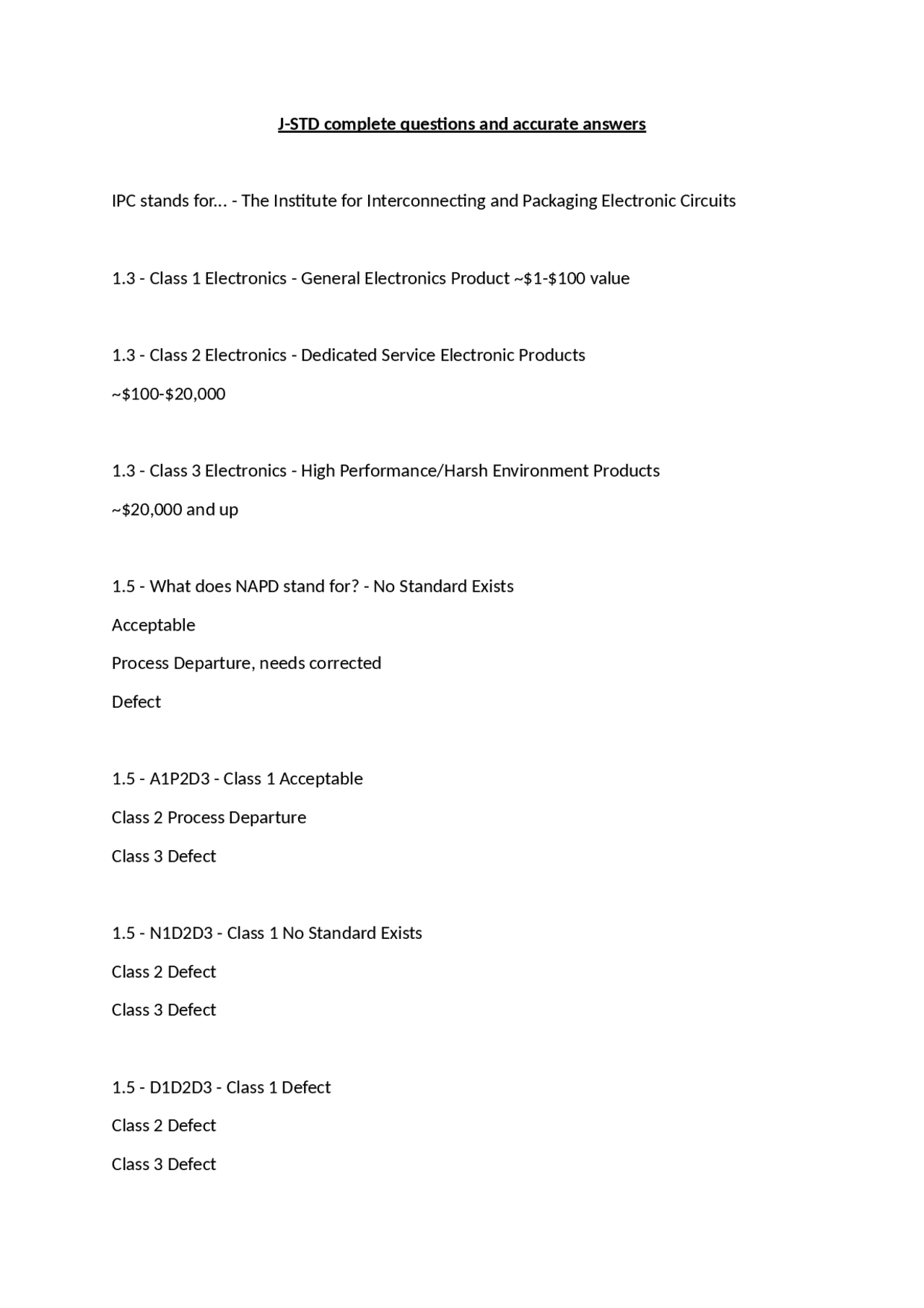

J-STD complete questions and accurate answers
IPC stands for... - The Institute for Interconnecting and Packaging Electronic Circuits
1.3 - Class 1 Electronics - General Electronics Product ~$1-$100 value
1.3 - Class 2 Electronics - Dedicated Service Electronic Products
~$100-$20,000
1.3 - Class 3 Electronics - High Performance/Harsh Environment Products
~$20,000 and up
1.5 - What does NAPD stand for? - No Standard Exists
Acceptable
Process Departure, needs corrected
Defect
1.5 - A1P2D3 - Class 1 Acceptable
Class 2 Process Departure
Class 3 Defect
1.5 - N1D2D3 - Class 1 No Standard Exists
Class 2 Defect
Class 3 Defect
1.5 - D1D2D3 - Class 1 Defect
Class 2 Defect
Class 3 Defect
pf3
pf4
pf5

Partial preview of the text

Download J-STD: Complete Questions and Answers for Electronics Manufacturing and more Exams Advanced Education in PDF only on Docsity!

J-STD complete questions and accurate answers IPC stands for... - The Institute for Interconnecting and Packaging Electronic Circuits 1.3 - Class 1 Electronics - General Electronics Product ~$1-$100 value 1.3 - Class 2 Electronics - Dedicated Service Electronic Products ~$100-$20, 1.3 - Class 3 Electronics - High Performance/Harsh Environment Products ~$20,000 and up 1.5 - What does NAPD stand for? - No Standard Exists Acceptable Process Departure, needs corrected Defect 1.5 - A1P2D3 - Class 1 Acceptable Class 2 Process Departure Class 3 Defect 1.5 - N1D2D3 - Class 1 No Standard Exists Class 2 Defect Class 3 Defect 1.5 - D1D2D3 - Class 1 Defect Class 2 Defect Class 3 Defect

1.7.1 - Conflict between J-STD Text and applicable document cited in J-STD, which takes precedent? - J-STD text 1.7.1 - Conflict between J-STD Text and assembly drawing/documentation not approved by User, which takes precedent? - J-STD 1.7.1 - Conflict between J-STD Text and assembly drawing/documentation approved by User, which takes precedent? - Assembly Drawing or Documentation 1.8.3 - What does FOD stand for? - Foreign Object Debris 1.8.12 - Define "User" - The Individual, Organization, company, or designated authority responsible for procurement or design. 1.8.13 - Wire Overwrap - Wire wraps around terminal more than 360 degrees and remains in contact. 1.9 - If a condition is considered a Defect for Class 3, this means Class 1 and 2... - May still be usable. 1.9 - If a condition is considered a Defect for Class 1, this means Class 3 and 2... - Will also be a defect 1.9 - Requirements Flow down -If J-STD is contractually required then... - the requirements shall be imposed on subassembly drawings, POs, and subcontracts. 1.9 - Design and workmanship of COTS items should be... - evaluated and modified as required to ensure end item meets contract performance standards. 1.9 - What does COTS stand for? - Commercial Off the Shelf

3.3.1 - When external flux is used with flux cored solder the fluxes shall be... - compatible both from cleaning process standpoint and chemical standpoint. 3.8.1 - Minor surface flaws, discoloration, meniscus cracks, or chips in component bodies are... - Acceptable, however they shall not expose the component substrate or active element nor affect structural integrity. 3.8.1 - Components shall not be... - Charred or have damage in excess of that to be determined to be a minor surface flaw that degrades the component below the Spec Requirements or affects Form, Fit, Function. 3.8.1 - Loss of metallization as a result of processing Shall: (3 points) - -Not expose ceramic on the terminal end face.

  • Be no greater than 25% of width or thickness of any termination side -Be no more than 50% on top of a 5- or 3-sided termination component 3.9 - A tool used to cut leads Shall Not... - Impart shock that damages a component lead seal or internal connection. 4.5 - For Electroless Nickel Immersion Gold (ENIG) Nickel-palladium-gold (NiPdAu), or Electro Nickless Palladium Immersion Gold (ENEPIG) are exempt from... - Finish Removal Requirements in 4.5.1 and 4.5. 4.5.1 - Gold must be removed from at least... - 95% of all the surfaces to be soldered of all through-hole components to be hand soldered. 4.5.1 - Gold must be removed from at least... - 95% of all the surface mounted components regardless off gold thickness 4.5.1 - Gold must be removed from at least... - 95% of all the surfaces to be soldered of through-hole components with >2.54 um gold thickness.

4.5.1 - Double tinning process or dynamic solder wave maybe be used for... - Gold Removal prior to mount components. 4.5.1 - Gold embrittlement can occur regardless of gold thickness when... - Solder volume is low or dwell time is not sufficient.
