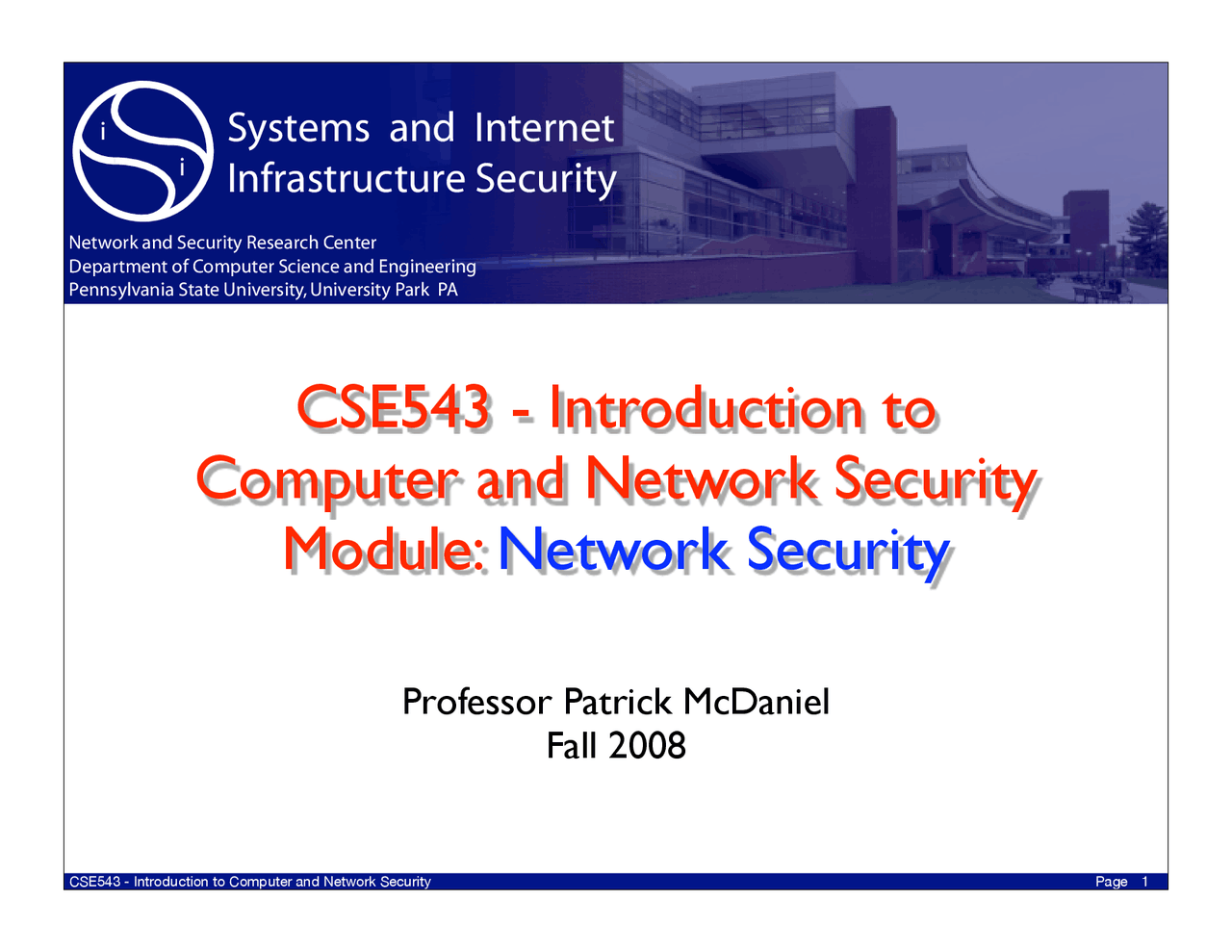

3YSTEMSAND)NTERNET

)NFRASTRUCTURE3ECURITY

I I .ETWORKAND3ECURITY2ESEARCH#ENTER $EPARTMENTOF#OMPUTER3CIENCEAND%NGINEERING 0ENNSYLVANIA3TATE5NIVERSITY 5NIVERSITY0ARK0! CSE543 - Introduction to Computer and Network Security Module: Network Security Professor Patrick McDaniel Fall 2008

Networking

  • (^) Fundamentally about transmitting information between two devices
  • (^) Direct communication is now possible between any two devices anywhere (just about) ‣ Lots of abstraction involved ‣ Lots of network components ‣ Standard protocols ‣ Wired and wireless ‣ Works in protection environment
  • (^) What about ensuring security?

Exploiting the network ...

  • (^) The Internet is extremely vulnerable to attack ‣ it is a huge open system ... ‣ which adheres to the end-to-end principle - (^) smart end-points, dumb network
  • (^) Can you think of any large-scale attacks that would be

E2E Argument

  • (^) Clark et. al discussed a property of good systems that says features should be placed as close to resources as possible ‣ In communication, this means that we want the middle of the network to be simple, and the end-points to be smart (e.g., do everything you can at the end-points - (^) “Dumb, minimal network” ‣ This is the guiding principle of IP (Internet) ‣ Q: Does this have an effect on security?
  • (^) Note: this is a departure from the early networks which smart network, dumb terminals
  • (^) TCP/IP uses a three-way handshake to establish a connection
  1. C -> S: QC
  2. S -> C: Q S, ack(Q C ) where sequence number Q S is nonce
  3. C -> S: ack(QS) … then send data
  4. However assume the bad guy does not hear msg 2, if he can guess QS, then he can get S to accept whatever data it wants (useful if doing IP authentication, e.g., “rsh”) Client Server Adversary Sequence number prediction
  • (^) The only way you really fix this problem to stop making the sequence numbers predictable: ‣ Randomize them -- you can use DES or some other mechanism to generate them randomly ‣ There is an entire sub-field devoted to the creation and management of randomness in OSes
  • (^) Also, you could look for inconsistencies in timing information ‣ Assumption: the adversary has different timing than ‣ OK, maybe helpful, but far from definitive Sequence Number Prediction (fixes)
  • (^) ICMP is used as a control plane for IP messages ‣ Ping (connectivity probe) ‣ Destination Unreachable (error notification) ‣ Time-to-live exceeded (error notification)
  • (^) These are used for good purposes, and are largely indispensable tools for network management and control ‣ Error notification codes can be used to reset connections without any
  • (^) Solution: verify/sanity check sources and content ‣ ICMP “returned packets” Internet Control Message Protocol
  • (^) In 1996, someone discovered that many operating systems, routers, etc. could be crash/rebooted by sending a single malformed packet ‣ It turns out that you can send a IP packet larger than 65, ( 16 ), it would crash the system ‣ The real reason lies in the way fragmentation works - It allows somebody to send a packet bigger than IP allows - (^) Which blows up most fixed buffer size implementations - (^) … and dumps core, blue screen of death, etc. ‣ Note: this is not really ICMP specific, but easy (try it) % ping -l 65510 your.host.ip.address
  • (^) This was a popular pastime of early hackers

The “ping of death” …

  • (^) Attack: replace good entries with your own
  • (^) Leads to ‣ Session hijacking ‣ Man-in-the-middle attacks ‣ Denial of service, etc.
  • (^) Lots of other ways to abuse ARP.
  • (^) Nobody has really come up with a good solution ‣ Except smart bridges, routers that keep track of MACs
  • (^) However, some not worried ‣ If adversary is in your perimeter, you are in big trouble ‣ You should never should validate the source of each pack

ARP poisoning

  • (^) Finger user identity (my advisor hated this) ‣ host gives up who is logged in, existence of identities PSU.local Presentations > finger megan Login: megan Name: Megan Smith Directory: /Users/megan Shell: /bin/bash Last login Mon 23 Aug 13:19 (EDT) on console No Mail. No Plan. PSU.local Presentations >
  • (^) This is horrible in a distributed environment ‣ Privacy, … ‣ Lots of information to start a compromise of the user. Other flawed protocols/services
  • (^) DNS maps between IP address (12.1.1.3) and domain and host names (ada.cse.psu.edu) ‣ How it works: the “root” servers redirect you to the top level domains (TLD) DNS servers, which redirect you to the appropriate sub-domain, and recursively …. ‣ Note: there are 13 “root” servers that contain the TLDs for .org, .edu, and country specific registries (.fr, .ch) Host (resolver) root .edu psu.edu cse.psu.edu ada.cse.psu.edu? 130.203.16. DNS - The domain name system
  • (^) Nothing is authenticated, so really the game is over ‣ You can not really trust what you hear … ‣ But, many applications are doing just that. ‣ Spoofing of DNS is really dangerous
  • (^) Moreover, DNS is a catalog of resources ‣ Zone-transfers allow bulk acquisition of DNS data ‣ … and hence provide a map for attacking the network
  • (^) Lots of opportunity to abuse the system ‣ Relies heavily on caching for efficiency -- cache pollution ‣ Once something is wrong, it can remain that way in caches for a long time (e.g., it takes a long time flush) ‣ (^) Data may be corrupted before it gets to authoritative server

DNS Vulnerabilities

  • (^) TSIG : transaction signatures protect DNS operations ‣ Zone loads, some server to server requests (master -> slave), etc. ‣ Time-stamped signed responses for dynamic requests ‣ A misnomer -- it currently uses shared secrets for TSIG (HMAC) or do real signatures using public key cryptography
  • (^) SIG0: a public key equivalent of TSIG ‣ Works similarly, but with public keys ‣ Not as popular as TSIG, being evaluated
  • (^) Note: these mechanisms assume clock sync. (NTP)

DNSsec Mechanisms

  • (^) Securing the DNS records ‣ Each domain signs their “zone” with a private key ‣ Public keys published via DNS ‣ Indirectly signed by parent zones ‣ Ideally, you only need a self-signed root, and follow keys down the hierarchy root .edu psu.edu cse.psu.edu Signs Signs Signs

DNSsec Mechanisms
