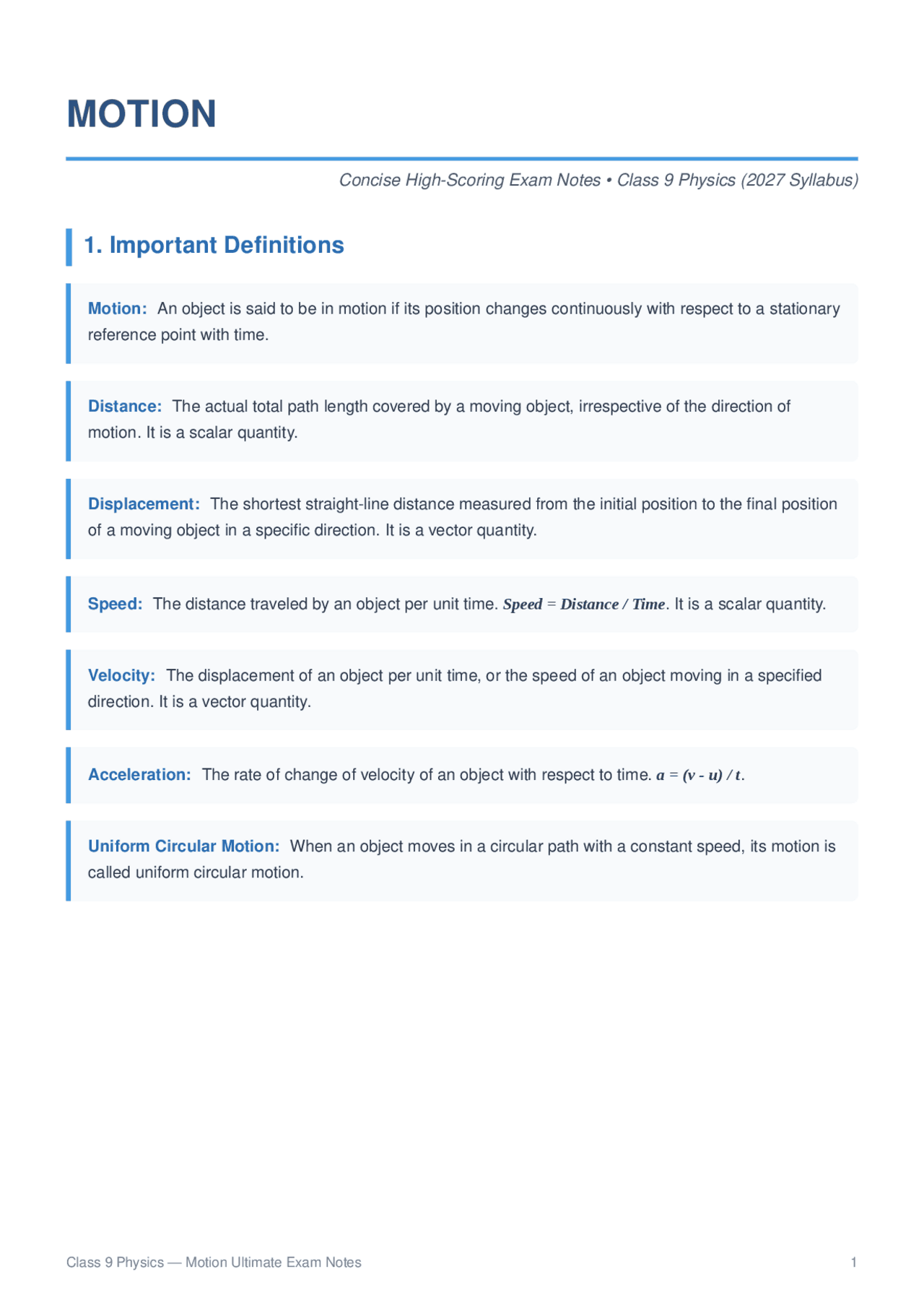

MOTION
Concise High-Scoring Exam Notes • Class 9 Physics (2027 Syllabus)
1. Important Definitions
Motion: An object is said to be in motion if its position changes continuously with respect to a stationary reference point with time.
Distance: The actual total path length covered by a moving object, irrespective of the direction of motion. It is a scalar quantity.
Displacement: The shortest straight-line distance measured from the initial position to the final position of a moving object in a specific direction. It is a vector quantity.
Speed: The distance traveled by an object per unit time. Speed = Distance / Time. It is a scalar quantity.
Velocity: The displacement of an object per unit time, or the speed of an object moving in a specified direction. It is a vector quantity.
Acceleration: The rate of change of velocity of an object with respect to time. a = (v - u) / t.
Uniform Circular Motion: When an object moves in a circular path with a constant speed, its motion is called uniform circular motion.
2. Key Concepts & Core Frameworks
A. Distance vs. Displacement
Characteristics Distance Displacement
Type of Quantity Scalar (Has magnitude only) Vector (Has both magnitude and direction)
Path Dependency Depends on the actual path followed.^ Depends only on initial and final positions.
Values Always positive; can never be zero ornegative for a moving object. Can be positive, negative, or zero (if initialand final positions match).
Comparison (^) Distance ≥ |Displacement|
B. Uniform vs. Non-Uniform Motion
Uniform Motion: When an object covers equal distances in equal intervals of time, no matter how small these intervals may be. The distance-time graph is a straight line. Non-Uniform Motion: When an object covers unequal distances in equal intervals of time. The distance- time graph is a curved line (e.g., a car moving in crowded traffic).
C. Key Formulas & Equations of Motion
Average Speed: Average Speed = Total Distance Traveled / Total Time Taken Average Velocity: When velocity changes at a uniform rate: vavg = (u + v) / 2 (where u = initial velocity, v = final velocity). The Three Equations of Motion (For Uniform Acceleration): First Equation (Velocity-Time Relation): v = u + at Second Equation (Position-Time Relation): s = ut + ½at^2 Third Equation (Position-Velocity Relation): 2as = v^2 - u^2
Speed of Uniform Circular Motion: v = (2πr) / t (where r = radius of the circular path).
5. Smart Memory Tricks & Acronyms
💡 Graph Rules Cheat Trick: "SVA Rules" (Slope-Velocity-Acceleration)
- Slope of S (Distance) gives V (Velocity).
- Slope of V (Velocity) gives A (Acceleration).
- Area under V (Velocity) takes you backwards to S (Distance).
💡 Unit Conversion Quick Tool:
- To convert km/h → m/s : Multiply by 5 / 18.
- To convert m/s → km/h : Multiply by 18 / 5.
6. 5-Minute Ultimate Revision Sheet
⏱️ LAST-MINUTE MEMORY MATRIX
Quantities
- Scalar: Distance, Speed, Time.
- Vector: Displacement, Velocity, Acceleration.
The Equations
- v = u + at
- s = ut + ½at^2
- v^2 - u^2 = 2as
Special Cases
- Starts from rest: u = 0
- Breaks/Stops: v = 0
- Retardation: Acceleration value is negative ( -a ).
