Planner Ultimate Exam

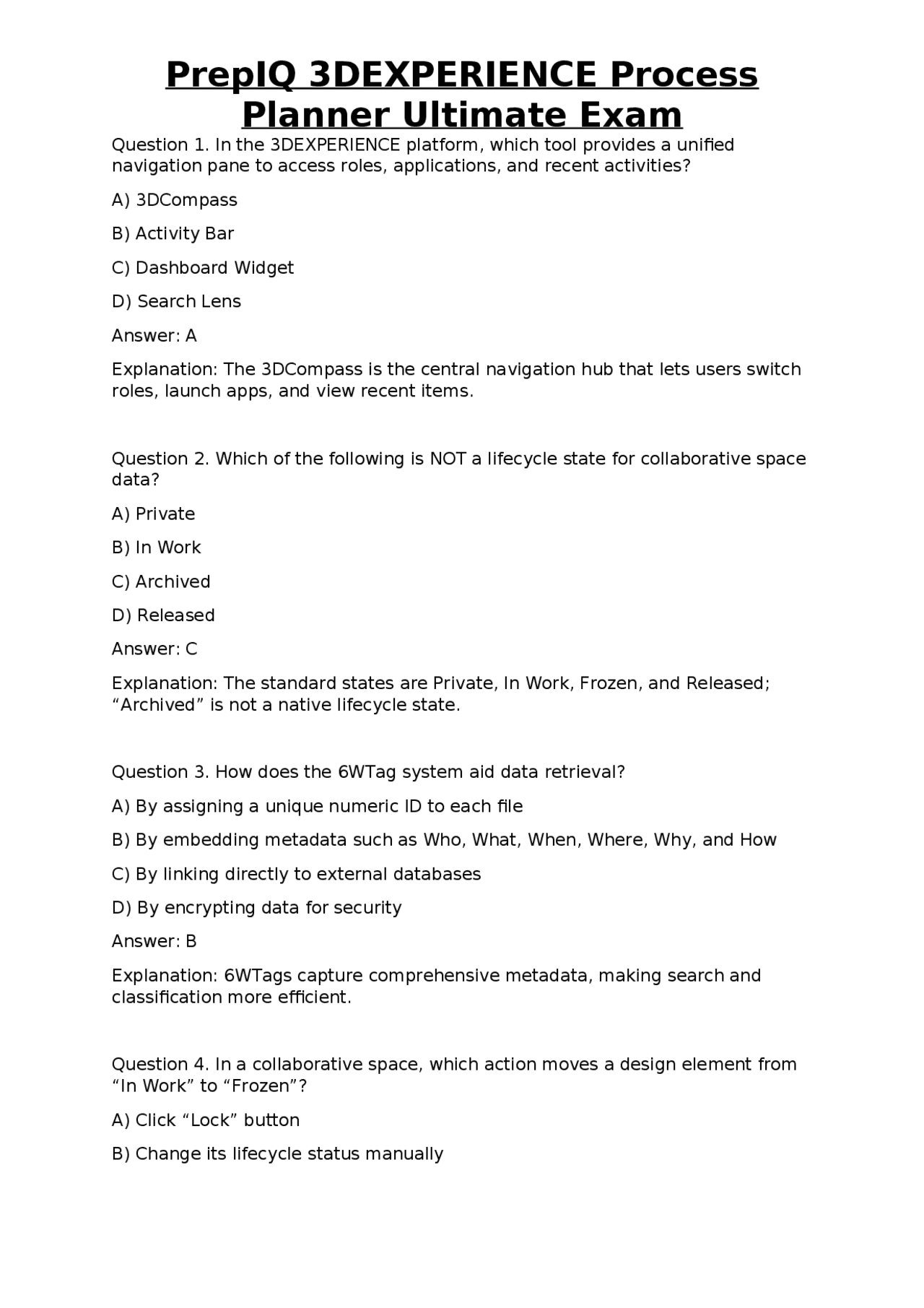

Question 1. In the 3DEXPERIENCE platform, which tool provides a unified navigation pane to access roles, applications, and recent activities? A) 3DCompass B) Activity Bar C) Dashboard Widget D) Search Lens Answer: A Explanation: The 3DCompass is the central navigation hub that lets users switch roles, launch apps, and view recent items. Question 2. Which of the following is NOT a lifecycle state for collaborative space data? A) Private B) In Work C) Archived D) Released Answer: C Explanation: The standard states are Private, In Work, Frozen, and Released; “Archived” is not a native lifecycle state. Question 3. How does the 6WTag system aid data retrieval? A) By assigning a unique numeric ID to each file B) By embedding metadata such as Who, What, When, Where, Why, and How C) By linking directly to external databases D) By encrypting data for security Answer: B Explanation: 6WTags capture comprehensive metadata, making search and classification more efficient. Question 4. In a collaborative space, which action moves a design element from “In Work” to “Frozen”? A) Click “Lock” button B) Change its lifecycle status manually
Planner Ultimate Exam
C) Export the element to a new space D) Delete the element Answer: B Explanation: Changing the lifecycle status to “Frozen” marks the element as read-only while still editable in later stages. Question 5. What is the primary purpose of data links between design and manufacturing data? A) To reduce file size B) To ensure digital continuity across the product lifecycle C) To enable real-time video streaming D) To encrypt data for security compliance Answer: B Explanation: Data links maintain traceability, allowing changes in design to propagate to manufacturing data. Question 6. The PPR model stands for Product, Process, and Resource. Which statement best describes the “Process” component? A) The physical part to be manufactured B) The sequence of operations that transform raw material into the product C) The machine tools used in production D) The quality standards applied to the product Answer: B Explanation: “Process” defines how the product is built, i.e., the manufacturing steps. Question 7. In the PPR Hub, where are manufacturing BOMs typically stored? A) Engineering Workspace B) Manufacturing Workspace C) Collaboration Dashboard D) System Administration Panel Answer: B
Planner Ultimate Exam
A) Cost Center B) Engineering Revision C) Manufacturing Region D) Production Line Answer: B Explanation: The Product Scope links the manufactured item to a specific engineering revision. Question 12. What does the “B.I. Essentials” color-coding indicate in an MBOM? A) The cost of each component B) The level of engineering coverage (e.g., green = covered) C) The material type of each part D) The supplier reliability rating Answer: B Explanation: B.I. Essentials uses colors to quickly show whether engineering components are accounted for in the MBOM. Question 13. In Process Tile Sequences, what is the purpose of a “Process Tile”? A) To store CAD geometry B) To group related operations into a logical block C) To define user permissions D) To generate cost estimates automatically Answer: B Explanation: Process Tiles organize operations, making high-level planning clearer. Question 14. Which element is NOT part of the Manufacturing System hierarchy? A) Line B) Station C) Cell D) Part Family Answer: D
Planner Ultimate Exam
Explanation: Lines, Stations, and Cells are structural elements; “Part Family” is a classification, not a system component. Question 15. When defining an operation constraint, which relationship specifies that Operation B cannot start until Operation A finishes? A) Precedence constraint B) Time constraint C) Capacity constraint D) Sequence constraint Answer: A Explanation: A precedence constraint enforces ordering between operations. Question 16. What does a “Time constraint” primarily control in a manufacturing operation? A) The maximum number of workers allowed B) The minimum and maximum duration an operation can take C) The order of operations D) The geographic location of the operation Answer: B Explanation: Time constraints set allowable duration ranges for an operation. Question 17. In workload analysis, which metric indicates the percentage of total work assigned to a specific station? A) Utilization Rate B) Cycle Time C) Lead Time D) Throughput Answer: A Explanation: Utilization Rate measures how much of a station’s capacity is being used. Question 18. “Takt Time” is best defined as: A) The time required to complete a single unit at the bottleneck station
Planner Ultimate Exam
Question 22. When authoring a work instruction, which element can be directly linked to a 3D model view? A) Textual step description only B) 3D Snapshot C) Cost breakdown chart D) Supplier list Answer: B Explanation: 3D Snapshots capture specific model orientations for visual instructions. Question 23. What is the primary benefit of using 3D Snapshots in work instructions? A) Reducing the file size of the instruction package B) Providing visual context that clarifies complex assembly steps C) Automating the machining process D) Encrypting the instruction data for security Answer: B Explanation: Snapshots give operators a clear visual reference, reducing errors. Question 24. Which of the following best describes a “kit” in an MBOM hierarchy? A) A collection of finished products ready for shipping B) A group of components that are packaged together for a specific operation C) A software module for process simulation D) A set of documentation files for a product line Answer: B Explanation: Kits bundle parts needed together for a manufacturing step. Question 25. In the 3DEXPERIENCE platform, what does the “Search Lens” primarily enable? A) Filtering data based on lifecycle state only B) Performing advanced searches using metadata, tags, and keywords C) Exporting data to external file formats
Planner Ultimate Exam
D) Changing user permissions on the fly Answer: B Explanation: Search Lens leverages tags and metadata to locate items quickly. Question 26. Which lifecycle state indicates that a collaborative space item is ready for production release? A) Private B) In Work C) Frozen D) Released Answer: D Explanation: “Released” marks an item as final and ready for manufacturing. Question 27. How does a “Resource Definition” influence process planning? A) It determines the cost of raw materials only B) It provides the capabilities and constraints of machines, tools, and personnel used in operations C) It sets the marketing strategy for the product D) It defines the color scheme of the user interface Answer: B Explanation: Resource definitions describe what resources can do, affecting scheduling and feasibility. Question 28. Which of the following is a direct outcome of a successful EBOM-to-MBOM transformation? A) Creation of a new engineering design file B) Alignment of manufacturing operations with engineering part hierarchy C) Automatic generation of marketing brochures D) Reduction of the product’s weight by 10% Answer: B Explanation: The transformation maps engineering parts to manufacturing structures.
Planner Ultimate Exam
Answer: B Explanation: Cycle Time is the sum of operation times; reducing an operation’s estimate lowers the cycle time. Question 33. When creating a product flow, which element defines the entry point of a part into the manufacturing system? A) Exit Station B) Start Cell C) Input Station D) Loading Dock Answer: C Explanation: The Input Station marks where the part first enters the line. Question 34. What is the purpose of “Work Instruction Authoring” within the Process Planner? A) To generate financial reports for the production line B) To create step-by-step guidance for operators, integrating text, images, and 3D views C) To model the aerodynamic properties of a part D) To schedule maintenance for equipment Answer: B Explanation: Authoring produces clear, actionable instructions for shop-floor staff. Question 35. Which of the following best describes a “phantom assembly” in the context of MBOM? A) An assembly that is manufactured but not tracked in the system B) An assembly used purely for grouping and routing, without physical representation C) An assembly that is automatically generated from a simulation D) An assembly that is only used for quality inspection Answer: B Explanation: Phantom assemblies serve as logical groupings for process planning, not as physical builds.
Planner Ultimate Exam
Question 36. In the 3DEXPERIENCE platform, which feature allows users to see real-time status of operations across the manufacturing line? A) Dashboard Widget B) Gantt Chart View C) Activity Log D) Resource Calendar Answer: B Explanation: The Gantt Chart visualizes operation start/end times and current status. Question 37. Which of the following is NOT a typical attribute of a “Resource” in the PPR model? A) Capacity B) Skill Level C) Color D) Availability Calendar Answer: C Explanation: Color is not a functional attribute for resources; capacity, skill level, and availability are. Question 38. What does the “Scope Definition” step ensure when building an MBOM? A) That all suppliers are listed in the BOM B) That the manufactured item references the correct engineering design revision C) That the cost of each component is minimized D) That the product meets environmental regulations Answer: B Explanation: Scope Definition links the MBOM to the appropriate engineering data. Question 39. Which of the following best represents a “Process Tile Sequence” in the Process Planner?
Planner Ultimate Exam
Explanation: Reassigning operations changes workload distribution, affecting utilization. Question 43. Which of the following is a key output of the “Product Flow Definition” activity? A) A financial profit-and-loss statement B) A mapped sequence of stations and cells that a part follows through the line C) A list of required raw materials D) A set of marketing slogans Answer: B Explanation: Product Flow Definition creates the physical routing of the part. Question 44. What is the primary function of a “Kit” in a manufacturing process? A) To store finished goods for shipping B) To group components that are consumed together in a specific operation C) To serve as a backup for lost parts D) To define the color scheme of the product Answer: B Explanation: Kits bundle parts needed simultaneously for a process step. Question 45. Which of the following best describes “Accountability Check” using B.I. Essentials? A) Verifying that all cost centers are correctly allocated B) Ensuring every engineering component appears in the MBOM hierarchy C) Confirming that all resources have valid certifications D) Checking that the product meets regulatory standards Answer: B Explanation: B.I. Essentials color-coding highlights missing engineering components. Question 46. In the 3DEXPERIENCE platform, what does the “Dashboard” primarily provide?
Planner Ultimate Exam
A) Real-time visualizations of key performance indicators, such as line utilization and work order status B) A list of all CAD files in the system C) A detailed schematic of the electrical wiring of the plant D) A tool for editing 3D geometry directly Answer: A Explanation: Dashboards aggregate and display KPI data for quick monitoring. Question 47. Which of the following is an example of a “Time constraint” in a manufacturing operation? A) Operation must start after the previous operation finishes B) Operation cannot exceed 30 seconds in duration C) Operation requires a specific machine type D) Operation must be performed by a certified operator Answer: B Explanation: Time constraints set max/min durations for an operation. Question 48. When defining a “Process Tile”, which piece of information is mandatory? A) The cost of the tile B) The list of operations included in the tile C) The color of the tile on the UI D) The name of the supplier for the tile’s components Answer: B Explanation: A Process Tile must contain the operations it groups. Question 49. In line balancing, what does “shuffle” refer to? A) Randomly assigning operations to stations B) Systematically moving operations between stations to improve balance C) Changing the order of stations on the physical floor D) Reordering the BOM hierarchy Answer: B
Planner Ultimate Exam
C) To store documentation files only D) To list suppliers for a component Answer: B Explanation: Manufactured Items correspond to tangible parts produced during manufacturing. Question 54. Which lifecycle transition automatically creates a snapshot of the current MBOM for future reference? A) Private → In Work B) In Work → Frozen C) Frozen → Released D) Released → Archived Answer: C Explanation: Moving an MBOM to the Released state triggers a snapshot, preserving the exact configuration used for production. Question 55. In the 3DEXPERIENCE platform, the “Collaborative Space” icon is colored: A) Blue when the space is shared, gray when private B) Green when the space contains released data, red when it contains errors C) Yellow when the space is in In Work, orange when Frozen D) Purple for engineering spaces, orange for manufacturing spaces Answer: A Explanation: The platform uses blue to indicate a shared space and gray for a private, unshared workspace. Question 56. Which of the following best describes a “Resource Group” in the PPR model? A) A collection of human resources with the same skill level B) A set of machines that share the same capacity and capabilities C) A logical container that aggregates multiple resource types for scheduling purposes D) A list of suppliers for a particular component Answer: C
Planner Ultimate Exam
Explanation: Resource Groups allow planners to treat heterogeneous resources as a single scheduling entity. Question 57. When linking an engineering part to a manufactured item, the relationship type used is: A) “Consumes” B) “Produces” C) “References” D) “Aggregates” Answer: C Explanation: The MBOM “References” the engineering part to maintain traceability without duplicating geometry. Question 58. In the Process Planner, a “Station” can contain: A) Only one operation at a time B) Multiple operations that can be performed in parallel or sequence C) Only human resources, never machines D) Only phantom assemblies, not real parts Answer: B Explanation: Stations are flexible containers for one or more operations, which may be sequenced or executed concurrently. Question 59. Which attribute is NOT part of an operation’s definition in the Process Planner? A) Cycle Time B) Pre-condition C) Material Color D) Required Resource Answer: C Explanation: Material color is a visual attribute, not a functional operation parameter. Question 60. The “Capacity Constraint” of a machine is expressed in:
Planner Ultimate Exam
D) Resource Allocation Matrix Answer: C Explanation: The Line Balancing Simulation Panel updates utilization and bottleneck data in real time when operations are re-assigned. Question 64. The “Takt Time” for a product is calculated by: A) Dividing total available production minutes per shift by the daily demand quantity B) Multiplying the cycle time of the bottleneck operation by the number of stations C) Adding all operation times and dividing by the number of workers D) Subtracting planned downtime from total shift time Answer: A Explanation: Takt Time aligns production rate with customer demand by dividing available time by required units. Question 65. In the Manufacturing System hierarchy, a “Line” is primarily defined by: A) The geographic location of the factory B) The sequence of stations that a part follows from start to finish C) The type of material being processed D) The number of employees assigned to the area Answer: B Explanation: A line represents the ordered flow of stations through which a part travels. Question 66. Which of the following is NOT a valid reason to create a “Kit” in an MBOM? A) To simplify material handling by grouping parts that are picked together B) To reduce the number of operations needed on the shop floor C) To represent a final assembled product for shipping D) To provide a logical container for parts consumed in a single operation Answer: C
Planner Ultimate Exam
