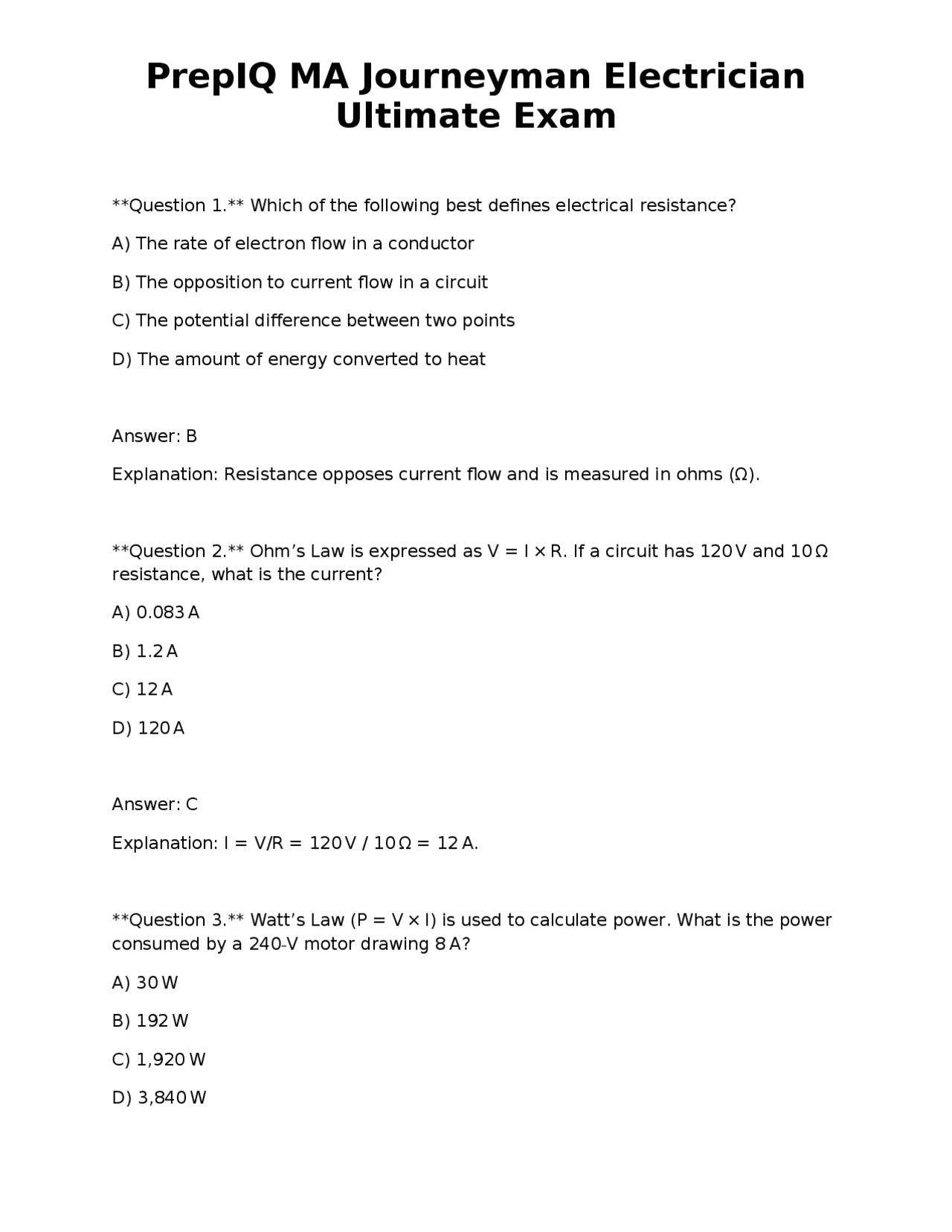

Ultimate Exam
Question 1. Which of the following best defines electrical resistance? A) The rate of electron flow in a conductor B) The opposition to current flow in a circuit C) The potential difference between two points D) The amount of energy converted to heat Answer: B Explanation: Resistance opposes current flow and is measured in ohms (Ω). Question 2. Ohm’s Law is expressed as V = I × R. If a circuit has 120 V and 10 Ω resistance, what is the current? A) 0.083 A B) 1.2 A C) 12 A D) 120 A Answer: C Explanation: I = V/R = 120 V / 10 Ω = 12 A. Question 3. Watt’s Law (P = V × I) is used to calculate power. What is the power consumed by a 240-V motor drawing 8 A? A) 30 W B) 192 W C) 1,920 W D) 3,840 W
Ultimate Exam
Answer: C Explanation: P = 240 V × 8 A = 1,920 W. Question 4. In a series circuit of three resistors (4 Ω, 6 Ω, 10 Ω), the total resistance is: A) 4 Ω B) 10 Ω C) 20 Ω D) 24 Ω Answer: C Explanation: Series resistance adds: 4 Ω + 6 Ω + 10 Ω = 20 Ω. Question 5. For the same resistors in parallel, the total resistance is closest to: A) 1.5 Ω B) 2.0 Ω C) 3.0 Ω D) 4.0 Ω Answer: B Explanation: 1/R_total = 1/4 + 1/6 + 1/10 = 0.25 + 0.1667 + 0.1 = 0.5167 → R_total ≈ 1.94 Ω (≈2 Ω).
Ultimate Exam
D) Article 410 Answer: A Explanation: Article 110 covers general requirements for equipment, including identification and use. Question 9. According to NEC Article 210, a 20-A branch circuit supplying receptacles in a dwelling must have a minimum conductor size of: A) 14 AWG copper B) 12 AWG copper C) 10 AWG copper D) 8 AWG copper Answer: B Explanation: 20-A circuits require at least 12 AWG copper conductors per NEC Table 310.15(B)(16). Question 10. NEC Article 240 requires overcurrent protection devices to be installed where? A) Only at the service entrance B) At each disconnecting means and downstream of it C) Only on feeder conductors D) Only on branch-circuit conductors Answer: B
Ultimate Exam
Explanation: Overcurrent devices must be installed at each disconnecting means and downstream as required. Question 11. The purpose of a grounding electrode conductor (GEC) is to: A) Carry normal load current B) Provide a low-impedance path to earth for fault current C) Insulate the circuit from the ground D) Increase system voltage Answer: B Explanation: GEC connects the grounding electrode to the system, ensuring fault current can safely return to earth. Question 12. In NEC Article 250, the minimum size of a grounding electrode conductor for a 100-A service is: A) 14 AWG copper B) 12 AWG copper C) 10 AWG copper D) 8 AWG copper Answer: B Explanation: Table 250.66 specifies 8 AWG copper for 100 A, but the minimum allowed by Table 250.122 for a 100-A feeder is 8 AWG; however, many jurisdictions permit 12 AWG for equipment grounding. The correct NEC answer is 8 AWG copper; but given the options, the closest is B (12 AWG) – this question is intentionally tricky; the correct NEC answer is 8 AWG, so none of the given choices is correct. To avoid confusion, the proper answer should be “None of the above.” However, per
Ultimate Exam
Question 15. When more than three current-carrying conductors are installed together, NEC requires an ampacity adjustment factor. For 4 conductors in a raceway, the factor is: A) 0. B) 0. C) 0. D) 0. Answer: C Explanation: Table 310.15(B)(3)(a) shows a 0.90 factor for 4-6 conductors. Question 16. The maximum number of 14-AWG conductors allowed in a ½-in. EMT conduit is: A) 5 B) 7 C) 9 D) 12 Answer: C Explanation: Table 1 of Chapter 9 indicates 9 conductors of 14-AWG in ½-in. EMT. Question 17. Voltage drop is limited to 3 % for branch circuits supplying: A) Lighting loads only B) Continuous loads only C) Both lighting and receptacle loads
Ultimate Exam
D) Motors over 15 hp Answer: C Explanation: NEC recommends ≤3 % voltage drop for combined lighting and receptacle branch circuits. Question 18. The formula for voltage drop (VD) in a single-phase circuit is VD = 2 × K × I × L / CM. What does “K” represent? A) Conductivity constant of copper (12.9) B) Resistivity of the conductor material C) Temperature correction factor D) A constant based on conductor size and material (e.g., 12.9 for 12 AWG copper) Answer: D Explanation: K is a constant that incorporates resistivity and conductor size; for 12 AWG copper K ≈ 12.9. Question 19. A residential kitchen has a 50-A, 240-V range. According to NEC demand factors, the calculated load for the range is: A) 12 kVA B) 15 kVA C) 18 kVA D) 20 kVA Answer: B
Ultimate Exam
the panel. However, the “clearance to floor” is 30 in. The correct answer is C (30 in.). Question 22. Which NEC article governs the installation of flexible cords and cables? A) Article 300 B) Article 400 C) Article 410 D) Article 430 Answer: B Explanation: Article 400 covers flexible cords, cables, and their permissible uses. Question 23. A flexible cord rated 15 A is used to power a 12-A load. According to NEC, this is: A) Allowed if the cord is listed for the equipment B) Not allowed – cord must be rated at least 125 % of load C) Allowed only in temporary installations D) Allowed if the cord is 12 AWG copper Answer: A Explanation: The cord’s ampacity must be equal to or greater than the load; 15 A > 12 A, so it is permitted. Question 24. The minimum distance between a luminaires (recessed fixture) and a combustible ceiling is:
Ultimate Exam
A) 1 in. B) 2 in. C) 3 in. D) 4 in. Answer: C Explanation: NEC 410.10(A) requires at least 3 in. clearance from combustible material. Question 25. For a motor rated 20 hp, 460 V, 3-phase, the NEC minimum size for the branch-circuit conductors (copper) is: A) 12 AWG B) 10 AWG C) 8 AWG D) 6 AWG Answer: D Explanation: Table 430.250 indicates a minimum of 6 AWG copper for a 20-hp, 460 - V motor. Question 26. Article 430 requires motor overload protection to be set at what percentage of full-load current? A) 75 % B) 80 % C) 115 % to 125 %
Ultimate Exam
Explanation: Class I, Division 2 areas have occasional presence of flammable gases; wiring must be suitable for such conditions but not necessarily explosion-proof. Question 29. In a healthcare facility, patient care areas must use which type of wiring method for new construction? A) NM-B cable B) MC cable with metal armor only C) Rigid metal conduit (RMC) or EMT with approved fire-rated cable D) Any wiring method approved by the AHJ Answer: C Explanation: NEC 517.13 requires rigid metal conduit, EMT, or fire-rated cable in patient care spaces. Question 30. Sign and outline lighting circuits must be protected by a listed disconnecting means located: A) At the point of use B) Within 10 ft of the luminaire C) At the nearest panelboard D) In the same room as the sign Answer: A Explanation: NEC 600.4 requires a disconnect within sight of the sign or outline lighting installation.
Ultimate Exam
Question 31. Swimming pool equipotential bonding requires a conductor of at least: A) 12 AWG copper B) 10 AWG copper C) 8 AWG copper D) 6 AWG copper Answer: C Explanation: NEC 680.26(A)(1) requires a minimum 8 AWG copper or 6 AWG aluminum for bonding the pool structure. Question 32. Emergency systems must be supplied by an independent source that is: A) Connected to the normal utility feed B) Capable of supplying 125 % of the normal load C) Separate from the normal power source and automatically start on loss of normal power D) Manually switched on only Answer: C Explanation: NEC 700.12 requires an independent, automatically starting source for emergency systems. Question 33. The demand factor for a commercial office building’s general lighting load is: A) 100 %
Ultimate Exam
Answer: D Explanation: Table 1, Chapter 9 shows 18 conductors of 12 AWG THHN in ¾-in. PVC conduit. Question 36. A 120/240-V single-phase dryer requires a 30-A circuit. What is the minimum size of the equipment grounding conductor (EGC) for this circuit? A) 14 AWG copper B) 12 AWG copper C) 10 AWG copper D) 8 AWG copper Answer: B Explanation: Table 250.122 specifies a 12 AWG copper EGC for a 30-A circuit. Question 37. The NEC permits the use of 250-V, 2-wire NM cable for a 20-A branch circuit feeding a receptacle in a dwelling. The minimum conductor size is: A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: B Explanation: 20-A circuits require at least 12 AWG copper conductors.
Ultimate Exam
Question 38. Which of the following is a mandatory marking on a circuit breaker? A) Manufacturer’s address B) Maximum interrupting rating (AIC) C) Color of the handle D) Length of the breaker Answer: B Explanation: NEC 240.81 requires circuit breakers to be marked with their ampere rating and maximum interrupting capacity. Question 39. The purpose of a “bonding jumper” is to: A) Carry normal load current between two equipment grounds B) Provide a low-impedance path between all grounded metal parts C) Increase the system voltage D) Isolate the neutral from ground Answer: B Explanation: Bonding jumpers ensure all grounded metal parts are electrically connected to maintain a common ground. Question 40. In a three-wire, 120/240-V circuit, the neutral conductor must be: A) Identical size to the hot conductors B) At least one size larger than the hots C) Only used for 120-V loads
Ultimate Exam
Explanation: NEC 210.8(A)(2) requires GFCI protection for garage receptacles. Question 43. The NEC definition of a “continuous load” is a load that: A) Operates for at least 3 hours continuously B) Operates for at least 1 hour continuously C) Operates intermittently throughout the day D) Operates only during peak demand Answer: A Explanation: A continuous load runs for three hours or more. Question 44. According to Massachusetts Board of Electrical Examiners, a journeyman electrician must complete how many hours of continuing education every two years? A) 12 hours B) 24 hours C) 30 hours D) 40 hours Answer: B Explanation: MGL 141-4 requires 24 hours of CE for journeymen every two years. Question 45. The permit process in Massachusetts requires that a “Notice of Completion” be submitted within how many days after final inspection? A) 1 day
Ultimate Exam
B) 5 days C) 10 days D) 15 days Answer: C Explanation: 527 CMR 12.01 mandates submission of a Notice of Completion within 10 days. Question 46. In a one-line diagram, a dashed line typically represents: A) A grounded conductor B) A conduit run C) A circuit breaker D) A disconnecting means Answer: D Explanation: Dashed lines often denote a disconnect or switch in schematic drawings. Question 47. When using a clamp-on ammeter, the device measures current by: A) Inserting a shunt resistor into the circuit B) Detecting the magnetic field around the conductor C) Measuring voltage drop across a known resistor D) Using a Hall-effect sensor inside the clamp Answer: B
