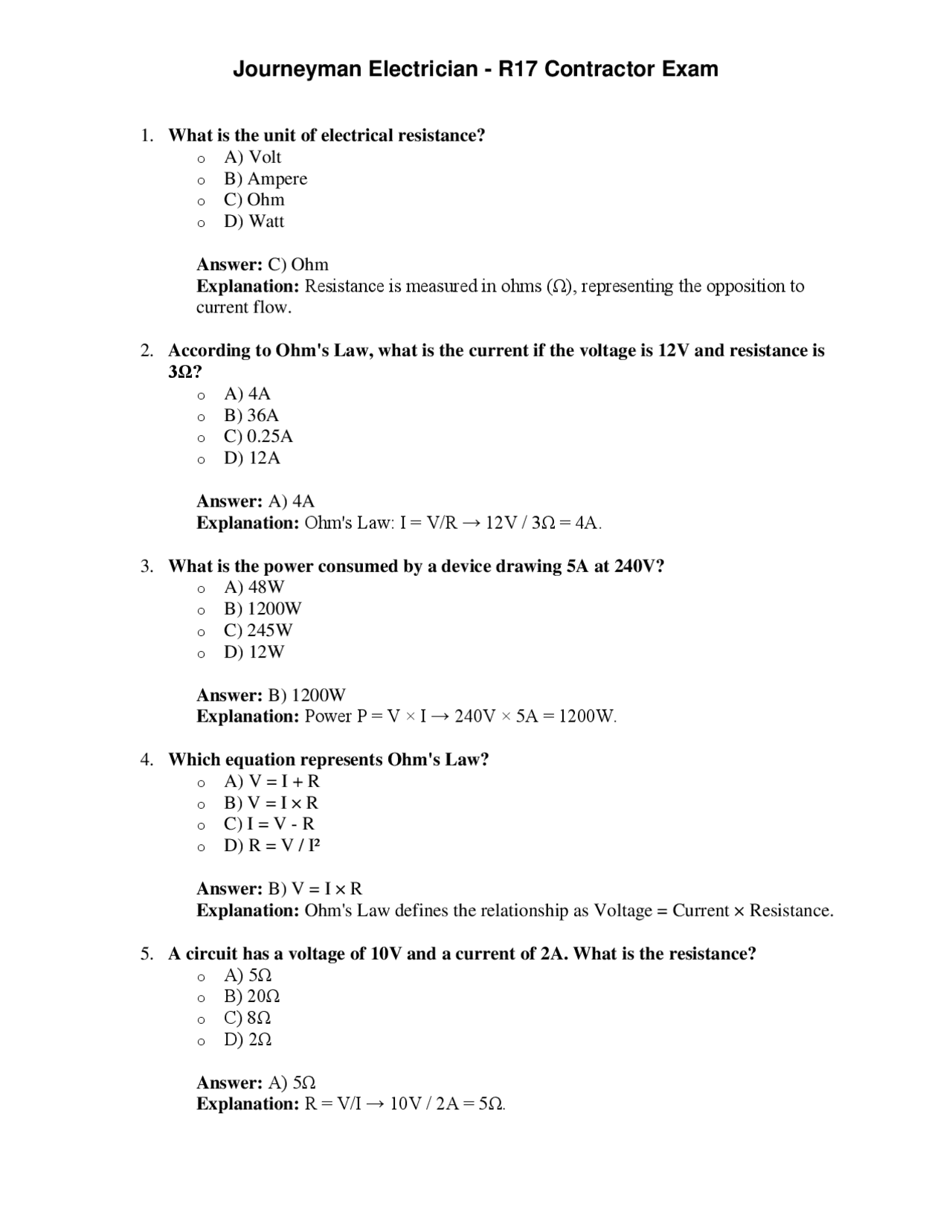

Journeyman Electrician - R17 Contractor Exam

1. What is the unit of electrical resistance?

o A) Volt

o B) Ampere

o C) Ohm

o D) Watt

Answer: C) Ohm

Explanation: Resistance is measured in ohms (Ω), representing the opposition to

current flow.

2. According to Ohm's Law, what is the current if the voltage is 12V and resistance is

3Ω?

o A) 4A

o B) 36A

o C) 0.25A

o D) 12A

Answer: A) 4A

Explanation: Ohm's Law: I = V/R → 12V / 3Ω = 4A.

3. What is the power consumed by a device drawing 5A at 240V?

o A) 48W

o B) 1200W

o C) 245W

o D) 12W

Answer: B) 1200W

Explanation: Power P = V × I → 240V × 5A = 1200W.

4. Which equation represents Ohm's Law?

o A) V = I + R

o B) V = I × R

o C) I = V - R

o D) R = V / I²

Answer: B) V = I × R

Explanation: Ohm's Law defines the relationship as Voltage = Current × Resistance.

5. A circuit has a voltage of 10V and a current of 2A. What is the resistance?

o A) 5Ω

o B) 20Ω

o C) 8Ω

o D) 2Ω

Answer: A) 5Ω

Explanation: R = V/I → 10V / 2A = 5Ω.

Partial preview of the text

Download Journeyman Electrician - R17 Contractor Exam and more Exams Technology in PDF only on Docsity!

What is the unit of electrical resistance? o A) Volt o B) Ampere o C) Ohm o D) Watt Answer: C) Ohm Explanation: Resistance is measured in ohms (Ω), representing the opposition to current flow.
According to Ohm's Law, what is the current if the voltage is 12V and resistance is 3Ω? o A) 4A o B) 36A o C) 0.25A o D) 12A Answer: A) 4A Explanation: Ohm's Law: I = V/R → 12V / 3Ω = 4A.
What is the power consumed by a device drawing 5A at 240V? o A) 48W o B) 1200W o C) 245W o D) 12W Answer: B) 1200W Explanation: Power P = V × I → 240V × 5A = 1200W.
Which equation represents Ohm's Law? o A) V = I + R o B) V = I × R o C) I = V - R o D) R = V / I² Answer: B) V = I × R Explanation: Ohm's Law defines the relationship as Voltage = Current × Resistance.
A circuit has a voltage of 10V and a current of 2A. What is the resistance? o A) 5Ω o B) 20Ω o C) 8Ω o D) 2Ω Answer: A) 5Ω Explanation: R = V/I → 10V / 2A = 5Ω.

If the resistance in a circuit doubles while the voltage remains the same, what happens to the current? o A) It doubles. o B) It halves. o C) It remains the same. o D) It quadruples. Answer: B) It halves. Explanation: I = V/R; doubling R halves I.
What is the unit of electrical power? o A) Joule o B) Watt o C) Coulomb o D) Henry Answer: B) Watt Explanation: Power is measured in watts (W).
A device operates at 120V and consumes 60W of power. What is the current it draws? o A) 0.5A o B) 2A o C) 120A o D) 60A Answer: A) 0.5A Explanation: I = P/V → 60W / 120V = 0.5A.
What does the symbol "I" represent in electrical formulas? o A) Voltage o B) Current o C) Resistance o D) Power Answer: B) Current Explanation: "I" stands for current, measured in amperes.
In a DC circuit, what direction does conventional current flow? o A) From negative to positive. o B) From positive to negative. o C) It alternates direction. o D) It flows in a loop without direction.

Answer: A) Purely real Explanation: Impedance of a resistor has only a real component. Code Definitions and Plan Interpretation

What does NEC Article 100 define? o A) Definitions o B) Wiring methods o C) Grounding requirements o D) Installation standards Answer: A) Definitions Explanation: NEC Article 100 provides definitions for terms used in the code.
In electrical schematics, what does a dashed line typically represent? o A) Physical wiring o B) Conduit o C) Symbolic connection o D) Ground Answer: C) Symbolic connection Explanation: Dashed lines often indicate symbolic or abstract connections.
What symbol represents a ground in a schematic diagram? o A) A horizontal line o B) A vertical line with three descending lines o C) A circle o D) A zigzag line Answer: B) A vertical line with three descending lines Explanation: This is the standard symbol for ground.
Which NEC article covers definitions related to electrical installations? o A) Article 90 o B) Article 100 o C) Article 200 o D) Article 300 Answer: B) Article 100 Explanation: Article 100 contains definitions used throughout the NEC.
When interpreting blueprints, what does a double line typically indicate? o A) Electrical conduit o B) Structural support o C) Ground wire o D) Hidden wiring

Answer: A) Electrical conduit Explanation: Double lines often represent conduits or raceways in blueprints.

What is the purpose of a legend on an electrical blueprint? o A) To provide measurements o B) To list symbols used o C) To show material specifications o D) To detail installation steps Answer: B) To list symbols used Explanation: A legend explains the symbols and abbreviations on the blueprint.
In NEC terminology, what is a "branch circuit"? o A) The main service line o B) Any circuit supplying power to outlets or devices o C) The grounding system o D) A dedicated circuit for appliances Answer: B) Any circuit supplying power to outlets or devices Explanation: Branch circuits distribute power from the service panel to various outlets and devices.
Which tool is essential for reading and interpreting electrical schematics? o A) Multimeter o B) Blueprint reader o C) Scale ruler o D) Schematic symbol guide Answer: D) Schematic symbol guide Explanation: A guide helps in understanding the symbols used in schematics.
What does a single line in a blueprint typically represent? o A) A physical wall o B) A simple wire o C) A conduit o D) A fixture Answer: B) A simple wire Explanation: Single lines often depict wiring between components.
Which NEC article addresses the general requirements for wiring methods? o A) Article 210 o B) Article 300 o C) Article 400 o D) Article 500

Answer: B) Copper Explanation: Copper is preferred for grounding due to its excellent conductivity and corrosion resistance.

Where is the service disconnect typically located? o A) Inside the building o B) Outside the building o C) In the attic o D) In the basement Answer: B) Outside the building Explanation: Service disconnects are usually located outside for easy access during emergencies.
What NEC article covers service equipment? o A) Article 230 o B) Article 240 o C) Article 250 o D) Article 310 Answer: A) Article 230 Explanation: Article 230 addresses requirements for service equipment and installations.
Which grounding electrode is most commonly used for residential services? o A) Ground rod o B) Metal water pipe o C) Concrete-encased electrode o D) All of the above Answer: D) All of the above Explanation: Multiple grounding electrodes can be used, including ground rods, metal water pipes, and concrete-encased electrodes.
What is the maximum size of the service entrance conductors for a 200A service? o A) 4 AWG copper o B) 2 AWG copper o C) 1/0 AWG copper o D) 3/0 AWG copper Answer: C) 1/0 AWG copper Explanation: For a 200A service, 1/0 AWG copper conductors are typically used, subject to specific code requirements.
What type of service entrance conductor is suitable for underground installations? o A) THHN

o B) USE cable o C) NM-B o D) MC cable Answer: B) USE cable Explanation: Underground Service Entrance (USE) cable is designed for direct burial and underground use.

Which device is used to prevent backfeeding from the utility to the grid? o A) Surge protector o B) GFCI o C) Interrupter o D) Main breaker Answer: D) Main breaker Explanation: The main breaker can disconnect power, preventing backfeeding to the utility. Service Calculations
What is the first step in performing a load calculation for a residential service? o A) Determining the square footage o B) Listing all appliances o C) Calculating the demand load o D) Selecting the service size Answer: A) Determining the square footage Explanation: Square footage is used to estimate the basic lighting and receptacle loads.
What is the standard demand factor for the first 300 watts of each appliance in residential load calculations? o A) 100% o B) 75% o C) 50% o D) 25% Answer: A) 100% Explanation: The first 300W of each appliance is calculated at 100% for demand.
For commercial services, which NEC section outlines the load calculation methods? o A) Article 220 o B) Article 230 o C) Article 240 o D) Article 310

In load calculations, what does the term "continuous load" refer to? o A) A load that operates for less than 3 hours o B) A load that operates for more than 3 hours o C) A fluctuating load o D) A starting load Answer: B) A load that operates for more than 3 hours Explanation: Continuous loads run for extended periods and may require derating.
Which NEC table is used to determine the basic lighting load per square foot in residential services? o A) Table 220. o B) Table 310. o C) Table 240. o D) Table 300. Answer: A) Table 220. Explanation: Table 220.12 provides standard lighting loads for residential services.
What is the general rule for sizing service conductors based on calculated load? o A) Use the next higher standard conductor size o B) Use the exact calculated size o C) Use the next lower standard conductor size o D) Always use 4 AWG Answer: A) Use the next higher standard conductor size Explanation: Conductors are sized to the next standard size to ensure safety and compliance. Code Definitions and Plan Interpretation
According to NEC, what is a "grounded conductor"? o A) A conductor intended to carry current o B) A conductor connected to earth ground o C) A conductor that is part of a raceway system o D) A conductor used for communication signals Answer: B) A conductor connected to earth ground Explanation: A grounded conductor is intentionally connected to the earth for safety.
What does "GFCI" stand for in electrical terminology? o A) Ground Fault Circuit Interrupter o B) General Function Current Interrupter o C) Grounded Function Current Indicator

o D) General Fault Current Interrupter Answer: A) Ground Fault Circuit Interrupter Explanation: GFCI devices protect against ground faults by interrupting the circuit.

In electrical plans, what does a circle with an "X" typically represent? o A) Switch o B) Outlet o C) Light fixture o D) Junction box Answer: D) Junction box Explanation: A circle with an "X" often denotes a junction box in plans.
What is the NEC definition of "service conductors"? o A) Conductors running from the service equipment to the grounding electrode o B) Conductors running from the utility to the service equipment o C) Conductors within a raceway o D) Conductors used for branch circuits Answer: B) Conductors running from the utility to the service equipment Explanation: Service conductors connect the utility supply to the service equipment.
How are neutral conductors typically identified in electrical schematics? o A) Black lines o B) Red lines o C) White lines o D) Green lines Answer: C) White lines Explanation: Neutral conductors are usually depicted with white lines in schematics.
What is the purpose of a "bonding jumper" in service equipment? o A) To connect the neutral to the ground o B) To protect against overcurrent o C) To provide a path for current during faults o D) To isolate different circuits Answer: C) To provide a path for current during faults Explanation: Bonding jumpers ensure a reliable path for fault current to facilitate breaker operation.
In plan interpretation, what does a dashed double line indicate? o A) Hidden wiring o B) Conduit pathway o C) Structural element

Answer: A) One Explanation: At least one grounding electrode is required, though more may be needed based on conditions.

Which material is commonly used for service entrance conductors in residential applications? o A) Aluminum o B) Copper o C) Both A and B o D) Steel Answer: C) Both A and B Explanation: Both aluminum and copper are commonly used for service entrance conductors, depending on the application.
What type of meter is used to measure the total electrical consumption of a building? o A) Voltmeter o B) Ammeter o C) Wattmeter o D) Energy meter Answer: D) Energy meter Explanation: An energy meter records total electrical usage for billing and monitoring.
Where should the main service disconnect be located according to NEC? o A) Within sight of the service point o B) Inside the building o C) In the basement o D) On the roof Answer: A) Within sight of the service point Explanation: The main disconnect must be accessible and visible from where the service enters the building.
What is the purpose of an overcurrent protection device? o A) To regulate voltage levels o B) To interrupt excessive current o C) To measure current flow o D) To store electrical energy Answer: B) To interrupt excessive current Explanation: Overcurrent devices prevent damage by interrupting current that exceeds safe levels.

Which NEC article specifies requirements for service equipment? o A) Article 220 o B) Article 230 o C) Article 240 o D) Article 250 Answer: B) Article 230 Explanation: Article 230 covers specifications for service equipment installations.
What is the typical maximum voltage drop allowed for feeders and branch circuits? o A) 1% o B) 3% o C) 5% o D) 10% Answer: C) 5% Explanation: A maximum of 5% voltage drop is generally recommended to ensure efficient operation.
Which component connects the service entrance conductors to the grounding electrode? o A) Main breaker o B) Bonding jumper o C) Neutral bar o D) Ground bus Answer: B) Bonding jumper Explanation: A bonding jumper connects service conductors to the grounding electrode system.
What is the function of a meter socket? o A) To house the energy meter o B) To protect the service panel o C) To connect grounding conductors o D) To distribute branch circuits Answer: A) To house the energy meter Explanation: The meter socket holds the utility's energy meter.
In service equipment, what color is typically used for the grounding bus? o A) Black o B) Red o C) White o D) Green or bare

If a residential service has a total load of 100 kW, what is the minimum service size according to NEC? o A) 200A o B) 400A o C) 600A o D) 800A Answer: B) 400A Explanation: 100 kW typically requires a 400A service, based on standard NEC load calculations.
Which NEC table is used to determine the load of fixed appliances? o A) Table 220. o B) Table 220. o C) Table 220. o D) Table 220. Answer: A) Table 220. Explanation: Table 220.55 provides load values for fixed appliances and other specific uses.
When sizing a service, which factor accounts for future expansion? o A) Diversity factor o B) Demand factor o C) Load factor o D) Safety factor Answer: D) Safety factor Explanation: A safety factor is included to accommodate potential future load increases.
What is the minimum conductor size for a 100A service according to NEC? o A) 6 AWG copper o B) 4 AWG aluminum o C) 3 AWG copper o D) 2 AWG aluminum Answer: B) 4 AWG aluminum Explanation: For a 100A service, 4 AWG aluminum conductors are typically the minimum size.
Which NEC section provides guidelines for service load calculations? o A) Section 210. o B) Section 230. o C) Section 220. o D) Section 240.

Answer: C) Section 220. Explanation: Section 220.12 outlines basic load calculations for services.

What is the term for the reduction in conductor size based on ambient temperature? o A) Derating o B) Upsizing o C) Overcurrent protection o D) Phase balancing Answer: A) Derating Explanation: Derating adjusts conductor sizes based on environmental factors like temperature. Electrical Theory and Calculations
What is the relationship between power, voltage, and resistance in a circuit? o A) P = V² / R o B) P = R / V² o C) P = V / R² o D) P = R × V Answer: A) P = V² / R Explanation: Power can be calculated as voltage squared divided by resistance.
In a series circuit, how does the total resistance compare to individual resistances? o A) Total resistance is the sum of individual resistances o B) Total resistance is the product of individual resistances o C) Total resistance is the average of individual resistances o D) Total resistance is less than any individual resistance Answer: A) Total resistance is the sum of individual resistances Explanation: In series, resistances add up to form the total resistance.
What type of current flows in only one direction? o A) Alternating Current (AC) o B) Direct Current (DC) o C) Pulsating Current o D) Ripple Current Answer: B) Direct Current (DC) Explanation: DC flows steadily in one direction, unlike AC which alternates.
Which component stores electrical energy in a magnetic field? o A) Capacitor

In a three-phase system, how many conductors are typically used? o A) Two o B) Three o C) Four o D) Five Answer: C) Four Explanation: A typical three-phase system uses three conductors for phases and one neutral.
What is the power factor of a purely resistive load? o A) 0 o B) 0. o C) 1 o D) - 1 Answer: C) 1 Explanation: A purely resistive load has a power factor of 1, meaning voltage and current are in phase.
What type of load has both resistive and reactive components? o A) Purely resistive o B) Purely inductive o C) Purely capacitive o D) Inductive-resistive Answer: D) Inductive-resistive Explanation: Inductive-resistive loads combine both resistance and inductance.
What is the function of a capacitor in an electrical circuit? o A) To store electrical energy o B) To increase resistance o C) To convert AC to DC o D) To provide a path for current Answer: A) To store electrical energy Explanation: Capacitors store energy in an electric field, useful for filtering and energy storage.
What is the total capacitance of two 10μF capacitors connected in parallel? o A) 5μF o B) 10μF o C) 20μF o D) 100μF

Answer: C) 20μF Explanation: In parallel, capacitances add: 10μF + 10μF = 20μF.

In a purely capacitive circuit, how does the current relate to the voltage? o A) Current leads voltage by 90 degrees o B) Current lags voltage by 90 degrees o C) Current and voltage are in phase o D) There is no current Answer: A) Current leads voltage by 90 degrees Explanation: In capacitive circuits, current leads voltage by 90 degrees.
What is the primary difference between a conductor and an insulator? o A) Conductors allow current flow; insulators do not o B) Insulators allow current flow; conductors do not o C) Conductors have higher resistance than insulators o D) Insulators have higher conductivity than conductors Answer: A) Conductors allow current flow; insulators do not Explanation: Conductors facilitate the flow of electric current, whereas insulators resist it.
What is the primary unit of electrical energy? o A) Watt o B) Ampere o C) Volt o D) Joule Answer: D) Joule Explanation: Electrical energy is measured in joules (J).
What component is used to limit current in a circuit? o A) Capacitor o B) Inductor o C) Resistor o D) Transformer Answer: C) Resistor Explanation: Resistors limit current flow by providing resistance.
What is the term for the opposition to current flow in an AC circuit? o A) Resistance o B) Reactance o C) Impedance o D) Conductance
