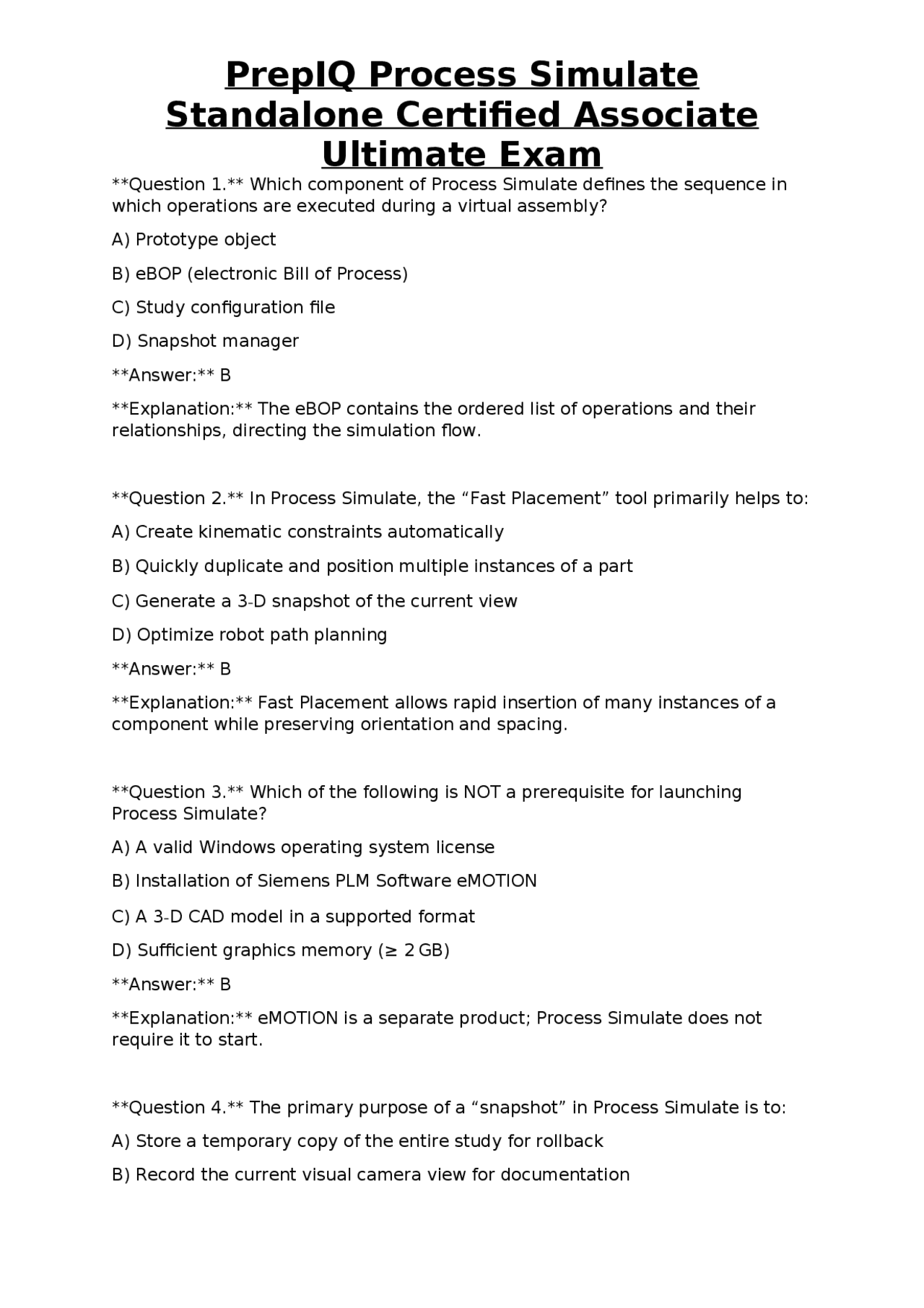

Question 1. Which component of Process Simulate defines the sequence in which operations are executed during a virtual assembly? A) Prototype object B) eBOP (electronic Bill of Process) C) Study configuration file D) Snapshot manager Answer: B Explanation: The eBOP contains the ordered list of operations and their relationships, directing the simulation flow. Question 2. In Process Simulate, the “Fast Placement” tool primarily helps to: A) Create kinematic constraints automatically B) Quickly duplicate and position multiple instances of a part C) Generate a 3-D snapshot of the current view D) Optimize robot path planning Answer: B Explanation: Fast Placement allows rapid insertion of many instances of a component while preserving orientation and spacing. Question 3. Which of the following is NOT a prerequisite for launching Process Simulate? A) A valid Windows operating system license B) Installation of Siemens PLM Software eMOTION C) A 3-D CAD model in a supported format D) Sufficient graphics memory (≥ 2 GB) Answer: B Explanation: eMOTION is a separate product; Process Simulate does not require it to start. Question 4. The primary purpose of a “snapshot” in Process Simulate is to: A) Store a temporary copy of the entire study for rollback B) Record the current visual camera view for documentation
Standalone Certified Associate
Ultimate Exam
C) Capture the kinematic state of a component at a specific time D) Generate a printable bill of materials Answer: B Explanation: Snapshots save the viewport image, useful for reporting and presentations. Question 5. When creating a new study, which object type represents a reusable definition of a part that can be instantiated multiple times? A) Instance B) Prototype C) Device D) Marker Answer: B Explanation: Prototypes are master definitions; Instances are placed copies of those prototypes. Question 6. Which viewer pane allows you to modify the graphical settings such as background color and lighting? A) Object Tree B) Properties Window C) Viewer Options dialog D) Timeline Panel Answer: C Explanation: Viewer Options provide control over visual appearance, including background and lighting. Question 7. The “Relocate” command in the placement manipulator is used to: A) Change the coordinate system of a component B) Return a moved object to its original position C) Align two parts using their datum points D) Duplicate an object at a new location
Standalone Certified Associate
Ultimate Exam
Question 11. Which operation type is used to simulate the flow of parts through a conveyor without any physical interaction? A) Object Flow B) Pick and Place Pick and Place D) Weld Answer: A Explanation: Object Flow creates a virtual stream of parts moving along defined paths, representing conveyors or feeders. Question 12. When validating a simulation, a “static collision” indicates: A) Two parts intersect while both are stationary B) A moving part collides with a fixed fixture C) A robot exceeds its joint limits D) An object exceeds its defined clearance zone Answer: A Explanation: Static collisions occur when stationary objects occupy overlapping space. Question 13. The “Movie Manager” in Process Simulate is primarily used for: A) Editing CAD geometry B) Recording and exporting simulation animations C) Generating CNC code D) Managing robot libraries Answer: B Explanation: Movie Manager captures simulation playback and creates video files for presentations. Question 14. Which of the following best describes a “compound operation” in Process Simulate? A) An operation that combines multiple simple operations into one logical unit
Standalone Certified Associate
Ultimate Exam
B) A robotic path that includes both welding and painting C) A sequence that runs in parallel with other sequences D) An operation that only uses generic devices Answer: A Explanation: Compound operations group several actions (e.g., pick, move, place) as a single step. Question 15. To avoid robot collisions while planning a path, you can add: A) Via locations B) Snapshots C) Markups D) Sections Answer: A Explanation: Via points force the robot to pass through intermediate positions, steering clear of obstacles. Question 16. In spot-welding simulation, the “part-in-tool” configuration means: A) The weld gun is attached to a robot end-effector B) The workpiece is clamped inside a dedicated welding fixture C) The welding electrode is embedded within the part itself D) The weld is performed on a moving conveyor Answer: B Explanation: Part-in-tool indicates the workpiece is held inside a welding tool or fixture during welding. Question 17. Which robotic path attribute defines the speed at which the robot moves along a trajectory? A) Acceleration profile B) Orientation vector C) Motion type (joint/linear) D) Feedrate
Standalone Certified Associate
Ultimate Exam
Question 21. Which of the following is NOT a valid method for creating geometry directly inside Process Simulate? A) Sketching 2-D profiles and extruding them B) Importing a STEP file C) Using the “Create Primitive” tool D) Drawing free-form surfaces with NURBS editor Answer: B Explanation: Importing STEP is an external import, not a native geometry creation method. Question 22. The “Object Flow” operation can be configured to: A) Change part orientation automatically as it moves B) Generate a weld seam automatically C) Control robot joint limits D) Create a human grasp animation Answer: A Explanation: Object Flow allows orientation changes (e.g., rotation) along the flow path. Question 23. When defining a “prismatic joint” for a linear actuator, which parameter specifies the maximum travel distance? A) Stroke length B) Pitch angle C) Rotation limit D) Torque rating Answer: A Explanation: Stroke length defines how far the joint can translate linearly. Question 24. In Process Simulate, a “section” is primarily used to: A) Divide the study into separate files
Standalone Certified Associate
Ultimate Exam
B) Create a cut-away view for measurement or inspection C) Group multiple operations into a macro D) Assign a material to a component Answer: B Explanation: Sections generate planar cuts that reveal internal geometry for analysis. Question 25. Which of the following best describes “dynamic collision” detection? A) Collision detection performed only at the start of the simulation B) Real-time detection while parts are moving C) Checking for interference after the simulation ends D) Detecting only robot-to-robot collisions Answer: B Explanation: Dynamic collisions are identified during motion, ensuring moving parts do not intersect. Question 26. The “Device” operation type in Process Simulate is used to: A) Simulate a robot’s movement B) Represent a non-simulated resource such as a fixture or tool C) Create a weld seam automatically D) Model a human operator’s hand motion Answer: B Explanation: Device operations stand for equipment that does not have a simulated motion but is part of the process. Question 27. Which setting controls the level of detail displayed for a robot’s model in the viewer? A) LOD (Level of Detail) slider B) Display mode – “Wireframe” vs “Shaded” C) Geometry fidelity option in Preferences D) All of the above
Standalone Certified Associate
Ultimate Exam
Question 31. Which command creates a visual annotation that can be attached to a specific part or location? A) Markup B) Snapshot C) Section D) Instance Answer: A Explanation: Markups are notes or symbols linked to geometry for documentation. Question 32. When setting up a “continuous feature” operation, you must specify: A) The number of parts to be processed B) The start and end points of the feature path C) The robot’s joint limits D) The human operator’s shift schedule Answer: B Explanation: Continuous features (e.g., welding, painting) need a defined start and end along a path. Question 33. Which of the following best describes the “Generic Robotic” operation type? A) A pre-configured robot with fixed kinematics B) An operation that uses a user-defined robot model and path C) A robot that only performs pick-and-place tasks D) A robot that automatically adapts to any geometry Answer: B Explanation: Generic Robotic operations allow users to import custom robot definitions and create bespoke paths. Question 34. A “swept volume” in robot path planning is used to:
Standalone Certified Associate
Ultimate Exam
A) Visualize the area a robot’s tool will occupy throughout its motion B) Generate a 2-D drawing of the robot’s footprint C) Calculate the robot’s energy consumption D) Define the robot’s maintenance schedule Answer: A Explanation: Swept volume shows the spatial envelope of a moving tool, helping to detect potential interferences. Question 35. In Process Simulate, the “Event” object is used to: A) Trigger a change in simulation state at a specific simulation time or condition B) Store geometry data for later use C) Define the visual style of the viewport D) Create a new study template Answer: A Explanation: Events enable conditional actions (e.g., start a new operation when a part reaches a location). Question 36. Which of the following is NOT a typical attribute of a “human operation” created with the Task Simulation Builder? A) Duration B) Tool used C) Joint torque limits D) Posture constraints Answer: C Explanation: Joint torque limits pertain to robots, not human operation definitions. Question 37. When importing a component with multiple bodies, Process Simulate treats each body as: A) Separate prototypes automatically B) A single instance with sub-components C) A merged solid that cannot be edited individually
Standalone Certified Associate
Ultimate Exam
Explanation: Kinematic functions describe how a motion parameter varies over time or distance. Question 41. Which of the following is a valid reason to use a “section” view during a validation study? A) To reduce simulation run time B) To inspect internal component clearance without moving parts C) To automatically generate a bill of materials D) To change the robot’s TCP Answer: B Explanation: Sections expose interior geometry, allowing verification of clearances. Question 42. The “Presentation Mode” in Process Simulate is primarily intended for: A) Editing geometry B) Running the simulation in a full-screen, simplified UI for stakeholder viewing C) Exporting CNC code D) Configuring robot safety zones Answer: B Explanation: Presentation Mode hides toolbars and focuses on the visual playback. Question 43. When defining a robot’s “via location,” you must also specify: A) The robot’s payload limit at that point B) The orientation (Euler angles or quaternion) of the TCP C) The type of welding gun attached D) The human operator’s hand posture Answer: B Explanation: Via points need both position and orientation to guide the robot correctly.
Standalone Certified Associate
Ultimate Exam
Question 44. Which of the following best describes a “rail” kinematic in Process Simulate? A) A rotational joint around a fixed axis B) A linear motion constrained to a predefined track C) A 6-DOF free-space movement D) A static fixture with no motion Answer: B Explanation: Rail kinematics restrict movement to a straight or curved guide. Question 45. In ergonomic analysis, the “Vision Window” tool helps to: A) Simulate the field of view of a human operator B) Calculate robot vision sensor coverage C) Create virtual reality headsets D) Generate heat maps of part wear Answer: A Explanation: Vision Window defines what a human can see, aiding layout and safety assessments. Question 46. Which of the following is a benefit of using “Compound” operations over individual simple operations? A) Reduced simulation accuracy B) Simplified sequencing and easier modification of grouped steps C) Automatic generation of CNC code D) Elimination of collision detection Answer: B Explanation: Compound operations bundle several steps, making the sequence cleaner and changes easier. Question 47. The “Cyclic Event Evaluator” can be configured to fire an event every: A) 10 seconds of simulation time B) 5th part processed
Standalone Certified Associate
Ultimate Exam
Explanation: Instances are placed copies; modifications to an instance do not alter the original prototype. Question 51. In Process Simulate, a “continuous feature” operation is typically used for: A) Spot welding only B) Processes that require a continuous motion, such as welding, painting, or sealing C) Discrete pick-and-place tasks D) Human ergonomic analysis Answer: B Explanation: Continuous features represent operations that follow a continuous path. Question 52. Which parameter defines the “clearance zone” around a robot to prevent collisions? A) Safety distance B) TCP offset C) Joint limit offset D) Grip strength Answer: A Explanation: Safety distance sets a buffer around the robot’s moving parts. Question 53. The “Object Flow” operation can be configured to: A) Change part color dynamically B) Trigger an event when a part reaches a specified location C) Adjust robot joint limits automatically D) Generate a human posture report Answer: B Explanation: Object Flow can fire events based on part position, enabling synchronization.
Standalone Certified Associate
Ultimate Exam
Question 54. Which of the following best explains the purpose of a “motion parameter file” (MPF)? A) Stores robot joint limits and speed profiles for reuse across studies B) Contains 2-D drawings of the assembly C) Holds ergonomic assessment metrics D) Defines the lighting setup for the viewer Answer: A Explanation: MPFs encapsulate motion data such as speeds, accelerations, and limits for devices. Question 55. When defining a “prismatic” rail for a gantry system, you should also specify: A) The rail’s curvature radius B) The drive motor’s torque curve C) The maximum travel distance (stroke) D) The robot’s TCP orientation Answer: C Explanation: Stroke indicates the total linear travel allowed for the rail. Question 56. Which of the following is NOT a valid method to capture a “picture” in Process Simulate? A) Using the Snapshot tool B) Exporting a view as a PNG file C) Rendering a high-resolution image via the Render dialog D) Recording a video clip with the Movie Manager Answer: D Explanation: Recording a video creates a movie, not a single picture. Question 57. In a “Pick and Place” simulation, the “approach vector” defines: A) The direction the robot’s TCP moves toward the part before grasping B) The robot’s base rotation axis
Standalone Certified Associate
Ultimate Exam
Explanation: Paint gun parameters affect coverage and quality, thus must be specified. Question 61. Which of the following best describes the “Presentation Mode” shortcut key (default) in Process Simulate? A) F B) Ctrl + P C) Alt + Enter D) Shift + F Answer: C Explanation: Alt + Enter toggles Presentation Mode, providing a clean full-screen view. Question 62. The “Collision Detection” settings allow you to choose between: A) Bounding-box and mesh-based detection B) 2-D and 3-D detection only C) Real-time and post-process only D) None of the above Answer: A Explanation: Users can select a faster bounding-box method or a precise mesh-based method. Question 63. In robotic path planning, a “linear interpolation” between two points results in: A) A curved spline path B) A straight-line trajectory in Cartesian space C) A joint-space only motion D) No motion; the robot stays idle Answer: B Explanation: Linear interpolation creates a direct straight line between start and end positions.
Standalone Certified Associate
Ultimate Exam
Question 64. Which of the following is a key benefit of using “Fast Placement” for large assemblies? A) Automatic generation of robot programs B) Drastic reduction in manual placement time for repetitive components C) Real-time ergonomic analysis during placement D) Automatic collision detection while placing Answer: B Explanation: Fast Placement speeds up the insertion of many identical parts. Question 65. The “Markups” tool can attach which type of information to a part? A) Text notes, arrows, and callout symbols B) CNC G-code C) Robot joint limits D) Human posture data Answer: A Explanation: Markups are visual annotations such as text and symbols. Question 66. When defining a “robotic material handling” path, which attribute is essential for the gripper? A) Gripper opening width B) Robot’s joint torque limit C) Conveyor belt speed D) Human operator’s fatigue level Answer: A Explanation: The opening width determines whether the gripper can grasp the target part. Question 67. In Process Simulate, the “Event” type “Start” is used to: A) Initiate the simulation automatically when the study is opened B) Begin a specific operation at a defined simulation time or condition
