Similar to the Teamcenter version but focused on the standalone environment. The exam covers robot programming, 3D simulation, human ergonomics analysis, collision detection, PLC validation concepts, and layout modeling. Users demonstrate their ability to build and optimize virtual production scenarios without PLM-managed data.
Typology: Exams
1 / 95
This page cannot be seen from the preview
Don't miss anything!

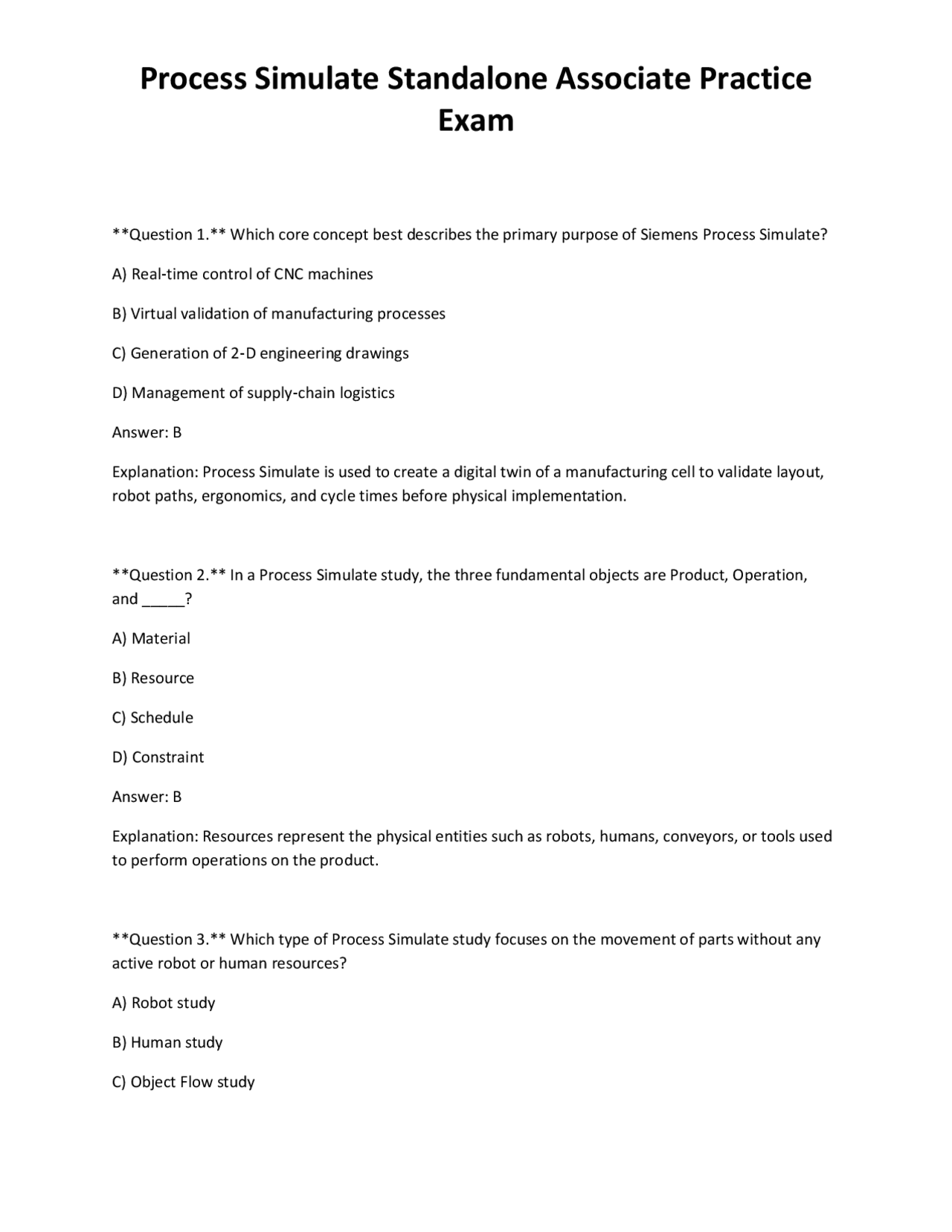

Question 1. Which core concept best describes the primary purpose of Siemens Process Simulate? A) Real‑time control of CNC machines B) Virtual validation of manufacturing processes C) Generation of 2‑D engineering drawings D) Management of supply‑chain logistics Answer: B Explanation: Process Simulate is used to create a digital twin of a manufacturing cell to validate layout, robot paths, ergonomics, and cycle times before physical implementation. Question 2. In a Process Simulate study, the three fundamental objects are Product, Operation, and _____? A) Material B) Resource C) Schedule D) Constraint Answer: B Explanation: Resources represent the physical entities such as robots, humans, conveyors, or tools used to perform operations on the product. Question 3. Which type of Process Simulate study focuses on the movement of parts without any active robot or human resources? A) Robot study B) Human study C) Object Flow study
D) Tool‑path study Answer: C Explanation: Object Flow studies model the passive transport of components through conveyors, feeders, and buffers. Question 4. The pane that displays the hierarchical structure of parts, operations, and resources is called the: A) Graphic Viewer B) Object Tree C) Property Window D) Simulation Log Answer: B Explanation: The Object Tree provides a tree‑like view of all model elements, allowing selection and organization. Question 5. To change the shading mode of the 3‑D view, which toolbar icon should you use? A) Zoom Extents B) Shading Settings C) Pan Tool D) Measure Tool Answer: B Explanation: The Shading Settings icon lets you switch between wireframe, flat, and realistic shading for better visualization.
Explanation: The three modes (Disabled, Simple, Detailed) control the level of collision checking performed during simulation. Question 9. Which measurement tool would you use to obtain the distance between two points in the 3‑D environment? A) Angle Measure B) Path Length C) Linear Measure D) Volume Calculator Answer: C Explanation: The Linear Measure tool directly provides the straight‑line distance between two selected points. Question 10. When linking a product to a plant in a Process Simulate study, you are defining the: A) Simulation speed B) Process structure hierarchy C) Collision tolerance D) Rendering quality Answer: B Explanation: Linking establishes the relationship between the product’s parts and the plant’s resources, forming the process hierarchy. Question 11. In the Object Tree, which node typically contains the sequence of operations for a robotic cell? A) Resources
B) Operations C) Parts D) Settings Answer: B Explanation: The Operations node holds individual steps such as pick, place, and weld that the robot will execute. Question 12. To import external CAD geometry into Process Simulate, you would use which file format most commonly? A) .dwg B) .stl C) .x_t (Parasolid) D) .pdf Answer: C Explanation: The Parasolid (.x_t) format preserves solid geometry and is the preferred import format for Process Simulate. Question 13. A “frame” in Process Simulate is primarily used to: A) Store simulation results B) Define a local coordinate system for positioning objects C) Control robot speed D) Generate reports Answer: B
B) Manually record robot positions at key waypoints. C) Analyze cycle time. D) Export robot programs to PLCs. Answer: B Explanation: Teaching allows the user to define specific robot positions by moving the robot to desired locations and saving them as waypoints. Question 17. Which parameter directly influences the robot’s acceleration profile during simulation? A) Tool weight B) Joint limit C) Speed setting D) Acceleration setting Answer: D Explanation: The acceleration setting defines how quickly the robot reaches its programmed speed, affecting motion dynamics and cycle time. Question 18. Swept volume analysis in Process Simulate is primarily used to: A) Calculate the material cost of a part. B) Visualize the space occupied by a moving robot or tool over time. C) Measure the length of a conveyor belt. D) Define the color of a part. Answer: B
Explanation: Swept volume shows the 3‑D envelope traversed by a moving object, helping detect potential interferences. Question 19. Interference zones are useful for: A) Defining safe distance buffers around resources. B) Setting robot joint limits. C) Adjusting lighting in the viewer. D) Exporting simulation data. Answer: A Explanation: Interference zones create virtual safety boundaries that trigger warnings when other objects enter them. Question 20. In multi‑robot coordination, “interlocking” refers to: A) Sharing the same tool between robots. B) Synchronizing robot motions to avoid collisions. C) Locking robot joints during maintenance. D) Exporting robot programs to a common PLC. Answer: B Explanation: Interlocking ensures that robots operate in a coordinated manner, preventing them from occupying the same space simultaneously. Question 21. Which human model scaling option would you use to represent a worker who is 5 % taller than the default model? A) Small
Question 24. Which analysis tool provides a visual representation of a human’s line‑of‑sight to a target? A) Reach Check B) Vision Analysis C) Cycle Time Analyzer D) Collision Detector Answer: B Explanation: Vision analysis determines whether a human model can see a specific point or component, important for ergonomics. Question 25. In object‑flow simulation, a “buffer” is used to: A) Store robot programs. B) Temporarily hold parts before they continue downstream. C) Increase robot speed. D) Render high‑resolution graphics. Answer: B Explanation: Buffers act as storage zones that accumulate parts when downstream capacity is limited. Question 26. To define a conveyor path for part flow, you must create which of the following? A) Robot joint trajectory B) Linear trajectory object C) Human reach target
D) Collision zone Answer: B Explanation: A linear trajectory (or conveyor path) guides parts along a defined route through the virtual factory. Question 27. The Sequence Editor is primarily used to: A) Edit CAD geometry. B) Arrange the order and timing of operations. C) Adjust lighting in the viewer. D) Export simulation movies. Answer: B Explanation: The Sequence Editor allows users to set start times, durations, and dependencies between different simulation steps. Question 28. Which event type can be used to trigger a robot operation when a part reaches a specific location? A) Timer Event B) Part‑Arrival Event C) User‑Defined Script D) Temperature Event Answer: B Explanation: A Part‑Arrival Event detects when a part enters a defined zone and can start a linked operation.
Answer: A Explanation: The Movie Manager creates video files (commonly MP4 or AVI) for documentation and review. Question 32. Which report type provides detailed information about each collision that occurred during a run? A) Cycle‑Time Report B) Collision Report C) Resource Utilization Report D) Energy Consumption Report Answer: B Explanation: The Collision Report lists all detected interferences, including involved objects and timestamps. Question 33. To simulate the use of a hand tool by a human model, you must: A) Attach the tool to the robot end‑effector. B) Define the tool as a resource and assign it to the human operation. C) Increase the simulation speed. D) Enable VR mode. Answer: B Explanation: Hand tools are modeled as resources that can be linked to human tasks for realistic interaction. Question 34. Which of the following is NOT a valid method to customize the Graphic Viewer background?
A) Changing the skybox texture. B) Selecting a solid color. C) Importing a 3‑D model as background. D) Adjusting the ambient light intensity. Answer: C Explanation: The background can be a color or skybox; importing a full 3‑D model as a background is not supported. Question 35. When performing a Reach Check for a human, the result “Out of Reach” indicates: A) The part is too heavy for the robot. B) The target lies outside the human’s ergonomic envelope. C) The simulation file is corrupted. D) The collision detection is disabled. Answer: B Explanation: “Out of Reach” means the defined target cannot be accessed by the human model given its current posture and dimensions. Question 36. Which parameter is essential to define when creating a robot’s end‑effector (tool) in Process Simulate? A) Color of the robot body. B) Tool weight and center of mass. C) PLC IP address. D) Human model height. Answer: B
B) Map operations to specific resources. C) Define the lighting conditions. D) Export the model to a PLC. Answer: B Explanation: The Process Structure connects each operation with the appropriate resource (robot, human, conveyor) within the plant. Question 40. To reduce simulation run time, which setting is most effective? A) Increase the number of collision checks. B) Lower the graphics quality. C) Add more detailed geometry. D) Enable VR mode. Answer: B Explanation: Reducing graphics quality lessens rendering load, speeding up simulation without affecting core calculations. Question 41. Which of the following is a valid way to edit a robot’s joint limits? A) Through the Resource Properties dialog under “Joint Limits”. B) By modifying the part’s color. C) Using the Measure tool. D) Changing the simulation speed. Answer: A Explanation: Joint limits are defined in the robot resource’s properties, specifying the allowable range for each axis.
Question 42. The “Jog” function in robot path creation allows the user to: A) Automatically generate an optimal path. B) Manually move the robot incrementally to a new position. C) Export the path to a PLC. D) Change the robot’s payload. Answer: B Explanation: Jogging lets the user nudge the robot stepwise, useful for fine‑tuning waypoint locations. Question 43. In human ergonomics, the “MTM” standard is used to: A) Calculate robot cycle time. B) Quantify manual task motions for efficiency analysis. C) Define conveyor belt speeds. D) Set PLC communication protocols. Answer: B Explanation: Methods‑Time‑Measurement (MTM) provides a systematic way to evaluate manual operations based on motion elements. Question 44. Which of the following actions will trigger a “Cycle‑Time” update in the simulation? A) Changing the background color. B) Modifying the speed attribute of a robot operation. C) Adding a new view angle. D) Saving the study.
A) mm/s B) rpm C) m/s for linear speed and deg/s for joint speed D) km/h Answer: C Explanation: Linear motions use meters per second, while joint motions use degrees per second. Question 48. The “Sweep” visualization for a robot path shows: A) The robot’s programming code. B) The volume occupied by the robot as it moves along its trajectory. C) The color gradient of the robot’s surface. D) The timeline of the simulation. Answer: B Explanation: Swept volume illustrates the spatial envelope of the robot’s motion, useful for interference detection. Question 49. In Process Simulate, a “Resource Group” is used to: A) Combine multiple identical resources for batch processing. B) Store simulation logs. C) Define a PLC communication channel. D) Change the background theme. Answer: A
Explanation: Resource Groups allow the user to treat several identical resources (e.g., multiple robots) as a single logical entity. Question 50. To simulate a part being painted, which resource type would you most likely use? A) Robot with a spray‑tool attached. B) Human with a brush. C) Object Flow conveyor. D) Static geometry. Answer: A Explanation: Painting is typically modeled as a robot operation using a spray‑tool resource to represent the process. Question 51. Which of the following actions will NOT affect the outcome of a Reach Check for a robot? A) Changing the robot’s payload. B) Modifying the target location. C) Adjusting the robot’s joint limits. D) Changing the background color. Answer: D Explanation: Visual settings like background color have no impact on kinematic calculations. Question 52. The “Collision Tolerance” setting determines: A) How far objects can be from each other before a collision is reported. B) The maximum payload of a robot.
