2023 Practice Exam

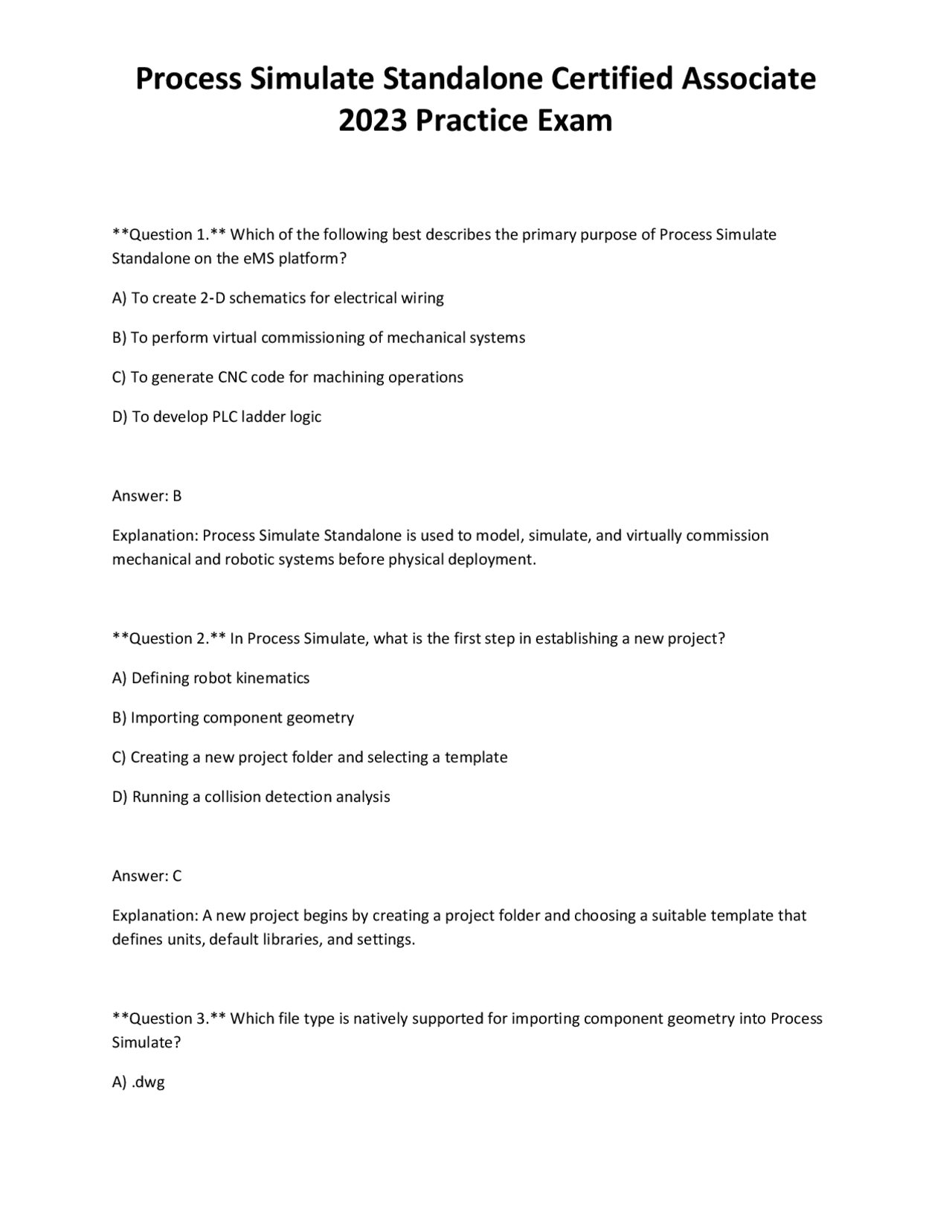

Question 1. Which of the following best describes the primary purpose of Process Simulate Standalone on the eMS platform? A) To create 2‑D schematics for electrical wiring B) To perform virtual commissioning of mechanical systems C) To generate CNC code for machining operations D) To develop PLC ladder logic Answer: B Explanation: Process Simulate Standalone is used to model, simulate, and virtually commission mechanical and robotic systems before physical deployment. Question 2. In Process Simulate, what is the first step in establishing a new project? A) Defining robot kinematics B) Importing component geometry C) Creating a new project folder and selecting a template D) Running a collision detection analysis Answer: C Explanation: A new project begins by creating a project folder and choosing a suitable template that defines units, default libraries, and settings. Question 3. Which file type is natively supported for importing component geometry into Process Simulate? A) .dwg
2023 Practice Exam
B) .stl C) .pdf D) .xls Answer: B Explanation: Process Simulate can directly import STL files, which contain triangulated surface data for 3 ‑D components. Question 4. The “Placement” tool in the Process Simulate UI is primarily used for: A) Defining robot kinematics B) Assigning material properties to parts C) Positioning components in the 3‑D scene D) Generating simulation reports Answer: C Explanation: The Placement tool allows users to move, rotate, and align components within the virtual environment. Question 5. When navigating the 3‑D view, which mouse combination provides a “Zoom” function? A) Left‑click drag B) Middle‑click drag C) Right‑click drag D) Scroll wheel
2023 Practice Exam
Explanation: A prismatic joint provides linear translation, ideal for conveyor motion. Question 8. Advanced robot kinematics in Process Simulate can be imported through which file format? A) .csv B) .xml (Kinematics file) C) .docx D) .png Answer: B Explanation: Robot kinematics can be imported using an XML‑based motion parameter file that defines axes, limits, and payload. Question 9. Which tool is used to generate a “swept volume” for a moving component? A) Section Cutter B) Interference Zone Builder C) Swept Volume Generator D) Collision Detector Answer: C Explanation: The Swept Volume Generator creates a volume that represents the space occupied by a component throughout its motion. Question 10. In Process Simulate, a “clearance assessment” primarily checks for:
2023 Practice Exam
A) Electrical wiring continuity B) Minimum distance between moving parts C) Material cost estimation D) Robot programming syntax Answer: B Explanation: Clearance assessment evaluates the minimum spacing between components to avoid collisions during operation. Question 11. Which of the following actions creates a visual “snapshot” for documentation? A) Using the Movie Manager to record a video B) Pressing the “Snapshot” button in the toolbar C) Exporting the project as a PDF D) Running a collision analysis Answer: B Explanation: The Snapshot button captures the current view as an image for reports or presentations. Question 12. The “Presentation Mode” in Process Simulate is used to: A) Run real‑time robot control B) Display a clean, annotation‑free view for stakeholders C) Edit component geometry D) Generate PLC code
2023 Practice Exam
Question 15. The “Task Simulation Builder (TSB)” in Process Simulate primarily assists with: A) Generating robot joint trajectories B) Creating detailed human task sequences and postures C) Importing CAD geometry D) Defining sensor logic Answer: B Explanation: TSB provides a workflow to build human tasks, assign durations, and capture posture data. Question 16. Which feature allows automatic capture of hand motion during a human operation? A) Motion Capture Integration B) Kinematic Solver C) Collision Detector D) Sweep Volume Tool Answer: A Explanation: Motion Capture Integration records real hand movements and maps them onto the virtual human model. Question 17. An ergonomic report in Process Simulate can provide which of the following metrics? A) Robot cycle time only B) RULA, REBA scores, and cycle time
2023 Practice Exam
C) Electrical power consumption D) Material cost Answer: B Explanation: Ergonomic reports include posture assessment scores (e.g., RULA, REBA) and cycle time analysis. Question 18. Which tool is used to define a “spot welding gun” for robot path simulation? A) Tool Library → Spot Welding Gun B) Collision Detector → Gun Definition C) Motion Parameters → Welding Tool D) Sensor Builder → Welding Sensor Answer: A Explanation: The Tool Library contains predefined spot welding guns that can be attached to robot end‑effectors. Question 19. In robotic spot welding simulation, “part‑in‑tool” refers to: A) The robot’s base plate B) The welding gun being attached to the robot C) The workpiece being held by a fixture on the robot D) The power supply unit
2023 Practice Exam
Question 22. Adding a “via location” to a robot path primarily helps to: A) Increase robot speed B) Avoid collisions with obstacles or other robots C) Reduce tool wear D) Change welding current Answer: B Explanation: Via points act as intermediate waypoints that guide the robot around obstacles, improving safety. Question 23. In multi‑robot simulations, “location attributes” are used to: A) Define the color of each robot B) Synchronize start times only C) Control interlocking zones where robots must not occupy simultaneously D) Set the robot’s IP address Answer: C Explanation: Location attributes create exclusive zones that prevent two robots from being in the same space at the same time. Question 24. Which of the following is a basic element of event‑based simulation (CEE) in Process Simulate? A) PLC ladder logic editor B) Sensor block that detects part presence
2023 Practice Exam
C) 3‑D rendering engine D) CNC post‑processor Answer: B Explanation: Sensors are core components that generate events (e.g., part arrival) in event‑based simulations. Question 25. Smart components in Process Simulate are primarily used to: A) Store large CAD files B) Provide pre‑configured logic such as counters, timers, and conditional actions C) Render realistic textures D) Generate CNC toolpaths Answer: B Explanation: Smart components encapsulate common automation functions, simplifying the creation of event‑driven behavior. Question 26. When linking a conveyor to a sensor in an event‑based simulation, the sensor’s output typically triggers: A) A robot’s power‑off command B) The start/stop of the conveyor motion C) The opening of a door in the UI D) A change in the background color
2023 Practice Exam
Question 29. Which of the following is NOT a typical output format for simulation results in Process Simulate? A) MP4 video B) CSV report C. STL geometry file D. PDF documentation Answer: C Explanation: STL files are used for geometry import/export, not for reporting simulation results. Question 30. The “Movie Manager” in Process Simulate is used to: A) Edit 3‑D geometry B) Compile and export animation sequences as video files C) Generate robot joint tables D) Create PLC code Answer: B Explanation: Movie Manager assembles captured frames and snapshots into a video for presentations. Question 31. Which of the following robot kinematic definitions would you use to model a 6‑axis articulated robot? A) Prismatic only B) Revolute joints for each axis
2023 Practice Exam
C) Spherical joint for the base D. Linear rail only Answer: B Explanation: An articulated robot typically consists of six revolute joints, each representing a rotational axis. Question 32. When importing a component, the “Scale” option is most often required because: A) The CAD file may use different units than the Process Simulate project B) It changes the component’s material properties C. It adds texture to the model D. It improves collision detection speed Answer: A Explanation: CAD files may be authored in millimeters, inches, etc.; scaling aligns them with the project’s unit system. Question 33. The “Section Cutting” tool is primarily used to: A) Create cross‑sectional views for inspection of internal geometry B. Cut parts into smaller pieces for machining C. Define robot end‑effector geometry D. Generate weld seams
2023 Practice Exam
Question 36. Which statement best describes “offline programming (OLP)” in the context of Process Simulate? A) Writing PLC code directly on the shop floor B. Creating robot programs in a virtual environment before uploading to the robot controller C. Programming CNC machines without simulation D. Using hand‑held teach pendants for live teaching Answer: B Explanation: OLP involves developing, testing, and optimizing robot paths offline, then transferring the program to the controller. Question 37. When simulating a robotic arc welding process, which additional parameter must be specified compared to spot welding? A) Welding current waveform and travel speed B. Number of weld points only C. Gripper opening width D. Conveyor belt speed Answer: A Explanation: Arc welding requires continuous parameters such as current waveform, voltage, and travel speed to model the weld pool. Question 38. The “servo gun” option in spot welding simulation is used for: A. Providing high‑speed linear motion of the welding electrode
2023 Practice Exam
B. Simulating pneumatic actuation only C. Defining a static welding point D. Controlling conveyor speed Answer: A Explanation: Servo guns allow precise, high‑speed positioning of the welding electrode, essential for high‑throughput welding simulations. Question 39. Which of the following is a key benefit of using “interference zones” in Process Simulate? A. They reduce the file size of the project B. They visually highlight areas where components may collide during motion C. They automatically generate robot code D. They change the material of the part Answer: B Explanation: Interference zones are visual cues that represent potential collision volumes, aiding in safety analysis. Question 40. In human simulation, the “duration” assigned to an operation is used to: A. Determine the robot’s payload B. Calculate the overall cycle time and ergonomic impact C. Set the texture of the human model D. Define the color of the workstation
2023 Practice Exam
Question 43. The “via” feature in robot path planning is most similar to which concept in CNC machining? A. Tool change B. G‑code “G0 rapid move” C. “G1 linear interpolation” D. “G5 spline” Answer: B Explanation: Via points act as rapid repositioning waypoints, akin to rapid moves (G0) that reposition the tool without cutting. Question 44. In event‑based simulation, a “logic block” can be used to: A. Render realistic lighting B. Perform Boolean operations on sensor signals (e.g., AND, OR) C. Export geometry to STL D. Generate a 3‑D printed model Answer: B Explanation: Logic blocks process Boolean expressions, combining sensor outputs to drive actions. Question 45. Which component would you use to simulate a “photo‑electric sensor” detecting a part on a conveyor? A. Smart Component → Photo‑electric Sensor
2023 Practice Exam
B. Robot Kinematics → Sensor C. Material Library → Photo‑sensor D. Motion Parameter → Detector Answer: A Explanation: The Smart Component library includes predefined photo‑electric sensors for event simulation. Question 46. When configuring a “conveyor,” which parameter determines the speed at which parts are moved? A. Belt width B. Conveyor speed (m/s) C. Material type D. Color Answer: B Explanation: Conveyor speed directly controls the transport rate of parts along the belt. Question 47. In Process Simulate, the “fixture” component is primarily used to: A. Simulate welding currents B. Secure parts in a fixed location for operations like machining or inspection C. Generate robot joint tables D. Create 2‑D drawings
