Aimed at professionals using Process Simulate in a standalone configuration, this exam tests the ability to simulate and validate manufacturing processes. Candidates will be assessed on their knowledge of modeling complex processes, testing assembly lines, and evaluating system performance without the need for additional PLM integration. The focus is on process optimization, error reduction, and process validation.
Typology: Exams
1 / 77
This page cannot be seen from the preview
Don't miss anything!

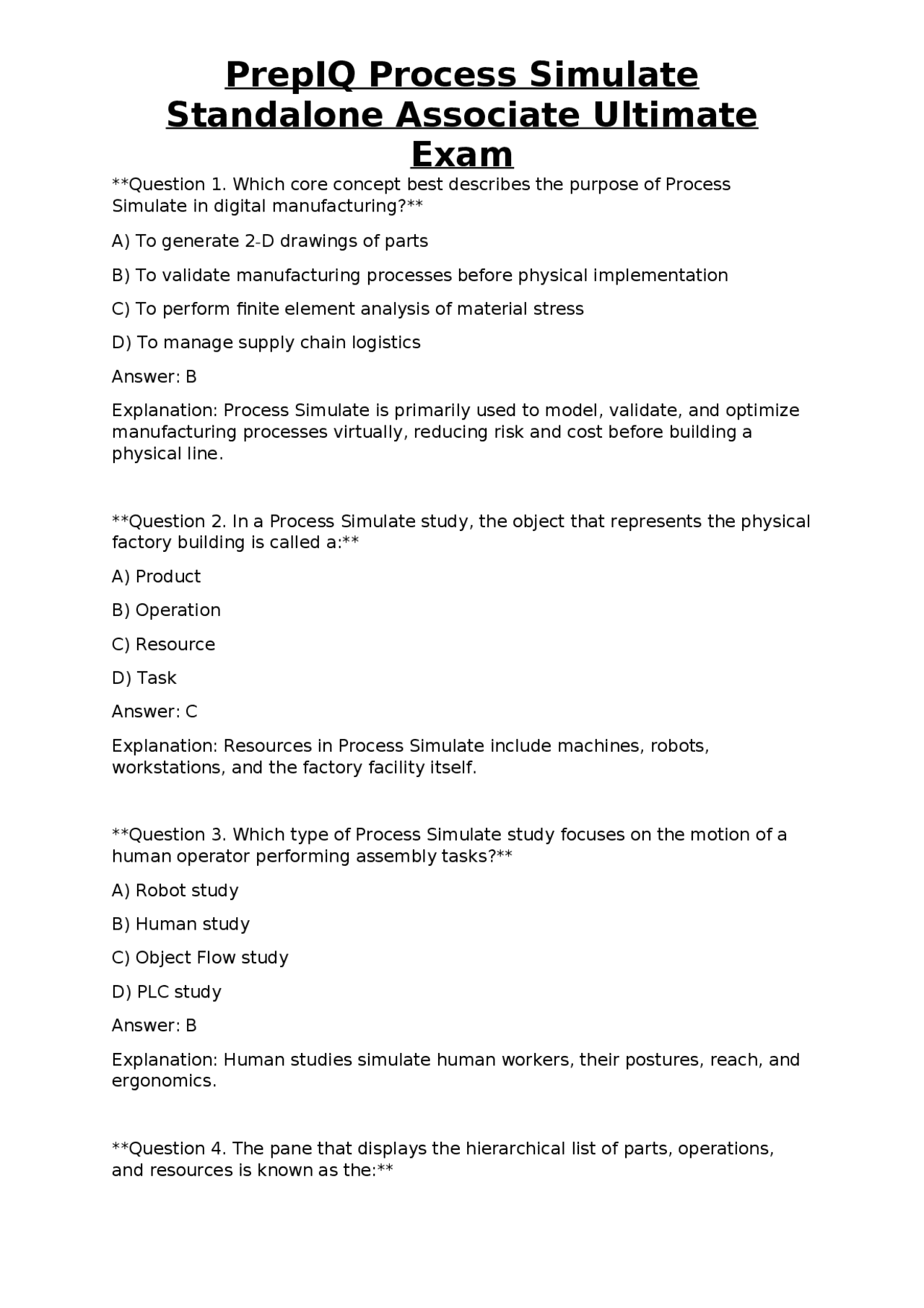

Question 1. Which core concept best describes the purpose of Process Simulate in digital manufacturing? A) To generate 2-D drawings of parts B) To validate manufacturing processes before physical implementation C) To perform finite element analysis of material stress D) To manage supply chain logistics Answer: B Explanation: Process Simulate is primarily used to model, validate, and optimize manufacturing processes virtually, reducing risk and cost before building a physical line. Question 2. In a Process Simulate study, the object that represents the physical factory building is called a: A) Product B) Operation C) Resource D) Task Answer: C Explanation: Resources in Process Simulate include machines, robots, workstations, and the factory facility itself. Question 3. Which type of Process Simulate study focuses on the motion of a human operator performing assembly tasks? A) Robot study B) Human study C) Object Flow study D) PLC study Answer: B Explanation: Human studies simulate human workers, their postures, reach, and ergonomics. Question 4. The pane that displays the hierarchical list of parts, operations, and resources is known as the:
A) Graphic Viewer B) Object Tree C) Property Window D) Command Bar Answer: B Explanation: The Object Tree pane shows the hierarchy and allows selection and organization of study elements. Question 5. Which toolbar button would you use to change the shading mode of the 3D model? A) Pan B) Zoom C) Shading D) Measure Answer: C Explanation: The Shading button toggles between wireframe, solid, and realistic shading for better visualization. Question 6. To save a new Process Simulate study, you should use the command: A) File → Export B) File → Open C) File → Save As D) Edit → Copy Answer: C Explanation: “Save As” creates a new file and stores the current study. Question 7. The Placement toolbox is primarily used for: A) Defining robot joint limits B) Positioning parts and resources in the virtual plant C) Generating collision reports D) Editing PLC logic
Question 11. When importing part geometry, which file format is most commonly supported? A) .docx B) .stl C) .xlsx D) .mp Answer: B Explanation: STL files contain triangulated surface data and are widely used for 3D geometry import. Question 12. A “frame” in Process Simulate is used to: A) Store simulation results B) Define a local coordinate system for positioning objects C) Create a video of the simulation D) Generate a bill of materials Answer: B Explanation: Frames provide reference points and orientation for parts, tools, or robot bases. Question 13. Reach Check for a robot evaluates: A) The robot’s payload capacity only B) Whether the robot can physically reach a target point without violating joint limits C) The speed of the robot’s motion D) The color of the robot model Answer: B Explanation: Reach Check confirms that a target is within the robot’s reachable workspace respecting its kinematics. Question 14. To create a robotic operation, you must first add a: A) Human resource
B) Conveyor belt C) Robot resource D) PLC block Answer: C Explanation: A robot resource defines the hardware that will perform the operation. Question 15. Joint motion of a robot is defined in terms of: A) Cartesian coordinates (X, Y, Z) B) Linear speed only C) Rotational angles of each robot axis D) Temperature of the joints Answer: C Explanation: Joint motion specifies the angular position of each robot axis, independent of the end-effector’s Cartesian position. Question 16. Which tool allows you to “teach” a robot a new path by manually moving it in the simulation? A) Jogging tool B) Collision detector C) Sweep volume generator D) PLC editor Answer: A Explanation: Jogging lets you manually guide the robot to record waypoints for a teaching path. Question 17. Path optimization in Process Simulate often reduces: A) The number of parts in the product B) The robot’s payload C) Cycle time and unnecessary motions D) The size of the 3D model file Answer: C
Question 21. When defining a human operation, the “reach target” represents: A) The maximum force the worker can apply B) The specific point the worker must touch or manipulate C) The worker’s visual field D) The time it takes to complete the task Answer: B Explanation: Reach targets are points in space that the human model must reach during the operation. Question 22. A basic ergonomic assessment in Process Simulate may reference which standard? A) ISO 9001 B) NIOSH lifting guidelines C) IEC 61850 D) ANSI Z Answer: B Explanation: NIOSH provides guidelines for safe lifting and manual material handling, often used for ergonomic checks. Question 23. The Human Reach Check tool evaluates: A) Whether a worker can see a target point B) The time required for a worker to move between two points C) If a target point is within the worker’s reachable envelope D) The temperature of the work area Answer: C Explanation: Reach Check determines if a human can physically reach a specified location. Question 24. Cycle time analysis for a human operation primarily measures: A) The robot’s joint speed B) The duration the worker spends performing the task
C) The number of parts produced per hour D) The simulation frame rate Answer: B Explanation: Human cycle time quantifies how long a worker needs to complete the assigned operation. Question 25. In object flow simulation, a “buffer” is used to: A) Store PLC code B) Temporarily hold parts before the next operation C) Increase robot speed D) Change part color Answer: B Explanation: Buffers act as storage locations that hold parts until downstream resources are ready. Question 26. To define a conveyor path for object flow, you must specify: A) Robot joint limits B) Conveyor speed, start point, and end point C) Human posture data D) PLC scan time Answer: B Explanation: Conveyor definition includes its motion parameters and spatial endpoints. Question 27. The Sequence Editor in Process Simulate is used to: A) Edit 3-D geometry of parts B) Arrange the order and timing of operations in a study C) Create new robot models D) Generate PDF reports Answer: B Explanation: Sequence Editor manages the chronological execution of robot, human, and object flow operations.
A) Report Generator B) Movie Manager C) Data Logger D) Export Wizard Answer: B Explanation: Movie Manager records the simulation playback and saves it as a video file. Question 32. To export a collision report, you would use which command? A) File → Export → Collision Report B) Tools → Collision → Generate Report C) Report → Collision Summary D) Simulation → Export → PDF Answer: B Explanation: The Collision tool generates a detailed report of all detected interferences. Question 33. Which virtual reality feature in Process Simulate enables a user to walk through the plant model? A) Walk-through mode B) VR headset integration C) 2-D schematic view D) Text-only mode Answer: B Explanation: VR integration allows immersive navigation of the 3-D environment using a headset. Question 34. When linking a product to a plant, the term “plant” refers to: A) The electrical wiring diagram B) The virtual representation of the manufacturing floor, including machines and conveyors C) The list of raw material suppliers
D) The software license server Answer: B Explanation: The plant model contains all resources and layout needed to simulate manufacturing. Question 35. Which of the following is NOT a typical resource type in Process Simulate? A) Robot B) Human C) Conveyor D) Spreadsheet Answer: D Explanation: Resources are physical entities like robots, humans, or conveyors; spreadsheets are data files, not resources. Question 36. The “Joint Limit” setting in a robot definition controls: A) The maximum payload the robot can lift B) The allowable angular range for each robot axis C) The robot’s color in the viewer D) The communication protocol with the PLC Answer: B Explanation: Joint limits define the minimum and maximum angles each joint can achieve. Question 37. Which analysis tool would you use to verify that a robot’s end-effector does not intersect a workpiece during motion? A) Reach Check B) Sweep Volume Check C) Vision Analysis D) Human Ergonomics Answer: B
Question 41. The “Measure Angle” tool is most useful for checking: A) The distance between two parts B) The angle between two surfaces or lines, such as robot joint orientation C) The volume of a part D) The simulation runtime Answer: B Explanation: Angle measurement computes angular relationships between selected geometry. Question 42. Which file extension is commonly used for saving a Process Simulate study? A) .psim B) .simx C) .prc D) .pst Answer: A Explanation: Process Simulate studies are saved with the .psim extension. Question 43. When a robot’s “TCP” (Tool Center Point) is defined incorrectly, the most likely result is: A) Faster simulation playback B) Incorrect part placement or collision detection errors C) Increased PLC communication speed D) No effect on the simulation Answer: B Explanation: TCP defines the exact point of the tool; an error leads to inaccurate positioning and possible collisions. Question 44. In the Object Flow editor, the “Feeder” component is used to: A) Simulate a human picking a part B) Supply parts onto a conveyor or into a workcell automatically C) Control robot joint speeds
D) Generate collision reports Answer: B Explanation: Feeders introduce parts into the system, often onto conveyors or directly into stations. Question 45. Which parameter determines the “cycle time” for a robotic operation? A) Robot payload capacity B) Number of joints in the robot C) The duration of the robot’s motion from start to end of the operation, including dwell times D) The color of the robot model Answer: C Explanation: Cycle time is the total time taken for the robot to complete its programmed motion and any pauses. Question 46. To simulate a hand tool being used by a human, you would: A) Add a robot resource with a gripper B) Attach a tool object to the human model’s hand and define a tool use operation C) Use the collision detector only D) Modify the PLC code Answer: B Explanation: Hand tools are modeled as objects linked to the human avatar, with specific operations describing their use. Question 47. What does the “Export to PLC” function generate? A) A 3-D model of the plant B) PLC code (e.g., IEC 61131-3) that replicates the simulated sequence for real hardware execution C) A PDF report of collisions D) An Excel spreadsheet of cycle times Answer: B
Explanation: Vision analysis evaluates line-of-sight and field-of-view for the human model. Question 51. The term “interference zone” in robot simulation refers to: A) The robot’s programming language B) A predefined safety area where robots must not enter simultaneously C) The robot’s maximum payload region D) The color palette of the simulation Answer: B Explanation: Interference zones are safety buffers used to prevent robots from colliding when their workspaces overlap. Question 52. When configuring a conveyor, the “speed” parameter is expressed in: A) Degrees per second B) Millimeters per minute (or meters per second) C) Kilograms per hour D) Bits per second Answer: B Explanation: Conveyor speed defines linear movement of parts, typically in mm/min or m/s. Question 53. A “buffer” capacity of 5 parts means: A) The buffer can hold up to 5 parts simultaneously before downstream resources are ready B) The buffer will only accept 5 different part types C) The buffer will operate for 5 seconds D) The buffer will always contain exactly 5 parts Answer: A Explanation: Buffer capacity limits the number of parts stored at any given time.
Question 54. Which of the following actions is NOT possible in the Sequence Editor? A) Changing the order of operations B. Editing the geometry of a part C) Adding a delay between two operations D. Linking an event to start an operation Answer: B Explanation: Geometry editing is performed outside the Sequence Editor; the editor only manages timing and order. Question 55. In Process Simulate, the “PLC Scan Time” setting primarily affects: A) The visual rendering quality B) The frequency at which the simulated PLC reads inputs and updates outputs, influencing real-time simulation fidelity C) The size of the exported STL files D) The robot’s joint limits Answer: B Explanation: Scan time defines the PLC’s execution cycle, impacting the timing of control actions. Question 56. To view a simulation from a fixed camera angle without user interaction, you would: A) Use the Walk-through mode B) Create a camera viewpoint and enable “Lock Camera” in Presentation Mode C) Change the shading to wireframe D) Increase the simulation speed Answer: B Explanation: Locking a predefined camera viewpoint provides a consistent, non-interactive view. Question 57. Which of the following is a typical output of the “Cycle Time Report”?
D. Create a video of the entire simulation Answer: A Explanation: Export Image captures a still picture of the viewport. Question 61. When a human resource is assigned a “task time” of 3 seconds, this value represents: A) The time the PLC takes to process the task B) The simulated duration the worker spends performing the operation C) The robot’s acceleration rate D. The buffer capacity for that task Answer: B Explanation: Task time defines how long the human operation lasts in the simulation. Question 62. Which of the following best describes a “virtual fixture” in robot simulation? A) A physical part used for testing B) A software-defined constraint that limits robot motion to a safe region C) The robot’s TCP definition D. The lighting setup in the viewer Answer: B Explanation: Virtual fixtures are constraints that guide or restrict robot motion for safety or precision. Question 63. The “Object Flow” study type is most appropriate for simulating: A) Detailed robot joint trajectories B) The movement of parts through conveyors, feeders, and buffers without specific robot actions C) Human ergonomic analysis D. PLC ladder logic execution Answer: B
Explanation: Object Flow focuses on part logistics, not detailed robot or human motions. Question 64. In Process Simulate, the “Tool” attached to a robot can be: A) Only a gripper B) Any 3-D model representing the end-effector, such as a welding torch or screwdriver C) A PLC program block D. A human hand model Answer: B Explanation: Tools are generic end-effectors modeled as 3-D objects. Question 65. To simulate a collaborative robot (cobot) sharing space with a human, which feature must be enabled? A) Collision detection off B) Interlock with human resource and safety zones defined C. Robot speed set to maximum D. Object flow disabled Answer: B Explanation: Defining safety zones and interlocks ensures safe coexistence between cobot and human. Question 66. Which measurement unit is default for distances in Process Simulate? A) Inches B) Millimeters C) Feet D. Meters Answer: B Explanation: The software uses millimeters as the standard unit for linear measurements.
