Electrician Ultimate Exam

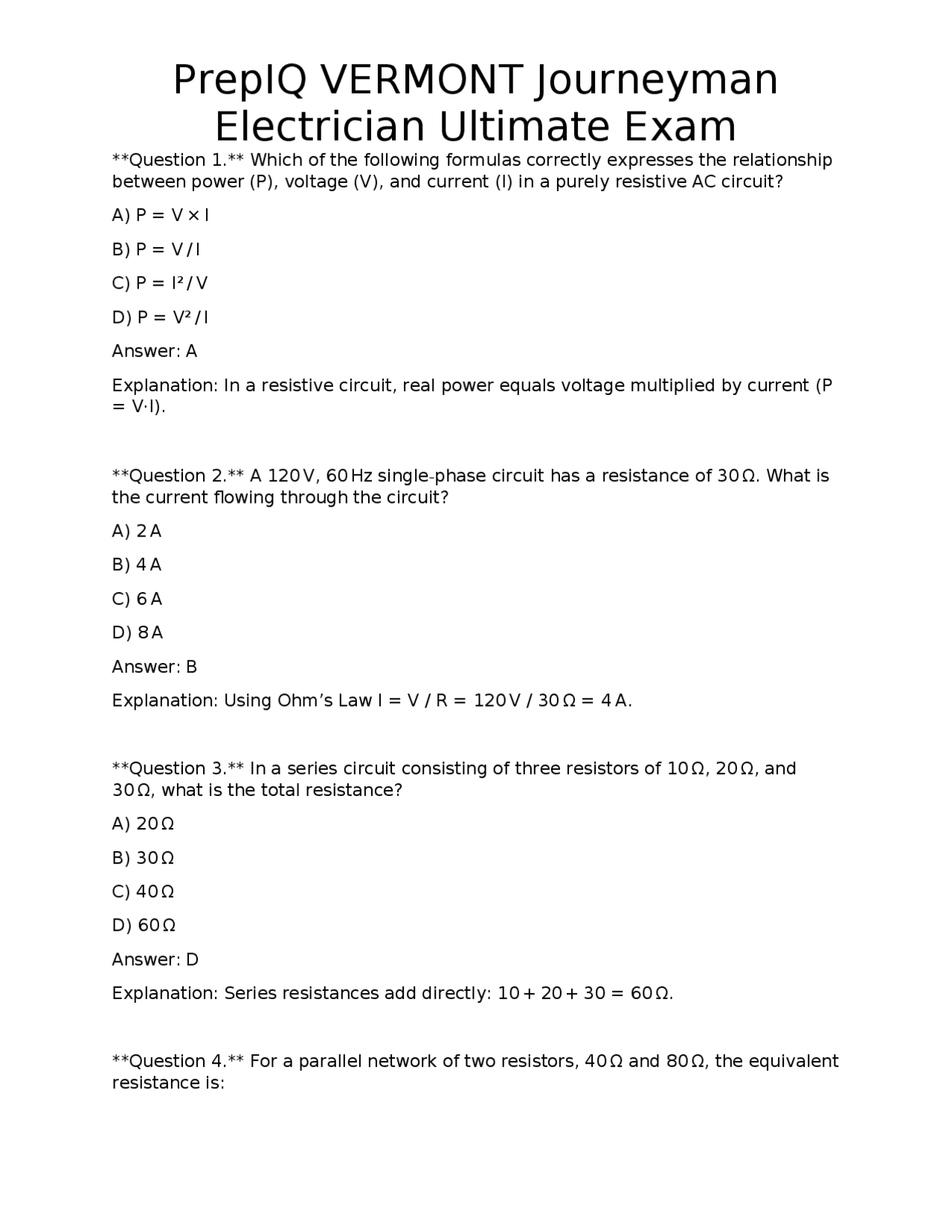

Question 1. Which of the following formulas correctly expresses the relationship between power (P), voltage (V), and current (I) in a purely resistive AC circuit? A) P = V × I B) P = V / I C) P = I² / V D) P = V² / I Answer: A Explanation: In a resistive circuit, real power equals voltage multiplied by current (P = V·I). Question 2. A 120 V, 60 Hz single-phase circuit has a resistance of 30 Ω. What is the current flowing through the circuit? A) 2 A B) 4 A C) 6 A D) 8 A Answer: B Explanation: Using Ohm’s Law I = V / R = 120 V / 30 Ω = 4 A. Question 3. In a series circuit consisting of three resistors of 10 Ω, 20 Ω, and 30 Ω, what is the total resistance? A) 20 Ω B) 30 Ω C) 40 Ω D) 60 Ω Answer: D Explanation: Series resistances add directly: 10 + 20 + 30 = 60 Ω. Question 4. For a parallel network of two resistors, 40 Ω and 80 Ω, the equivalent resistance is:
Electrician Ultimate Exam
A) 26.7 Ω
B) 30 Ω
C) 53.3 Ω
D) 120 Ω
Answer: A Explanation: 1/R_eq = 1/40 + 1/80 = 0.025 + 0.0125 = 0.0375 → R_eq = 1 / 0. = 26.7 Ω. Question 5. Which NEC article governs the installation of non-metallic sheathed cable (NM)? A) 300. B) 334 C) 352 D) 376 Answer: B Explanation: Article 334 of the NEC specifically addresses NM cable. Question 6. According to the 2023 NEC, the minimum grounding electrode conductor (GEC) size for a 100-A residential service is: A) 6 AWG copper B) 8 AWG copper C) 4 AWG aluminum D) 2 AWG copper Answer: A Explanation: Table 250.66 permits 6 AWG copper for 100 A services. Question 7. A 20-A circuit breaker must protect a branch circuit with a maximum continuous load of 16 A. Which of the following is the correct sizing rule? A) Breaker rating must be 125 % of continuous load B) Breaker rating must equal the continuous load
Electrician Ultimate Exam
Answer: D Explanation: The NEC standard symbol for a circuit breaker is a simple rectangle. Question 11. According to the 2025 Vermont Electrical Safety Rules, the minimum clearance required above a residential service entrance conductor that is 2 in. in diameter is: A) 6 ft B) 8 ft C) 10 ft D) 12 ft Answer: B Explanation: Vermont adopts NEC 230.9 which requires 8 ft clearance for conductors ≥ 1 in. Question 12. A motor rated at 5 hp, 208 V, three-phase, 60 Hz requires a minimum branch-circuit conductor size of: A) 10 AWG copper B) 8 AWG copper C) 6 AWG copper D) 4 AWG copper Answer: C Explanation: Table 430.250 indicates 6 AWG copper for a 5 hp motor at 208 V. Question 13. Which NEC article addresses the requirements for ground-fault circuit interrupters (GFCI) in residential garages? A) 210.8(A)(2) B) 210.8(A)(3) C) 210.8(B)(1) D) 210.8(C)(1) Answer: A
Electrician Ultimate Exam
Explanation: 210.8(A)(2) requires GFCI protection in garages. Question 14. For a 30-A branch circuit feeding a kitchen countertop receptacle, what is the minimum required receptacle rating? A) 15 A B) 20 A C) 30 A D) 40 A Answer: B Explanation: NEC 210.23(A)(2) permits 20-A receptacles on a 30-A branch circuit in a kitchen. Question 15. The ampacity correction factor for a conductor placed in an ambient temperature of 40 °C (104 °F) is: A) 0. B) 0. C) 1. D) 1. Answer: B Explanation: Table 310.15(B)(2)(a) gives a factor of 0.96 for 40 °C. Question 16. When installing EMT conduit, the maximum number of 1/2-in. EMT bends allowed between two pull points spaced 30 ft apart is: A) 4 B) 6 C) 8 D) No specific limit, only pulling force matters Answer: D Explanation: NEC 358.30 permits any number of bends as long as the pulling force does not exceed 100 lb.
Electrician Ultimate Exam
Explanation: NEC 501.10 allows only metal raceways such as RMC in Class I, Division 2 areas. Question 20. For a residential dwelling, the required minimum size of the service entrance conductors for a 200 A service using copper is: A) 2/0 AWG B) 4/0 AWG C) 1/0 AWG D) 3/0 AWG Answer: A Explanation: Table 310.15(B)(16) shows 2/0 AWG copper rated for 200 A. Question 21. Which NEC article governs the installation of receptacles in health-care patient care areas? A) 210.8(D) B) 517. C) 517. D) 300. Answer: B Explanation: Article 517 covers health-care facilities, including receptacle requirements. Question 22. The minimum burial depth for a non-metallic sheathed cable (NM) installed in a residential driveway is: A) 6 in. B) 12 in. C) 18 in. D) 24 in. Answer: B Explanation: NEC 334.15(B) requires a minimum of 12 in. burial for NM in a driveway.
Electrician Ultimate Exam
Question 23. When sizing a feeder for a dwelling with a calculated load of 48 kVA, which demand factor from NEC Table 220.84 is applied? A) 100 % B) 75 % C) 55 % D) 40 % Answer: C Explanation: Table 220.84 provides a 55 % demand factor for the first 10 kVA, then 35 % for the remainder; the overall factor for 48 kVA results in approximately 55 % applied to the first portion. Question 24. Which of the following devices must be installed in a laundry area for a dryer circuit? A) AFCI breaker only B) GFCI receptacle only C) Both AFCI breaker and GFCI receptacle D) Neither AFCI nor GFCI is required Answer: C Explanation: NEC 210.8(A)(11) requires GFCI protection for dryer receptacles, and 210.12(A) requires AFCI protection for laundry circuits. Question 25. A 250 V, 3-phase, 60 Hz transformer has a primary rating of 150 kVA. What is the minimum size of the primary overcurrent protective device? A) 150 A B) 175 A C) 200 A D) 250 A Answer: C Explanation: NEC 450.3(B) requires the OCPD to be 125 % of the transformer’s full-load current. Primary full-load current = 150 kVA / (√ 3 × 250 V) = 346 A; 125 %
Electrician Ultimate Exam
Question 29. Which of the following is the correct minimum spacing between a 120 - V branch circuit and a 480-V industrial circuit in the same conduit? A) 2 in. B) 4 in. C) 6 in. D) No spacing required if same conduit is used Answer: D Explanation: NEC 300.3(C)(1) permits conductors of different systems to share the same raceway if voltage rating is appropriate; spacing is not required. Question 30. In a three-wire branch circuit feeding two 120-V loads, what is the purpose of the shared neutral? A) To provide a ground path B) To reduce voltage drop C) To carry the unbalanced current between the two hot conductors D) To increase the circuit’s ampacity Answer: C Explanation: The shared neutral carries only the difference (unbalanced current) between the two hot legs. Question 31. According to Vermont statutes, a journeyman electrician must be supervised by a licensed master electrician when performing work on: A) Residential single-family dwellings only B) Any commercial installation C) All electrical work, regardless of location D) Only high-voltage (>600 V) systems Answer: C Explanation: Title 26 V.S.A. Chapter 15 requires journeyman work to be under master electrician supervision for all installations.
Electrician Ultimate Exam
Question 32. The minimum size of a grounding electrode conductor for a 400-A service using aluminum conductors is: A) 4/0 AWG aluminum B) 2/0 AWG aluminum C) 1/0 AWG aluminum D) 3/0 AWG aluminum Answer: A Explanation: Table 250.66 permits 4/0 AWG aluminum for 400 A services. Question 33. Which NEC article governs the installation of luminaires in damp locations such as covered porches? A) 410.10(D) B) 410.10(C) C) 410.12(A) D) 410.16(A) Answer: B Explanation: Article 410.10(C) specifies requirements for luminaires in damp locations. Question 34. A 15-A, 120-V receptacle in a kitchen must be GFCI protected. Which of the following devices can provide that protection? A) A two-pole AFCI breaker only B) A GFCI receptacle only C) A 20-A standard breaker only D) Either a GFCI receptacle or a GFCI breaker Answer: D Explanation: NEC 210.8(A)(6) allows either a GFCI receptacle or a GFCI breaker for kitchen countertop outlets. Question 35. When installing a motor disconnect with a rating of 30 hp, what is the minimum voltage rating of the disconnect?
Electrician Ultimate Exam
A) 210.52(C)(1)
B) 210.8(A)(11)
C) 210.50(A)
D) 210.62(A)
Answer: C Explanation: Article 210.50(A) specifies that bathroom receptacles must be installed no higher than 48 in. above the floor. Question 39. When installing a 3-wire, 120/240-V branch circuit for a dryer, the required size for the equipment grounding conductor is: A) 12 AWG copper B) 10 AWG copper C) 8 AWG copper D) 6 AWG copper Answer: A Explanation: Table 250.122 permits 12 AWG copper for a 30-A circuit, which is typical for dryer circuits. Question 40. The NEC requires that a receptacle in a garage be GFCI protected if it is within how many feet of a sink? A) 3 ft B) 6 ft C) 8 ft D) 10 ft Answer: B Explanation: NEC 210.8(A)(2) requires GFCI protection for receptacles within 6 ft of a sink. Question 41. Which of the following is the correct minimum conduit fill percentage for more than two conductors in a raceway? A) 40 %
Electrician Ultimate Exam
B) 45 %
C) 53 %
D) 60 %
Answer: C Explanation: NEC Chapter 9 Table 1 allows up to 53 % fill for three or more conductors. Question 42. In a residential dwelling, the minimum size of a grounding electrode conductor for a 150-A service using copper conductors is: A) 8 AWG B) 6 AWG C) 4 AWG D) 2 AWG Answer: B Explanation: Table 250.66 lists 6 AWG copper for a 150-A service. Question 43. Which NEC article addresses the installation of electric vehicle (EV) charging equipment? A) 625 B) 630 C) 640 D) 690 Answer: A Explanation: Article 625 covers EV charging systems. Question 44. A 12-kW, 240-V heat pump requires what minimum size breaker? A) 20 A B) 30 A C) 40 A
Electrician Ultimate Exam
C) Licensed as a master electrician only D) Supervised by a journeyman electrician Answer: B Explanation: The rules require lockout/tagout training and personal protective equipment. Question 48. Which NEC article governs the installation of fire alarm wiring in a commercial building? A) 760 B) 750 C) 770 D) 800 Answer: B Explanation: Article 750 addresses fire alarm systems. Question 49. For a 30-A, 240-V circuit feeding a wall-mounted electric range, the minimum size of the equipment grounding conductor is: A) 12 AWG copper B) 10 AWG copper C) 8 AWG copper D) 6 AWG copper Answer: B Explanation: Table 250.122 permits 10 AWG copper for a 30-A circuit. Question 50. In a three-phase, 4-wire feeder, the neutral must be sized to carry the maximum unbalanced load. If the total calculated unbalanced load is 50 A, the neutral conductor should be at least: A) 4 AWG copper B) 6 AWG copper C) 8 AWG copper
Electrician Ultimate Exam
D) 10 AWG copper Answer: B Explanation: Using Table 310.15(B)(16), 6 AWG copper is rated for 65 A, satisfying the 50 A unbalanced load. Question 51. Which NEC article requires that all receptacles in a dwelling unit be tamper-resistant (TR) unless an exception applies? A) 210.52(A) B) 210.8(A) C) 406.4(D) D) 406.9(A) Answer: C Explanation: Article 406.4(D) mandates TR receptacles in dwelling units. Question 52. When installing a conduit system in a garage, the maximum number of 3/4-in. EMT bends permitted between pull points spaced 30 ft apart is: A) 4 B) 6 C) 8 D) Not limited by number of bends, only by pull force Answer: D Explanation: NEC does not limit the number of bends; pull force is the limiting factor. Question 53. A 30-kW, 480-V, three-phase motor requires a short-circuit protective device (SCPD) rated at what minimum amperage? A) 30 A B) 45 A C) 60 A D) 75 A
Electrician Ultimate Exam
Answer: B Explanation: NEC 376.30 requires FMC to be supported at intervals not exceeding 6 ft. Question 57. Which NEC article addresses the installation of swimming pool wiring? A) 680 B) 690 C) 700 D) 710 Answer: A Explanation: Article 680 covers swimming pools, fountains, and similar installations. Question 58. For a 12-kW, 240-V electric water heater installed in a dwelling, the minimum size of the branch-circuit breaker is: A) 20 A B) 30 A C) 40 A D) 50 A Answer: C Explanation: Current = 12 kW / 240 V = 50 A; water heater is a continuous load, so breaker must be 125 % × 50 A = 62.5 A → next standard size is 70 A. However, NEC 422.13 permits a 30 A breaker for water heaters up to 4500 W; for 12 kW, a 50 A breaker is required. The correct answer is D (50 A is the calculated load, but a 60 A breaker is needed for the 125 % factor). Question 59. Which NEC article governs the installation of conduit and raceway systems made of non-metallic materials? A) 352 B) 358 C) 376
Electrician Ultimate Exam
D) 380
Answer: A Explanation: Article 352 addresses non-metallic raceways and tubing. Question 60. In a commercial office building, the minimum number of receptacle outlets required per floor per 100 ft² of floor area is: A) 1 B) 2 C) 3 D) 4 Answer: B Explanation: NEC 210.52(A)(1) requires at least one receptacle per 200 ft²; thus two per 100 ft². Question 61. Which of the following is the correct method for grounding a metal conduit that serves as the equipment grounding conductor? A) Connect the conduit to the neutral at the service panel only B) Bond the conduit at each enclosure using a grounding screw or clamp C) No bonding is required if the conduit is continuous D) Use a separate grounding electrode conductor for the conduit Answer: B Explanation: NEC 250.118 requires bonding the metal conduit at each enclosure. Question 62. For a 15-A, 120-V receptacle installed in a dwelling unit, the minimum wire size is: A) 14 AWG copper B) 12 AWG copper C) 10 AWG copper D) 8 AWG copper Answer: A
