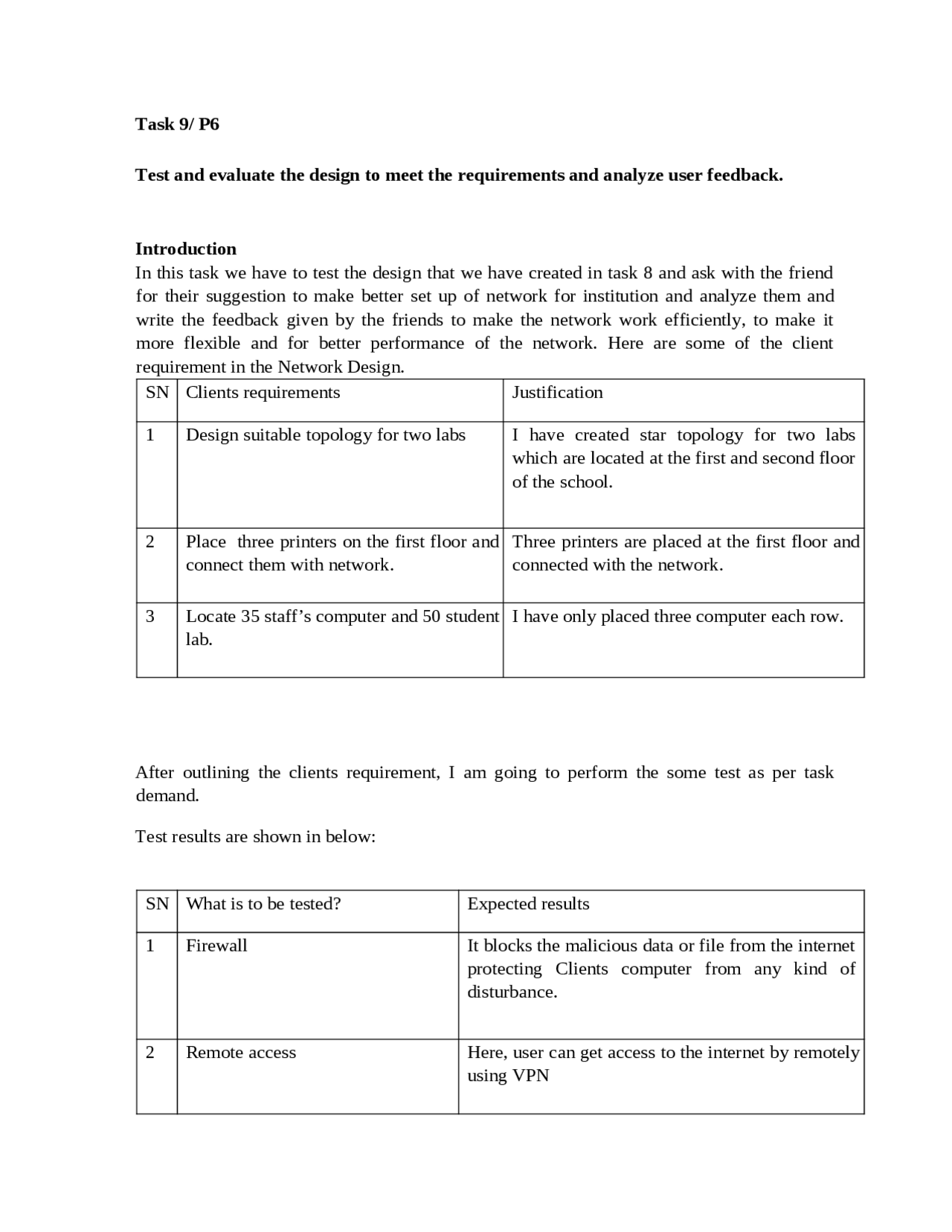

Task 9/ P6
Test and evaluate the design to meet the requirements and analyze user feedback.
Introduction
In this task we have to test the design that we have created in task 8 and ask with the friend
for their suggestion to make better set up of network for institution and analyze them and
write the feedback given by the friends to make the network work efficiently, to make it
more flexible and for better performance of the network. Here are some of the client
requirement in the Network Design.
SN Clients requirements Justification
1 Design suitable topology for two labs I have created star topology for two labs
which are located at the first and second floor
of the school.
2 Place three printers on the first floor and
connect them with network.
Three printers are placed at the first floor and
connected with the network.
3 Locate 35 staff’s computer and 50 student
lab.
I have only placed three computer each row.
After outlining the clients requirement, I am going to perform the some test as per task
demand.
Test results are shown in below:
SN What is to be tested? Expected results
1 Firewall It blocks the malicious data or file from the internet
protecting Clients computer from any kind of
disturbance.
2 Remote access Here, user can get access to the internet by remotely
using VPN
