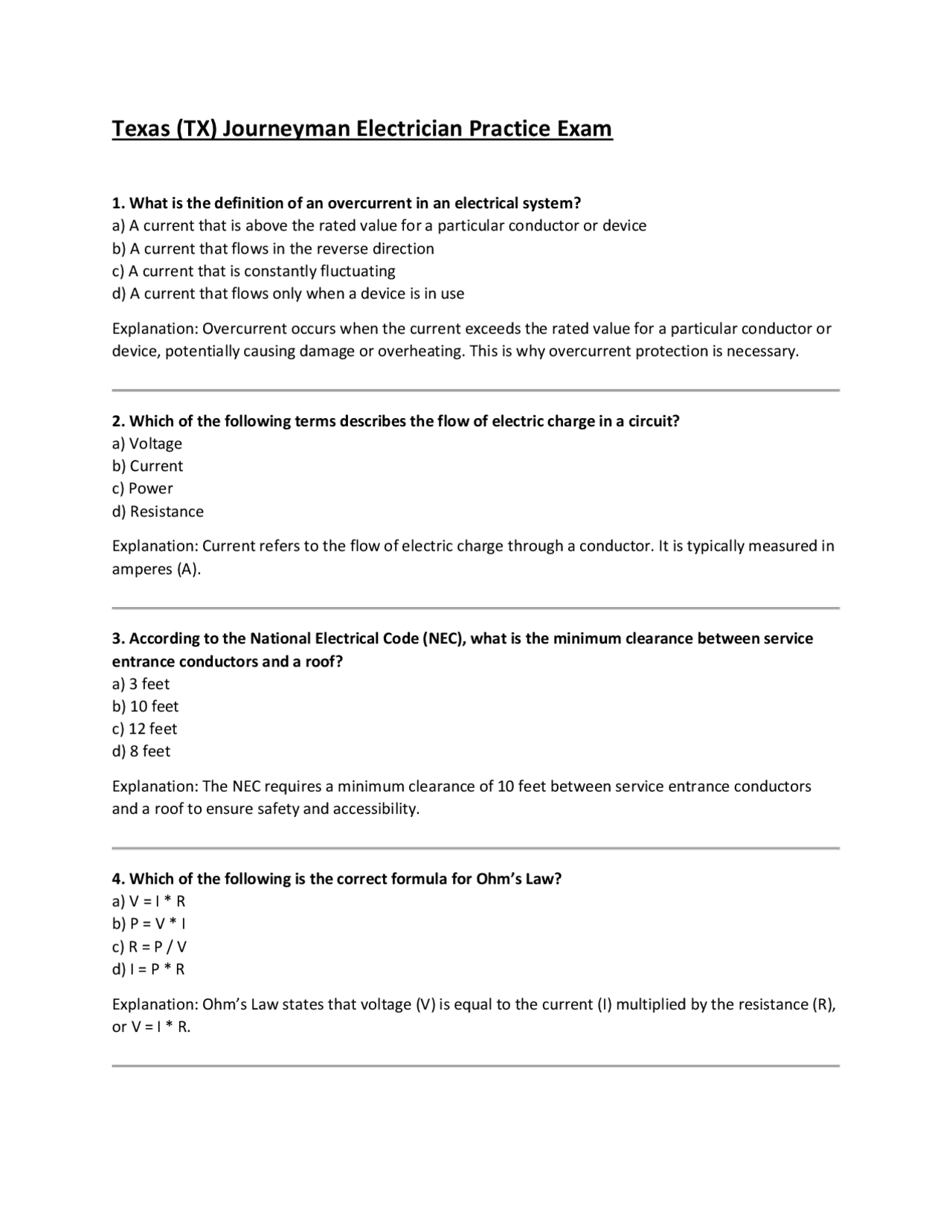

Texas (TX) Journeyman Electrician Practice Exam
1. What is the definition of an overcurrent in an electrical system? a) A current that is above the rated value for a particular conductor or device b) A current that flows in the reverse direction c) A current that is constantly fluctuating d) A current that flows only when a device is in use Explanation: Overcurrent occurs when the current exceeds the rated value for a particular conductor or device, potentially causing damage or overheating. This is why overcurrent protection is necessary. 2. Which of the following terms describes the flow of electric charge in a circuit? a) Voltage b) Current c) Power d) Resistance Explanation: Current refers to the flow of electric charge through a conductor. It is typically measured in amperes (A). 3. According to the National Electrical Code (NEC), what is the minimum clearance between service entrance conductors and a roof? a) 3 feet b) 10 feet c) 12 feet d) 8 feet Explanation: The NEC requires a minimum clearance of 10 feet between service entrance conductors and a roof to ensure safety and accessibility. 4. Which of the following is the correct formula for Ohm’s Law? a) V = I * R b) P = V * I c) R = P / V d) I = P * R Explanation: Ohm’s Law states that voltage (V) is equal to the current (I) multiplied by the resistance (R), or V = I * R.
5. What is the purpose of grounding an electrical system? a) To protect the system from electrical surges b) To ensure that electrical faults are cleared quickly c) To prevent electrical shock hazards by providing a path for fault current d) To increase the efficiency of the system Explanation: Grounding provides a safe path for fault currents to flow into the earth, preventing electrical shock hazards and reducing fire risks. 6. How are service entrance conductors typically installed in a residential system? a) Underground b) Above the roofline c) Inside the house walls d) On the exterior of the house, above ground Explanation: Service entrance conductors are often installed above the roofline to meet clearance requirements and to avoid physical damage. 7. In a direct current (DC) circuit, the current flows in what direction? a) Alternating back and forth b) In one continuous direction c) Only during specific cycles d) In a zigzag pattern Explanation: DC current flows in one continuous direction from the negative to the positive terminal, unlike alternating current (AC) that periodically reverses direction. 8. What is the standard voltage for residential electrical systems in the United States? a) 240 volts b) 120 volts c) 208 volts d) 277 volts Explanation: The standard voltage for residential systems in the United States is 120 volts for most household appliances and outlets. 9. What is the role of an overcurrent protection device in an electrical system? a) To prevent excessive voltage b) To prevent excessive current from damaging equipment c) To prevent electrical noise interference d) To ensure a steady current flow
a) 100 amps b) 150 amps c) 200 amps d) 250 amps Explanation: The main service panel should be rated for 200 amps or higher to safely handle the total electrical load of the system.
15. Which of the following is true about an AC circuit? a) The current flows in only one direction b) The current alternates direction periodically c) The voltage remains constant at all times d) The power consumed is the same as DC circuits Explanation: In AC circuits, the current alternates direction periodically, making it different from DC circuits, where current flows in one direction. 16. What does the term “short circuit” refer to? a) A circuit that is turned off b) A connection that bypasses the normal load path, allowing excess current to flow c) A circuit with low resistance d) A circuit that is operating at full capacity Explanation: A short circuit occurs when the current bypasses the intended load path, often resulting in excessive current that can cause damage or fires. 17. What is the purpose of a fuse in an electrical circuit? a) To regulate voltage b) To provide a shortcut for current flow c) To protect the circuit from overcurrent by breaking the circuit when necessary d) To store electrical energy Explanation: A fuse is designed to protect the circuit by breaking the connection if the current exceeds a safe level, preventing damage to the system. 18. Which of the following would be the best choice for grounding a large commercial building? a) A single copper wire b) A metal conduit system c) A ground rod only d) A combination of ground rods, plates, and conductive metal systems
Explanation: A combination of grounding systems, including ground rods, plates, and conductive metal systems, provides the most effective grounding solution for large buildings.
19. How are conductors typically sized in a residential electrical system? a) Based on the type of appliance being powered b) Based on the amperage of the circuit and the distance the power travels c) Based on the voltage rating of the system d) Based on the thickness of the insulation Explanation: Conductors are sized based on the amperage of the circuit and the distance from the power source to ensure proper current flow without excessive voltage drop. 20. What does a circuit breaker do in an overcurrent situation? a) Increases the voltage to handle the overload b) Disconnects the circuit to prevent further damage c) Reduces the resistance to avoid overheating d) Redirects the current to a safer path Explanation: A circuit breaker automatically disconnects the circuit when an overcurrent is detected, preventing damage to the system and reducing fire risks. 21. What is the formula for calculating electrical power in a circuit? a) P = V * I b) P = V / I c) P = I * R d) P = R / I Explanation: Electrical power is calculated using the formula P = V * I, where P is power in watts, V is voltage in volts, and I is current in amperes. 22. What is the minimum size grounding conductor required for a 200-amp service in a residential system? a) 8 AWG b) 6 AWG c) 4 AWG d) 2 AWG Explanation: The minimum size for the grounding conductor for a 200-amp residential service is 4 AWG, as specified by the NEC.
Explanation: AC circuits have voltage that varies sinusoidally with time, with the current alternating direction periodically.
28. How is the size of a fuse determined? a) Based on the amperage rating of the circuit b) Based on the voltage rating of the device c) Based on the total wattage of the circuit d) Based on the type of wiring used Explanation: Fuses are sized based on the amperage rating of the circuit to protect against overcurrent and prevent damage to electrical devices. 29. In an electrical schematic, what does a line with a zigzag pattern usually represent? a) A power source b) A ground connection c) A resistor d) A capacitor Explanation: A zigzag line in a schematic represents a resistor, which limits current flow in the circuit. 30. What is the purpose of a service disconnect in a residential electrical system? a) To increase the current capacity b) To provide a means to shut off all power to the system c) To prevent overcurrent conditions d) To regulate voltage levels Explanation: The service disconnect allows all power to the system to be turned off, ensuring safety during maintenance or emergencies. 31. What is the main purpose of using overcurrent protection in an electrical circuit? a) To prevent electrical noise b) To ensure that the circuit operates efficiently c) To protect the wiring and equipment from damage due to excessive current d) To improve the power factor Explanation: Overcurrent protection is used to protect the wiring and equipment from damage due to excessive current that could lead to overheating or fire. 32. What does the term “service entrance” refer to in an electrical system? a) The point where electricity enters the home or building b) The point where electrical appliances are connected to the system
c) The part of the system that regulates voltage d) The protective barrier between electrical components Explanation: The service entrance is where electrical power enters a building or home from the utility supply, typically including service conductors and a meter.
33. In an electrical plan, what does a “one-line diagram” show? a) The layout of a building b) The connection of electrical components with a single line symbolizing each element c) The detailed wiring plan of each room d) The code compliance for each electrical system Explanation: A one-line diagram simplifies the electrical system by showing the connections between components using a single line, offering a high-level overview of the system. 34. How does the installation of an overcurrent protection device impact the electrical system? a) It makes the system more energy-efficient b) It prevents the circuit from becoming overloaded and reduces fire hazards c) It increases the voltage in the circuit d) It improves the resistance in the system Explanation: Overcurrent protection devices prevent the circuit from becoming overloaded by disconnecting it when excessive current is detected, reducing the risk of damage and fire. 35. Which of the following materials is commonly used for grounding conductors in an electrical system? a) Aluminum b) Copper c) Steel d) PVC Explanation: Copper is commonly used for grounding conductors due to its excellent conductivity and reliability for grounding systems. 36. Which of the following best describes an electrical fault? a) A decrease in the efficiency of the electrical system b) A failure in the normal operation of the system due to short circuits or open circuits c) An increase in current flow d) A temporary increase in voltage Explanation: An electrical fault occurs when there is an abnormal condition in the system, such as a short circuit or open circuit, which can disrupt normal operation.
Explanation: A separately derived system is electrically isolated, such as an electric generator that is not connected to the main electrical system.
42. What does a ground rod do in an electrical system? a) It redirects excess current into a safe path b) It increases voltage levels in the system c) It provides a neutral path for current flow d) It stores excess energy Explanation: A ground rod provides a safe path for fault current to flow into the earth, ensuring the safety of the electrical system and its users. 43. How are circuits typically organized in a residential electrical panel? a) By the type of device they supply power to b) By the amperage of the devices c) By the room or area of the building d) By their frequency of use Explanation: Circuits are generally organized based on the area they supply, such as lighting, outlets, or appliances, and their corresponding amperage. 44. What should be done if an overcurrent protection device continually trips? a) Replace it with a higher-rated device b) Increase the size of the conductors c) Investigate the system for faults or overloads d) Install a larger power supply Explanation: Continual tripping of an overcurrent protection device indicates a fault or overload, so the system should be inspected and repaired before resetting or replacing the device. 45. What is the most likely reason for an electrical outlet to be "dead" despite the breaker being on? a) Faulty circuit wiring b) A problem with the breaker c) Overload of the circuit d) Incorrect grounding Explanation: A "dead" outlet is often caused by faulty wiring in the circuit, such as a loose connection or broken wire, rather than an issue with the breaker itself. 46. Which of the following is necessary when installing a separately derived system? a) An overcurrent protection device is not required
b) A bonding jumper between the neutral and ground conductors c) A single conductor to each panel d) Neutral and ground conductors are not needed Explanation: A bonding jumper must be used to connect the neutral and ground conductors in a separately derived system, ensuring proper operation and safety.
47. What type of circuit is protected by a fuse? a) High voltage circuits b) Low voltage circuits c) Only commercial circuits d) Any circuit exposed to the risk of overcurrent Explanation: Fuses are used to protect any circuit that may be subject to an overcurrent condition, including residential and commercial systems. 48. What is the purpose of an electrical service panel? a) To increase the overall power output of the system b) To organize the distribution of electrical power throughout the building c) To convert AC power to DC power d) To store electrical energy for future use Explanation: The electrical service panel is used to distribute power throughout the building, house circuit breakers, and ensure the system is safely protected from overcurrent conditions. 49. What is the function of a conduit in an electrical system? a) To increase the current flow b) To protect wiring from physical damage c) To regulate the voltage levels d) To increase the resistance in the system Explanation: Conduits protect electrical wiring from physical damage and prevent external factors like moisture from interfering with the system. 51. What is the primary factor to consider when sizing feeder conductors for a residential service? A) Voltage drop B) Ambient temperature C) Length of the feeder D) Load calculation Explanation: The primary factor when sizing feeder conductors is based on the load calculation, which ensures that the conductor can carry the necessary current without overheating.
A) 100A
B) 150A
C) 200A
D) 250A
Explanation: The NEC requires overcurrent protection to be sized at 250% of the feeder conductor's rating, meaning a 200A conductor requires a 250A overcurrent protection device.
57. How should overcurrent protection be sized for a feeder supplying a 100A load? A) The overcurrent protection should match the load size exactly. B) The overcurrent protection should be larger than the conductor size. C) Overcurrent protection should be calculated based on the feeder conductor's ampacity. D) The overcurrent protection should be smaller than the load size. Explanation: Overcurrent protection should be sized based on the feeder conductor's ampacity to prevent overloading and overheating of the wiring. 58. What is the typical overcurrent protection rating for residential feeders? A) 100A B) 150A C) 200A D) 250A Explanation: In most residential applications, feeders are protected by a 200A overcurrent protection device, ensuring that the conductors are not overloaded. 59. When calculating overcurrent protection for feeders, which factor is most crucial to ensure protection from overloads? A) Length of the feeder B) The type of load connected to the feeder C) The current carrying capacity of the conductor D) The ambient temperature Explanation: The current carrying capacity of the conductor is the most crucial factor in determining overcurrent protection to prevent overheating. 60. How do feeder taps relate to overcurrent protection? A) Feeder taps require separate overcurrent protection. B) Feeder taps are always protected by the main feeder overcurrent protection.
C) Feeder taps do not require overcurrent protection. D) Overcurrent protection for feeder taps is only required when they exceed 10 feet in length. Explanation: Feeder taps require their own overcurrent protection to ensure the tap does not exceed its ampacity and overload the wiring.
61. What is the maximum length of a feeder tap that does not require additional overcurrent protection according to the NEC? A) 10 feet B) 15 feet C) 20 feet D) 25 feet Explanation: According to the NEC, feeder taps up to 10 feet in length do not require separate overcurrent protection if they meet specific conditions. 62. How should secondary conductors of a transformer be sized? A) They should always be the same size as the primary conductors. B) They should be sized based on the transformer’s rating and the load demand. C) The secondary conductors should always be oversized. D) The secondary conductors should be smaller than the primary conductors. Explanation: Secondary conductors should be sized based on the transformer’s rating and load demand to ensure safe and efficient operation. 63. In the case of a transformer with a 50kVA rating, how would you size the secondary conductors for a 240V system? A) Use a 100A conductor size. B) Size conductors to carry 208A based on the transformer’s output. C) Size conductors based on the total load of all circuits. D) Use the transformer’s secondary voltage and amperage for sizing. Explanation: Secondary conductors must be sized based on the transformer’s output to ensure the correct ampacity for safe operation. 64. When installing transformer secondary conductors, what factor must be considered for overcurrent protection? A) Only the transformer’s rating B) The type of insulation used
C) Conductors should be installed in open air to avoid overheating. D) Conductors must have adequate protection against physical damage. Explanation: Conductors should be protected from physical damage, and open-air installations may not always be advisable depending on the location and environment.
69. In which situation is a feeder tap permitted to have a higher ampacity than the feeder conductors? A) When the tap is for lighting circuits only. B) When the tap is no more than 10 feet in length. C) When the tap serves only one device. D) When the load is exclusively motor-driven. Explanation: Feeder taps are allowed to have higher ampacity than the feeder conductors if they meet certain NEC criteria, like being within 10 feet of the feeder. 70. What is the purpose of overcurrent protection on feeder conductors? A) To prevent voltage drop B) To prevent overheating and fires C) To regulate current flow through the feeder D) To balance load between circuits Explanation: Overcurrent protection prevents excessive current from flowing through the feeder, which can lead to overheating, damage, and fire hazards. 71. If a feeder supplies multiple subpanels, what is the minimum size of the overcurrent protection device that must be used? A) 100A B) 125A C) 200A D) 250A Explanation: The overcurrent protection device must be large enough to handle the combined load of all subpanels, typically 200A or more for larger residential systems. 72. How does the load factor impact the sizing of feeder conductors? A) Larger load factors require smaller conductors. B) Smaller load factors require larger conductors. C) Higher load factors increase the risk of overcurrent. D) Higher load factors require larger conductors to carry more current.
Explanation: Larger load factors increase the required conductor size to safely carry the increased current without overheating.
73. What is the primary role of a transformer in a feeder circuit? A) To increase the voltage for long-distance transmission B) To reduce the voltage to meet the requirements of the load C) To provide overcurrent protection for the feeder D) To regulate the current flow through the feeder Explanation: A transformer in a feeder circuit adjusts the voltage to the proper level for the connected load. 74. What should be the first step when determining the size of feeder conductors for a large commercial building? A) Calculating the load demand B) Sizing the overcurrent protection device C) Determining the length of the feeder run D) Choosing the conductor insulation material Explanation: The first step is always to calculate the load demand, as it dictates the necessary size for both the conductors and overcurrent protection. 75. What is the most important consideration when installing a transformer to feed a commercial building’s electrical system? A) The transformer’s physical location in the building B) Ensuring the transformer is properly grounded C) Matching the transformer voltage rating to the feeder voltage D) Choosing the transformer with the highest power rating Explanation: Ensuring the transformer’s voltage rating matches the feeder voltage is crucial for proper operation and safety. 76. How does a transformer tap differ from a regular feeder conductor? A) A transformer tap is typically used for secondary distribution and has its own protection. B) A transformer tap is always connected to the primary side of the transformer. C) A transformer tap is used only for lighting circuits. D) A transformer tap is a backup for overcurrent protection.
81. How does the NEC regulate overcurrent protection for feeders supplying subpanels? A) The NEC requires each subpanel to have its own overcurrent protection. B) Overcurrent protection for subpanels is not required by the NEC. C) The overcurrent protection is based on the main panel’s breaker size. D) Overcurrent protection is determined by the feeder conductor size. Explanation: The NEC requires overcurrent protection to be provided for subpanels to ensure safety and prevent overload of the feeders. 82. What is the maximum overcurrent protection size for a feeder tap under NEC guidelines? A) 100A B) 150A C) 200A D) 250A Explanation: Under the NEC, feeder taps can have a maximum overcurrent protection size of 200A when they meet specific requirements. 83. What is the most important factor when installing a transformer in an industrial setting? A) The size of the transformer’s secondary circuit B) The transformer’s input voltage C) Ensuring the transformer is properly connected to the feeder circuit D) The location of the transformer in relation to the load Explanation: Ensuring the transformer is properly connected to the feeder circuit is crucial for safe and efficient operation. 84. How should secondary conductors be protected in a system with a transformer? A) By sizing the conductors larger than required B) By applying a heat-resistant coating C) By using an appropriate overcurrent protection device D) By using only copper conductors Explanation: Secondary conductors should be protected by an overcurrent protection device to prevent overheating and damage to the system. 85. How does feeder length influence conductor size?
A) Longer feeder lengths require smaller conductors. B) Longer feeder lengths require larger conductors to reduce voltage drop. C) Feeder length does not affect conductor size. D) Longer feeder lengths require less overcurrent protection. Explanation: Longer feeder lengths require larger conductors to reduce voltage drop, ensuring proper voltage is delivered to the load.
86. What is the main role of a fuse in an electrical feeder system? A) To limit the voltage of the feeder B) To prevent excessive current flow and protect the conductor C) To increase the current capacity of the system D) To regulate the flow of electricity Explanation: A fuse prevents excessive current flow by breaking the circuit if the current exceeds safe levels, protecting the conductor from overheating and damage. 87. What is the purpose of sizing feeder conductors for a commercial building? A) To increase the capacity of the building’s HVAC system B) To ensure efficient distribution of power to all circuits C) To ensure the electrical system operates at a high temperature D) To reduce the cost of wiring installation Explanation: Feeder conductors are sized to ensure efficient power distribution and safety, supporting the overall electrical system for the building. 88. How is overcurrent protection sized for a feeder supplying both residential and commercial loads? A) The overcurrent protection size is based on the residential load only. B) The overcurrent protection size is based on the commercial load only. C) The overcurrent protection is sized based on the larger of the two loads. D) The overcurrent protection is based on the feeder conductor’s rating. Explanation: The overcurrent protection is sized based on the larger load, ensuring the system can handle the total demand without risk of overloading. 89. In a transformer installation, how is the secondary conductor size determined? A) By the maximum current the transformer can deliver B) By the type of insulation used on the conductor
