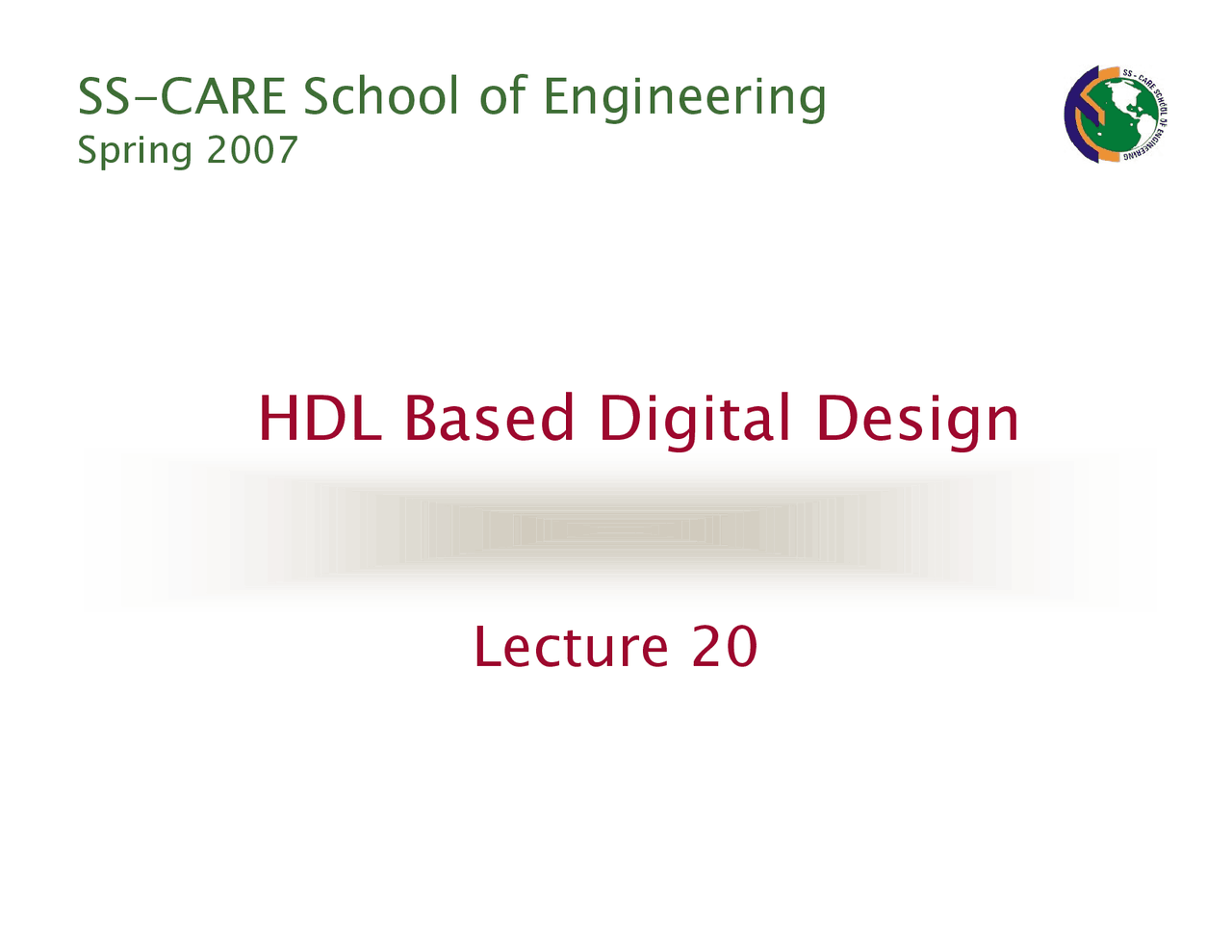

SS-CARE School of Engineering Spring 2007

HDL Based Digital Design

Lecture 20

HDL Based Digital Design using Verilog By M. Mohsin Rahmatullah @ SS-CARE School of Engineering

Verification Guidelines

„

Define and Review Verification PlanCompliance to requirements Plan

„ Testbench architecture with considerations to: „ Reusability / ease of use / portability / verification language „ Number of Bus Functional Models (BFMs) to emulate separate busses „ Synchronization methods between BFMs „ Transactions definition and sequencing methods „ Transactions driving methods „ Verification strategies for design and its subblocks „ Compliance Matrix „ Tools

HDL Based Digital Design using Verilog By M. Mohsin Rahmatullah @ SS-CARE School of Engineering

Types of Verification „

Compliance verification

„

Corner case verification

„

Assertion-based verification (ABV)

„

Random verification

„ Create scenarios that engineers do notanticipate „

Real code verification

„ Avoid misunderstanding the spec „

Regression verification

„ Ensure that fixing a bug will not introduceanother bugs „ Be performed on a regular basis

HDL Based Digital Design using Verilog By M. Mohsin Rahmatullah @ SS-CARE School of Engineering

Assertion „

An assertion

„ Is a statement about a design’s intended behavior „ Is also named as property; used interchangeably „ Usually does not map to the real HW (notsynthesizable) „

An assertion is used

„ To ensure consistency between the designer’sintention and what he created „ To guard the design assumptions/properties
