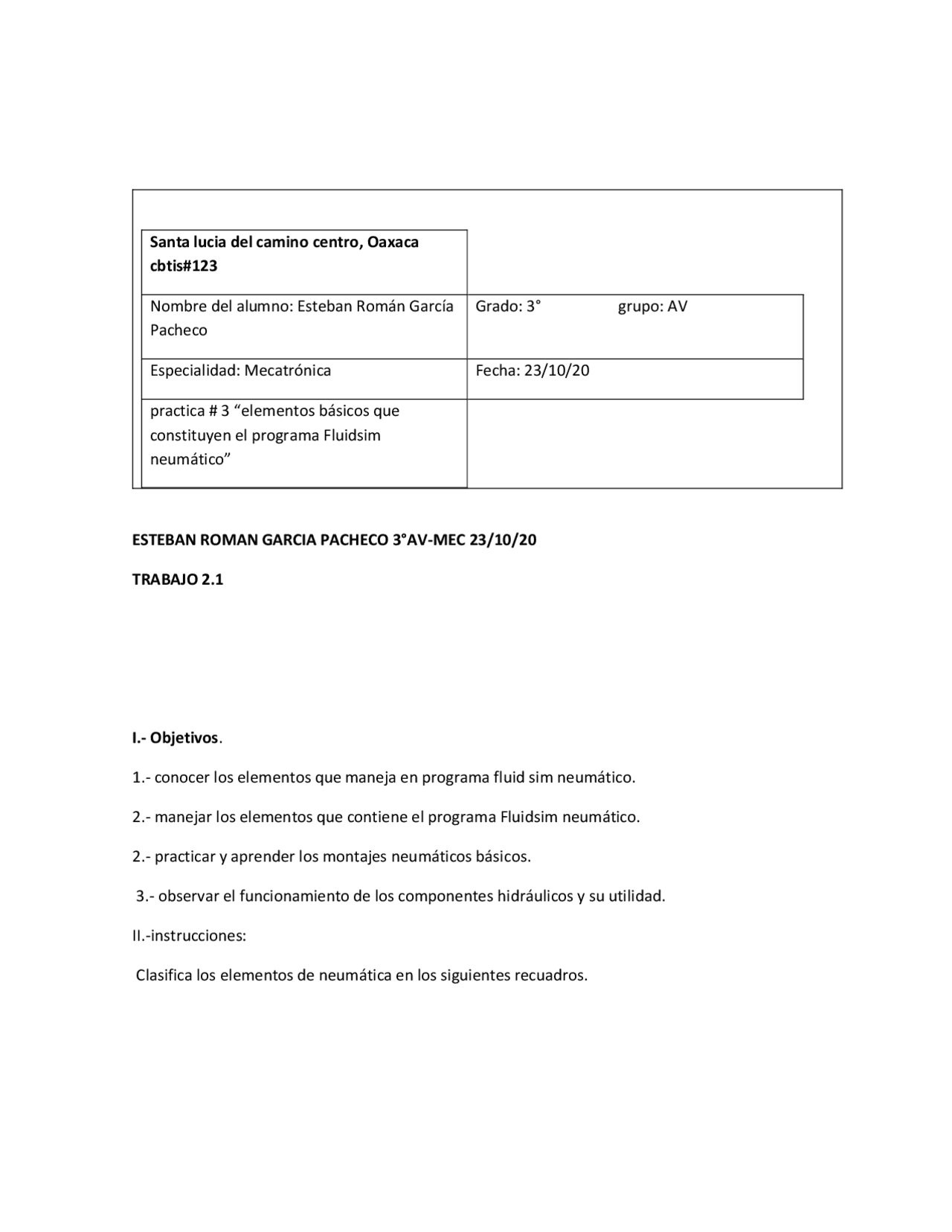

practica # 3 “elementos básicos que
constituyen el programa Fluidsim
neumático”
ESTEBAN ROMAN GARCIA PACHECO 3°AV-MEC 23/10/20
TRABAJO 2.1
I.- Objetivos.
1.- conocer los elementos que maneja en programa fluid sim neumático.
2.- manejar los elementos que contiene el programa Fluidsim neumático.
2.- practicar y aprender los montajes neumáticos básicos.
3.- observar el funcionamiento de los componentes hidráulicos y su utilidad.
II.-instrucciones:
Clasifica los elementos de neumática en los siguientes recuadros.
