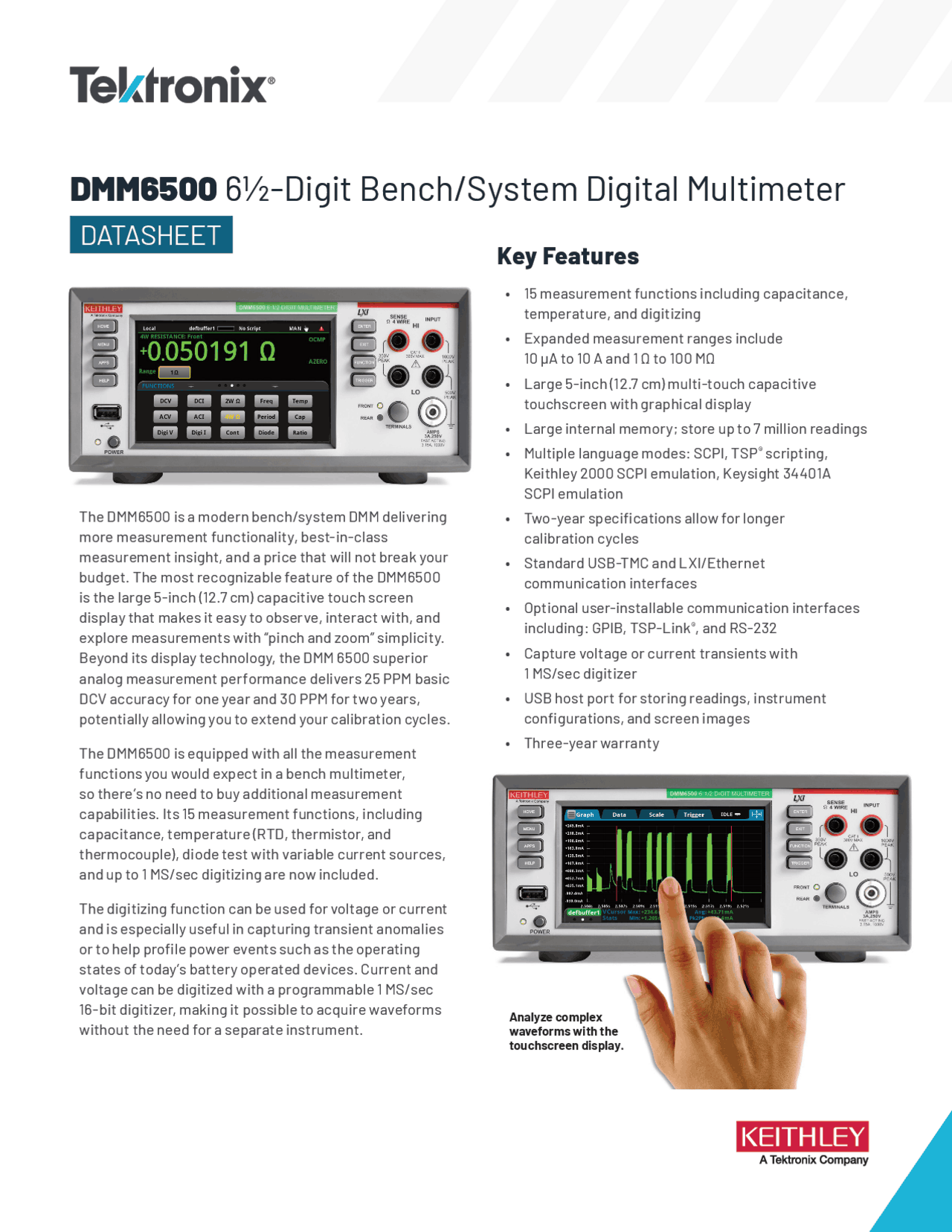

DMM6500 6½-Digit Bench/System Digital Multimeter
DATASHEET
The DMM6500 is a modern bench/system DMM delivering
more measurement functionality, best-in-class
measurement insight, and a price that will not break your
budget. The most recognizable feature of the DMM
is the large 5-inch (12.7 cm) capacitive touch screen
display that makes it easy to observe, interact with, and
explore measurements with “pinch and zoom” simplicity.
Beyond its display technology, the DMM 6500 superior
analog measurement performance delivers 25 PPM basic
DCV accuracy for one year and 30 PPM for two years,
potentially allowing you to extend your calibration cycles.
The DMM6500 is equipped with all the measurement
functions you would expect in a bench multimeter,
so there’s no need to buy additional measurement
capabilities. Its 15 measurement functions, including
capacitance, temperature (RTD, thermistor, and
thermocouple), diode test with variable current sources,
and up to 1 MS/sec digitizing are now included.
The digitizing function can be used for voltage or current
and is especially useful in capturing transient anomalies
or to help profile power events such as the operating
states of today’s battery operated devices. Current and
voltage can be digitized with a programmable 1 MS/sec
16-bit digitizer, making it possible to acquire waveforms
without the need for a separate instrument.
Key Features
- 15 measurement functions including capacitance,
temperature, and digitizing
- Expanded measurement ranges include
10 μA to 10 A and 1 Ω to 100 MΩ
- Large 5-inch (12.7 cm) multi-touch capacitive
touchscreen with graphical display
- Large internal memory; store up to 7 million readings
- Multiple language modes: SCPI, TSP®^ scripting,
Keithley 2000 SCPI emulation, Keysight 34401A
SCPI emulation
- Two-year specifications allow for longer
calibration cycles
- Standard USB-TMC and LXI/Ethernet
communication interfaces
- Optional user-installable communication interfaces
including: GPIB, TSP-Link®, and RS-
- Capture voltage or current transients with
1 MS/sec digitizer
- USB host port for storing readings, instrument
configurations, and screen images
Analyze complex waveforms with the touchscreen display.
Capture and Analyze Voltage or Current Transitions
Power analysis is becoming more important in today’s electronic designs. Designers must now consider more efficient
components and complex system design typically requiring multiple power states. The DMM6500 has the tools you
need to help design and troubleshoot these complex systems. Eight different current ranges allow measurements from
10 amps down to 10 pico-amps, giving you the dynamic range to measure your power states. In addition, a built-in 1 MS/sec
digitizing function can help capture transient events, allowing you to see and analyze transitions as they occur.
Pinch and zoom simplicity for in-depth waveform analysis. Visualize and analyze waveforms using adjustable cursors and statistics.
DMM6500 Measurement Capabilities
DC Voltage
AC Voltage
DC Current
AC Current
Resistance (2-wire)
Resistance (4-wire)
Capacitance
Period
Frequency
Diode
Digitize Voltage
Digitize Current
100 nV
100 nV
Logarithmic Scale
Linear Scale
10 pA
100 pA
0.1 pF
–200°C
–80°C
–200°C
1820°C
150°C
850°C
3.3 μs
3 Hz
10 μV
10 nA
1010 V
750 VRMS
10.1 A
10.1 A
120 MΩ
10 μΩ 120 MΩ
120 μF
333 ms
300 kHz
1010 V
10 μV 12 V
(Selectable: 10 μA / 100 μA / 1 mA / 10 mA source)
10.1 A
1 f 1 p 1 n 1 μ 1 m 1 1 k 1 M 1 G
Thermocouple
Thermistor
2-, 3-, 4-Wire RTD
DMM6500 15 measurement functions and ranges.
2 | WWW.TEK.COM
Multi-channel/Scanning Applications
When characterizing or profiling your design it is often critical
to make a series of measurements. In these applications
the need for automated multi-channel measurements is
advantageous. The DMM6500 is equipped with a scanner
card slot allowing up to 10 channels of switching, giving
you the capability to make automated multi-channel
measurements. Plugging in the 2000-SCAN card gives users
up to 10 channels of 2-pole measurements or 5 channels of
4-pole measurements. Functions can be programmed on a
per-channel basis if supported by the switch topology.
Temperature Measurement
Applications
Temperature is one of the most measured signal types in
the world, and the DMM6500 has many options to help you
make this measurement. Besides RTD, thermistor, and
thermocouple functions, you can equip your DMM with a
nine-channel scanner card with built-in CJC for automated
thermocouple temperature scanning. This feature is
very useful when your design requires thermal profiling,
especially when enclosed in a temperature chamber.
2001-TCSCAN 9-Channel Thermocouple Multiplexer and DMM6500 rear panel.
2000-SCAN 10-Channel Multiplexer.
Ready to Use Instrument Drivers
Simplify Programming
Prefer to create your own customized application software?
Native National Instruments Labview®, IVI-C, and IVI-
COM drivers are available for downloading to simplify
the programming process. For the Labview®^ driver visit
www.ni.com; for IVI drivers visit www.tek.com.
Application Programs
The DMM6500 is factory installed with application
programs to help you get more out of your instrument.
These application programs appear when the instrument
is used in the TSP or native SCPI communication
language mode. These examples highlight the unique
ability of the DMM6500 to run specialized applications
which customize the user interface. This can significantly
change the way information is displayed or even
automated in performing an application
Menu of application programs that can customize the display or perform special functions.
4 | WWW.TEK.COM
System Integration and Programming
Users have maximum programming flexibility with the DMM6500. In addition to traditional SCPI programming (default), the unit
can also be configured for SCPI emulation for the Keithley 2000 or the Keysight 34401A. Additionally, Keithley’s powerful Test
Script Processor (TSP®) programming is another option that allows unique single- or multi-instrument testing applications
where speed is critical.
DMM6500 with KTTI-TSP Option
Device Under Test
2450 SourceMeter ®^ 2460 SourceMeter ®
TSP-Link ®
I/O Control (Triggering/ Handler)
TSP®^ Script Conditional branching Calculations and flow control Pass/Fail test Prober/Handler control Datalogging/ Formatting
TSP-Link ®
TSP®^ scripting allows running powerful test scripts directly on the instrument, without the need for an external PC controller.
These test scripts are complete test programs based on an easy-to-use yet highly efficient and compact scripting language,
LUA (www.lua.org). Scripts are a collection of instrument control commands and/or program statements. Program
statements control script execution and provide facilities such as variables, functions, branching, and loop control. This
allows you to create powerful measurement applications without an integrated development environment (IDE). Test scripts
can contain any sequence of routines that are executable by conventional programming languages (including decision-making
algorithms), so the instrument can manage every facet of the test without the need to communicate with a PC for decision
making. This eliminates delays due to GPIB, Ethernet, or USB traffic congestion and greatly improves test times.
TSP technology also offers mainframe-less channel
expansion. The KTTI-TSP is a user installable accessory
card offering connectivity to TSP-Link®^ technology.
This channel expansion bus allows connecting multiple
DMM6500’s or other TSP-enabled instruments together
to form a tightly synchronized instrument system.
Connection is provided with simple low cost Category 5
Ethernet crossover cabling. The system is organized in a
master-subordinate configuration, essentially allowing the
connected instruments to act as one. Other Keithley TSP-
enabled instruments include the 2450 and 2460 Graphical
SourceMeter®^ SMU Instruments, Series 2600B SourceMeter®
SMU Instruments, DMM7510, DAQ6510, and the Series
3700A Switch/Multimeter Measurement systems. TSP-Link
technology supports up to 32 units, so it’s easy to scale a
system to fit the requirements of an application.
TSP System using TSP-Link for instrument to instrument communication.
TSP Scripting example showing 4-wire resistance.
WWW.TEK.COM | 5
Specification Conditions
This document contains specifications and supplemental information for the DMM6500 Multimeter System.
Specifications are the standards against which the DMM6500 is tested. Upon leaving the factory, the DMM6500 meets
these specifications. Supplemental and typical values are nonwarranted, apply at 23°C, and are provided solely as useful
information. Measurement accuracies are specified for DMM6500 front or rear input terminals and include conversion error
for thermocouple, thermistor, and RTD measurements.
Measurement Conditions Include:
- After a 30-minute warmup period.
- 1 PLC or 5 PLC measurement rate; for NPLC settings less than 1 PLC, add appropriate noise error from “Measurement
Noise” table.
- Autozero enabled.
- Calibration period: one year (recommended) or two years. Calibration period may vary depending on customer
requirements.
- 24-hour accuracy specification is relative to calibrator accuracy.
- Communication accessory card slot cover or an optional KTTI interface card is properly installed onthe rear of the unit.
Definitions:
- TCAL — The temperature at which the instrument was calibrated (23°C for factory calibration).
- Temperature coefficient — Additional uncertainty added for each°C outside TCAL ±5°C.
- Power Line Cycle (PLC) — 16.67 ms at 60 Hz and 20 ms at 50 Hz or 400 Hz line frequency. Frequency automatically sensed
at power up.
WWW.TEK.COM | 7
DC Voltage
DC Voltage Accuracy ±(% of reading + % of range)
Range Resolution Input Impedance
24 Hours TCAL ±1°C
90 Days TCAL ±5°C
1 Year TCAL ±5°C
2 Years TCAL ±5°C
Temperature Coefficient 100 mV 100 nV >10 GΩ or 10 MΩ ±1% 0.0015 + 0.0030 0.0025 + 0.0035 0.0030 + 0.0035 0.0035 + 0.0035 0.0001 + 0. 1 V 1 μV >10 GΩ or 10 MΩ ±1% 0.0015 + 0.0006 0.0020 + 0.0006 0.0025 + 0.0006 0.0030 + 0.0006 0.0001 + 0. 10 V 10 μV >10 GΩ or 10 MΩ ±1% 0.0010 + 0.0004 0.0020 + 0.0005 0.0025 + 0.0005 0.0030 + 0.0005 0.0001 + 0. 100 V 100 μV 10 MΩ ±1% 0.0015 + 0.0006 0.0035 + 0.0006 0.0040 + 0.0006 0.0050 + 0.0006 0.0006 + 0. 1000 V 1 1 mV 10 MΩ ±1% 0.0020 + 0.0006 0.0035 + 0.0006 0.0040 + 0.0006 0.0050 + 0.0006 0.0006 + 0.
Measurement Noise Characteristics and Rejection Ratios
Measurement Rate in NPLCs Digits
DCV RMS Noise Uncertainty (in % of range + fixed base) 2 NMRR 3 CMRR 3 5 4
0 100 dB 140 dB 5 0 60 dB 140 dB 1 4 0 90 dB 140 dB 1 0 60 dB 140 dB 0.1 4 0.00015 + 1 μV 40 dB 120 dB
0.00015 + 4 μV -- 120 dB 0.01 0.00030 + 6 μV -- 80 dB 0.0005 4.5 0.00500 + 40 μV -- 80 dB
DC Voltage Characteristics
Overrange 20% on 100 mV, 1 V, 10 V, and 100 V. 1% on 1000 V
ADC Linearity (10 V range) 0.0001% of reading + 0.0001% of range
Input Impedance 100 mV to 10 V Ranges: Selectable: (>10 GΩ or 10 MΩ ±1%) in parallel with <400 pF 100 V to 1000 V Ranges: 10 MΩ ±1% in parallel with <400 pF
Input Bias Current <50 pA at 23°C
Common Mode Current <600 nA peak-peak at 50 Hz or 60 Hz
Earth Isolation 500 Vpeak >10 GΩ and <300 pF any terminal to chassis
Common Mode Voltage 500 Vpeak LO terminal to chassis maximum
Autozero Off Error Add ±(0.0002% of range + 3 μV) within ±1°C and ≤10 minutes since last autozero Add ±(0.0010% of range + 10 μV) within ±5°C and ≤60 minutes since last autozero
Input Protection Input HI 1100 V, Sense HI (SHI) and Sense LO (SLO) 350 V referenced to LO
Scanner Card Additional Uncertainties and Maximum Input Signal Levels
Scanner Card Add the Following Uncertainty Maximum Input Signal Level 2000-SCAN 1 μV 110 V 2001-TCSCAN 1 μV 110 V
Notes
- For each additional volt over ±500 V, add 0.02 mV of uncertainty.
- Noise values apply to terminals using a low-thermal short for 50 Hz and 60 Hz operation only. Measurements through a card may introduce additional noise.
- NMRR for line frequency ±0.1%. For DC common mode and 1 kΩ unbalance on LO terminal, rejection of AC common mode signals is >80 dB for line frequency ±0.1%.
- Line sync on.
8 | WWW.TEK.COM
DC Current
DC Current Accuracy ±(% of reading + % of range)
Range Resolution
Burden Voltage
24 Hours TCAL ±1°C
90 Days TCAL ±5°C
1 Year TCAL ±5°C
2 Years TCAL ±5°C
Temperature Coefficient 10 μA 10 pA <0.13 V 0.007 + 0.002 0.035 + 0.005 0.045 + 0.005 0.055 + 0.005 0.0030 + 0. 100 μA 100 pA <0.14 V 0.010 + 0.002 0.035 + 0.005 0.045 + 0.005 0.055 + 0.005 0.0020 + 0. 1 mA 1 nA <0.17 V 0.007 + 0.006 0.035 + 0.005 0.045 + 0.005 0.055 + 0.005 0.0020 + 0. 10 mA 10 nA <0.17 V 0.006 + 0.003 0.018 + 0.005 0.020 + 0.005 0.025 + 0.005 0.0015 + 0. 100 mA 100 nA <0.20 V 11 0.010 + 0.003 0.015 + 0.005 0.020 + 0.005 0.025 + 0.005 0.0015 + 0. 1 A 1 μA <0.55 V 11 0.020 + 0.004 0.030 + 0.005 0.040 + 0.005 0.050 + 0.005 0.0030 + 0. 3 A 1 μA <1.70 V 11 0.030 + 0.004 0.040 + 0.004 0.050 + 0.004 0.060 + 0.004 0.0030 + 0. 10 A 12 10 μA <0.50 V 0.140 + 0.025 0.190 + 0.025 0.220 + 0.025 0.250 + 0.025 0.0060 + 0.
DC Current Characteristics
Overrange 20% on 10 μA, 100 μA, 1 mA, 10 mA, 100 mA, and 1 A ranges 1% on 3 A and 10 A ranges
Terminal Input Protection Externally accessible 3 A, 250 V fast-acting fuse, 5 × 20 mm Keithley replacement part number FU-99-
Externally accessible 11 A and 1000 V fuse Keithley replacement part number (11A) 159-0583-
Autozero Off Error Add ±0.004% of range within ±1°C and ≤10 minutes since last autozero Add ±0.015% of range within ±5°C and ≤60 minutes since last autozero
Nominal Shunt Resistance 13
10 μA 100 μA 1 mA 10 mA 100 mA 1 A 3 A 10 A 10 kΩ 1 kΩ 100 Ω 10 Ω 1 Ω 100 mΩ 100 mΩ 5 mΩ
DC Current Measurement Noise Characteristics 14
Measurement Rate in NPLC Digits
DCI RMS Noise Uncertainty (in % of range + fixed base) 5
0.1 15 0.0009 + 10.0 pA
0.0015 + 5.0 nA 0.01 0.0030 + 5.0 nA 0.0005 4.5 0.0200 + 5.0 nA
Notes
- When using the rear terminals, add 0.1 V to the 100 mA range and 0.5 V to the 1 A and 3 A ranges.
- For each additional ampere over ±6 A, add 2 mA of uncertainty. Operation for >1000 hours with a signal level of >7 A, add 0.05% of reading uncertainty for every 1000 hours.
- Guaranteed by design.
- Noise values apply to open terminals. Measurements through a card may introduce additional noise.
- Line sync on.
10 | WWW.TEK.COM
Temperature
Thermocouple Accuracy ±°C 16
Type Resolution Range
2 Year Accuracy TCAL ±5°C; all uncertainties in °C
Temperature Coefficient in°C/°C
Simulated or External CJC
Internal CJC (on module) Front/Rear Terminals 2001-TCSCAN 2001-TCSCAN
J 0.001°C
0° to 760°C 0.20 0.20 0.65 0. –200° to <0°C 0.20 0.20 0.65 0.
K 0.001°C
0° to 1372°C 0.20 0.20 0.70 0. –200° to <0°C 0.30 0.30 0.70 0.
N 0.001°C
0° to 1300°C 0.20 0.20 0.70 0. –200° to <0°C 0.50 0.60 1.50 0.
T 0.001°C
0° to 400°C 0.20 0.20 0.70 0. –200° to <0°C 0.30 0.30 0.70 0.
E 0.001°C
0° to 1000°C 0.20 0.20 0.70 0. –200° to <0°C 0.20 0.30 0.70 0.
R 0.010 °C
600° to 1768°C 0.40 0.50 1.30 0. 0° to <600°C 0.80 1.00 1.30 0.
S 0.010 °C
600° to 1768°C 0.40 0.50 1.30 0. 0° to <600°C 0.80 1.00 1.30 0.
B 0.010 °C
1100° to 1820°C 0.40 0.50 1.65 0. 350° to <1100°C 1.20 1.50 1.65 0.
Resistance Temperature Detector (RTD) Accuracy ±°C
Types: 100 Ω platinum PT100, D100, F100, PT385, and PT3916 or user-configurable 0 Ω to 10 kΩ
Measurement Method Resolution Range
2 Year Accuracy TCAL ±5°C
Temperature Coefficient in°C/°C 2-wire 17 0.01°C –200° to 850°C 0.80 0.
3-wire 18 0.01°C
–200° to 600°C 0.35 0. >600° to 850°C 0.37 0.
4–wire 0.01°C
–200° to 600°C 0.06 0. >600° to 850°C 0.12 0.
WWW.TEK.COM | 11
AC Voltage Characteristics
Overrange (voltages in VRMS) 20% on 100 mV, 1 V, 10 V, and 100 V ranges. 0% for 750 V range
AC Measurement Method AC-coupled digital sampling with anti-alias filter
Crest Factor (excludes sine wave) Crest factors of up to 3:1 at full-scale input or 10:1 maximum, whichever is greater.
Autorange selects optimum range for crest factor up to 10:1. Accuracy specifications apply to all crest factors and are limited to a product of (crest factor) × (fundamental frequency) ≤ 3 kHz.
VoltHertz Product* ≤8 × 10^7 V*Hz 20
Common Mode Rejection Ratio >70 dB, for 1 kΩ unbalance in LO lead
Detector Bandwidth Setting of 3 Hz, 30 Hz, or 300 Hz sets maximum measurement aperture of 200 ms, 20 ms, or 2 ms, respectively; only signals with frequency greater than the detector bandwidth are measured.
Input Impedance 1.1 MΩ ±2%, in parallel with <100 pF
Input Protection 1100 Vpeak
Maximum DCV 400 V on any ACV range
ACV Frequency Frequency reading automatically returned in reading buffer when in full buffer mode. Frequency readings are specified as in the frequency and period table.
Scanner Card Maximum Input Signal Levels Module Maximum input signal level 2000-SCAN 125 VRMS/175 Vpeak 2001-TCSCAN 125 VRMS/175 Vpeak
Notes
- Specifications are for sine wave inputs >5% of range.
- Guaranteed by design.
AC Current
AC Current Accuracy ± (% of reading + % of range) 21
Range Resolution
Burden Voltage Frequency
24 Hours TCAL ±1°C
90 Days TCAL ±5°C
1 Year TCAL ±5°C
2 Years TCAL ±5°C
Temperature Coefficient
100 μA 100 pA <0.14 V
3 Hz – 1 kHz 0.10 + 0.07 0.10 + 0.07 0.10 + 0.07 0.10 + 0.07 0.015 + 0. >1 kHz – 10 kHz 22 0.15 + 0.07 0.15 + 0.07 0.15 + 0.07 0.15 + 0.07 0.030 + 0.
1 mA 1 nA <0.17 V
3 Hz – 5 kHz 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.015 + 0. >5 kHz – 10 kHz 22 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.030 + 0.
10 mA 10 nA <0.17 V
3 Hz – 5 kHz 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.10+ 0.04 0.015 + 0. >5 kHz – 10 kHz 22 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.030 + 0.
100 mA 100 nA <0.20 V 23
3 Hz – 5 kHz 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.015 + 0. >5 kHz – 10 kHz 22 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.030 + 0.
1 A 1 μA <0.75 V 23
3 Hz – 5 kHz 24 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.015 + 0. >5 kHz – 10 kHz 22 0.15 + 0.06 0.15 + 0.06 0.15 + 0.06 0.15 + 0.06 0.030 + 0.
3 A 1 μA <1.70 V 23
3 Hz – 5 kHz 24 0.15 + 0.06 0.15 + 0.06 0.15 + 0.06 0.15 + 0.06 0.015 + 0. >5 kHz – 10 kHz 22 0.15 + 0.06 0.15 + 0.06 0.15 + 0.06 0.15 + 0.06 0.030 + 0.
10 A 10 μA <0.50 V
3 Hz – 1 kHz 24 0.40 + 0.06 0.40 + 0.06 0.40 + 0.06 0.40 + 0.06 0.015 + 0. >1 kHz – 5 kHz 1.00 + 0.07 1.00 + 0.07 1.00 + 0.07 1.00 + 0.07 0.030 + 0. >5 kHz – 10 kHz 22 1.00 + 0.07 1.00 + 0.07 1.00 + 0.07 1.00 + 0.07 0.030 + 0.
WWW.TEK.COM | 13
AC Current Characteristics
Overrange 20% on 100 μA, 1 mA, 10 mA, 100 mA, and 1 A ranges 1% on 3 A and 10 A ranges
AC Measurement Type AC-coupled True RMS; measures the AC component of the input Digital sampling with anti-alias filter
Input Protection See DC current characteristics.
Crest Factor 25 (excludes sine wave) 10:1 maximum crest factor (1.75:1 at full-scale)
Autorange selects optimum range for crest factor up to 10: Accuracy specifications apply to all crest factors less than 5 and are limited to the product of (crest factor) × (fundamental frequency) ≤ 200 Hz.
ACI Frequency Frequency readings are automatically returned in the reading buffer when in full buffer mode. Frequency values are typical.
Nominal Shunt Resistance 26 100 μA: 1 kΩ, 1 mA: 100 Ω, 10 mA: 10 Ω, 100 mA: 1 Ω, 1 A: 100 mΩ, 3 A: 100 mΩ, 10 A: 5 mΩ
Notes
- Specifications are for sine wave inputs >5% of range and >10 μARMS.
- Typical performance for the indicated frequency ranges.
- When using the rear terminals, add 0.1 V to the 100 mA range and 0.5 V to the 1 A and 3 A ranges.
- For signals of <5 Hz, add 0.2% of reading uncertainty.
- 100 μA range is specified only for crest factors <3.
- Guaranteed by design.
Frequency and Period
Frequency and Period Accuracy ± (% of reading) 27
Range Resolution Frequency Period
2 Year Accuracy TCAL ±5°C
Temperature Coefficient in°C/°C
100 mV to 750 V (For signals >5% of range and >10 mVRMS)
0.0001% of reading
3 Hz to 10 Hz 333 ms to 100 ms 0.100 0. >10 Hz to 100 Hz <100 ms to 10 ms 0.030 0. >100 Hz to 1 kHz <10 ms to 1 ms 0.010 0. >1 kHz to 300 kHz <1 ms to 3.3 μs 0.009 0. Square Wave 28 0.008 0.
Frequency and Period Characteristics
Measurement Method Reciprocal-counting technique; measurement is AC-coupled using AC measurement functions.
Voltage Ranges 100 mVRMS full scale to 750 VRMS; auto or manual ranging.
Gate Time User definable from 2 ms to 273 ms (default 200 ms)
Continuity
Continuity Accuracy 2-Wire ±(% of reading + % of range) 29
Range Resolution Test Current
Open Circuit Voltage (±5%)
2 Year Accuracy TCAL ±5°C
Temperature Coefficient 1 kΩ 100 mΩ 1 mA 9.2 V 0.010 + 0.010 0.0006 + 0.
14 | WWW.TEK.COM
Digitize DC Current Accuracy ±(% of reading + % of range) 33
Range Resolution Burden Voltage
2 Year Accuracy TCAL ±5°C Temperature Coefficient 100 μA 10 nA <0.14 V 0.07 + 0.05 0.0030 + 0. 1 mA 100 nA <0.17 V 0.07 + 0.03 0.0030 + 0. 10 mA 1 μA <0.17 V 0.05 + 0.03 0.0030 + 0. 100 mA 10 μA <0.20 V 34 0.05 + 0.03 0.0020 + 0. 1 A 100 μA <0.55 V 34 0.07 + 0.03 0.0040 + 0. 3 A 100 μA <1.70 V 34 0.09 + 0.04 0.0040 + 0. 10 A 1 mA <0.50 V 0.25 + 0.08 0.0060 + 0.
Notes
- Specifications do not include errors that may arise from user’s cable or connection resistance.
- DC accuracy specified with 1000 samples per second, 100-reading digital filter.
- When using the rear terminals, add 0.1 V to the 100 mA range and 0.5 V to the 1 A and 3 A ranges.
Typical Digitize Signal Characteristics
1 dB full-scale of range
Function: Range
Spur-free Range SFDR (1 kHz / 10 kHz / 50 kHz)
THD + Noise SNDR (1 kHz / 10 kHz / 50 kHz) Bandwidth (–3 dB, 5%)
Effective Number of Bits (1 kHz/10 kHz/50 kHz) DCV: 100 mV 75 / 70 / 50 65 / 60 / 50 210 kHz 9 / 9 / 7 DCV: 1 V 95 / 90 / 75 80 / 80 / 75 210 kHz 12 / 12 / 11 DCV: 10 V 95 / 80 / 70 90 / 80 / 70 440 kHz 13 / 12 / 10 DCV: 100 V 50 / 35 / 25 50 / 40 / 30 17 kHz 10 / 8 / 7 DCV: 1000 V 50 / 35 / 25 50 / 40 / 30 17 kHz 13 / 11 / 10 DCI: 100 μA 80 / 65 / 45 70 / 65 / 45 430 kHz 12 / 10 / 8 DCI: 1 mA 80 / 65 / 45 70 / 65 / 45 570 kHz 12 / 10 / 8 DCI: 10 mA 80 / 65 / 45 70 / 65 / 45 230 kHz 12 / 10 / 8 DCI: 100 mA 80 / 65 / 45 70 / 65 / 45 340 kHz 12 / 10 / 8 DCI: 1 A 70 / 50 / 40 65 / 50 / 40 25 kHz 11 / 8 / 7 DCI: 3 A 70 / 50 / 40 65 / 50 / 40 25 kHz 11 / 8 / 7 DCI: 10 A 45 / 25 / 20 43 / 30 / 30 40 kHz 7 / 5 / 5
Digitizing Additional Characteristics
Maximum Resolution 16 bits
Measurement Input Coupling DC coupled
Sampling Rate Programmable 1 k through 1 MS/s
Minimum Record Time 1 μs
Maximum Record Length (Volatile) Up to 7 million with standard buffer (includes channel and formatting information)
16 | WWW.TEK.COM
DC Voltage Ratio
DC Voltage Ratio Calculation 35
Method Measurement
Channel Ratio (through rear input scanner card)
Channel A Channel Ratio = ___________ Channel B Accuracy = (Accuracy of channel A measure range + Accuracy of channel B measure range) × Channel ratio
Channel Average (through rear input scanner card)
Channel A + Channel B Channel Average = _______________________ 2 Accuracy = Accuracy of channel A measure range + Accuracy of paired channel B measure range
DCV Input Ratio (HI-LO/SHI–SLO) 36
HI signal Ratio = _______________________ SHI signal – SLO signal HI range 10 V Accuracy = ( _________^ × DCV% of range accuracy + _______________________^ × 0.0008% ) × Ratio HI signal SHI signal – SLO signal
Notes
- See DC Voltage Accuracy. SHI and SLO: 10 V range only. SHI and SLO (sense) terminals referenced to LO input. Maximum voltage referenced to LO 12 V.
- Sense terminals on inputs are limited to 10 V range during ratio measurement. Add 0.0015% + 0.0005% per °C temperature coefficient to DCV percent of range accuracy when using the 100 V or 1000 V range on the input terminals.
System Specifications
Typical Reading Rates, DC Functions 37, 38
60 Hz (50 Hz) Operation
NPLC
Functions: DCV (10 V) 2-wire Ω (≤10 kΩ), DCI (1 mA)
Functions: 4-wire Ω (≤1 kΩ) 4-wire and 3-wire RTD Function: Thermistor or Thermocouple Measurements (readings per second) 39 Buffer Computer Buffer Computer Buffer Computer 5 12 (10) 11 (9) 5 (4) 5 (4) 12 (10) 11 (9) 1 59 (48) 58 (48) 28 (23) 28 (23) 59 (49) 57 (48) 0.1 584 (490) 440 (380) 180 (160) 170 (150) 580 (480) 440 (380) 0.01 4900 (4100) 4800 (4100) 400 (390) 400 (390) 4800 (4100) 4700 (4000) 0.0005 20600 (20600) 19800 (19800) 460 (460) 460 (460) 21000 (21000) 20300 (20300)
Typical Reading Rates, AC Functions 37
60 Hz (50 Hz) Operation
Function: ACV, ACI Function: Frequency, Period
Measurements (readings per second) Detector Bandwidth Aperture Buffer or Computer 3 Hz 200 ms 1 30 Hz 20 ms 10 300 Hz 2 ms 100
WWW.TEK.COM | 17
Triggering
Trigger Sources Front panel trigger key, timer, command interface, LAN/LXI, Trigger In (BNC rear panel), Digital I/O (optional accessory card), and TSP-Link®^ (optional accessory card)
External Trigger Delay <1 μs when triggering from accessory card or rear BNC input
External Trigger Jitter <1 μs when triggering from accessory card or rear BNC input
External Trigger In/Trigger Out 0 V to 5 V logic signal input and output, TTL-compatible, programmable edge pulse Minimum pulse width: 1 μs
External Trigger Out, Maximum Rate Up to 90 kHz, measurement dependent
External Trigger In, Maximum Rate Up to 150 kHz, measurement dependent
Notes
- Assume the signal is 10 kHz or above.
- 3.5 digits, autozero off, 0.0005 PLC, excludes measurement time.
- DCV = 10 V; 2-wire or 4-wire = 1 kΩ; DCI = 1 mA; ACI = 1 mA; ACV = 1 V; Capacitance = 10 μF.
- 2-wire function for 100 Ω range and up. For the 10 Ω range, add 2.7 ms.
- 4-wire function for 100 Ω range and up. For the 1 Ω and 10 Ω ranges, add 2.7 ms.
- When ranging to 10 V and above, add 1.8 s.
- SCPI programmed using 4-byte binary format.
- Format elements: Reading, relative timestamp, channel, and unit.
- SCPI programmed using 4-byte binary format.
Scanning (with optional scan cards)
Scan Count 1 to continuous
Scan Interval 0 s to 27.7 hours
Channel Delay 0 to 60 s
Measure Interval 0 s to 27.7 hours
Internal Memory
Maximum Reading Memory (volatile) Up to 7 million readings with standard buffer (includes channel and formatting information).
Internal (non-volatile) Memory for Saved Scripts and Scan Configurations 6 MB, enables hundreds of scan configurations or TSP scripts to be saved in non-volatile memory.
General Specifications
Line Power
Power Supply 100 V, 120 V, 220 V, and 240 V (±10%)
Power Line Frequency 50 Hz to 60 Hz and 400 Hz, automatically sensed at power-up
Maximum Power Consumption 50 VA
Typical Power Consumption 30 VA
Mains Input Fuse 250 V, 1.25 A slow-blow fuse: Keithley replacement part number FU-106-1.
WWW.TEK.COM | 19
Environment and Regulatory
Operating Environment Specified for 0° to 50°C, ≤80% relative humidity at 35°C, altitude up to 2000 meters
Storage Environment –40° to 70°C
Vibration MIL-PRF-28800F Class 3, random
Warm-up 30 minutes to rated accuracy
Safety NRTL listed to UL61010-1, and CSA C22.2 No 61010-1; conforms with European Union Low Voltage Directive
EMC Conforms to European Union EMC Directive
Mechanical
Display 12.7 cm (5 in.) capacitive touch, color TFT WVGA (800 × 480) with LED backlight
Rack Dimensions (W × H × D) 213.8 mm (8.42 in.) × 88.4 mm (3.48 in.) × 356.6 mm (14.04 in.)
Bench Dimensions (W × H × D) 224.0 mm (8.82 in.) × 107.2 mm (4.22 in) × 387.4 mm (15.25 in.)
Shipping Weight 4.54 kg (10.0 lb.) instrument only
Input Signal Connections Front/rear safety banana jacks or scanner cards
Plug-in Scanner Slot One slot on rear panel, see Optional Multi-Channel/Scanner Accessories.
Communication Slot One slot on rear panel, see Optional Interfaces And Programmable Digital I/O.
Cooling Forced air, fixed speed
Remote Interface – Standard
LAN/LXI Compliance RJ-45 Connector: 10/100BT. IP Configuration: Static or DHCP (manual or automatic). Web Interface: Virtual front panel. LXI Compliance: 1.5 LXI Device Specification 2016.
USB Device (rear panel, Type B) 2.0 full speed, USBTMC compliant
USB Host (front panel, Type A) USB 2.0, support for flash drives, FAT32. Capability: Import/export instrument configuration files, reading buffers, screen captures, and scripts
Language
SCPI (default) Default command set, Standard Commands for Programmable Instruments, SCPI-
TSP Embedded Test Script Processor (TSP) accessible from any host interface; responds to high-speed test scripts comprised of remote commands and statements (for example, branching, looping, and math); able to execute test scripts stored in memory without host intervention
Emulation Modes Keithley Model 2000 and 34401A
Math Functions
REL, Minimum, Maximum, Average, Standard Deviation, peak-peak, dB, Limit Test, Percent, 1/x, and mX+b with user- defined units displayed
Miscellaneous
Real-time Clock Lithium battery backup, CR2032 coin-type, factory replaceable, (3+ years of battery life); set and read year, month, day, hour, minute, and second. (Note: Seconds are not adjustable.)
Timestamp Resolution 15 ns with standard or full buffer style
Password Protection 30 characters
Alarms Up to six: see Optional Interfaces and Programmable Digital I/O
Power Failure Recovery Mode User selectable, resumes scanning once power is re-applied
20 | WWW.TEK.COM
