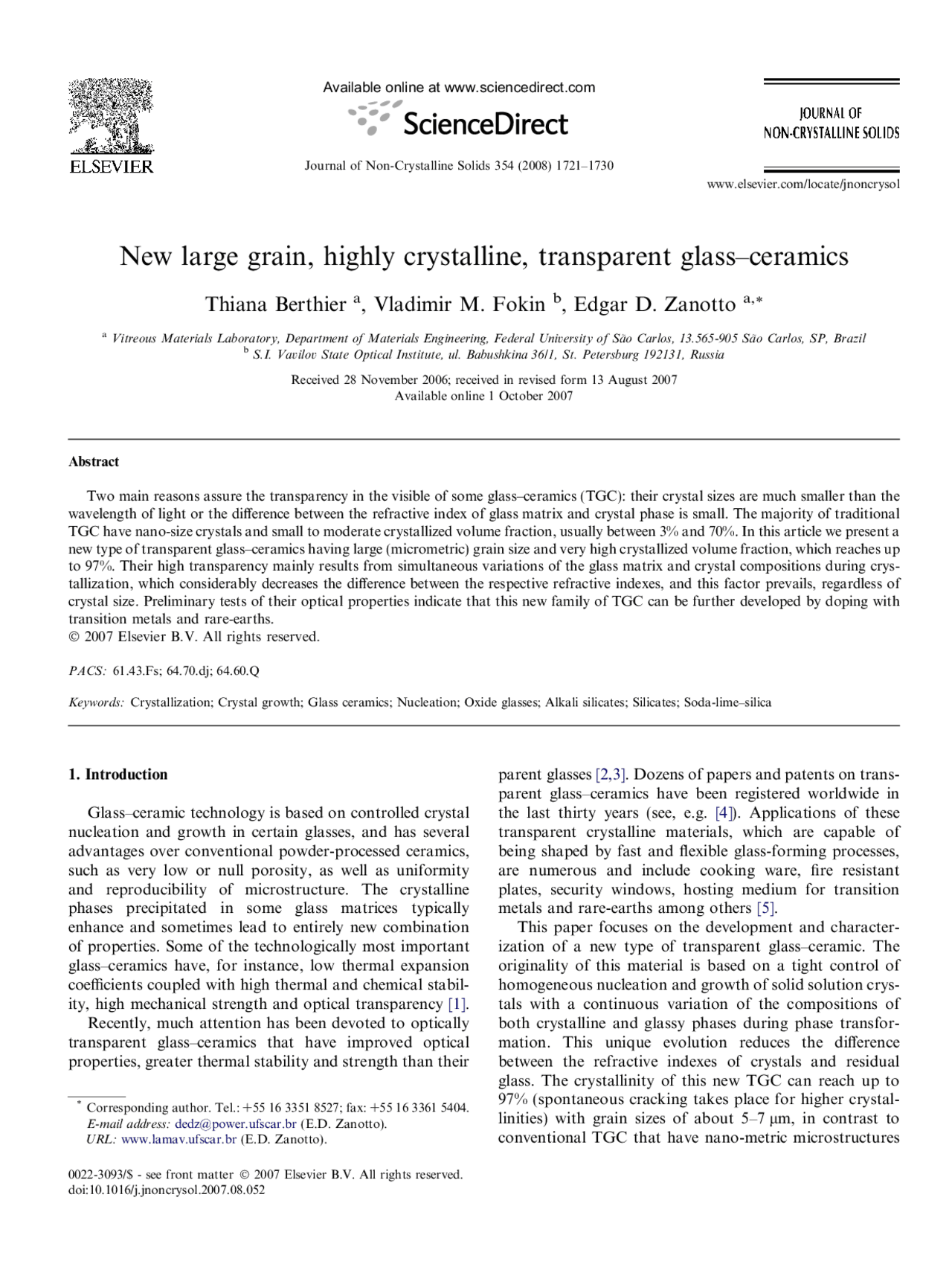

a (^) Vitreous Materials Laboratory, Department of Materials Engineering, Federal University of Sa˜o Carlos, 13.565-905 Sa˜o Carlos, SP, Brazil b (^) S.I. Vavilov State Optical Institute, ul. Babushkina 36/1, St. Petersburg 192131, Russia
Received 28 November 2006; received in revised form 13 August 2007 Available online 1 October 2007
Abstract
Two main reasons assure the transparency in the visible of some glass–ceramics (TGC): their crystal sizes are much smaller than the wavelength of light or the difference between the refractive index of glass matrix and crystal phase is small. The majority of traditional TGC have nano-size crystals and small to moderate crystallized volume fraction, usually between 3% and 70%. In this article we present a new type of transparent glass–ceramics having large (micrometric) grain size and very high crystallized volume fraction, which reaches up to 97%. Their high transparency mainly results from simultaneous variations of the glass matrix and crystal compositions during crys- tallization, which considerably decreases the difference between the respective refractive indexes, and this factor prevails, regardless of crystal size. Preliminary tests of their optical properties indicate that this new family of TGC can be further developed by doping with transition metals and rare-earths. Ó 2007 Elsevier B.V. All rights reserved.
PACS: 61.43.Fs; 64.70.dj; 64.60.Q
Keywords: Crystallization; Crystal growth; Glass ceramics; Nucleation; Oxide glasses; Alkali silicates; Silicates; Soda-lime–silica
Glass–ceramic technology is based on controlled crystal nucleation and growth in certain glasses, and has several advantages over conventional powder-processed ceramics, such as very low or null porosity, as well as uniformity and reproducibility of microstructure. The crystalline phases precipitated in some glass matrices typically enhance and sometimes lead to entirely new combination of properties. Some of the technologically most important glass–ceramics have, for instance, low thermal expansion coefficients coupled with high thermal and chemical stabil- ity, high mechanical strength and optical transparency [1]. Recently, much attention has been devoted to optically transparent glass–ceramics that have improved optical properties, greater thermal stability and strength than their
parent glasses [2,3]. Dozens of papers and patents on trans- parent glass–ceramics have been registered worldwide in the last thirty years (see, e.g. [4]). Applications of these transparent crystalline materials, which are capable of being shaped by fast and flexible glass-forming processes, are numerous and include cooking ware, fire resistant plates, security windows, hosting medium for transition metals and rare-earths among others [5]. This paper focuses on the development and character- ization of a new type of transparent glass–ceramic. The originality of this material is based on a tight control of homogeneous nucleation and growth of solid solution crys- tals with a continuous variation of the compositions of both crystalline and glassy phases during phase transfor- mation. This unique evolution reduces the difference between the refractive indexes of crystals and residual glass. The crystallinity of this new TGC can reach up to 97% (spontaneous cracking takes place for higher crystal- linities) with grain sizes of about 5–7 lm, in contrast to conventional TGC that have nano-metric microstructures
0022-3093/$ - see front matter Ó 2007 Elsevier B.V. All rights reserved. doi:10.1016/j.jnoncrysol.2007.08.
www.elsevier.com/locate/jnoncrysol
Available online at www.sciencedirect.com
Journal of Non-Crystalline Solids 354 (2008) 1721–
and low to moderate crystallized volume fraction. Some of the characteristic optical properties of these new, large grain transparent glass–ceramics are presented below together with an analysis of their crystallization process.
Some of the most important proposed applications of TGC refer to optical components and devices including: laser media; saturable absorber media; illumination devices using infrared light; heat-resistant materials that absorb ultraviolet light, TGCs that reflect infrared light and are transparent to visible light; substrates for arrayed wave- guide grating (AWG) [6,7]; radiation sources of lamps; laser pumps; substrate materials; wafer stages; mirror sup- port for telescopes; second harmonic generation (optical energy converting elements) [8,9]; front windows in heating furnaces or slow-cooling reactors; precise photolithogra- phy; blue or green state lasers, LCD substrates, optical amplifiers for wavelength up-conversion [10]; ring laser gyroscopes; materials that absorb UV and fluoresce in the red/IR (possibly used as tunable lasers) [11]; solar col- lectors; printed optical circuits; gradient refraction optical lenses; optical waveguides [12–14], etc. There are several patents on transparent glass–ceramics that contain a major crystalline phase of low thermal expansion coefficient (0.1 · 10 ^6 –1.0 · 10 ^6 /K) and thus present high thermal shock resistance [4]. Transparency is usually observed in glass–ceramics containing relatively small to moderate volume fractions of crystals (3–70%) with nanoscale size (1–15 nm) [15]. The majority of these low expansion materials belong to the lithia–alumina–silica family with titanium and/or zirconia as nucleating agents, and a number of minor elements to impart color or to improve processability, and have beta-quartz solid solution as the major phase [16].
There are two distinct ways in which light intensity can be attenuated by a medium: atomic absorption and scatter- ing [17,18]. A combination between these two mechanisms plus light reflection from the external surfaces can be expressed by the following equation:
I ¼ I 0 ð 1 RÞ^2 exp½ðb þ SÞx; ð 1 Þ
where
n 1 n þ 1
and I 0 and I are the initial and transmitted light intensity, respectively, b the linear absorption coefficient (absorption index), S the scattering coefficient, x the optical path length, and n is the refractive index of the TGC. The scattering coefficient S can be written as
S ¼ Kpr^2 N ; ð 2 Þ
or assuming spherical particles, as
S ¼
KVr^1 ; ð 3 Þ
where N and V are the number density and volume fraction of the scattering particles, respectively, and K is a scattering factor. K increases with particle-size, reaches a maximum when the particle-size is close to k, and decreases for larger par- ticle-sizes, approaching a constant value for r k. Thus, according to Eq. (3), for a fixed concentration (V) of scat- tering phase the measured scattering coefficient decreases with increasing particle-size (see, e.g. [19]). If a scattering medium has particles with sizes less than 0.1–0.2 of the typical wavelength of visible light, Rayleigh scattering takes place and the angular distribution of scat- tered light can be written as [3]
ð 1 þ cos 2 hÞ L^2
8 p^4 k^4
r^6
M^2 þ 2
I 0 ; ð 4 Þ
where h is the scattering angle, L is the distance from the scattering centers of radius r, and M is the ratio of the refractive index of the particle to that of the surrounding medium. According to Eq. (4) the scattered intensity de- pends mainly on the ratio of the particle-size to the wave- length of light, r/k, and the ratio of refractive indexes, M. Thus, for any given value of h, L, and k, the smaller the first ratio and the closer to unity the second, the most transmit- ting is the medium. If the sizes of the scattering centers are comparable or lar- ger than the wavelength of visible light (as in the case of the micrometric crystals of our TGC), the simple Rayleigh the- ory breaks down. For such relatively large crystal sizes, the dependence of the scattered light intensity on k becomes weaker than that for the Rayleigh scattering, and is given by I kp; ð 5 Þ where p < 4 and decreases with increasing particle-size. Due to the interference of light scattered by different parts of each scattering particle, the I(h) dependence becomes more complicated. With increasing particles sizes forward scattering (acute angles) prevails back scattering (obtuse angles), the so-called Mie effect. This effect may lead to a decrease of the measured scattering coefficient (contrary to the case of small particles) with increasing particle-sizes.
Sodium and calcium carbonates, and crushed quartz were used as starting materials. After melting the proper mixtures in a platinum crucible at 1300–1500 °C for about 4 h, the melts were cast on massive metallic plates to give about 5 mm thick specimens. The compositions of the glasses were close to the pseudo-binary join CaO Æ SiO 2 –Na 2 O Æ SiO 2 in the interval (Na 2 O Æ 2CaO Æ 3SiO 2 (N 1 C 2 S 3 )–Na 2 O Æ CaO Æ 2SiO 2 (N 1 C 1 S 2 )) of solid solution formation. Table 1 shows typical compositions of the TGCs here investigated.
of sodium calcium silicate Na 2 Ca 2 Si 3 O 9 (JCPDS card 22-
SR ¼ 2 N (^) L=SmaxV ; ð 7 Þ
where NL is the average number of intersections of an arbi- trary secant at the crystal/glass interface per unit length and SmaxV is maximal value of SV. The parameter P 1 , which takes into account reflection losses, was estimated in the way described in Section 4. P 1 slightly decreases with crystallized volume fraction (Fig. 8(a)) owing to the increase of the effective refractive index of TGC (Fig. 8(b)). Calculation of P 1 via Eq. (1) with experimental values of refractive index, denoted by stars in Fig. 8(a), corroborates the direct measurements of P 1. The variation of P 1 is very small (0.915–0.907) as com- pared with changes of the parameter P 2 = (b + S), which characterizes absorption and scattering – and is shown in Fig. 9 as a function of a. According to Fig. 9, the lowest values of P 2 correspond to volume fractions crystallized a 0.90–0.96. The transmittance in this a interval varies from 86% to 83% for a 1mm thick plate sample. For samples containing about 97% crystallized fraction the measured Abbe number is 52.6. Ref. [28] reports a study of mechanical properties of these TGC.
16 17 18 19 20 21 22
360
400
440
480
Tpm
Na 2 O, mol%
Fig. 3. Temperature of reversible polymorphic transition in fully crystal- lized glasses taken from DSC hitting curves versus sodium oxide content in the parent glasses. Solid and opened circles refer to analyzed and nominal sodium contents, respectively. The line is placed just to guide the eyes.
Fig. 4. Optical micrographs of the typical crystal morphologies in glasses having a deficit (left) and an excess (right) of silica relative to the metasilicate composition. Scale bars denote 100 lm.
20 40 60 80
0
50
100
150
200
b
a
211
220 404
240
202
Relative Intensity (a. u.)
2 θ (Degree)
003
Fig. 5. XRD patterns of TGC1 (a) and TGC2 (b) with about 97% crystallinity – solid solutions with hexagonal structure N 1 C 2 S 3. Crystals have cubic (a) and spherical (b) morphologies. XRD spectrums are close to JCPDS (card 22-1455) for sodium calcium silicate Na 2 Ca 2 Si 3 O 9.
In contrast to most of the traditional TGCs, which are based on nano-crystallization, the distinguishing features of the new TGCs above described are their very high degree of crystallinity and micrometric crystal sizes. To under- stand why such high crystallinity combined with relatively large crystal sizes do not lead to a significant loss of trans- mittance we must consider the details of the nucleation- growth process in the parent glasses. As we already mentioned in Section 4, the compositions of the present glasses are close to the metasilicate join N 1 C 2 S 3 –N 1 C 1 S 2 , which leads to the formation of solid solutions (s/s) [21] with a continuous compositional varia- tion during crystallization [29]. The densities and corre- sponding refractive indexes of crystals and glasses
belonging to this join do not strongly differ. Indeed, the dif- ference between the refractive indexes of N 1 C 2 S 3 crystal and glass of respective stoichiometric composition is only 0.015. Another interesting factor is that the optical birefrin- gence of 1-2-3 crystals is also very low. These similarities favor a low light scattering. Another feature of these glasses is very important for TGC formation. As we have shown in a previous publica- tion [30], the compositions of the critical nuclei in glasses belonging to the N 1 C 2 S 3 –N 1 C 1 S 2 interval are close to N 1 C 2 S 3 and hence they are enriched in sodium as com- pared with the parent glasses. The reasons for this compo- sitional deviation, discussed in detail in ref. [30], is the decrease in the thermodynamic barrier for nucleation caused by the possible reduction of the interfacial energy due to the increase of sodium in critical nuclei. This sce- nario agrees with Ostwald’s rule of stages, generalized in Ref. [31] for nucleation as ‘In phase transformation pro- cesses the structure and properties of the critical nucleus may differ qualitatively from the properties both of the ambi- ent and of the newly evolving macrophases. Those classes of critical clusters determine the transformation process, which correspond to a minimum work of critical cluster formation – as compared with all other possible alternative structures and compositions, which may be formed at the given thermody- namic constraints’. Another interpretation for the precipita- tion of crystals containing more sodium than the s/s corresponding to the equilibrium phase diagram in deeply undercooled liquids (which are highly viscous) was pro- posed in Ref. [32]. Those authors connected this composi- tional deviation from stoichiometry with the high diffusivity of sodium, which exceeds that of calcium by about two orders of magnitude. In any case, for the consid- ered problem it is important that nuclei enriched in sodium continuously grow throughout the phase transformation leading to a depletion of sodium in the glass matrix. This depletion impairs the kinetics of growth and nucleation
300 400 500 600 700 800
20
30
40
50
60
70
80
Transmittance at
x = 1mm in %
λ, nm
Fig. 6. Transmittance spectra of TGCs with different crystal shapes (a). Optical micrographs of TGC with cubic (TGC-0) (b) and spherical (TGC-2) (c) crystals. The sample thickness is 4 mm (b) and 2 mm (c). The volume fraction crystallized is close to unity in both cases.
0.0 0.2 0.4 0.6 0.8 1.
0
20
40
60
80
100
SR
Transmittance at
x = 1mm in %
1 2
α
Fig. 7. Transmittance at k = 800 nm (1), and reduced specific area of the crystal/glass interface SR (2) versus volume fraction crystallized for TGC-0.
equal. Moreover there is a (slight) further reduction of this difference with increasing degree of crystallinity. This phe- nomenon results in a significant decrease of the refractive
index dependent term, M (^2) 1 M^2 þ 2
h i 2 , which provides a good
description of the scattered light intensity also in the case
of large particles. Fig. 13 shows M (^2) 1 M^2 þ 2
h i 2 for different vol-
ume fractions crystallized. Thus, a TGC with about 95–97% crystallinity consists of relative large crystals having a composition very close to that of the (initial) parent glass, and thin areas of glassy phase with a composition close to the stoichiometric N 1 C 2 S 3 (for TGC-0 and TGC-1). In other words, the resid- ual glassy phase is depleted in sodium as compared with the crystalline phase. Here it should be noted that we are deal- ing with average compositions. Possible compositional gra- dients are expected, especially within crystals, and noticeably complicate this picture. In addition to the similarity of the refractive index of the crystals and surrounding glassy matrix, the scattering coef-
ficient, S, is affected by the average crystal size. Therefore, the thermal history leading to crystallization is of great importance. Fig. 14 shows the transmission spectra of partly crystallized glasses (42% crystallinity) caused by single and double heat-treatments. According to Eq. (3) the increased transmittance shown in curves 1, 2 result from an increased average crystal size from 7.5 to 47 lm at a fixed crystallized volume fraction. This crystal size increase also weakens the I(k) dependence (see Section 3). Indeed, one can observe that the transmis- sion curve 2 in Fig. 14 is flatter than curve 1, which is related to smaller crystal sizes. The scattering theory deals with isolated particles in a surrounding medium. In the early and middle stages of phase transformation isolated crystals indeed represent such particles. Their total volume and size increases dur- ing crystallization. In the advanced stages of crystalliza- tion isolated areas of glass embedded within the crystalline phase act as scattering particles whose volume and size decreases during crystallization. This evolution is
0 400 800 1200 1600
t, min
0 2 00 400 600 800
0
2
4
6
8
a,^
μm
t, min
4.5 5.0 5.5 6.0 6.5 7.0 7.
0
1
2
n (^) A=2.61+ 0.
n (^) A=1.09 +0.
ln(-ln(1-
α ))
ln(t,min)
4.0 4 .5 5.0 5 .5 6.0 6.5 7.
m=0.75+ 0.
m=0. 32 +0.
ln(a,
μ
m)
ln(t,min)
Fig. 10. Volume fraction of crystals (a, c) and size of the largest crystals (b, d) in TGC-0 versus time of heat treatment at 628 °C. The dashed lines refer to linear approximations.
reflected by the dependence of specific interface area, which reveals a maximum (see Fig. 7, curve 2). Since the scattering coefficient depends on the volume and size of the particles, the ‘switch’ of the microstructure (from crystals in a glassy matrix to glassy ‘lakes’ in a crystalline matrix) results in the minimum of the curve of TGC transmittance versus volume fraction crystallized (Fig. 7, curve 1). To summarize, the TGC transmittance is affected by the continuous compositional changes of both glassy matrix
and crystalline phase. Crystallization leads to an approxi- mation of the refractive indexes of the crystalline and glassy phases. Such changes determine the TGC transmit- tance, and this could be one of the reasons why the position of the minimum on curve 1 does not coincide with that of the maximum on curve 2. It should be also noted that before impingement the crystals have more or less isometric shape, while the shapes of the glassy ‘lakes’ in a crystalline matrix at advanced and final stages of phase transforma- tion are more complex. A decrease of transmittance in the very final stage (for crystallinities higher than about
5 10 15 20 25 30 35
2
1
glass
crystal
n
C Na 2 O, w%
0.0 0.2 0.4 0.6 0.8 1.
n
α
Fig. 12. (a) Refractive indexes of crystal and glass versus of sodium oxide content. Stars refer to our TGC. Open circles refer to data taken from Ref. [34]. Dashed lines resulted from a polynomial fit to the experimental data. Black points 1 and 2 correspond to the critical nucleus composition and composition of the parent glass, respectively. The arrows show the direction of the composition evolution during phase transformation. (b) Evolution of refractive indexes of crystals (solid line) and glassy matrix (dashed line) versus volume fraction crystallized. Dotted and dashed-dotted lines show the refractive indexes of the parent glass (a = 0) and fully crystallized sample (a = 1).
0.0 0.2 0.4 0.6 0.8 1.
1.0x10 -
2.0x10 -
3.0x10 -
4.0x10 -
[(M
2 -1)/(M
2 +2)]
2
α Fig. 13. Parameter M M^22 (^) þ^12
h i 2 that gives the scattering due to the difference between the reflective indexes of crystals and glass matrix versus volume fraction crystallized. The dotted line refers to crystals and glassy matrix having same composition.
0.0 0.2 0.4 0.6 0.8 1.
10
12
14
16
18
C Na
, at %
α
1 2 3 4
Fig. 11. Average sodium content in the crystalline phase (1) and glassy matrix (2) versus volume fraction crystallized of TGC-0. The solid line (3) is a linear fit to experimental data. The dashed line (4) was calculated from the crystal and parent glass compositions. The dotted line shows the sodium content in the parent glass and in the fully crystallized sample.
[19] W.D. Kingery, H.K. Bowen, D.R. Uhlmann, Introduction to Ceramics, 2nd Ed., Wiley, New York/London/Sydney/Toronto,
[20] H. Rawson, Properties and Applications of Glass, Elsevier Science,
[21] G.K. Moir, F.P. Glasser, Phys. Chem. Glasses 15 (1974) 6. [22] H. Ohsato, Y. Takeuchi, I. Maki, Acta Crystallogr. B 46 (1990) 125. [23] E.N. Soboleva, N.S. Yuritsin, V.L. Ugolkov, Glass Phys. Chem. 30 (2004) 481. [24] I. Maki, T. Sugimura, J. Ceram. Assoc. Jpn. 76 (1968) 144. [25] V.M. Fokin, E.D. Zanotto, J. Non-Cryst. Solids 353 (2007) 2459.. [26] C.J.R. Gonzalez-Oliver, PhD thesis, The University of Sheffield, 1979, p. 175. [27] R.T. DeHoff, Quantitative Microscopy, McGraw-Hill Book Com- pany, 1968.
[28] T. Berthier da Cunha, J.P. Wu, O. Peitl, V.M. Fokin, E.D. Zanotto, L. Inannucci, A.R. Boccaccini, Adv. Eng. Mater. 9 (2007) 119. [29] V.M. Fokin, O.V. Potapov, E.D. Zanotto, F.M. Spiandorello, V.L. Ugolkov, B.Z. Pevzner, J. Non-Cryst. Solids 331 (2003) 240. [30] V.M. Fokin, E.D. Zanotto, N.S. Yuritsyn, W.P. Schmelzer, J. Non- Cryst. Solids 352 (2006) 2681. [31] J.W.P. Schmelzer, J. Gutzow, J. Schmelzer Jr., J. Chem. Phys. 112 (2000) 3820. [32] M. Roskosz, M.J. Toplis, P. Besson, P. Richet, J. Non-Cryst. Solids 351 (2005) 1266. [33] I. Gutzow, J. Schmelzer, The Vitreous State: Thermodynamics, Structure, Rheology and Crystallization, Springer, Berlin, 1995. [34] SCi Glass 6.5 http://www.esw.software.com/sciglass. [35] V.R. Mastelaro, E.D. Zanotto, J. Non-Cryst. Solids 194 (1996)
