A detailed analysis of free flight in the hawkmoth Manduca sexta L. has revealed the kinematic changes as speed increases from hovering to fast forward flight (Willmott and Ellington, 1997). In this study, we investigate the aerodynamic significance of the observed kinematic variation, the power requirements for flight at different speeds and the nature of the constraints on maximum flight speed. Insect flapping flight represents an unusual aerodynamic problem because of the inherent ‘unsteadiness’ and the low Reynolds number of the airflow. A large number of models for unsteady animal flight have been formulated, and these have been categorized and evaluated in recent reviews by Spedding (1992), Spedding and DeLaurier (1996) and Smith et al. (1996). The techniques range from those incorporating momentum and blade-element theories to those employing lifting-line or lifting-surface methods, but each requires non- trivial simplifying assumptions. Recent unsteady panel methods, for example, are more advanced than their predecessors in considering trailing wake vorticity and
dynamic effects (Smith et al. 1996), and interactions between wing deformation and the aerodynamic forces (Smith, 1996), but they still have important shortcomings. In particular, they do not yet incorporate the leading-edge vortices that have a profound influence on the flow around hawkmoth wings at all speeds (Willmott et al. 1997) and which are likely to play a major role in insect flight aerodynamics (Ellington et al. 1996). At the low Reynolds numbers and high angles of incidence characteristic of insect flight, viscous effects in the near field are better addressed by Navier–Stokes solvers, which are now beginning to be applied to animal locomotion (e.g. Liu et al. 1996). Advanced numerical techniques will, undoubtedly, become standard in animal flight investigations. Their introduction will, however, be delayed by the paucity of detailed and relevant empirical data for their validation and by the need to investigate fully the inherent errors in the new techniques and their applicability to other conditions (Visbal, 1986; Spedding, 1992). Accurate and reliable modelling of instantaneous forces

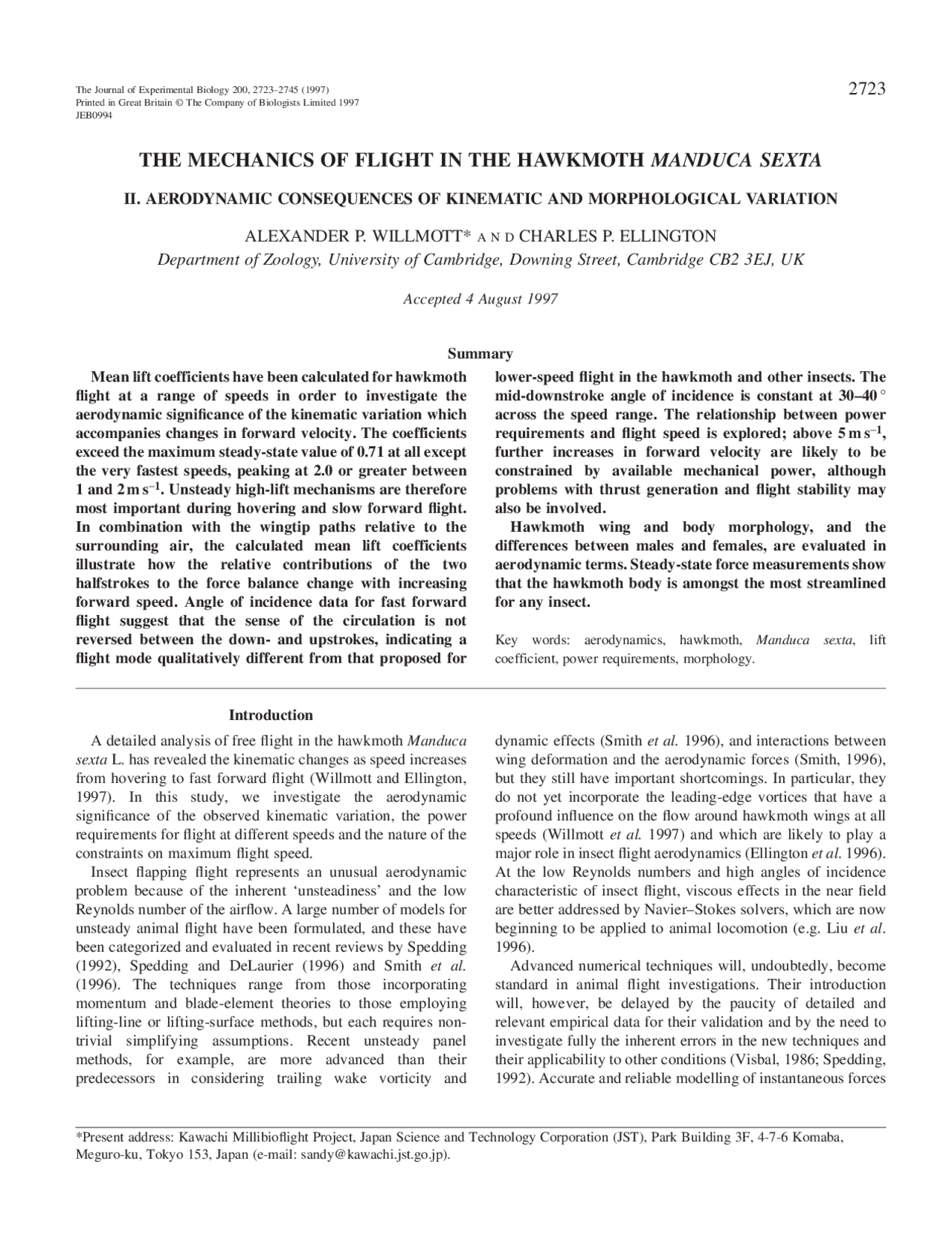

The Journal of Experimental Biology 200, 2723–2745 (1997) 2723
Printed in Great Britain © The Company of Biologists Limited 1997 JEB
Mean lift coefficients have been calculated for hawkmoth flight at a range of speeds in order to investigate the aerodynamic significance of the kinematic variation which accompanies changes in forward velocity. The coefficients exceed the maximum steady-state value of 0.71 at all except the very fastest speeds, peaking at 2.0 or greater between 1 and 2 m s −^1. Unsteady high-lift mechanisms are therefore most important during hovering and slow forward flight. In combination with the wingtip paths relative to the surrounding air, the calculated mean lift coefficients illustrate how the relative contributions of the two halfstrokes to the force balance change with increasing forward speed. Angle of incidence data for fast forward flight suggest that the sense of the circulation is not reversed between the down- and upstrokes, indicating a flight mode qualitatively different from that proposed for
lower-speed flight in the hawkmoth and other insects. The mid-downstroke angle of incidence is constant at 30–40 ° across the speed range. The relationship between power requirements and flight speed is explored; above 5 m s −^1 , further increases in forward velocity are likely to be constrained by available mechanical power, although problems with thrust generation and flight stability may also be involved. Hawkmoth wing and body morphology, and the differences between males and females, are evaluated in aerodynamic terms. Steady-state force measurements show that the hawkmoth body is amongst the most streamlined for any insect.
Key words: aerodynamics, hawkmoth, Manduca sexta , lift coefficient, power requirements, morphology.
Summary
Introduction
THE MECHANICS OF FLIGHT IN THE HAWKMOTH MANDUCA SEXTA
II. AERODYNAMIC CONSEQUENCES OF KINEMATIC AND MORPHOLOGICAL VARIATION
ALEXANDER P. WILLMOTT* A N D CHARLES P. ELLINGTON
Department of Zoology, University of Cambridge, Downing Street, Cambridge CB2 3EJ, UK
Accepted 4 August 1997
*Present address: Kawachi Millibioflight Project, Japan Science and Technology Corporation (JST), Park Building 3F, 4-7-6 Komaba, Meguro-ku, Tokyo 153, Japan (e-mail: [email protected]).
is not an option available at present. Instead, in this report, we concentrate in more general terms on the lift-generating requirements placed on the wings during flight at different speeds and, in particular, on the possible aerodynamic consequences of the kinematic trends described in Willmott and Ellington (1997). The ‘mean coefficients’ method used here is a slightly modified momentum jet/blade-element approach of the type used by Dudley (1990), Dudley and Ellington (1990 b ), Cooper (1993) and Wakeling and Ellington (1997 b ). This technique has the advantage of being the most accessible of the current models – using data on the core kinematic parameters – and of being easily modified to incorporate new kinematics or wing morphology. Despite its simplifying assumptions, the mean coefficients model has been shown in a wide range of studies (e.g. Osborne, 1951; Dudley and Ellington, 1990 b ; Dudley,
- to be capable of producing meaningful estimates of aerodynamic forces and power requirements. It has also generated workable hypotheses linking flight kinematics and aerodynamics, thus meeting Spedding’s (1992) definition of a ‘useful’ aerodynamic model. Such models are necessarily refined as and when new techniques become available. The model is used here to determine the mean lift coefficient at each of the flight speeds in the kinematic study and to estimate the associated aerodynamic and inertial power components. The coefficients are calculated under the assumption that they are constant throughout each halfstroke of the wingbeat. They thus represent the lowest possible lift coefficient required from the wings for a given set of wingbeat kinematics; if the coefficients are not constant (a more realistic scenario), then instantaneous values at certain points of the wingbeat cycle must exceed these mean values (Ellington, 1984 a ). A number of related questions are also addressed, such as the aerodynamic function of the upstroke and the aerodynamic and energetic significance of the asymmetric wingbeat. For comparative purposes, the lifting performance of hawkmoth wings and bodies under ‘steady’ flow conditions was measured. Finally, the morphology of adult Manduca sexta was investigated and the possible aerodynamic significance of the observed differences between the sexes, and between hawkmoths and other insects, is discussed.
Materials and methods Measurement of steady-state wing and body forces Steady-state lift and drag were measured using the optoelectronic force transducer described by Dudley and Ellington (1990 b ). A summary of its design and operation will be given here; details can be found in the earlier paper. The transducer measured the displacement in two orthogonal directions of a stainless-steel tube to which a test object was attached via a mounting pin. The voltage output of the transducer had a linear relationship to the moment applied to the tube, and this was calibrated at the beginning and end of each set of measurements. A range of replaceable spring elements covered forces on the test object of up to 0.016 N.
The transducer was positioned at the mouth of the open-jet wind tunnel used in the kinematic study (Willmott and Ellington, 1997).
Aerodynamic forces on the body The wings were removed from freshly killed Manduca sexta whose body posture was similar to that seen in free flight. Owing to the problems of orienting the legs and antennae in a realistic position, and to the difficulty in determining such positions from the high-speed videos, these structures were also removed. The body was mounted at the top of a stainless- steel entomological pin which passed through the left and right wingbases. The bodies were left to ‘set’ for 1 day before use in order to fix the abdomen in flight position. Lift and drag measurements were made on six bodies for airspeeds from 1 to 5 m s−^1 , and at the following angles of attack: −15 °, 0 °, 15 °, 25 °, 35 °, 45 ° and 60 °. The 0 ° angle was set with the longitudinal axis of the body parallel to the airflow; positive angles of attack refer to the body being pitched head-up with respect to the horizontal. In order to standardize the Reynolds numbers based on body length Re b for the different bodies, the slight differences in body length were corrected for by slight modifications in the airspeed. The Reynolds numbers used were 3150, 6040, 9150, 12 270 and 15 220, corresponding to speeds of approximately 1, 2, 3, 4 and 5 m s−^1 , respectively.
Aerodynamic forces on the wings Before the wings were removed from the bodies of freshly killed moths, the left wing couple was moved into a realistic flight orientation. A small quantity of cyanoacrylate gel was applied between the dorsal surface of the hindwing and the ventral surface of the forewing, close to the wingbase, to hold the wings in the correct alignment. The wing couple was then detached carefully from the body by cutting through the wingbases as close as possible to the body. At this point, the anojugal flap folded under the hindwing. It was not possible to return this region to its correct position in fresh wings, and so the flap was removed by cutting along its fold line. The wing was mounted on a stainless-steel pin with the longitudinal axis of the wing aligned with the shaft of the pin: the head of the pin was removed and its final 5 mm bent perpendicular to the main shaft to form a short hook which was then attached, using a small drop of beeswax, near to the base of the underside of the wings. The Manduca sexta wing is not a planar surface: a spanwise gradient of wing twist is inherent in its structure. The wing was mounted so that the chosen angle of attack corresponded to the inclination of the wing halfway between the wingbase and wingtip, close to the radius of the first moment of wing area which is where the steady-state aerodynamic force is assumed to act. The angle of attack in the proximal area of the wing was up to approximately 5 ° more positive than this value, whilst the angle in the distal region was up to 5 ° more negative. Lift and drag measurements were made at 10 ° angle of attack intervals from −50 ° to +70 °, and at Reynolds numbers based on mean
A. P. WILLMOTT AND C. P. ELLINGTON
respectively, d r is the spanwise width of the strip, C L is the lift coefficient, C D,pro is the profile drag coefficient, and ρ is the density of air (1.19 kg m−^3 at 23 °C). The component of U r parallel to the wing axis is ignored. C L and C D,pro are unknown at this point, but are assumed to be constant throughout a halfstroke. The sign of C L during the upstroke depends upon whether the oncoming air is striking the ventral surface ( C L is positive) or the dorsal surface ( C L is negative) of the wing. The lift and drag forces for each strip were resolved into their vertical and horizontal components, and these components were then summed along the wingspan and over the period of each halfstroke. The vertical forces (in the z direction) resulting from the lift and drag forces, respectively, during the downstroke (subscript d) were calculated using the following expressions:
where
with the double summations being taken over the strip number ( i , from 1 to 50) and time ( t ) in the downstroke. U r,z and U n,z are the vertical components of the relative velocity and of the normal to the relative velocity, respectively, for strip i at time t. The downstroke horizontal forces ( A x,d, B x,d ), and the upstroke forces ( A x,u, B x,u , A z,u, B z,u ), were determined in an analogous manner. The horizontal and vertical forces can be balanced to give a set of simultaneous equations for the two mean force coefficients C^ –^ L and C^ – D,pro which are:
where the selected sign for A z,u and A x,u corresponds to the assumed sign of the upstroke lift coefficient. F z is the vertical force required to balance the weight m g minus any vertical components of body lift and drag, and F x is the horizontal force required to overcome the parasite drag. The values of F z and F x are known, and the mean coefficients can, in theory, be found by solving equations 9 and 10. In practice, the horizontal forces are small relative to the vertical forces, even at high forward speeds, and the coefficients are very sensitive to errors in the horizontal components (Dudley and Ellington, 1990 b ). If the purpose of the modelling is to estimate mean lift coefficients, then a more pragmatic approach is to assign a realistic value to the mean drag
coefficient and then to solve for the mean lift coefficient using equation 9. Determining a precise value for the drag coefficient is difficult, but the lift coefficient is relatively insensitive to its value (Dudley and Ellington, 1990 b ). For each flight sequence, the mean lift coefficient was calculated using two different estimates of the mean profile drag coefficient. The first was Ellington’s (1984 e ) approximation for insect wings operating at relatively high angles of incidence and at a Reynolds number Re c of a few thousand or lower,
At the somewhat higher Reynolds numbers typical of Manduca sexta flight, this relationship gives values of approximately 0.1, which are markedly lower than the measured steady-state drag coefficients for angles of incidence appropriate to flight (see below). The latter include induced drag as well as profile drag, but it is still likely that equation 11 underestimates the profile drag coefficient for Manduca sexta. An attempt was made, therefore, to obtain a second, more realistic estimate for C D,pro using data on the angles of incidence and the steady-state drag coefficients. The angles of incidence for the inner and outer wing sections at the mid-point of each halfstroke were determined, where possible, from the angles of rotation and the inclination of the relative velocity. The mean for the two sections was taken as the representative angle for each halfstroke, and the profile drag coefficient for this angle, interpolated from the steady- state values and corrected for the contribution from induced drag (Willmott, 1995), was used as the mean coefficient for the halfstroke. The two halfstrokes were treated separately because the upstroke angles of incidence were consistently lower than those during the downstroke. The choice of profile drag coefficient had little impact on the mean lift requirement, but it has more significant implications for the profile power requirements. A mean estimate for Re c, the Reynolds number based on the wing chord, was obtained by averaging the instantaneous Reynolds number for individual strips along the wingspan and over the course of the wingbeat.
Aerodynamic forces on the body The aerodynamic forces on the body were calculated using the relative velocity of the body U r,b and the angle of incidence χr,b determined above. The coefficients for the forces parallel and normal to the relative velocity, at the appropriate Reynolds numbers and angles of incidence, were found by interpolation from the measured steady-state values. The resultant force at each speed was resolved into vertical and horizontal components, which correspond to the parasite lift L par and parasite drag D par, respectively. In order to investigate the significance of the estimates of induced velocity on the body forces, the parasite lift and drag were also calculated using only the forward velocity.
C D,pro c
Re
F z (^) = C L (^) ( A (^) z,d ± A (^) z,u ) + C D,pro (^) ( B (^) z,d + B z,u), (9) F x (^) = C (^) L ( A x,d (^) ± A (^) x,u ) + C (^) D,pro ( B x,d (^) + B x,u), (10)
B r c U t i
z,d =^ d∑∑(^ r,z)
2 ρ , (8)
A r c U t i
z,d =^ d∑∑(^ n,z)
2 ρ , (7)
L (^) z,d = A (^) z,d C L, D z,d (^) = B z,d C D,pro, (6)
A. P. WILLMOTT AND C. P. ELLINGTON
The aerodynamics of hawkmoth flight 2727
Calculation of mechanical power requirements Induced power
The induced power P ind was calculated using the expression: P ind = w 0 ( m g − BzC D,pro ) , (12)
where B z is the sum of B z,d and B z,u. This is a departure from previous models, where the induced power was simply w 0 m g (but see also Wakeling and Ellington, 1997 b ). The modification recognises that the vertical component of profile drag cannot be ignored when considering the energetic cost of generating weight support. Three potential cases exist under which induced power must be calculated: for no net vertical component of profile drag, for a net upward force, and for a net downward force. Equation 12 is common to all three. In the first case, when B z C D,pro is zero, the momentum jet must generate a vertical force equal to the entire weight of the insect, m g. The induced power associated with the jet is the product of the thrust and the appropriate induced velocity w 0 , calculated from equations 1 and 2. This special case is equivalent to the model used in earlier studies. When B z C D,pro is positive, however, profile drag contributes to weight support, and the thrust requirement for the momentum jet is reduced accordingly. A new, lower induced velocity should be calculated by replacing m g in equation 2 with the reduced value for thrust, and the thrust and induced velocity iterated until the induced power converges. This would be a time-consuming process for what would only be a second-order correction to P ind. The first-order correction given by equation 12 is pragmatic wherever the contribution of profile drag to the vertical force balance is small. The validity of this assumption will be discussed below. In the final case, profile drag contributes a net downwards vertical component, B z C D,pro is negative, and the momentum jet thrust must be increased for net weight support. From equation 12, the induced power also increases. The total power requirement for weight support is higher here than in the first two cases (in which the total is identical). The additional power produces no extra useful aerodynamic force. Instead, it represents energy wasted by the conflicting flows of the net upwash created by air dragged along with the wings and the downwash from the momentum jet.
Profile power
The instantaneous profile power P pro required to overcome the profile drag is the summation along the wing of the products of sectional profile drag and relative velocity. The total profile power over the wingbeat is calculated from a similar summation to that used for profile drag:
Parasite power
The parasite power P par required to overcome parasite drag is given by the product of the parasite drag and the forward flight speed:
P par = VD par. (14)
Inertial power Inertial power P acc is required to accelerate the wings early in each halfstroke. The mean value over the wingbeat is the sum of the kinetic energy imparted to the wings during the up- and downstrokes divided by the cycle period:
where n is the wingbeat frequency, ω is the radian frequency and I is the moment of inertia of the wings and their virtual mass. The values in parentheses are the maximum angular velocities during the upstroke and downstroke, respectively, resulting from changes in both sweep and elevation angle:
Equation 15 gives the mean value for inertial power over the two halfstrokes. In the asymmetric Manduca sexta wingbeat, the mean inertial power during the longer downstroke acceleration will be lower than this, while the mean inertial power during the upstroke will be higher. During the deceleration phase of each halfstroke, kinetic energy is released by the wing. This energy can be used for aerodynamic work, and any excess may either be stored as elastic energy or dissipated as heat and sound (Ellington, 1984 e ). Total mechanical power required from the flight muscle The aerodynamic power P aero is the sum of the induced, parasite and profile powers. The mean total mechanical power required from the flight muscles over the course of the wingbeat must include the fourth component, the inertial power. If the metabolic cost of doing negative work during wing deceleration is assumed to be negligible compared with the cost of doing positive work, then the mean positive mechanical power depends upon the extent to which any excess negative work during deceleration can be stored in elastic structures in the thorax/flight muscle system. Ellington (1984 e ) derived expressions for the total mean positive mechanical power requirements P pos for hovering flight under the two extreme conditions of perfect and zero elastic storage. For forward flight, parasite power must be added to Ellington’s (1984 e ) equations which, using the terminology adopted in the present paper, then become: P pos = P aero (17) for perfect elastic storage, and
for zero elastic storage. The mechanical power requirements and their components were all normalized to body-mass- and muscle-mass-specific values, to facilitate comparison of the values among the different moths, and between Manduca sexta and other species.
Wing and body morphology A range of morphological parameters were measured for six
P pos = ( P aero + P acc)
d d
d d
d d
ω φ θ t t t
2 2
. (16)
P nI acc t (^) max,u t
2
max,d
d^2 d
d d
ω ω , (15)
P pro C D,pro ∑ Ur
t i
= 12 ρd r ∑ c
3
. (
The aerodynamics of hawkmoth flight 2729
The wings were most aerodynamically efficient, indicated by the maximum lift:drag ratio, at 10 ° for all three airspeeds. The C L: C D ratios were 3.4 at Re c=1150, 4.2 at Re c=3300 and 4.0 at Re c=5560.
Relative velocities and wingtip paths The forward and induced velocities are given in Table 1, along with the mean flapping velocity at the wingtip U
t (=2Φ nR ), the reduced frequency parameters, and the Reynolds numbers for the body and wings. The induced velocity was largest, both in absolute terms and relative to the forward and flapping velocities, at the lower flight speeds. It exceeded the forward velocity at speeds below 2 m s−^1 , but then declined steadily in importance as flight speed increased. The mean wingtip flapping velocity was more constant because of the low variation in the wingbeat frequency and stroke amplitude. The high amplitude during hovering flight led to a flapping velocity over 5 m s−^1 , but at all faster speeds the flapping velocity fell within the range 4.2–5 m s−^1. The comparative uniformity of the mean flapping velocity resulted in the advance ratio J (= V / U
t ) rising linearly with
forward velocity, from approximately 0.2 at 1 m s−^1 to 1.1 at 5 m s−^1. The reduced frequency parameter k (=ω c – /2 V ) correspondingly fell from 1.5 to 0.3 over the same speed range. The Reynolds numbers for the wings and the body ( Re c and Re b, respectively) both tended to increase with flight speed as a result of increases in the appropriate relative velocity; the only exception was a decrease for the wing between 0 and 1 m s−^1 as the lower flapping and induced velocities more than offset the increase in forward velocity. All of the wing Reynolds numbers Re c at speeds below 5 m s−^1 fell between the values for the steady-state measurements at 3 and 5 m s−^1. The wingtip paths relative to the surrounding air for moth F2 are shown in side view in Fig. 3A; the paths for the other moths were very similar. Each curve corresponds to the motion during three successive wingbeats at one of the six different flight speeds. The path starts at the lower left, with the wings at the supination position. The subsequent wing motion follows the path in the direction of the arrow; the relative velocity experienced by the wing is in the opposite direction. The axis of the wingtip path during hovering flight is vertical owing to the absence of any forward component in the relative velocity. The motion during the translatory periods of each halfstroke is inclined at only a small angle to the horizontal; the upstroke path doubles back over the preceding downstroke. As the forward speed increases, the overall axis of the motion becomes less inclined and there is increasing asymmetry between the two halfstrokes, both in terms of their length and their orientation. The direction of the downstroke motion is remarkably constant across the speed range, but its length increases steadily with forward speed. The upstroke, in contrast, varies in direction rather than length, with its inclination becoming less retrograde with increasing forward speed. When the latter reaches 5 m s−^1 , it is sufficiently large relative to the flapping velocity that the wingtip moves forward relative to the surrounding air during both halfstrokes.
Angles of incidence of the wings The orientation of the wing chord relative to the oncoming air in the middle of each halfstroke is shown in Fig. 3B. The curves show the wing path at 0.5 R for moth F2 at flight speeds of 0, 0.9, 2.9 and 5 m s−^1. Wing chords, with the short perpendicular arm indicating the ventral side of the leading edge, have been drawn to scale at the middle of most halfstrokes; the arrowheads immediately upstream of the chords signify the direction of the relative velocity at these points. No data were available for the wing inclination during the upstroke at 2.9 m s−^1. The angle of incidence for each chord is the average over both the outer and inner wing sections. Details of the individual angles of incidence are shown in Table 2, along with the original angles of rotation (see Willmott and Ellington, 1997) and the C D,pro estimates, which were derived from the mean angles of incidence for use in the aerodynamic force analysis. The angles of incidence in the mid-downstroke were all positive, indicating that the air was striking the ventral surface of the wing. At most speeds, air hits the dorsal surface during
0 0.2 0.4 0.6 0.8 1
0
C L
C D
Re c = 1150
Re c = 5560
Re c = 3300
50 °
30 °
10 °
0 °
10 °
30 ° 50 °
70 °
70 °
50 °
30 °
10 °
Fig. 2. Polar diagram for the aerodynamic characteristics of Manduca sexta wings. Each point is the mean from four wing couples. The different curves correspond to measurements at three different Reynolds numbers Re c, which are shown at the right of the figure. The angles of attack, in degrees, are indicated at intervals along the length of the curves. C L, lift coefficient; C D, drag coefficient.
the upstroke, resulting in negative angles of incidence. At 5 m s−^1 , however, the upstroke angle for moth F2 became positive; the forward inclination of the upstroke caused air to
strike the ventral surface during both halfstrokes. The absence of wing orientation data at 2.9 and 3.8 m s−^1 prevents identification of the speed at which the transition from negative
A. P. WILLMOTT AND C. P. ELLINGTON
Table 1. The induced velocity w 0 , mean wingtip velocity U
t, advance ratio^ J , reduced frequency parameter^ k^ and Reynolds numbers for the wings and body ( Re c and Re b, respectively) at each flight velocity V V w 0 U — t Moth (m s−^1 ) (m s−^1 ) (m s−^1 ) J k Re c Re b M1 0 1.42 5.06 0 − 4222 3874 1.0 1.38 4.55 0.22 1.47 3898 4596 2.0 0.96 4.77 0.42 0.74 4744 5970 2.9 0.74 4.49 0.65 0.53 4587 8221 3.9 0.59 4.30 0.91 0.37 5325 10699
F1 0 1.30 5.78 0 − 4752 3523 1.1 1.21 5.05 0.22 1.36 4137 4428 3.0 0.65 4.80 0.63 0.48 4699 8340 4.0 0.50 4.18 0.96 0.33 5315 10956 5.0 0.41 4.48 1.12 0.29 5919 13635
F2 0 1.47 5.23 0 − 4913 4041 0.9 1.41 4.91 0.18 1.69 4377 4579 2.1 1.07 4.49 0.47 0.70 4370 6473 2.9 0.86 4.61 0.63 0.53 5072 8319 3.8 0.64 4.63 0.82 0.39 5435 10599 5.0 0.48 4.72 1.06 0.30 6559 13819
See the text and Symbols list for a full description of the parameters.
0
2
4
0 3 6 9 12
0.9 m s 1
0 m s 1
2.1 m s 1
2.9 m s 1 3.8 m s 1
5 m s 1
0 3 6 9 12
0
2
4 0 m s 1 0.9 m s 1
2.9 m s 1
5 m s 1
A
B
Wing lengths
Wing lengths
Fig. 3. The wing paths relative to the surrounding air for moth F2, seen in side view. (A) The path at the wingtip for each of the six flight speeds; arrows indicate the direction of motion of the path. (B) The path at 0.5 R for four of these speeds, where R is wing length. The mean orientation of the wing chords is shown in the middle of most halfstrokes along with an estimate of the direction and relative magnitude of the resultant halfstroke force at that speed (black arrows). Upstroke data at 2.9 m s−^1 were not available. The initial position of the wingbase is indicated by the filled black circle, and the units are wing lengths. The arrowheads on the wing paths in B indicate the direction of the relative velocity at these points. See the text for further explanation.
2732 A. P. WILLMOTT AND C. P. ELLINGTON
Table 2. The angles of rotation α sp and angles of incidence α r for the inner (I) and outer (O) wing sections at mid-downstroke and mid-upstroke Mid-downstroke Mid-upstroke V αsp (degrees) αr (degrees) αsp (degrees) αr (degrees)
Moth (m s−^1 ) I O I O Mean C D,pro I O I O Mean C D,pro
M1 0 65.2 45.5 32.4 27.4 29.9 0.28 129.4 150.1 −28.4 −17.0 −22.7 0. 1.0 72.5 54.2 34.0 28.4 31.2 0.30 137.7 154.0 −20.0 −17.8 −18.9 0. 2.0 64.4 50.0 38.3 31.9 35.1 0.35 − 145.7 − −20.8 − − 2.9 62.1 53.1 30.2 30.8 30.5 0.29 120.1 145.2 −11.3 −15.6 −13.5 0. 3.9 68.4 57.8 25.7 28.7 27.2 0.23 − − − − − −
F1 0 73.7 49.2 49.9 36.1 43.0 0.50 139.8 159.3 −20.9 −15.8 −18.4 0. 1.1 71.0 53.9 44.8 38.6 41.7 0.48 116.6 141.7 −33.2 −21.0 −27.1 0. 3.0 64.5 54.2 36.1 35.0 35.6 0.36 − 132.8 − −17.4 − − 4.0 71.5 63.5 35.3 36.3 35.8 0.36 − − − − − − 5.0 73.2 65.2 36.5 37.0 36.8 0.37 − − − − − −
F2 0 69.5 52.0 39.2 35.5 37.4 0.39 129.0 148.7 −38.6 −27.2 −32.9 0. 0.9 61.8 44.7 30.6 25.3 27.9 0.25 126.4 150.1 −27.9 −21.1 −24.5 0. 2.1 71.2 57.8 37.9 35.3 36.6 0.38 122.0 142.4 −21.8 −28.0 −24.9 0. 2.9 59.6 48.1 25.9 22.6 24.3 0.20 − − − − − − 3.8 67.4 57.3 28.5 27.9 28.2 0.25 − − − − − − 5.0 67.8 59.0 23.1 23.0 23.1 0.17 118.4 118.9 26.1 3.0 14.6 0.
The missing mid-upstroke values indicate cases in which the rotation angles could not reliably be determined from the digitized frames (see Willmott and Ellington, 1997). The mean angles of incidence were used to estimate the profile drag coefficient C D,pro. See text for full details. V , flight velocity.
Table 3. The relative velocity U r,b and angle of incidence χ r,b of the body for each flight sequence, along with the estimated body force coefficients and the parasite lift Lˆ^ par and drag Dˆ^ par forces (as percentages of body weight) V U r,b χ χr,b L ˆpar D ˆ^ par Moth (m s−^1 ) (m s−^1 ) (degrees) (degrees) C L C D (%) (%) M1 0 1.4 40.0 −50.0 −0.48 0.61 −1.90 −1. 1.0 1.7 29.4 −26.0 −0.36 0.30 −1.97 −0. 2.0 2.2 21.0 −5.2 −0.04 0.12 −0.65 0. 2.9 3.0 17.4 3.1 0.05 0.11 0.23 1. 3.9 3.9 14.4 5.7 0.09 0.13 1.62 3.
F1 0 1.3 35.1 −54.9 −0.43 0.64 −1.61 −1. 1.1 1.6 26.5 −21.0 −0.28 0.22 −1.40 −0. 3.0 3.1 25.8 13.6 0.18 0.17 1.92 2. 4.0 4.0 15.7 8.6 0.12 0.14 2.45 3. 5.0 5.0 28.7 24.0 0.37 0.30 12.93 12.
F2 0 1.5 34.6 −55.4 −0.44 0.65 −1.79 −1. 0.9 1.7 28.4 −28.9 −0.40 0.34 −1.78 −0. 2.1 2.4 26.7 −0.1 −0.00 0.11 −0.35 0. 2.9 3.0 21.1 4.6 0.06 0.12 0.30 1. 3.8 3.9 19.5 10.0 0.14 0.15 2.07 3. 5.0 5.0 16.3 10.8 0.16 0.16 4.71 5.
V , flight velocity; χ, geometric body angle; C L, lift coefficient; C D, drag coefficient. See text for full details.
The aerodynamics of hawkmoth flight 2733
drag coefficients C – D,pro were calculated from the Reynolds number for the wings, using equation 11. Replacing the mean profile drag coefficients by the values based on the observed angles of incidence (which were up to five times larger) had little impact on the mean lift coefficient; the difference between the two estimates was never greater than 0.08. The changes with forward speed in the lift coefficient requirements, and the significance of the wingbeat shape and upstroke mode can be seen in Fig. 5. For each of the moths, the variation in mean lift coefficient is shown for the asymmetric wingbeat, for the sinusoidal approximation, and for the asymmetric wingbeat under the assumption of an inactive upstroke. For the former two cases, the required lift coefficient was calculated under both the assumption of a negative and a positive upstroke lift coefficient, but only the lower of the two values is plotted. Open symbols indicate that the lower value resulted from the assumption of a negative upstroke lift coefficient (i.e. a reversed upstroke circulation), and filled symbols that the assumed upstroke coefficient was positive (i.e. for air striking the ventral wing surface during the upstroke as well as the downstroke). A reversed lift coefficient,
indicating a negative upstroke angle of incidence, was advantageous at low speeds, but positive angles of incidence throughout the beat resulted in lower required lift coefficients at the highest speeds. The transition for each moth occurred at the speed where A z,u changed from negative to positive: for the asymmetric wingbeat this was at 4 m s−^1 , for the sinusoidal motion it was at 3 m s−^1. An initial increase in mean lift coefficient from hovering to a maximum at 1–2 m s−^1 was characteristic of all the curves assuming an active upstroke. The maximum values for the true, asymmetric wing motion ranged from 1.98 for F1 to 2.38 for M1. Lift coefficient declined steadily with further increases in flight speed, falling to minimum values at 5 m s−^1 of 0.70 and 0.80 for F1 and F2, respectively. These compare with the maximum steady-state value of 0.71 which is indicated by the horizontal line in Fig. 5. The calculated mean lift coefficients for the sinusoidal motion were comparable to, but usually slightly lower than, those for the asymmetric wingbeat; the minimum values for moths F1 and F2 were 0.59 and 0.75 at 5 m s−^1. The relative magnitudes of the coefficients for the asymmetric and sinusoidal wingbeats depended upon which upstroke angle of incidence option was assumed. With negative angles, the lift coefficients still decreased with forward speed, but more slowly, and the sinusoidal estimates were higher than the asymmetric wingbeat values.
Aerodynamic contributions of the two halfstrokes Qualitative changes in the relative contributions of the two halfstrokes to thrust and weight support were shown in Fig. 3B. The arrows originating at the aerodynamic centre of each wing chord represent the direction and magnitude of the resultant force vector from each halfstroke, as estimated from the length and direction of the halfstroke paths and the calculated mean force coefficients. Both halfstrokes provided weight support during hovering, but the upstroke was more important. By 2.9 m s−^1 , however, weight support was largely restricted to the downstroke, but with the upstroke still capable of providing significant thrust if the angle of incidence was negative. At 5 m s−^1 , the downstroke generated substantial weight support and some thrust under both upstroke assumptions, but the magnitude of the forces depended greatly upon the sign of the upstroke lift coefficient. If this was negative, then the upstroke produced thrust but negative weight support, which had to be offset by larger vertical forces during the subsequent downstroke. The mean lift coefficient, and thus the vertical force required from the downstroke, was lower if the upstroke coefficient was positive (as shown in Fig. 3B), but there was little if any net thrust under these conditions.
Mechanical power requirements The body-mass-specific aerodynamic and inertial power components for each flight sequence are summarized in Table 4. Aerodynamic power was calculated for three of the cases considered in the mean lift coefficient analysis: for the real, asymmetric wingbeats with mean profile drag coefficients estimated from equation 11, for sinusoidal motion with the
0
1
2
3
4
5
0 1 2 3 4 5
Sinusoidal
Asymmetric, inactive upstroke
Asymmetric
M
F
F
Flight speed (m s 1)
Mean lift coefficient,
C
L
Fig. 5. The mean lift coefficients C^ – L calculated for three different combinations of assumed upstroke function and wingbeat shape. Data are given for the true, asymmetric wingbeat (squares), for the sinusoidal approximation to the wingbeat (triangles) and for the asymmetric wingbeat under the assumption of an aerodynamically inactive upstroke (no symbols). The first two cases include both a reversed and a non-reversed upstroke circulation; only the lower of the two calculated coefficients is shown. Open symbols indicate that the reversed upstroke circulation resulted in the lower lift requirement, filled symbols that the non-reversed circulation was preferable. The data for the individual moths are distinguished by colour. The horizontal line at 0.71 indicates the maximum lift coefficient obtained from a Manduca sexta wing couple under steady-state conditions.
The aerodynamics of hawkmoth flight 2735
lower coefficients, the associated increase in total aerodynamic power decreased from 4 % at hovering to 1 % at 5 m s−^1. The inertial power estimates are also given in Table 4 and Fig. 6, for comparison with the magnitude of the aerodynamic power. The cost of accelerating the wings was at least as high as the total aerodynamic requirements, and often much greater, especially at low speeds. The inertial power for the asymmetric wingbeats was very susceptible to the large variations in flapping velocities that arose from differentiation of the Fourier series for the positional angles. The estimates were as high as 43 W kg−^1. The values calculated for the sinusoidal motion are more robust functions of the stroke amplitude and wingbeat frequency, and they probably represent a more reliable estimate of the power that must be transferred to the accelerating wings. These values for inertial power were, therefore, used in the estimation of total positive mechanical power. Body-mass-specific and muscle-mass-specific estimates for the mean positive mechanical power requirements are shown in Table 5. The body-mass-specific values for perfect elastic storage are the same as for the aerodynamic powers P *aero and P *aero,ai in Table 4. The muscle-mass-specific total positive power requirements correct for the variation in the proportion of body mass which is flight muscle: 22.8, 19.7 and 16.2 %, respectively, for moths M1, F1 and F2. For moth F2 at three speeds, the aerodynamic power using the higher profile drag coefficients was larger than the inertial power. In this situation, the net work during deceleration remains positive, and so the extent of elastic storage need not be considered. The positive mechanical power requirements for zero elastic storage, shown in parentheses, are therefore assumed to be the same as the values for perfect elastic storage. If zero elastic storage is assumed, the power estimates
increase by 24 % on average. Increases of up to approximately 50 % were observed for moths M1 and F1, whose wing masses were higher relative to body mass than that of F2; the largest increase for F2 was only 16 %. Inertial power was highest for hovering flight, where the stroke amplitudes were largest; during forward flight, the inertial cost was approximately constant (Fig. 6). The general shape of the curve of mechanical power against flight speed, and thus the minimum power speed, was therefore relatively independent of the assumed extent of elastic storage. The higher profile drag coefficients led to an average increase of 29 % in the mean total positive mechanical power.
Wing and body morphology The values of the body parameters for the three moths used in the kinematic study (Willmott and Ellington, 1997), and mean values for a total of six male and seven female moths (including those used in the kinematic study), are presented in Table 6. The results of t -tests for the difference between the means for the males and females show that the latter were significantly heavier than the males, and that a greater proportion of their mass was located in the abdomen, leading to a relatively more posterior location for the centre of gravity. Surprisingly, the shift in the centre of gravity did not change the free body angle χ0. The body length relative to the wing length, L ˆ, was more than 10 % lower in the female moths than in the males. Wing parameter data are also given in Table 6. Data for only four males are presented; the wings of the remaining two males were too worn to be included. The wings of the females were significantly longer, but relatively narrower, than those of the males. The higher aspect ratio of the females, in conjunction with their greater body weight, resulted in a higher wing
0
10
20
30
0 1 2 3 4 5 6
P aero*
P pro*
P ind*
P par*
P acc
Flight speed (m s 1 )
Body-mass-specific power (W kg
(^1) )
Fig. 6. The variation in total body-mass-specific aerodynamic power P *aero and its components with forward speed for moth F2. The dark blue crosses are the body- mass-specific profile power P *pro when the profile drag coefficients are estimated from the observed angles of incidence; the corresponding profile power values using the lower profile drag coefficients derived from equation 11 are shown by the open triangles and the dark blue curve. Body-mass-specific inertial power estimates P *acc (pale blue crosses), assuming zero elastic storage and a sinusoidal wingbeat, are given for comparison with the magnitude of the aerodynamic power. The kinematic values used to calculate the power components at 6 m s−^1 were extrapolated from the data for lower speeds. See the text for full details. P *ind, body-mass-specific induced power; P *par , body-mass-specific parasite power.
loading p w but a lower wing mass m ˆ (^) w relative to body mass. The shape parameters representing the distribution of wing area and mass were not significantly different in the two sexes. There were significant differences in the radii of the first two moments of virtual mass, rˆ 1( v ) and rˆ 2( v ), but the discrepancies between the means were less than 1 % of wing length.
Discussion The mean lift coefficients analysis of the kinematic data has provided a number of useful insights into the aerodynamics of hawkmoth flight. The most important finding is that the lift coefficient required to balance the vertical forces exceeded the maximum steady-state value of 0.71 at all speeds below 5 m s−^1 , indicating that additional unsteady, high-lift aerodynamic mechanisms must be operating. Even at 5 m s−^1 , the correspondence between the maximum steady-state coefficients and the mean requirement cannot be taken as proof that steady-state mechanisms are sufficient for providing weight support (Ellington, 1984 a ). The advance ratios did not significantly exceed 1, even at the highest speeds, so a dependence on unsteady mechanisms at all flight speeds would be expected (Spedding, 1992). Similar conclusions have been reached for the flight of bumblebees (Dudley and Ellington, 1990 b ; Cooper, 1993) and flies (Dudley, 1987; Ennos, 1989).
Higher advance ratios, however, are associated with the low wingbeat frequencies recorded for other lepidopterans (Betts and Wootton, 1988; Dudley and DeVries, 1990; Dudley, 1990; Bunker, 1993), and it is possible that their fast forward flight may be less reliant on unsteady mechanisms. Using a mean lift coefficient of 1.0 as the maximum consistent with steady aerodynamics, Dudley and DeVries (1990) found that the flight of the moth Urania fulgens at speeds above 2 m s−^1 , and advance ratios over 1, could be explained without invoking high-lift mechanisms. For the hawkmoth, however, wake visualization showed that a leading-edge vortex was a major component of a highly three-dimensional flow at all flight speeds, and that it actually grew in size as the speed increased (Willmott et al. 1997). The weight of evidence from experimental and numerical studies suggests that unsteady, high-lift mechanisms make a significant contribution to flight at all except possibly the very highest advance ratios. It is equally clear that the magnitude of the unsteady contribution, as indicated by the discrepancy between the mean lift coefficient and the maximum steady-state value, varies with forward speed. For Manduca sexta , the maximum mean lift coefficient was at 1–2 m s−^1. The required mean lift coefficient at hovering was slightly lower, and the coefficients also decreased steadily at speeds greater than 2 m s−^1. A peak in mean lift coefficient at a low, but non-zero, flight speed has
A. P. WILLMOTT AND C. P. ELLINGTON
Table 5. Body-mass-specific and muscle-mass-specific estimates for mean total positive mechanical power P *pos Body-mass-specific power Muscle-mass-specific power Zero storage Zero storage Perfect storage V P* pos P* pos,ai P* pos P* pos,ai P* pos P* pos,ai Moth (m s−^1 ) (W kg−^1 ) (W kg−^1 ) (W kg−^1 ) (W kg−^1 ) (W kg−^1 ) (W kg−^1 )
M1 0 22.63 23.91 99.24 104.86 77.73 88. 1.0 17.92 18.96 78.61 83.15 74.00 83. 2.0 19.07 − 83.66 − 62.67 − 2.9 17.75 20.10 77.83 88.14 52.71 73. 3.9 15.66 − 68.68 − 57.30 −
F1 0 27.63 30.22 140.23 153.38 90.74 117. 1.1 20.89 24.28 106.04 123.24 78.83 113. 3.0 17.45 − 88.58 − 59.61 − 4.0 14.90 − 75.65 − 63.64 − 5.0 19.35 − 98.24 − 90.89 −
F2 0 20.97 (25.98) 129.43 (160.38) 116.62 160. 0.9 18.78 20.19 115.95 124.62 106.36 123. 2.1 14.96 (19.30) 92.33 (119.15) 85.57 119. 2.9 15.37 − 94.88 − 82.11 − 3.8 14.65 − 90.41 − 77.81 − 5.0 16.61 (21.60) 102.55 (133.35) 96.32 133.
Values are given for the cases of zero and perfect elastic storage, and for profile drag coefficients estimated from equation 11 (no additional subscript) and from the observed angles of incidence (subscript ‘ai’). Values in parentheses indicate wingbeats in which the net work during wing deceleration is positive; thus, P* pos under the assumption of zero elastic storage is the same as for perfect storage. See text for full details. V , flight velocity.
fulgens at all speeds), the aerodynamic underside of the wing, and thus the sense of circulation, is thought to be reversed between successive halfstrokes (Brodsky and Ivanov, 1984; Dudley and DeVries, 1990; Dudley and Ellington, 1990 b ). The possible aerodynamic functions of the upstroke have been considered more thoroughly for flying vertebrates (e.g. Rayner, 1979, 1986; Norberg, 1985, 1990; Spedding, 1992). The upstroke is aerodynamically inactive in general, as a result of wing folding, during slow forward flight in birds and bats (Spedding, 1992), although it may generate small amounts of thrust (Norberg, 1985). At intermediate speeds, however, the upstroke becomes active as the wing path changes from a backwards to a forwards direction (e.g. Norberg, 1976; Spedding, 1987). Aldridge (1986) found a gradual change in the kinematics and aerodynamics of forward flight in the greater horseshoe bat Rhinolophus ferrumequinum , with the upstroke changing from thrust generation at low speeds to weight support at intermediate speeds. At the highest speed, 4.8 m s−^1 ( J =0.93), the upstroke angles of incidence were large and positive, contributing weight support but also negative thrust to the force balance. The morphological limitations on wing span and area reduction placed on insects and bats mean that Manduca sexta is faced with the same aerodynamic options for the upstroke as Rhinolophus ferrumequinum : the wing may be operated at very low angles of incidence in order to minimize the aerodynamic forces, at positive angles of incidence for weight support or at negative angles for thrust production. The final option is the usual case for insects, but in Manduca sexta it would generate thrust at the expense of considerable negative weight support. The second case provides additional weight support, thus decreasing the required mean lift coefficient, but it also generates negative thrust. If this is the case for Manduca sexta at 5 m s−^1 then, as can be seen in Fig. 3B, the insect is struggling to produce a net positive thrust. A final observation concerning quasi-steady aerodynamic force production is that the asymmetric wingbeat does not appear to provide an aerodynamic advantage over sinusoidal motion if positive upstroke angles of incidence are an option. However, if the upstroke angles of incidence remain negative, then the mean lift coefficients for the sinusoidal wingbeat are consistently higher than those for the asymmetric wingbeat at high flight speeds. It must be noted that any benefits of the asymmetric wingbeat may not be revealed by a quasi-steady analysis, which assumes that force production is proportional to the square of relative velocity. Lift from unsteady mechanisms, such as a leading-edge vortex, may not scale with relative velocity in the same way. Without further information, no conclusions can be drawn on the aerodynamic significance of an asymmetric wingbeat. The profile power estimates (Table
- provide some evidence that there may be a slight energetic advantage to the asymmetric wingbeat at fast forward speeds: at speeds of 4 m s−^1 and above, the profile power for the asymmetric wingbeat was lower, but typically by less than 15 %, than the value for the corresponding sinusoidal motion.
Aerodynamic power for flight The U-shaped relationship between forward speed and specific aerodynamic power for Manduca sexta is consistent with power curves drawn for a wide range of insect (reviewed in Cooper, 1993) and vertebrate (reviewed in Norberg, 1990) fliers. The precise shape does vary, from the J-shape found by Cooper (1993) for bumblebees to the deep U-shape obtained by Rayner (1979) for a range of birds, but these represent two extreme points on a continuum of shapes derived from the same basic trends in the aerodynamic power components. The increases in aerodynamic power at the two ends of the speed range result from different components (Pennycuick, 1968), and much of the variation between species is explicable and to be expected from such diverse morphologies and kinematics. The initial decrease in flight power from hovering to the minimum power speed results from a decrease in induced power. Parasite power is negligible at these speeds, and the profile power, whilst not negligible, is fairly constant. The location of the minimum power speed depends upon how rapidly the sum of profile and parasite power increases relative to the decrease in induced power. Profile power increases as the cube of the relative velocity (equation 13), not the forward velocity as stated by Spedding (1992). This difference is considerable for animals such as bumblebees, whose flight is characterized by low advance ratios. The flapping velocity dominates the relative velocity and, where frequency and amplitude vary little with forward speed, the profile power is approximately constant over almost all the speed range, as clearly seen with bumblebee flight (Dudley and Ellington, 1990 b ; Cooper, 1993). The advance ratios for Manduca sexta flight increase more rapidly with forward speed, and this is reflected in the steeper curve for profile power. In contrast, the parasite power remains small and accounts for less than half of the increase in the sum of profile and parasite power. The bumblebee body is less streamlined, however, and the parasite power contributes in large part to the increase in aerodynamic power at high forward speeds (Cooper, 1993). The relative importance of parasite power is also very sensitive to the chosen body angle, as can be seen in the discrepancy between the results at high flight speeds for moth F1 and moths M1 and F2 (Table 4), and between the different curves for pigeons derived by Pennycuick (1968) and Rayner (1979), for which different body angles were assumed (Norberg, 1990). For any species, the curve for total aerodynamic power becomes increasingly steep at high speeds. Induced power is still decreasing, but this is offset by the ever more rapid increase in the profile and parasite components. The correction to the traditional expression for induced power (equation 12), which results from consideration of the vertical contribution from profile drag, ranged from 3 to 11 % for Manduca sexta , depending upon the selected profile drag coefficient. The same increase for dragonfly and damselfly flight averaged 12 % (Wakeling and Ellington, 1997 b ). The magnitude of this correction is therefore comparable to those from previous modifications to the simple momentum jet
A. P. WILLMOTT AND C. P. ELLINGTON
The aerodynamics of hawkmoth flight 2739
model to incorporate temporal and spatial effects (Ellington, 1984 d ), which have been adopted as standard in subsequent studies. A net downwards force from profile drag is probably typical of flight in most insects. If the profile drag coefficients are similar during the two halfstrokes, and the vertical components of the flapping velocities are approximately equal and opposite, then this net downwards force is a consequence of the induced velocity. Flight in which there is a net upwards force from profile drag, whilst less common, is not unknown. The generation of large vertical forces by pressure drag during the downstroke has been identified by Ellington (1980) and Sunada et al. (1993) for take-off flight in butterflies from the genus Pieris. Weight support of this kind requires a near- vertical stroke plane with high angles of incidence during the downstroke, and low angles during a ‘feathered’ upstroke. Similar kinematics have been reported by Betts and Wootton (1988) as one of the flight modes used during both hovering and fast forward flight in butterflies. Profile drag will have a substantial vertical component under these conditions, and second-order corrections to P ind should be incorporated.
Total mechanical power requirements Estimates of the total mechanical power required for flight can be determined by two independent methods: from data for aerodynamic and inertial power, and from the product of muscle efficiency and the metabolic cost of flight (Casey, 1981). Comparing the two estimates can shed light on the extent of elastic storage in the thorax and/or wings. Casey (1981), for example, found good agreement between a metabolic estimate for the total body-mass-specific mechanical power for Manduca sexta hovering (47.4 W kg−^1 , assuming 20 % muscle efficiency) and the estimated sum of aerodynamic power (14.6 W kg−^1 , modified from Weis-Fogh, 1973) and inertial power (36.4 W kg−^1 ). He concluded that the inertial costs of hovering flight were not significantly reduced by an elastic system in the thorax, in contrast to Weis-Fogh’s (1972) finding for the closely related privet hawkmoth Sphinx ligustri. Recalculating the metabolic estimate of total mechanical power from Casey’s (1976) measured body-mass-specific metabolic cost of flight (237 W kg−^1 ) and the muscle efficiency of 10 % determined experimentally by Stevenson and Josephson (1990) for Manduca sexta dorsoventral muscle, the available body-mass-specific power is only 23.7 W kg−^1. The inertial power component has been greatly reduced, but not completely removed. Similarly, Wilkin and Williams (1993) concluded that elastic storage was effective at a flight speed of 3.36 m s−^1 , but that some power was still available, if needed, to damp the wing oscillations. The specific mechanical power requirements obtained in the present study do not provide an unequivocal conclusion about the extent of elastic storage. The highest performance during flight was most likely to have been reached in moth F2, which had both the highest wing loading and the lowest percentage of flight muscle. The total muscle-mass-specific mechanical power for this moth, assuming perfect elastic storage, reached
117 W kg−^1 during hovering, and over 160 W kg−^1 if the higher estimates of profile power were used. These compare with a mean specific power output of 90 W kg−^1 of flight muscle and a maximum of 130 W kg−^1 at muscle temperatures and cycle frequencies which corresponded well with free-flight values (Stevenson and Josephson, 1990). The inertial power estimates for Manduca sexta were not much higher than the aerodynamic power, however, and most of the estimates for total mechanical power with no elastic storage were also within the range observed in the earlier study. The potential for considerable elastic storage has been demonstrated indirectly by the observation that, in a Manduca sexta with the thoracic nervous system removed, a downstroke generated by electrical stimulation of the depressor muscle can be followed by a nearly normal, passive upstroke (S. Dierkes, personal communication). The possibility remains that the storage is far from perfect, but the percentage of elastic storage cannot be quantified accurately at present. The capacity for elastic storage does not need to be considerable. Dickinson and Lighton (1995) found that in Drosophila hydei , another species in which aerodynamic power and inertial power are very similar in magnitude, the cost of flight can be minimized with an elastic storage capacity as low as 10 % of the inertial power. The remaining 90 % of the inertial energy can be usefully converted to aerodynamic work during wing deceleration. The equivalent storage capacity to minimize costs for Manduca sexta is approximately 30 % of the inertial power.
Limits to maximum flight speed The discussion of the kinematics and aerodynamics of fast forward flight can be extended to consider the question of what limits the maximum speed of Manduca sexta. For such a large insect, the maximum observed speed is surprisingly low. The highest value recorded by Stevenson et al. (1995) was 5.3 m s−^1 while their calculations, based on body size, suggested that Manduca sexta should be capable of speeds of at least 7–10 m s−^1. One potential constraint in their study and in the current one was the use of flight chambers. This will undoubtedly affect flight behaviour, as it did for a range of butterflies whose typical flight speeds during insectary studies were significantly lower than those observed in the wild (Srygley and Dudley, 1993). Other observations, however, suggest that flight chambers and their size may not be so important in determining maximum speed. Cooper (1993) obtained significantly higher flight speeds from bumblebees in a wind tunnel whose closed working area was much smaller than the largest arena (an ice rink) used by Stevenson et al. (1995). Given sufficient motivation for flight, chamber size may not limit flight speed. There was clearly no shortage of motivation in the moths filmed in the present study: several moths tried repeatedly to reach the feeder at 5 m s−^1 , but they appeared to have great difficulty in flying at these very fast speeds. The available mechanical power is often considered to be the major constraint on maximum forward speed (e.g.
The aerodynamics of hawkmoth flight 2741
females) which are markedly lower than those of hymenopterans (as high as 35.6 N m−^2 in Bombus terrestris queens; Dudley and Ellington, 1990 b ), although higher than the range from approximately 2 to 4 N m−^2 recorded for butterflies (Betts and Wootton, 1988; Bunker, 1993). The non-dimensional radii of the moments of wing area and virtual mass for Manduca sexta and the other lepidopterans are smaller than those for other insect groups. This concentration of area close to the wingbase is largely a consequence of the coupling of a long, narrow forewing with a short, broad hindwing. This trend is more pronounced in Manduca sexta than in the hymenopterans, whose radii are approximately 10 % greater as a result (Ellington, 1984 b ). The hindwings in the Papilionoidea and Hesperioidea tend to be broader still than those of the hawkmoths, and this is reflected in even lower values for these radii (Betts and Wootton, 1988; Bunker, 1993). Similarly, the radii for the moments of wing mass are lower than average in the Lepidoptera, indicating that the mass distribution is also skewed towards the wingbase. For a given wing mass, lower radii have direct significance for the mechanics of flight because they reduce the corresponding moment about the wingbase, and thus the inertial costs of flight. This may help to offset the increased mass associated with the high relative thickness of the wings, a trait which is typical of ‘advanced’ wings with a few, thick veins (Ellington, 1984 b ). The concentration of wing area in the proximal half of the wing reduces the lift force generated during flapping flight, but it also reduces the profile power component. The large distance between the wingbase and the centre of mass of the body in Manduca sexta , when compared with the dipteran and hymenopteran species, has a detrimental influence on the pitching manoeuvrability of the hawkmoths, as discussed above. This does not, however, appear to have any great consequences for Manduca sexta : they are less agile fliers than hoverflies, for example, but their flight is still sufficiently versatile to fulfil its roles in nutrition and reproduction.
Aerodynamic force coefficients There have only been a limited number of studies of the aerodynamic characteristics of insect bodies and wings, and the flow around these structures is poorly understood. A comparison of the force coefficients for Manduca sexta with the results for other species does, however, raise a number of interesting observations about the performance of both the body and the wings. The drag coefficient of an insect body at zero angle of attack is one measure of the extent of its streamlining. Recalculating this value for Manduca sexta based on frontal rather than planform area, to allow comparison with earlier studies, gives a drag coefficient between 0.25 and 0.3 which is relatively independent of Reynolds number. These values are substantially lower than the minimum coefficients recorded for all the other species: 1.1 for large flies and 2.3 for small flies (Hocking, 1953), 1.47 for locusts (Weis-Fogh, 1956), 1.16 for Drosophila virilis (Vogel, 1967), 0.63 for bumblebee workers (Dudley and Ellington, 1990 b ), 0.45 for the honeybee
(Nachtigall and Hanauer-Thieser, 1992), and between 0.45 and 0.5 for dragonflies and damselflies (Wakeling and Ellington, 1997 a ). The data, therefore, confirm Brodsky and Ivanov’s (1974, quoted in Brodsky, 1994) conclusion that the hawkmoth body plan is the most streamlined seen among insects. The relationship between drag coefficient and Reynolds number is not clear. A decrease from 1.0 to 0.63 was seen in bumblebees as Re b increased from 1000 to 4000 (Dudley and Ellington, 1990 b ), and in the honeybee from 1.36 to 0.45 as Re b increased from 400 to 3970 (Nachtigall and Hanauer- Thieser, 1992). This will help to limit the rapid increase in parasite drag at fast forward speeds (Spedding, 1992). The decrease in drag coefficient for the honeybee was steepest at Reynolds numbers below 2000, which corresponds to the results obtained by Hertel (1963) for a range of body shapes. All of the Manduca sexta measurements were made at Reynolds numbers higher than this, which may explain the lack of variation in the drag coefficient. The characteristics of the Manduca sexta body are unlikely to have been significantly affected by the absence of the legs and antennae. Nachtigall and Hanauer-Thieser (1992) found that the drag on honeybee bodies was unaffected by removal of the legs, although the slight change in frontal area was reflected in a slight increase in drag coefficient. If planform area is used, as it was here, then the legs have only a negligible effect. An upper limit to the additional drag due to the antennae was estimated by calculating the drag on cylinders of the same size aligned normal to the flow, using the expressions in Ellington (1991). At the highest speed recorded for each moth, the total drag on the antennae would be 1.5 and 1.8 % of body weight for moths F1 and F2, respectively, and 3.2 % for moth M1. The additional parasite power at these speeds would have added 3–4 % to the total aerodynamic power (Willmott, 1995). The importance of the contribution of body lift to the vertical force balance has been a matter of some contention. Body lifts of up to one-third of body weight reported by Hocking (1953) have not been repeated for other species. At angles appropriate to fast forward flight, when body lift should be highest, the contribution from the body was less than 5 % in locusts (Jensen, 1956), a cockchafer (Nachtigall, 1964), some dipterans (Wood, 1970) and a honeybee (Nachtigall and Hanauer-Thieser, 1992), and 10 % or less in a noctuid moth (Chance, 1975) and a bumblebee (Dudley and Ellington, 1990 b ). Under the same conditions, the maximum body lift observed for Manduca sexta was also approximately 10 % of body weight, and it seems likely that this value is close to the upper limit for the contribution of body lift in most flying insects. The steady-state performance of the hawkmoth wing, as measured by the maximum lift:drag ratio, is impressive for an insect. Very high values of more than 15 have recently been recorded for odonatan wings whose minimum drag coefficient was found at a non-zero, positive angle of attack (Wakeling and Ellington, 1997 a ). Amongst other species, however, the ratio of approximately 4 for Manduca sexta is second only to the value of 8 recorded for the locust hindwing (Jensen, 1956),
and the accuracy of the latter has been queried because the measured minimum drag coefficient is lower than theoretically possible (Ellington, 1984 d ). The results for Manduca sexta , the odonatans and the locust match the conclusions of Spedding (1992) and Brodsky (1994) that the highest lift:drag ratios are found at the high Reynolds numbers characteristic of large, fast-flying insects whose wings operate under flow conditions where inertial forces dominate. Maximum lift coefficient is relatively independent of Reynolds number, lying in the range from approximately 0.7 to 0.9 for most species studied, and the variation in the lift:drag ratio results from the friction drag component of profile drag scaling as Re −0.5^ (Blasius, 1908). The relative contribution of friction drag is highest at the low angles of attack where the maximum lift:drag ratios occur. The minimum value of the drag coefficient for Manduca sexta wings was 0.05, for example, compared with 0.25 and 0.13 for a bumblebee worker at Reynolds numbers of 460 and 1240, respectively (Dudley and Ellington, 1990 b ), and 0.54 and 0. for cambered Drosophila virilis wings at Reynolds numbers of 65 and 260, respectively (Vogel, 1967). As the Reynolds number decreases, the maximum C L: C D ratio also decreases, but the wings display a very gentle stall. These characteristics can be seen in the polar diagrams for the mayfly Ephemera vulgata ( C L: C D =3.3; Brodsky, 1970), the cranefly Tipula oleracea ( C L: C D=2.4; Nachtigall, 1977) and the bumblebee Bombus terrestris (Dudley and Ellington, 1990 b ) whose C L: C D ratio was approximately 2.5 at Reynolds numbers from 460 to 1520. At even lower Reynolds numbers, the increasing importance of viscous effects reduces the lift:drag ratio further but leads to the virtual absence of stall, which was seen with the wings of Drosophila virilis at Reynolds numbers between 65 and 260 (Vogel, 1967). The details of the airflow around insect wings under steady- state conditions are not well understood, but a number of structural features that influence aerodynamic performance have been identified, and some of these can be seen in the hawkmoth wing. The most widespread feature is the beneficial effect of wing camber in increasing lift coefficients at positive angles of attack. Vogel (1967) found that the polar diagram for flat Drosophila virilis wings was nearly symmetrical about the 0 ° angle-of-attack position, but that the addition of camber resulted in a positive shift in lift coefficients which was most pronounced for positive angles of attack. Similarly, the convex profile seen in locust forewings during late downstroke increased the lift:drag ratio of the wing (Jensen, 1956). The small, but consistent, positive camber inherent in the Manduca sexta wing structure probably contributed to the better performance of the wing at positive than at negative angles of attack, and it is likely to enhance lift production during the long downstroke of flapping flight when the wing profile is similar to that of the isolated wing couples in this study. The same wing shape is, however, unlikely to be such an accurate model of the wings during the upstroke, and this may, in part, explain the asymmetry between the lift coefficients at positive and negative angles of attack. The wing twist and camber during the upstroke have not been as well quantified
as those of the downstroke (Willmott and Ellington, 1997) but, qualitatively, the wing shape appears to be both more complicated and more variable during the former. In addition, the direction of camber (at least in the regions posterior to the rigid leading-edge spar) may be the reverse of that used here. The lift and drag coefficients measured at negative angles of attack in this study may, therefore, underestimate the true steady-state values for the hawkmoth wing couple configuration appropriate to upstroke periods when the wing is acting at negative angles of incidence. In terms of the aerodynamic analysis undertaken here, however, any discrepancies in these force coefficients would only have had a noticeable impact on the values for profile drag and profile power estimated from the observed angles of incidence. An important role for leading-edge separation bubbles in shaping wing performance through the avoidance of abrupt stall and the enhancement of lift production has been proposed (Ellington, 1984 c ; Spedding, 1992). Leading-edge vorticity had a strong influence on the flow around the wings during Manduca sexta flapping flight at all speeds (Ellington et al. 1996; Willmott et al. 1997), and it may also explain the gradual stall seen in Fig. 2 and the marked difference in performance of the Manduca sexta wing between a Reynolds number of 1150 and the two higher values. This discrepancy has not been seen before for insect wings, but it may represent the increase in lift production which accompanies the formation of a strong leading-edge separation bubble at Re c=3300 and Re c=5560. The wing performance at negative angles of attack is similar for all three Reynolds numbers, and it mirrors the curve for positive angles at the lowest Reynolds number, suggesting that any separation bubbles are comparable under these flow conditions. Visualization of the flow around the wings is needed in order to confirm these hypotheses. The possibility cannot be excluded from these data that the slight delay between the force measurements at Re c=1150 and at Re c=3300 and 5560 might have contributed to the differences in the force coefficients. A number of observations suggest, however, that the differences probably represent a genuine aerodynamic phenomenon. First, the Manduca sexta wing is a rigid structure, even when fresh, and there is little qualitative change in this over 24 h, or over much longer periods. Second, the discrepancy was only in the coefficients at positive angles of attack. At negative angles, the performance of the wings was similar at all speeds. Finally, the unusually low coefficients were obtained on the first day, with the later results being closer to the coefficients recorded for other species. The maximum lift coefficients at Re c=3300 and Re c=5560 were, for example, very similar to those obtained from the wing couple of a noctuid moth at 5 m s−^1 (Lendle, 1981, cited in Nachtigall, 1989).
Directions for future studies This study has identified the manner in which the mean lift coefficient varies with changes in wing kinematics. The requirement for unsteady aerodynamic mechanisms is clear, but their precise nature and contribution cannot be ascertained
A. P. WILLMOTT AND C. P. ELLINGTON
