Calculating the Force Needed to Maintain the Horizontal Motion of a Stone, Exercícios de Engenharia Elétrica

An explanation of how to calculate the force required to keep a stone moving horizontally on a frictionless surface using newton's second law and the concept of kinetic friction. An example calculation with given mass and coefficient of kinetic friction.

Tipologia: Exercícios

Antes de 2010

Compartilhado em 08/10/2007

deivison-jose-conti-2
deivison-jose-conti-2 🇧🇷

51 documentos

1 / 1

Toggle sidebar

Esta página não é visível na pré-visualização

Não perca as partes importantes!

bg1

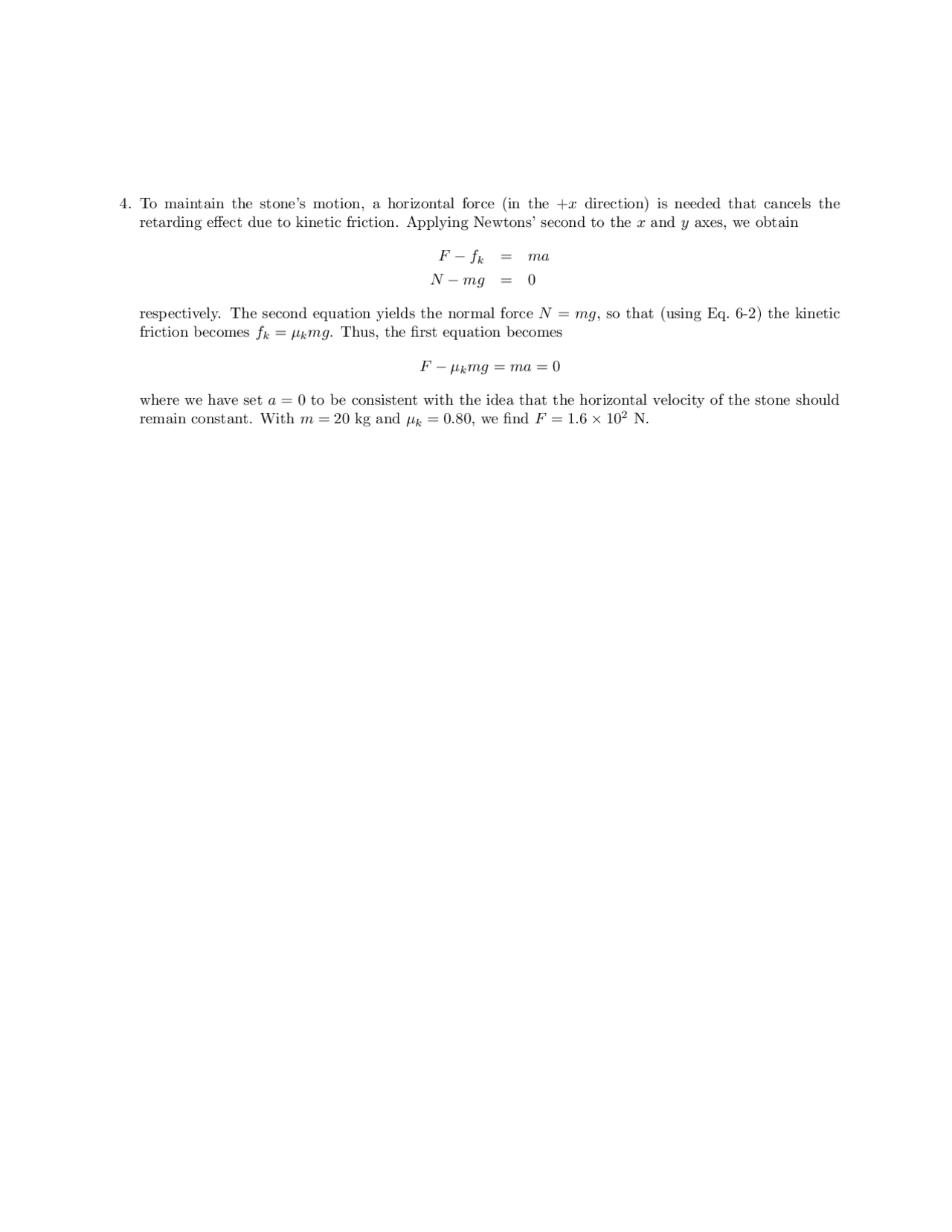

4. To maintain the stone’s motion, a horizontal force (in the +xdirection) is needed that cancels the
retarding effect due to kinetic friction. Applying Newtons’ second to the xand yaxes, we obtain
Ffk=ma
Nmg =0
respectively. The second equation yields the normal force N=mg , so that (using Eq. 6-2) the kinetic
friction becomes fk=µkmg. Thus, the first equation becomes
Fµkmg =ma =0
where we have set a= 0 to be consistent with the idea that the horizontal velocity of the stone should
remain constant. With m=20kgandµk=0.80, we find F=1.6×102N.

Pré-visualização parcial do texto

Baixe Calculating the Force Needed to Maintain the Horizontal Motion of a Stone e outras Exercícios em PDF para Engenharia Elétrica, somente na Docsity!

  1. To maintain the stone’s motion, a horizontal force (in the +x direction) is needed that cancels the retarding effect due to kinetic friction. Applying Newtons’ second to the x and y axes, we obtain

F − fk = ma N − mg = 0

respectively. The second equation yields the normal force N = mg, so that (using Eq. 6-2) the kinetic friction becomes fk = μkmg. Thus, the first equation becomes

F − μkmg = ma = 0

where we have set a = 0 to be consistent with the idea that the horizontal velocity of the stone should remain constant. With m = 20 kg and μk = 0.80, we find F = 1. 6 × 102 N.
