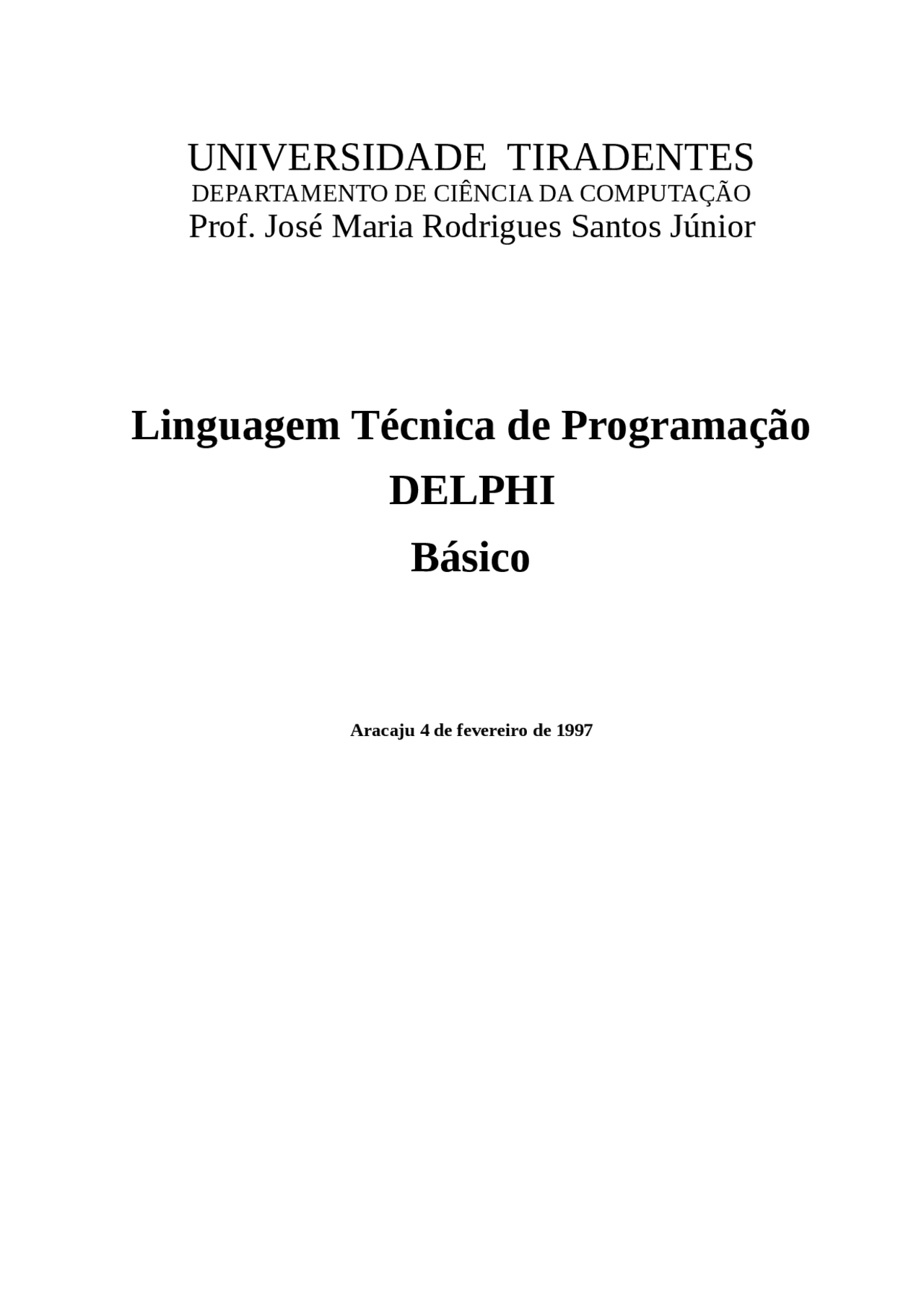

UNIVERSIDADE TIRADENTES
DEPARTAMENTO DE CIÊNCIA DA COMPUTAÇÃO
Prof. José Maria Rodrigues Santos Júnior
Linguagem Técnica de Programação
DELPHI
Básico
Aracaju 4 de fevereiro de 1997
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28

Pré-visualização parcial do texto

Baixe Formulários, Componentes e Unidades em Aplicações: Formatação de Data e Hora no Delphi e outras Notas de estudo em PDF para Automação, somente na Docsity!

UNIVERSIDADE TIRADENTES

DEPARTAMENTO DE CIÊNCIA DA COMPUTAÇÃO

Prof. José Maria Rodrigues Santos Júnior

Linguagem Técnica de Programação

DELPHI

Básico

Aracaju 4 de fevereiro de 1997

Programação Windows

DELPHI

Características do Delphi

Ambiente de Desenvolvimento Delphi

Desenvolvendo Aplicativos

Principais Procedimentos e Funções Pré-definidas

Componentes - Propriedades, Eventos e Métodos

Aplicações MDI

Use de Modelos e Experts

Os objetos

Application

Screen

Printer

Canvas

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E

Projeto de Interface

Padronização

Tomar como base as aplicações existentes, principalmente as da Microsoft.

Utilizar menus com as opções Arquivo, Editar, Janela e Ajuda.

Usar botões de acesso rápido.

Utilizar teclas de atalho.

Enfatizar imagens.

Esquecer a programação DOS

Não utilizar múltiplos níveis de menu.

Não exagerar em cores diferentes.

Utilizar a tecla TAB para passar de um campo para outro.

Utilizar a tecla ENTER ou um botão para executar ações.

Simplicidade

Procurar facilidade de uso.

Permitir liberdade de ação.

Permitir diferentes maneiras de se alcançar o mesmo resultado.

Procurar as soluções mais intuitivas.

Procurar adotar os símbolos que o usuário já esteja acostumado.

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E

DELPHI

Características do Delphi

Gera um executável verdadeiro, independente de run-time.

Utiliza um dialeto da linguagem Object Pascal para escrever os procedimentos do programa.

Utiliza o processo de desenvolvimento Two-Way , que permite tanto escrever o código em Object Pascal

gerando os objetos visuais, como utilizar os métodos visuais gerando código em Object Pascal.

Os componentes são definidos como objetos, o que permite a herança.

Permite a criação de novos componentes na própria linguagem.

Possui acesso facilitado a banco de dados.

Possui ambiente de depuração integrado.

Possui componenete para a internet

Características da Programação Delphi

Um programa Delphi é uma estrutura de aplicativo

Orientada ao desenho de formulários ou janelas.

Interface com usuário feita através de componentes

Contém um conjunto de controles pré-desenvolvidos que dão acesso às características do sistema.

Os componentes são objetos

Cada controle ou componente possui propriedades, métodos e pode responder a eventos.

As propriedades podem ter seus valores definidos em tempo de desenvolvimento e alterados em tempo de

execução.

Os eventos são as mensagens que cada componente pode responder, tendo associado a eles um procedimento

de evento.

Elementos da Programação Delphi :

Elemento Descrição

Formulário (Form) É uma janela, elemento básico onde agrupamos os componentes para formar a

interface com o usuário.

Unidade (Unit) Arquivo que contém código em object pascal. Para cada formulário existe uma

unidades associada

Componente Objetos utilizados para a construção das nossas aplicações (projeto).

Propriedade Representam os atributos dos componentes

Método Procedimento ou função própria do objeto.

Evento Representam a capacidade de resposta dos componentes aos estímulos

Processador de Evento Procedimento responsável por responder a determinado evento

Projeto (Project) Conjunto de formulários, componentes e unidades que compõem uma aplicação

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E

Desenvolvendo Aplicativos

Manipulando Componentes:

Acrescentando

Selecionando

Movendo

Sobrepondo

Alinhando

Redimensionando

Cortando, Copiando e Colando

Criando Ordem de Acesso (Tab Order)

Fixando

Alterando Propriedades dos Componentes em Tempo de Projeto

1. Selecione o Componente, depois mude a propriedade no Object Inspector

Editor de Propriedade : Simples, Lista Suspensa, Caixa de Dialogo e Propriedades Aninhadas

Escrevendo Procedimentos de Eventos

Selecione o Componente, escolha, na Object Inspector, o evento a ser respondido e Click-Duplo na coluna

direita, e então escreva o procedimento

Alterando Propriedades em Tempo de execução

Componente.Propriedade := NovoValor

OBS: Quando a propriedade for aninhada use

Componente.Propriedade := Componente.Propriedade

F 0

B 1 [ConstanteDaPropriedade]

Utilizando métodos

Componente.Método

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E

Estrutura de uma Unidade

unit Unit1;

interface

uses

SysUtils, WinTypes, WinProcs, Messages, Classes, Graphics, Controls,

Forms, Dialogs;

type

TForm1 = class(TForm)

private

{ Private declarations }

public

{ Public declarations }

end;

var

Form1: TForm1;

implementation

{$R *.DFM}

end.

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E

begin

ADate := StrToDate(Edit1.Text);

Label1.Caption := 'Day ' + IntToStr(DayOfWeek(ADate)) + ' of the week';

end;

procedure DecodeDate(Date: TDateTime; var Year, Month, Day: Word);

Quebra os valores especificados no parâmetro Date em Year, Month e Day.

procedure TForm1.Button1Click(Sender: TObject);

var

Present: TDateTime;

Year, Month, Day, Hour, Min, Sec, MSec: Word;

begin

Present:= Now;

DecodeDate(Present, Year, Month, Day);

Label1.Caption := 'Today is Day ' + IntToStr(Day) + ' of Month '

+ IntToStr(Month) + ' of Year ' + IntToStr(Year);

DecodeTime(Present, Hour, Min, Sec, MSec);

Label2.Caption := 'The time is Minute ' + IntToStr(Min) + ' of Hour '

+ IntToStr(Hour);

end;

procedure DecodeTime(Time: TDateTime; var Hour, Min, Sec, MSec: Word);

Quebra os valores especificados em Time nos par6ametros Hour, Min, Sec e MSec.

procedure TForm1.Button1Click(Sender: TObject);

var

Present: TDateTime;

Year, Month, Day, Hour, Min, Sec, MSec: Word;

begin

Present:= Now;

DecodeDate(Present, Year, Month, Day);

Label1.Caption := 'Today is Day ' + IntToStr(Day) + ' of Month '

+ IntToStr(Month) + ' of Year ' + IntToStr(Year);

DecodeTime(Present, Hour, Min, Sec, MSec);

Label2.Caption := 'The time is Minute ' + IntToStr(Min) + ' of Hour '

+ IntToStr(Hour);

end;

procedure Delete(var S: string; Index, Count:Integer);

Remove a substring de Count caracters da string S partir da posição Index

var

s: string;

begin

s := 'Honest Abe Lincoln';

Delete(s,8,4);

Canvas.TextOut(10, 10, s); { 'Honest Lincoln' }

end;

function DeleteFile(const FileName: string): Boolean;

Apaga o arquivo FileName do disco. Se o arquivo não puder ser apagado a função retorna False.

DeleteFile('DELETE.ME');

function DirectoryExists(Name: string): Boolean;

Verifica se Name diretorio existe

function DiskFree(Drive: Byte): Integer;

Retorna o número de bytes livre no driver especificado em Drive.

Onde : 0 = Corrente, 1 = A, 2 = B,...

DiskFree retorna –1 se o driver for inválido

var

S: string;

begin

S := IntToStr(DiskFree(0) div 1024) + ' Kbytes free.';

Canvas.TextOut(10, 10, S);

end;

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E

function DiskSize(Drive: Byte): Integer;

Retorna o tamanho em bytes do driver especificado.

Onde : 0 = Corrente, 1 = A, 2 = B,...

DiskFree retorna –1 se o driver for inválido

var

S: string;

begin

S := IntToStr(DiskSize(0) div 1024) + ' Kbytes capacity.';

Canvas.TextOut(10, 10, S);

end;

function EncodeDate(Year, Month, Day: Word): TDateTime;

Retorna uma Data formada por Year, Month e Day

procedure TForm1.Button1Click(Sender: TObject);

var

MyDate: TDateTime;

begin

MyDate := EncodeDate(83, 12, 31);

Label1.Caption := DateToStr(MyDate);

end;

function EncodeTime(Hour, Min, Sec, MSec: Word): TDateTime;

Retorna a Hora formada por Hour, Min, Sec e MSec

procedure TForm1.Button1Click(Sender: TObject);

var

MyTime: TDateTime;

begin

MyTime := EncodeTime(0, 45, 45, 7);

Label1.Caption := TimeToStr(MyTime);

end;

function ExtractFileDir(const FileName: string): string;

Retorna o diretório adequado para ser passado para as funções CreateDir, GetCurrentDir, RemoveDir e SetCurrentDir.

O resultado da função é uma string vazia se FileName não contiver um drive e um caminho.

function ExtractFileDrive(const FileName: string): string;

Retorna uma string contendo o drive do path de um arquivo.

function ExtractFileExt(const FileName: string): string;

Retorna a extensão do arquivo FileName

function ExtractFileName(const FileName: string): string;

Retorna o nome do arquivo

Form1.Caption := 'Editing '+ ExtractFileName(FileName);

function ExtractFilePath(const FileName: string): string;

Retorna o Path de um arquivo

ChDir(ExtractFilePath(FileName));

function FileAge(const FileName: string): Integer;

Retorna a data e a hora de um arquivo num valor que pode ser convertido para TDateTime através da função FileDateToDateTime.

Retorna –1 se o arquivo não existir

function FileExists(const FileName: string): Boolean;

Retorna verdade se o arquivo existir

if FileExists(FileName) then

if MsgBox('Do you really want to delete ' + ExtractFileName(FileName)

+ '?'), []) = IDYes then DeleteFile(FileName);

function FileSize(var F): Integer;

Retorna o tamanho de um arquivo, para usar FileSize o arquivo deve esta aberto. Se o arquivo estiver vazio FileSize(F) retorna 0.

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E

yyyy Displays the year as a four-digit number (0000-9999).

h Displays the hour without a leading zero (0-23).

hh Displays the hour with a leading zero (00-23).

n Displays the minute without a leading zero (0-59).

nn Displays the minute with a leading zero (00-59).

s Displays the second without a leading zero (0-59).

ss Displays the second with a leading zero (00-59).

t Displays the time using the format given by the ShortTimeFormat global variable.

tt Displays the time using the format given by the LongTimeFormat global variable.

am/pm Uses the 12-hour clock for the preceding h or hh specifier, and displays 'am' for any hour before noon, and 'pm' for any

hour after noon. The am/pm specifier can use lower, upper, or mixed case, and the result is displayed accordingly.

a/p Uses the 12-hour clock for the preceding h or hh specifier, and displays 'a' for any hour before noon, and 'p' for any hour

after noon. The a/p specifier can use lower, upper, or mixed case, and the result is displayed accordingly.

ampm Uses the 12-hour clock for the preceding h or hh specifier, and displays the contents of the TimeAMString global variable

for any hour before noon, and the contents of the TimePMString global variable for any hour after noon.

/ Displays the date separator character given by the DateSeparator global variable.

: Displays the time separator character given by the TimeSeparator global variable.

'xx'/"xx" Characters enclosed in single or double quotes are displayed as-is, and do not affect formatting.

Format specifiers may be written in upper case as well as in lower case letters--both produce the same result.

If the string given by the Format parameter is empty, the date and time value is formatted as if a 'c' format specifier had been given.

S := FormatDateTime('"The meeting is on" dddd, mmmm d, yyyy, ' +

'"at" hh:mm AM/PM', StrToDateTime('2/15/95 10:30am'));

function FormatFloat(const Format: string; Value: Extended): string;

Transforma um Float numa string usando a formatação contida em Format

Os especificadores de formato abaixo são válidos

Specifier Represents

0 Digit place holder. If the value being formatted has a digit in the position where the '0' appears in the format string, then

that digit is copied to the output string. Otherwise, a '0' is stored in that position in the output string.

# Digit placeholder. If the value being formatted has a digit in the position where the '#' appears in the format string, then

that digit is copied to the output string. Otherwise, nothing is stored in that position in the output string.

. Decimal point. The first '.' character in the format string determines the location of the decimal separator in the formatted

value; any additional '.' characters are ignored. The actual character used as a the decimal separator in the output string is

determined by the DecimalSeparator global variable. The default value of DecimalSeparator is specified in the Number

Format of the International section in the Windows Control Panel.

, Thousand separator. If the format string contains one or more ',' characters, the output will have thousand separators

inserted between each group of three digits to the left of the decimal point. The placement and number of ',' characters in

the format string does not affect the output, except to indicate that thousand separators are wanted. The actual character

used as a the thousand separator in the output is determined by the ThousandSeparator global variable. The default value

of ThousandSeparator is specified in the Number Format of the International section in the Windows Control Panel.

E+ Scientific notation. If any of the strings 'E+', 'E-', 'e+', or 'e-' are contained in the format string, the number is formatted

using scientific notation. A group of up to four '0' characters can immediately follow the 'E+', 'E-', 'e+', or 'e-' to determine

the minimum number of digits in the exponent. The 'E+' and 'e+' formats cause a plus sign to be output for positive

exponents and a minus sign to be output for negative exponents. The 'E-' and 'e-' formats output a sign character only for

negative exponents.

'xx'/"xx"Characters enclosed in single or double quotes are output as-is, and do not affect formatting.

; Separates sections for positive, negative, and zero numbers in the format string.

The locations of the leftmost '0' before the decimal point in the format string and the rightmost '0' after the decimal point in the

format string determine the range of digits that are always present in the output string.

The number being formatted is always rounded to as many decimal places as there are digit placeholders ('0' or '#') to the right of

the decimal point. If the format string contains no decimal point, the value being formatted is rounded to the nearest whole number.

If the number being formatted has more digits to the left of the decimal separator than there are digit placeholders to the left of the

'.' character in the format string, the extra digits are output before the first digit placeholder.

To allow different formats for positive, negative, and zero values, the format string can contain between one and three sections

separated by semicolons.

One section: The format string applies to all values.

Two sections: The first section applies to positive values and zeros, and the second section applies to negative values.

Three sections: The first section applies to positive values, the second applies to negative values, and the third applies to

zeros.

If the section for negative values or the section for zero values is empty, that is if there is nothing between the semicolons that

delimit the section, the section for positive values is used instead.

If the section for positive values is empty, or if the entire format string is empty, the value is formatted using general floating-point

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E

formatting with 15 significant digits, corresponding to a call to FloatToStrF with the ffGeneral format. General floating-point

formatting is also used if the value has more than 18 digits to the left of the decimal point and the format string does not specify

scientific notation.

#,##0.00;;Zero 1,234.00 -1,234.00 0.50 Zero

0.000E+00 1.234E+03 -1.234E+03 5.000E-01 0.000E+

#.###E-0 1.234E3 -1.234E3 5E-1 0E

function Frac(X: Real): Real;

Retorna a parte fracional do parâmetro X

var

R: Real;

begin

R := Frac(123.456); { 0.456 }

R := Frac(-123.456); { -0.456 }

end;

function GetCurrentDir: string;

Retorna uma string contendo o diretório corrente

procedure GetDir(D: Byte; var S: string);

Rerorna o diretório corrente do driver especificado.

O onde D pode ser :

Value Drive

0 Corrente

1 A

2 B

3 C

var

s : string;

begin

GetDir(0,s); { 0 = Current drive }

MessageDlg('Current drive and directory: ' + s, mtInformation, [mbOk] , 0);

end;

procedure Inc(var X [ ; N: Longint ] );

Incrementa de uma ou N unidades o parâmetro X

var

IntVar: Integer;

LongintVar: Longint;

begin

Inc(IntVar); { IntVar := IntVar + 1 }

Inc(LongintVar, 5); { LongintVar := LongintVar + 5 }

end;

function IncMonth(const Date: TDateTime; NumberOfMonths: Integer): TDateTime;

Retorna Date acrescido ou decrescido de NumberOfMonths meses.

function InputBox(const ACaption, APrompt, ADefault: string): string;

Exibe uma Caixa de Entrada onde o usuário pode digitar uma string.

ACaption representa o título do Input Box e APrompt é o título do edit e ADefault representa o valor inicial do Edit.

uses Dialogs;

procedure TForm1.Button1Click(Sender: TObject);

var

InputString: string;

begin

InputString:= InputBox('Input Box', 'Prompt', 'Default string');

end;

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E

Exibe uma Caixa de Mensagem e obtem uma resposta do usuário.

Onde

Msg : Mensagem

AType : Tipo da caixa de mensagem

Value Meaning

mtWarning A message box containing a yellow exclamation point symbol.

mtError A message box containing a red stop sign.

mtInformation A message box containing a blue "i".

mtConfirmation A message box containing a green question mark.

mtCustom A message box with no bitmap. The caption of the message box is the name of the application's executable file.

AButtons : Quais botões aparecerão na caixa de mensagem

Value Meaning

mbYes A button with the text 'Yes' on its face

mbNo A button with the text 'No' on its face

mbOK A button with the text 'OK' on its face

mbCancel A button with the text 'Cancel' on its face

mbHelp A button with the text 'Help' on its face

mbAbort A button with the text 'Abort' on its face

mbRetry A button with the text 'Retry' on its face

mbIgnore A button with the text 'Ignore' on its face

mbAll A button with the text 'All' on its face

mbYesNoCancel Puts Yes, No, and Cancel buttons in the message box

mbOkCancel Puts t OK and Cancel buttons in the message box

mbAbortRetryIgnore Puts Abort, Retry, and Ignore buttons in the message box

MessageDlg returns the value of the button the user selected. These are the possible return values:

Return values

mrNone mrAbort mrYes

mrOk mrRetry mrNo

mrCancel mrIgnore mrAll

procedure TForm1.Button1Click(Sender: TObject);

begin

if MessageDlg('Welcome to my Object Pascal application. Exit now?',

mtConfirmation, [mbYes, mbNo], 0) = mrYes then

begin

MessageDlg('Exiting the Object Pascal application.', mtInformation,

[mbOk], 0);

Close;

end;

end;

function MessageDlgPos(const Msg: string; AType: TMsgDlgType;

AButtons: TMsgDlgButtons; HelpCtx: Longint; X, Y: Integer): Word;

Semelhante a MessageDlg exceto por permitir indicar a posição na qual a janela será exibida

procedure TForm1.Button1Click(Sender: TObject);

begin

MessageDlgPos('Are you there?',mtConfirmation, mbYesNoCancel, 0, 200, 200);

end;

function MinIntValue(const Data: array of Integer): Integer;

Retorna o menor inteiro do vetor

function MinValue(const Data: array of Double): Double;

Retorna o menor valor de um vetor

procedure MkDir(S: string);

Cria um novo diretório

uses Dialogs;

begin

{$I-}

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E

{ Get directory name from TEdit control }

MkDir(Edit1.Text);

if IOResult <> 0 then

MessageDlg('Cannot create directory', mtWarning, [mbOk], 0)

else

MessageDlg('New directory created', mtInformation, [mbOk], 0);

end;

function Now: TDateTime;

Retorna a data e a hora corrente

procedure TForm1.Button1Click(Sender: TObject);

begin

Label1.Caption := 'The date and time is ' + Str(Now);

end;

function Ord(X): Longint;

Retorna a ordem de um valor ordinal

uses Dialogs;

type

Colors = (RED,BLUE,GREEN);

var

S: string;

begin

S := 'BLUE has an ordinal value of ' + IntToStr(Ord(BLUE)) + #13#10;

S := 'The ASCII code for "c" is ' + IntToStr(Ord('c')) + ' decimal';

MessageDlg(S, mtInformation, [mbOk], 0);

end;

function Pi: Extended;

Retorna o valor de PI

function Pos(Substr: string; S: string): Integer;

Procura por uma sub-string numa string e retorna a posição da primeira ocorrência ou zero se não encontrou

var S: string;

begin

S := ' 123.5';

{ Convert spaces to zeroes }

while Pos(' ', S) > 0 do

S[Pos(' ', S)] := '0';

end;

function Power(Base, Exponent: Extended): Extended;

Potência

function Pred(X);

Retorna o predecessor de um ordinal

uses Dialogs;

type

Colors = (RED,BLUE,GREEN);

var

S: string;

begin

S := 'The predecessor of 5 is ' + IntToStr(Pred(5)) + #13#10;

S := S + 'The successor of 10 is ' + IntToStr(Succ(10)) + #13#10;

if Succ(RED) = BLUE then

S := S + 'In the type Colors, RED is the predecessor of BLUE.';

MessageDlg(S, mtInformation, [mbOk], 0);

end;

function Random [ ( Range: Integer) ];

Retorna um valor Randômico

0 <= X < Range.

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E

diretório escolhido é retonado no mesmo Diretório (Directory). O valor do diretório corrente não é alterado

These are the possible values that can be added to the Options set:

Value Meaning

sdAllowCreate An edit box appears to allow the user to type in the name of a directory that does not exist. This option does not

create a directory, but the application can access the Directory parameter to create the directory selected if

desired.

sdPerformCreate Used only when Options contains sdAllowCreate. If the user enters a directory name that does not exist,

SelectDirectory creates it.

sdPrompt Used when Options contains sdAllowCreate. Displays a message box that informs the user when the entered

directory does not exist and asks if the directory should be created. If the user chooses OK, the directory is

created if Options contains sdPerformCreate. If Options does not contain sdPerformCreate, the directory is not

created: the application should create it when SelectDirectory returns.

The function returns True if the user selected a directory and chose OK, and False if the user chose Cancel or closed the dialog box

without selecting a directory.

This example uses a button on a form. When the user clicks the button, a Select Directory dialog box appears.

The current directory displayed in the dialog box is C:\MYDIR. The user can select a directory from the

directory list, or enter a new directory in the edit box. If the user enters a new directory, a message box

asks the user if the directory should be created. If the user chooses Yes, the directory is created. If the

user chooses No, the message box goes away without creatubg the directory. The name of the directory the user

selects appears as the caption of the label:

uses FileCtrl;

procedure TForm1.Button1Click(Sender: TObject);

var

Dir: string;

begin

Dir := 'C:\MYDIR';

if SelectDirectory(Dir, [sdAllowCreate, sdPerformCreate, sdPrompt]) then

Label1.Caption := Dir;

end;

function SetCurrentDir(const Dir: string): Boolean;

Torna o Dir o diretório corrente e retorna o sucesso da operação

procedure SetLength(var S: string; NewLength: Integer);

Coloca um novo tamanho para uma string

S[0] := NewLength.

procedure ShowMessage(const Msg: string);

Exibe uma mensagem ao usuário

procedure TForm1.Button1Click(Sender: TObject);

begin

ShowMessage('Push this button');

end;

function Sqr(X: Extended): Extended;

Retorna o quadrado de X

function Sqrt(X: Extended): Extended;

Retorna a raiz quadrada de X

function StrComp(Str1, Str2 : PChar): Integer;

Compara duas strings em case sensitivity

Return value Condition

<0 if Str1< Str

=0 if Str1= Str

>0 if Str1 > Str

function StringOfChar(Ch: Char; Count: Integer): string;

Retorna uma string contendo Count caracters Ch

S := StringOfChar('A', 10);

{sets S to the string 'AAAAAAAAAA'}

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E

function StrToDate(const S: string): TDateTime;

Converte uma string em data

procedure TForm1.Button1Click(Sender: TObject);

var

ADate: TDateTime;

begin

ADate := StrToDate(Edit1.Text);

Label1.Caption := DateToStr(ADate);

end;

function StrToDateTime(const S: string): TDateTime;

Convrete uma string para o formato DateTime

procedure TForm1.Button1Click(Sender: TObject);

var

ADateAndTime: TDateTime;

begin

ADateAndTime := StrToDateTime(Edit1.Text);

Label1.Caption := DateTimeToStr(ADateAndTime);

end;

function StrToFloat(const S: string): Extended;

Converte uma string num Float

function StrToInt(const S: string): Integer;

Converte uma string num inteiro

procedure TForm1.Button1Click(Sender: TObject);

var

S: string;

I: Integer;

begin

S := '22467';

I := StrToInt(S);

Inc(I);

Edit1.Text := IntToStr(I);

end;

function StrToTime(const S: string): TDateTime;

Converte uma string em hora

procedure TForm1.Button1Click(Sender: TObject);

var

ATime: TDateTime;

begin

ATime := StrToTime(Edit1.Text);

Label1.Caption := TimeToStr(ATime);

end;

function Succ(X);

Retorna o sucessor de um ordinal

uses Dialogs;

type

Colors = (RED,BLUE,GREEN);

var

S: string;

begin

S := 'The predecessor of 5 is ' + IntToStr(Pred(5)) + #13#10;

S := S + 'The successor of 10 is ' + IntToStr(Succ(10)) + #13#10;

if Succ(RED) = BLUE then

S := S + 'In the type Colors, RED is the predecessor of BLUE.';

MessageDlg(S, mtInformation, [mbOk], 0);

end;

function Sum(const Data: array of Double): Extended register;

Calcula a soma de dos elementos de um vetor

F 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B EF 0 B E
