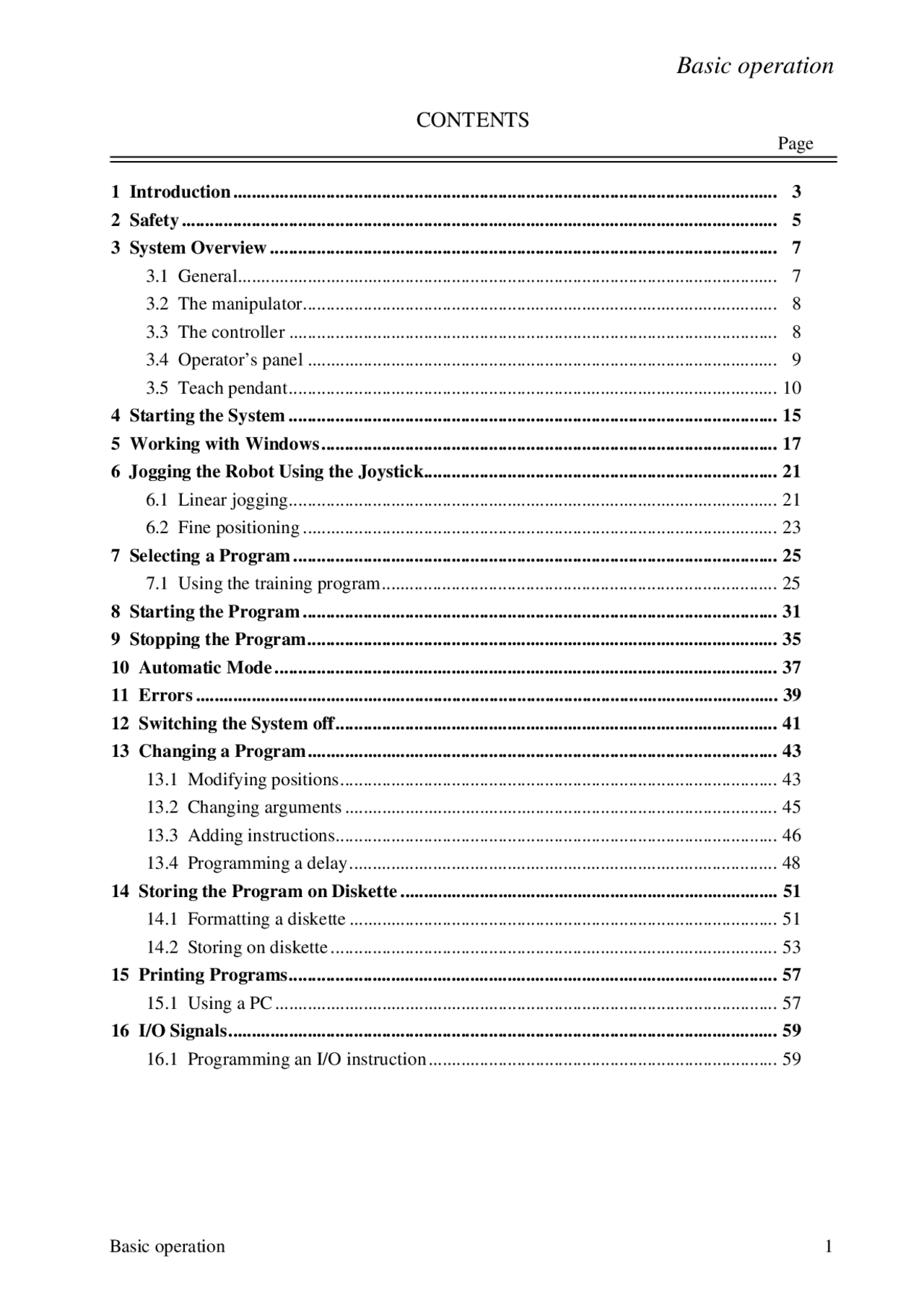

CONTENTS
Basic operation
Page
Introduction Basic Operation
Operational procedures, during training or at any other time, must be carried out safely.
Entering the safeguarded space around the robot may cause severe injury and should be avoided whenever possible. However, if this is necessary, then only authorised personnel may enter the area. The existing safety regulations must always be taken into consideration.
The safety regulations are specified in the chapters on safety in the User’s Guide and in relevant plant documentation (if any).
A robot is made up of two principal parts:
Figure 1 The controller and manipulator are connected by two cables.
You can communicate with the robot using a teach pendant and/or an operator’s panel, located on the controller (see Figure 2).
Figure 2 Operator’s panel and teach pendant.
Manipulator
Controller
250 mm/s
100%
M ~ 21
2 3 0
1
4 5 6
7 8 9
P
P1 P
System Overview Basic Operation
Figure 3 shows the directions in which the various axes of the manipulator can move and what these are called.
Figure 3 Manipulator, IRB 2400.
Figure 4 illustrates the principal parts of the controller.
Figure 4 The S4 control system.
Axis 2
Axis 3
Axis 5
Axis 6
Axis 1
Axis 4
Mains switch
Operator’s panel
Disk drive
Duty time counter
Socket for printer
Holder for teach pendant
Cable holder
Connection for teach pendant
System Overview Basic Operation
The teach pendant is described briefly below; see Figure 6 and Figure 7.
Figure 6 The teach pendant.
Emergency stop
The robot stops – regardless of which state or mode the system is in – immediately the emergency stop button is pressed. The button remains pressed in and, to turn to MOTORS ON again, must be returned to its original position.
Enabling device (for safe operation)
A push button on the teach pendant which, when pressed halfway in, takes the system to MOTORS ON (if the operating mode selector is switched to one of the two manual modes). When the enabling device is released or pushed all the way in, the robot is taken to the MOTORS OFF state.
If the enabling device is released and pressed in halfway again within half a second, the robot will not return to the MOTORS ON state. If this happens, the enabling device must first be released and then pushed halfway in again.
The enabling device should only be activated when the robot is to be moved – either with the joystick or during program execution.
Joystick
The joystick is used to jog (move) the robot manually; e.g. when programming the robot.
Display
Used to display all information during programming, to change programs, etc. It can accommodate 16 lines; each line can accommodate 40 characters.
21
2 3 0
1
4 5 6
7 8 9
P
P1 P
Joystick Display
Emergency stop button
Enabling device
Basic Operation System Overview
Figure 7 shows the names of the various keys on the teach pendant.
Figure 7 An overview of the various keys on the teach pendant, Version 2.
Window keys (to select a window to work with on the display):
2
1
2 3 0
1
4 5 6
7 8 9
P
P1 (^) P
Display
Inputs/
Program
Jogging
Misc.
Outputs
Window keys
Stop key
Menu keys
Function keys
Contrast
Delete
Numeric keyboard
Enter
Incremental
Motion keys
Navigation keys
User defined key
User defined keys
Jogging : Used to jog the robot.
Program : Used to program and test.
Inputs/Outputs : Used to manually operate the input and output signals connected to the robot.
Misc. : Miscellaneous; other windows, i.e. the System Parameters, Service, Production and File Manager windows.
Basic Operation System Overview
Other keys:
Programmable keys :
Stop : Stops program execution.
Contrast: Adjusts contrast of the display
Function keys : Press to select the various commands directly.
Menu keys : Press to display menus containing various commands.
Enter : Press to input data.
Delete : Deletes the data selected on the display.
System Overview Basic Operation
Starting the System Basic Operation
In this chapter, you will find out about the basics of working with windows. The fol- lowing example shows the window for Inputs/Outputs (manual handling of in- and outputs).
Figure 10 The Inputs/Outputs application key, both versions.
Figure 11 Window for manual I/O handling.
When a digital output is selected, its status can be changed using the function keys. If you press a function key with an arrow to the right of its name, e.g. Test -> , this will call up a new window to the display.
di1 0 DI di2 0 DI di3 0 DI di4 0 DI di5 0 DI di6 0 DI di7 0 DI di8 0 DI
File Edit View Inputs / Outputs All signals Name Value Type 1(40)
I/O list
Menu keys
Window title
I/O list name (^) Line number
Cursor
Function keys
Basic Operation Working with Windows
Figure 13 The four window keys.
When you press a window key, the active window will be hidden under the new one. Each time you select a window, it will look the same as it did the last time you worked with it.
Window keys 21
2 3 0
1
4 5 6
7 8 9
P
P1 P
Working with Windows Basic Operation
