Part Number: 056-075 Author: Ashley Senior Issue: 3

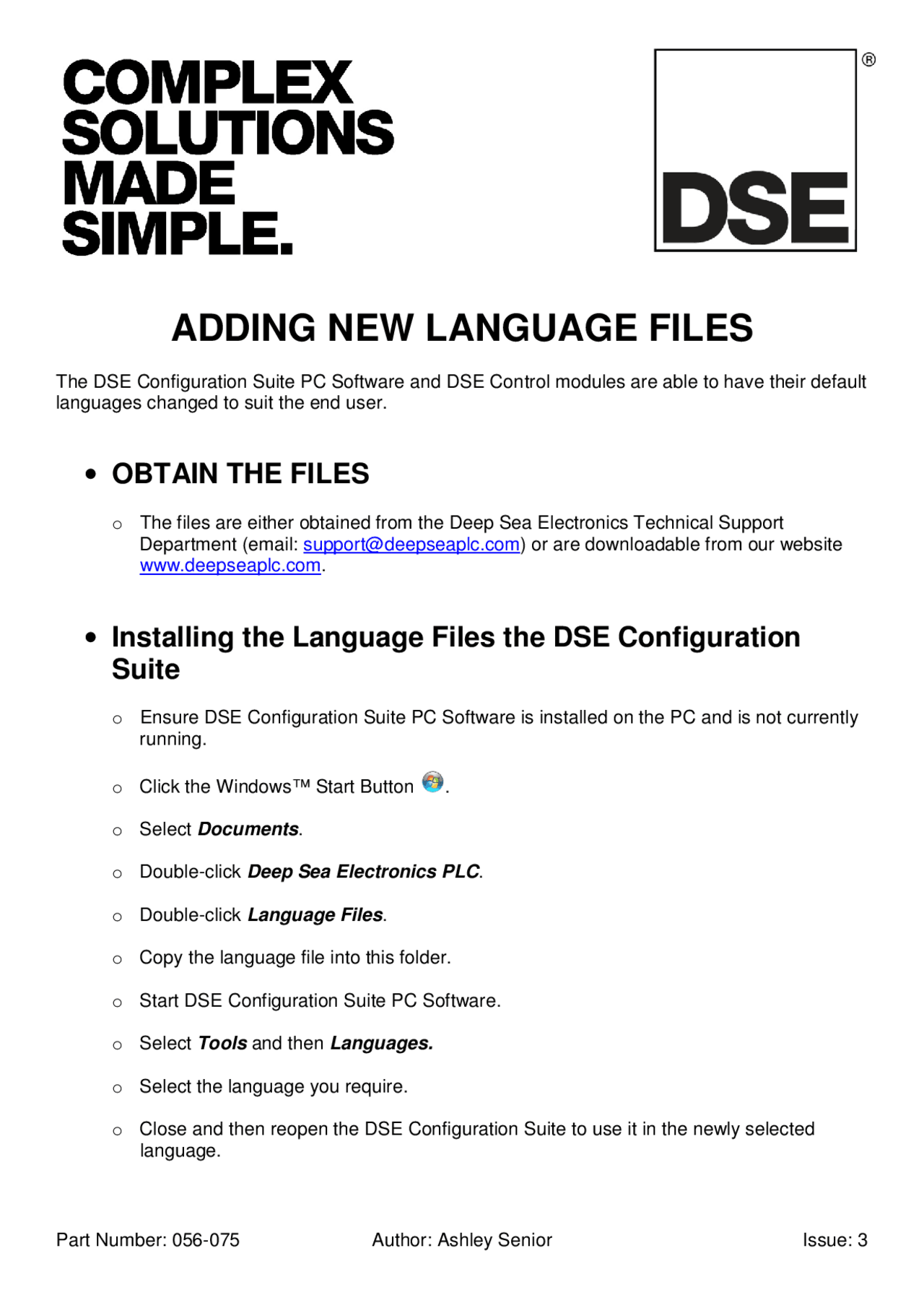

ADDING NEW LANGUAGE FILES
The DSE Configuration Suite PC Software and DSE Control modules are able to have their default languages changed to suit the end user.
• OBTAIN THE FILES
o The files are either obtained from the Deep Sea Electronics Technical Support Department (email: [email protected]) or are downloadable from our website www.deepseaplc.com.
• Installing the Language Files the DSE Configuration
Suite
o Ensure DSE Configuration Suite PC Software is installed on the PC and is not currently running.
o Click the Windows™ Start Button.
o Select Documents.
o Double-click Deep Sea Electronics PLC.
o Double-click Language Files.
o Copy the language file into this folder.
o Start DSE Configuration Suite PC Software.
o Select Tools and then Languages.
o Select the language you require.
o Close and then reopen the DSE Configuration Suite to use it in the newly selected language.
Part Number: 056-075 Author: Ashley Senior Issue: 3
- Installing the Language Files for DSE Modules
o Ensure DSE Configuration Suite PC Software is installed on the PC and is not currently running. o Click the Windows™ Start Button. o Select Computer. o Double-click Local Disk. o Double-click ProgramData.
NOTE: To see the ‘ProgramData’ folder, the option for ‘Show hidden files and folders’ must be selected. This is achieved by going to Tools | Folder Options | View.
o Double-click Deep Sea Electronics plc. o Double-click DSE Configuration Suite. o Double-click Language Files. o Copy the language file into this folder. o Start DSE Configuration Suite PC Software. o Connect the DSE module to the PC. o Languages with file extension “.lang” are uploaded to the controller using DSE Configuration Suite Tools | Language Editor. o Languages with file extension “.lan” are uploaded to the controller using DSE Configuration Suite SCADA | Languages page_._
