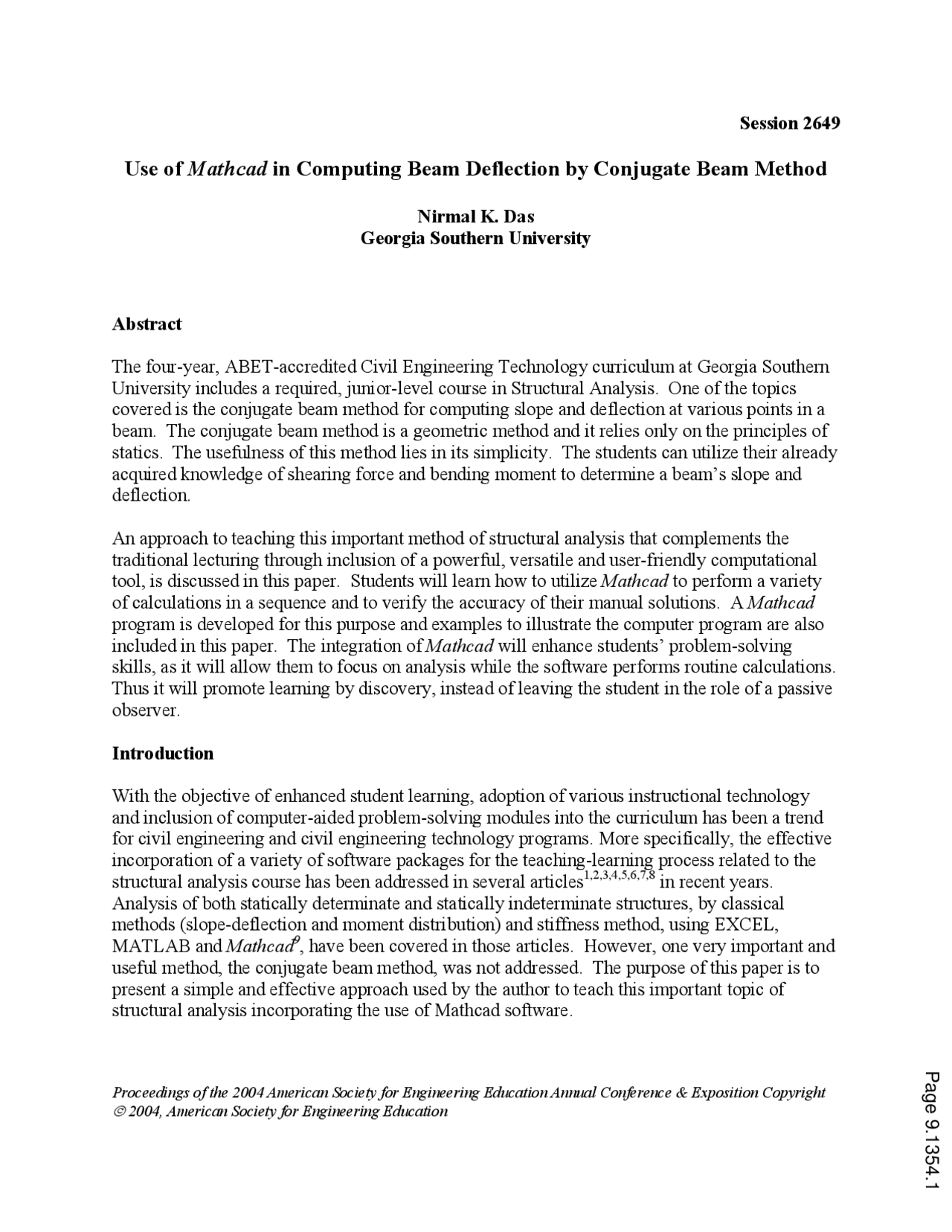

Proceedings of the 2004 American Society for Engineering Education Annual Conference & Exposition Copyright

2004, American Society for Engineering Education

Session 2649

Use of Mathcad in Computing Beam Deflection by Conjugate Beam Method

Nirmal K. Das

Georgia Southern University

Abstract

The four-year, ABET-accredited Civil Engineering Technology curriculum at Georgia Southern

University includes a required, junior-level course in Structural Analysis. One of the topics

covered is the conjugate beam method for computing slope and deflection at various points in a

beam. The conjugate beam method is a geometric method and it relies only on the principles of

statics. The usefulness of this method lies in its simplicity. The students can utilize their already

acquired knowledge of shearing force and bending moment to determine a beam’s slope and

deflection.

An approach to teaching this important method of structural analysis that complements the

traditional lecturing through inclusion of a powerful, versatile and user-friendly computational

tool, is discussed in this paper. Students will learn how to utilize Mathcad to perform a variety

of calculations in a sequence and to verify the accuracy of their manual solutions. A Mathcad

program is developed for this purpose and examples to illustrate the computer program are also

included in this paper. The integration of Mathcad will enhance students’ problem-solving

skills, as it will allow them to focus on analysis while the software performs routine calculations.

Thus it will promote learning by discovery, instead of leaving the student in the role of a passive

observer.

Introduction

With the objective of enhanced student learning, adoption of various instructional technology

and inclusion of computer-aided problem-solving modules into the curriculum has been a trend

for civil engineering and civil engineering technology programs. More specifically, the effective

incorporation of a variety of software packages for the teaching-learning process related to the

structural analysis course has been addressed in several articles1,2,3,4,5,6,7,8 in recent years.

Analysis of both statically determinate and statically indeterminate structures, by classical

methods (slope-deflection and moment distribution) and stiffness method, using EXCEL,

MATLAB and Mathcad9, have been covered in those articles. However, one very important and

useful method, the conjugate beam method, was not addressed. The purpose of this paper is to

present a simple and effective approach used by the author to teach this important topic of

structural analysis incorporating the use of Mathcad software.

Page 9.1354.1
