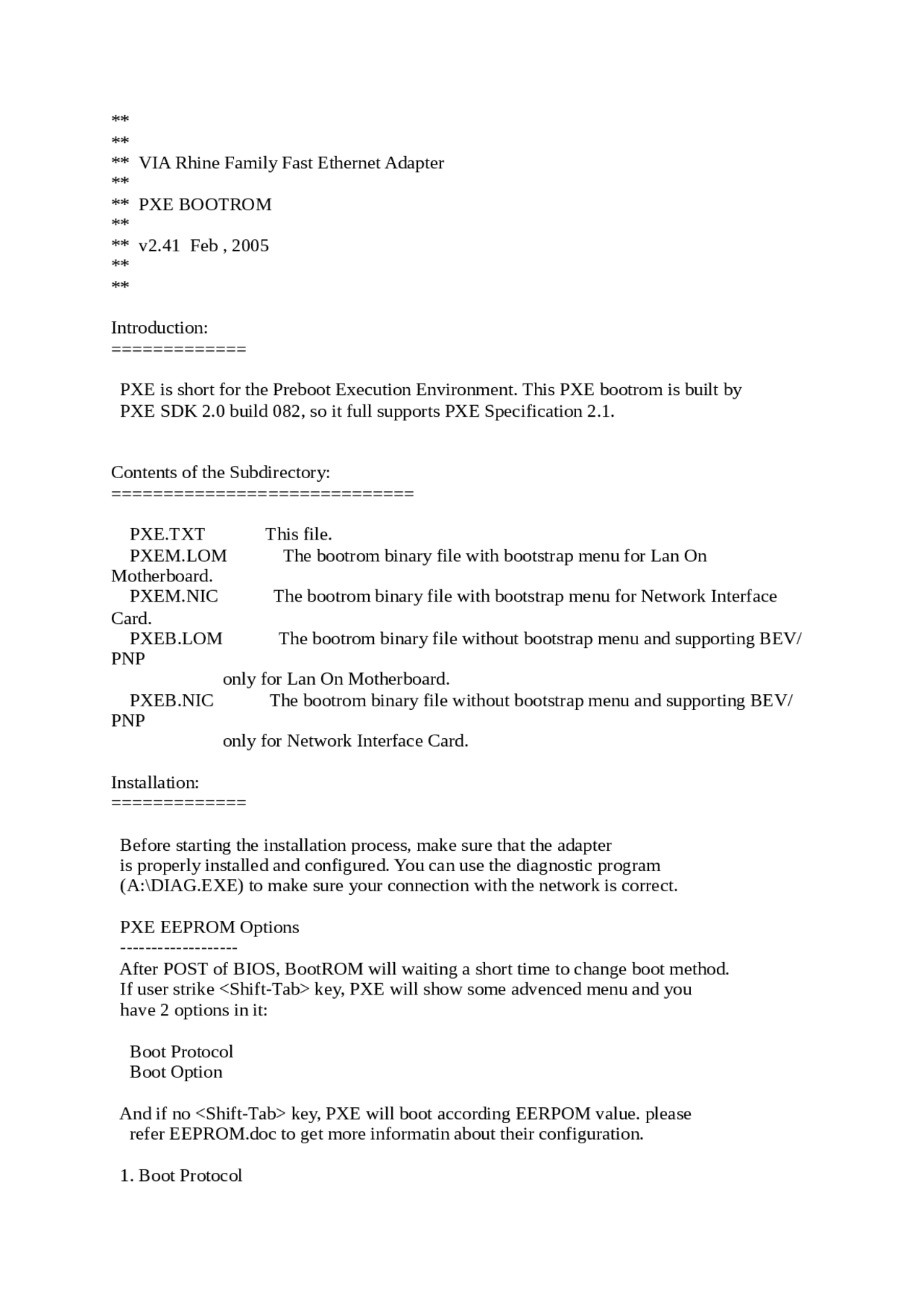

** VIA Rhine Family Fast Ethernet Adapter
**
** PXE BOOTROM
**
** v2.41 Feb , 2005
**
**
Introduction:
=============
PXE is short for the Preboot Execution Environment. This PXE bootrom is built by
PXE SDK 2.0 build 082, so it full supports PXE Specification 2.1.
Contents of the Subdirectory:
=============================
PXE.TXT This file.
PXEM.LOM The bootrom binary file with bootstrap menu for Lan On
Motherboard.
PXEM.NIC The bootrom binary file with bootstrap menu for Network Interface
Card.
PXEB.LOM The bootrom binary file without bootstrap menu and supporting BEV/
PNP
only for Lan On Motherboard.
PXEB.NIC The bootrom binary file without bootstrap menu and supporting BEV/
PNP
only for Network Interface Card.
Installation:
=============
Before starting the installation process, make sure that the adapter
is properly installed and configured. You can use the diagnostic program
(A:\DIAG.EXE) to make sure your connection with the network is correct.
PXE EEPROM Options
-------------------
After POST of BIOS, BootROM will waiting a short time to change boot method.
If user strike <Shift-Tab> key, PXE will show some advenced menu and you
have 2 options in it:
Boot Protocol
Boot Option
And if no <Shift-Tab> key, PXE will boot according EERPOM value. please
refer EEPROM.doc to get more informatin about their configuration.
1. Boot Protocol
