bg1
**
**

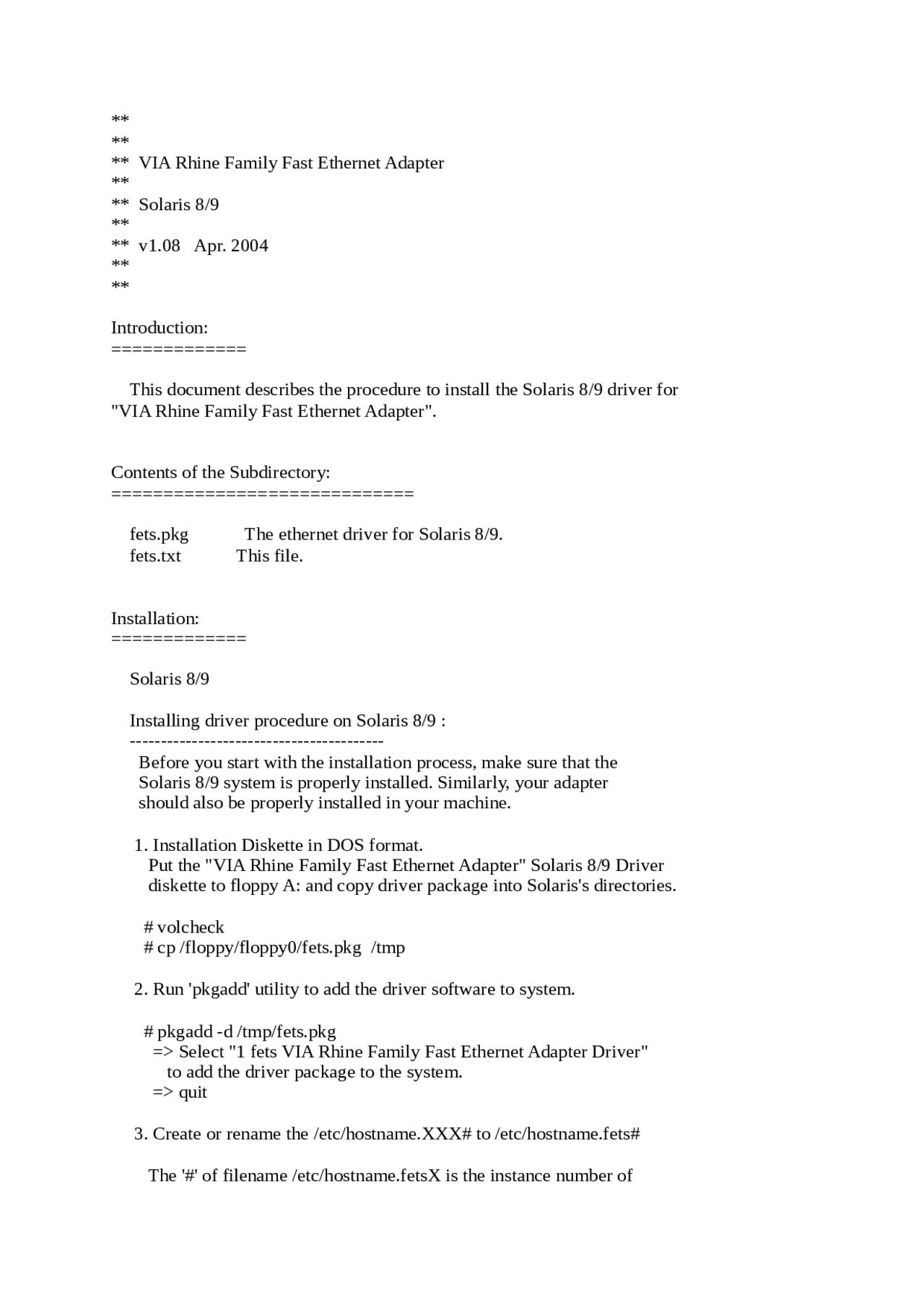

** VIA Rhine Family Fast Ethernet Adapter
**
** Solaris 8/9
**
** v1.08 Apr. 2004
**
**
Introduction:
=============
This document describes the procedure to install the Solaris 8/9 driver for
"VIA Rhine Family Fast Ethernet Adapter".
Contents of the Subdirectory:
=============================
fets.pkg The ethernet driver for Solaris 8/9.
fets.txt This file.
Installation:
=============
Solaris 8/9
Installing driver procedure on Solaris 8/9 :
-----------------------------------------
Before you start with the installation process, make sure that the
Solaris 8/9 system is properly installed. Similarly, your adapter
should also be properly installed in your machine.
1. Installation Diskette in DOS format.
Put the "VIA Rhine Family Fast Ethernet Adapter" Solaris 8/9 Driver
diskette to floppy A: and copy driver package into Solaris's directories.
# volcheck
# cp /floppy/floppy0/fets.pkg /tmp
2. Run 'pkgadd' utility to add the driver software to system.
# pkgadd -d /tmp/fets.pkg
=> Select "1 fets VIA Rhine Family Fast Ethernet Adapter Driver"
to add the driver package to the system.
=> quit
3. Create or rename the /etc/hostname.XXX# to /etc/hostname.fets#
The '#' of filename /etc/hostname.fetsX is the instance number of
pf3

Pré-visualização parcial do texto

Baixe Placa de Rede - fets e outras Notas de estudo em PDF para Informática, somente na Docsity!

** VIA Rhine Family Fast Ethernet Adapter ** ** Solaris 8/ ** ** v1.08 Apr. 2004 ** **

Introduction:

This document describes the procedure to install the Solaris 8/9 driver for "VIA Rhine Family Fast Ethernet Adapter".

Contents of the Subdirectory:

fets.pkg The ethernet driver for Solaris 8/9. fets.txt This file.

Installation:

Solaris 8/

Installing driver procedure on Solaris 8/9 :

Before you start with the installation process, make sure that the Solaris 8/9 system is properly installed. Similarly, your adapter should also be properly installed in your machine.

  1. Installation Diskette in DOS format. Put the "VIA Rhine Family Fast Ethernet Adapter" Solaris 8/9 Driver diskette to floppy A: and copy driver package into Solaris's directories.

volcheck

cp /floppy/floppy0/fets.pkg /tmp

  1. Run 'pkgadd' utility to add the driver software to system.

pkgadd -d /tmp/fets.pkg

=> Select "1 fets VIA Rhine Family Fast Ethernet Adapter Driver" to add the driver package to the system. => quit

  1. Create or rename the /etc/hostname.XXX# to /etc/hostname.fets#

The '#' of filename /etc/hostname.fetsX is the instance number of

driver. You can find this instance by examine the output of program 'dmesg'.

  1. Shutdown and reboot the system.

cd /

sync;sync;reboot

NOTE:

  1. This driver can support up to four network adapters.

Network driver options:

The following parameters can be set after we installed the driver. You can add all parameters to /kernel/drv/fets.conf

The syntax of parameter is:

=value1,value2,value3,...;

For example, if you have 3 NIC cards, and you want to set the speed_duplex paramter value of them.

You can add the following line to set it.

speed_duplex=1,2,3;

Then, the parameter value of first NIC card with index=0 will be 1 (100Mbps half duplex mode), the second NIC card with index=1 will be 2 (100Mbps full duplex mode), and the third NIC card with index=2 will be 3 (10Mbps half duplex mode). You can use 'dmesg' to find out the index number of each card.

  1. speed_duplex speed_duplex[] is used for setting the speed and duplex mode of NIC. Value: 0: indicate autonegotiation for both speed and duplex mode (Default). 1: indicate 100Mbps half duplex mode 2: indicate 100Mbps full duplex mode 3: indicate 10Mbps half duplex mode 4: indicate 10Mbps full duplex mode

  2. enable_tagging (For management adapter only) enable_tagging[] is used for enabling VLAN ID setting and enabling priority transmit. Value: 0: disable VID setting and priority transmit (Default). 1: enable VID setting and priority transmit.
