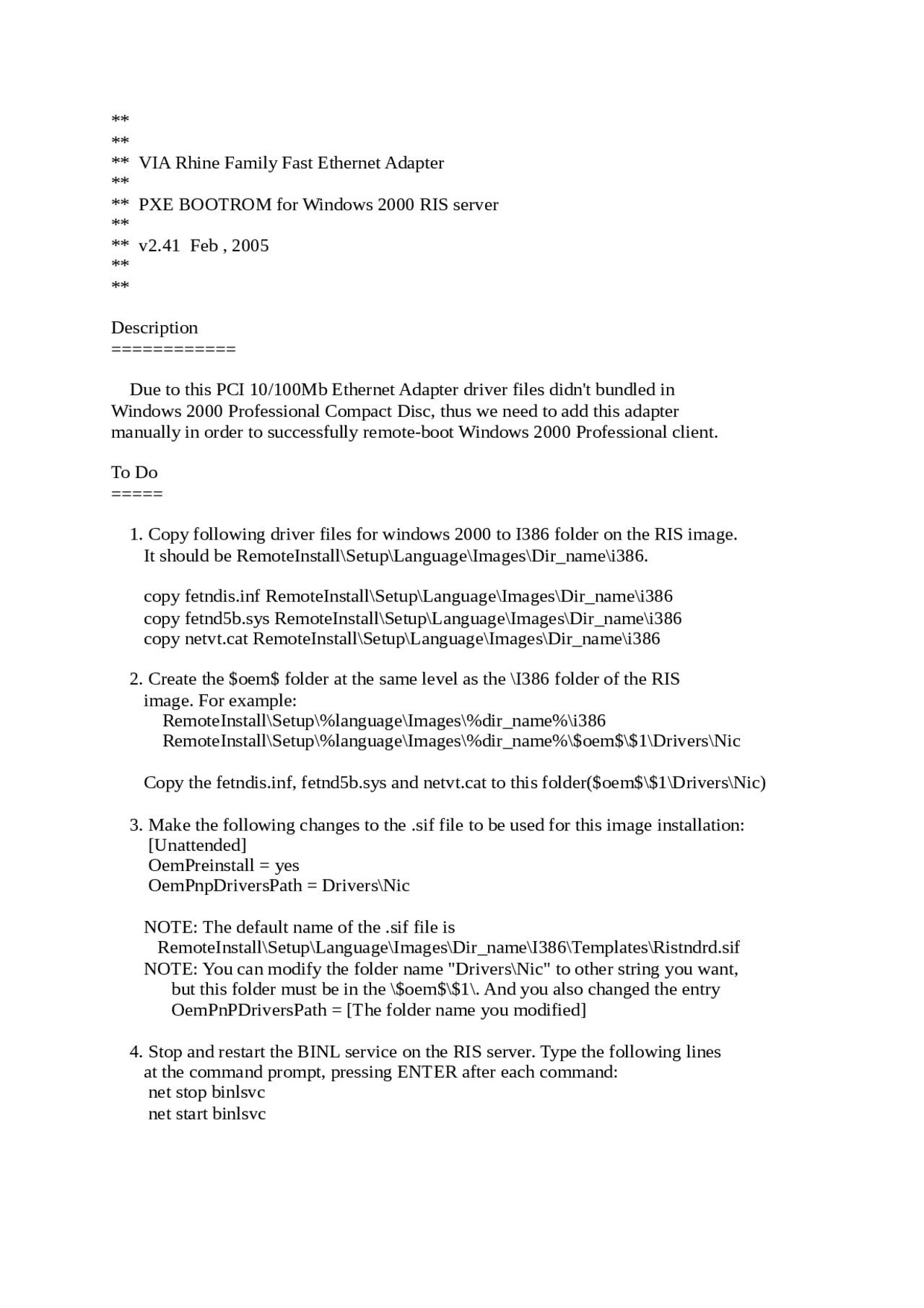

** VIA Rhine Family Fast Ethernet Adapter
**
** PXE BOOTROM for Windows 2000 RIS server
**
** v2.41 Feb , 2005
**
**
Description
============
Due to this PCI 10/100Mb Ethernet Adapter driver files didn't bundled in
Windows 2000 Professional Compact Disc, thus we need to add this adapter
manually in order to successfully remote-boot Windows 2000 Professional client.
To Do
=====
1. Copy following driver files for windows 2000 to I386 folder on the RIS image.
It should be RemoteInstall\Setup\Language\Images\Dir_name\i386.
copy fetndis.inf RemoteInstall\Setup\Language\Images\Dir_name\i386
copy fetnd5b.sys RemoteInstall\Setup\Language\Images\Dir_name\i386
copy netvt.cat RemoteInstall\Setup\Language\Images\Dir_name\i386
2. Create the $oem$ folder at the same level as the \I386 folder of the RIS
image. For example:
RemoteInstall\Setup\%language\Images\%dir_name%\i386
RemoteInstall\Setup\%language\Images\%dir_name%\$oem$\$1\Drivers\Nic
Copy the fetndis.inf, fetnd5b.sys and netvt.cat to this folder($oem$\$1\Drivers\Nic)
3. Make the following changes to the .sif file to be used for this image installation:
[Unattended]
OemPreinstall = yes
OemPnpDriversPath = Drivers\Nic
NOTE: The default name of the .sif file is
RemoteInstall\Setup\Language\Images\Dir_name\I386\Templates\Ristndrd.sif
NOTE: You can modify the folder name "Drivers\Nic" to other string you want,
but this folder must be in the \$oem$\$1\. And you also changed the entry
OemPnPDriversPath = [The folder name you modified]
4. Stop and restart the BINL service on the RIS server. Type the following lines
at the command prompt, pressing ENTER after each command:
net stop binlsvc
net start binlsvc
