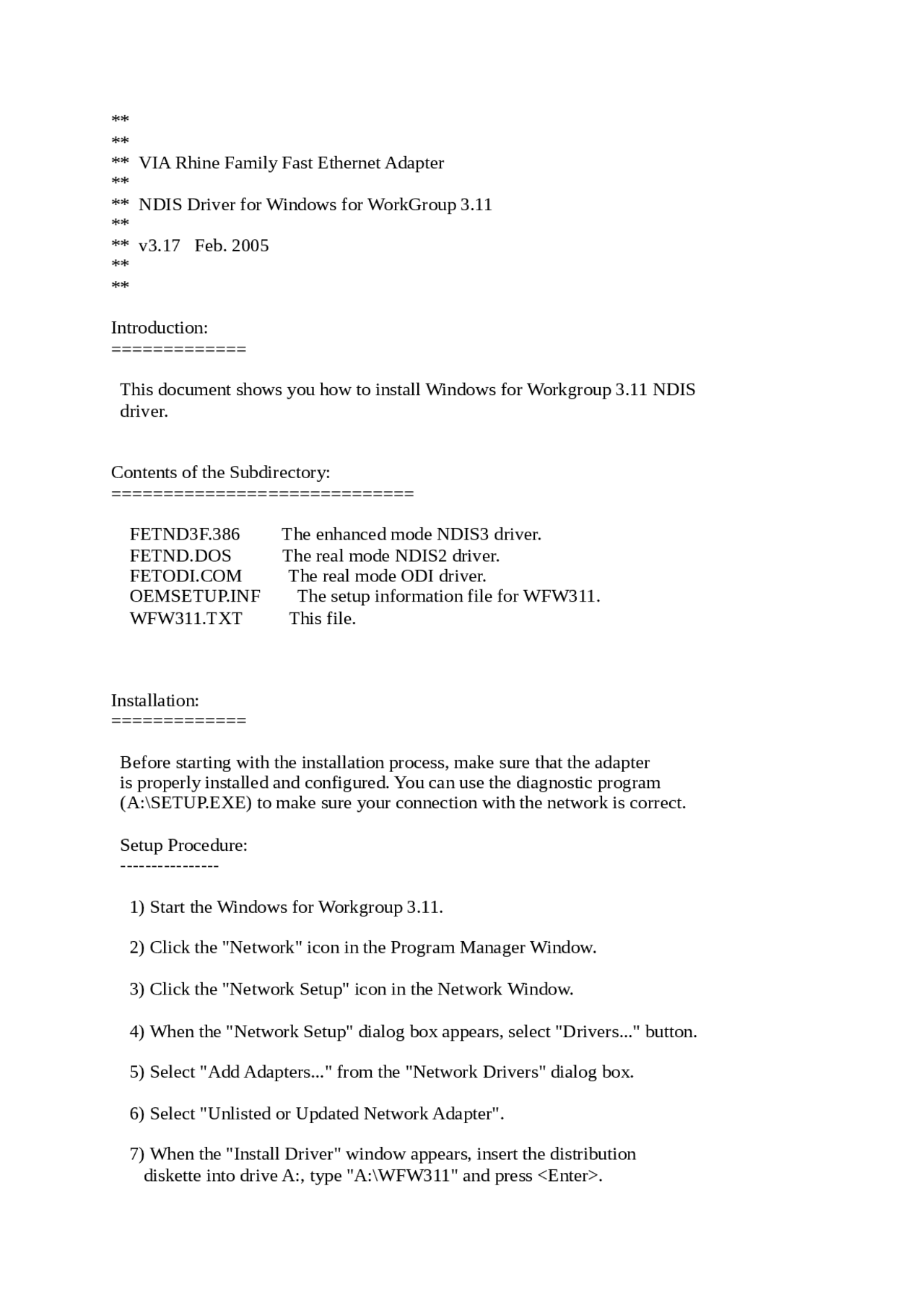

** VIA Rhine Family Fast Ethernet Adapter
**
** NDIS Driver for Windows for WorkGroup 3.11
**
** v3.17 Feb. 2005
**
**
Introduction:
=============
This document shows you how to install Windows for Workgroup 3.11 NDIS
driver.
Contents of the Subdirectory:
=============================
FETND3F.386 The enhanced mode NDIS3 driver.
FETND.DOS The real mode NDIS2 driver.
FETODI.COM The real mode ODI driver.
OEMSETUP.INF The setup information file for WFW311.
WFW311.TXT This file.
Installation:
=============
Before starting with the installation process, make sure that the adapter
is properly installed and configured. You can use the diagnostic program
(A:\SETUP.EXE) to make sure your connection with the network is correct.
Setup Procedure:
----------------
1) Start the Windows for Workgroup 3.11.
2) Click the "Network" icon in the Program Manager Window.
3) Click the "Network Setup" icon in the Network Window.
4) When the "Network Setup" dialog box appears, select "Drivers..." button.
5) Select "Add Adapters..." from the "Network Drivers" dialog box.
6) Select "Unlisted or Updated Network Adapter".
7) When the "Install Driver" window appears, insert the distribution
diskette into drive A:, type "A:\WFW311" and press <Enter>.
pf2

Pré-visualização parcial do texto

Baixe Instalação controlador NDIS 3.11 Windows WorkGroup adaptador VIA Rhine Fast Ethernet e outras Notas de estudo em PDF para Informática, somente na Docsity!

** VIA Rhine Family Fast Ethernet Adapter ** ** NDIS Driver for Windows for WorkGroup 3. ** ** v3.17 Feb. 2005 ** **

Introduction:

This document shows you how to install Windows for Workgroup 3.11 NDIS driver.

Contents of the Subdirectory:

FETND3F.386 The enhanced mode NDIS3 driver. FETND.DOS The real mode NDIS2 driver. FETODI.COM The real mode ODI driver. OEMSETUP.INF The setup information file for WFW311. WFW311.TXT This file.

Installation:

Before starting with the installation process, make sure that the adapter is properly installed and configured. You can use the diagnostic program (A:\SETUP.EXE) to make sure your connection with the network is correct.

Setup Procedure:

  1. Start the Windows for Workgroup 3.11.

  2. Click the "Network" icon in the Program Manager Window.

  3. Click the "Network Setup" icon in the Network Window.

  4. When the "Network Setup" dialog box appears, select "Drivers..." button.

  5. Select "Add Adapters..." from the "Network Drivers" dialog box.

  6. Select "Unlisted or Updated Network Adapter".

  7. When the "Install Driver" window appears, insert the distribution diskette into drive A:, type "A:\WFW311" and press .

  1. Select the right adapter from menu and press .

  2. Click "Setup..." if you want to modify the advanced features.

  3. Close each windows and restart the computer.

Note:

  1. In Setup Option "Flow Control": When setting to Hardware Default(Auto), the flow control setting is according to the auto-negotiation result based on PHY hardware default values. However, when setting to other values(Disable, Enable), driver will just disable or enable flow control ability according to your setting.

?
