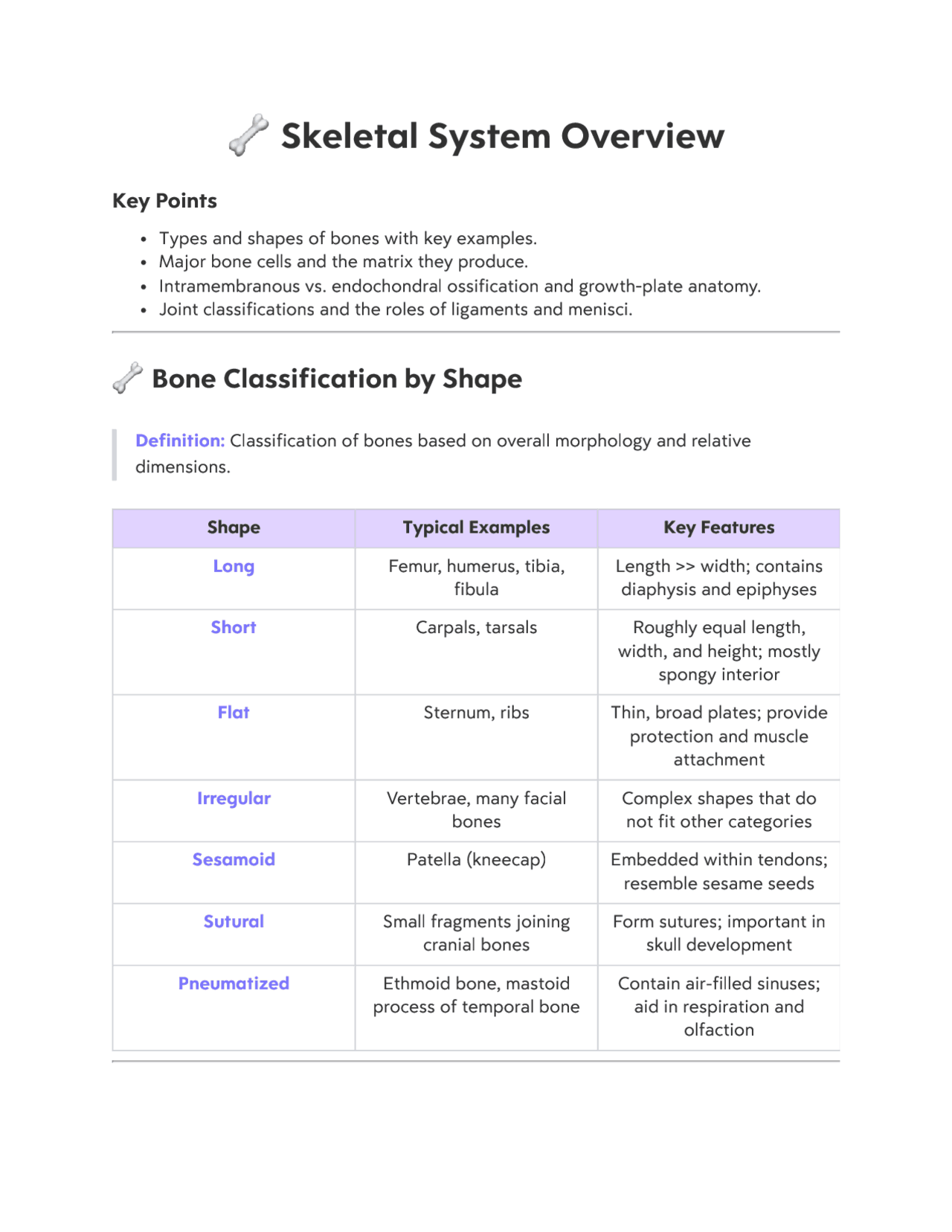

🦴 Skeletal System Overview
Key Points
Types and shapes of bones with key examples. Major bone cells and the matrix they produce. Intramembranous vs. endochondral ossification and growth‑plate anatomy. Joint classifications and the roles of ligaments and menisci.
🦴 Bone Classification by Shape
Definition: Classification of bones based on overall morphology and relative dimensions. Shape Typical Examples Key Features Long Femur, humerus, tibia, fibula Length >> width; contains diaphysis and epiphyses Short Carpals, tarsals Roughly equal length, width, and height; mostly spongy interior Flat Sternum, ribs Thin, broad plates; provide protection and muscle attachment Irregular Vertebrae, many facial bones Complex shapes that do not fit other categories Sesamoid Patella (kneecap) Embedded within tendons; resemble sesame seeds Sutural Small fragments joining cranial bones Form sutures; important in skull development Pneumatized Ethmoid bone, mastoid process of temporal bone Contain air-filled sinuses; aid in respiration and olfaction
🔬 Bone Cells and Their Functions Definition: Specialized cells that create, maintain, and remodel bone tissue. Note: Bone cells typically comprise only 2 – 3 % of total bone volume; the remainder is matrix. 🧬 Bone Matrix Composition Definition: The non‑cellular component of bone, consisting of protein fibers and ground substance. Protein fibers (≈ ⅓ of matrix) Collagen – most abundant; provides tensile strength Elastic fibers – give limited elasticity Reticular fibers – form supportive meshwork Ground substance – mineralized component Calcium phosphate ( ) – primary mineral; resists compression (also found in tooth enamel) Cell Type Origin Primary Role Mesenchymal stem cell Embryonic connective‑tissue precursor Gives rise to all connective‑tissue cells, including bone lineage Osteoprogenitor cell Derived from mesenchymal cells Proliferates and differentiates into osteoblasts Osteoblast Mature bone‑forming cell Secretes osteoid (organic matrix) Osteocyte Former osteoblast trapped in lacuna Maintains matrix; communicates via canaliculi Osteoclast Derived from macrophage lineage Resorbs mineralized bone; releases calcium to bloodstream
Ca 3 (PO 4 ) 2
🔎 Osteon (Haversian System) Microstructure Definition: Functional unit of compact bone. Central (Haversian) canal – contains blood vessels and nerves. Concentric lamellae – rings of mineralized matrix surrounding the canal. Lacunae – small cavities housing osteocytes. Canaliculi – microscopic channels connecting lacunae, permitting nutrient/waste exchange. Interstitial lamellae – remnants of older osteons filling gaps between newer ones. Visualization: Think of a tree trunk (central canal) with successive rings (lamellae) and tiny pores (lacunae) linked by fine tunnels (canaliculi). 🌱 Bone Development (Ossification) Definition: Process by which bone tissue replaces other tissue types.
Types of Ossification
Compact (cortical) bone Diaphysis, outer layers of epiphysis Dense lamellae organized into osteons; provides strength and resistance to bending Spongy (cancellous) bone Epiphyses, interior of vertebrae Porous network of trabeculae; houses red marrow for hematopoiesis Cartilage (supporting connective tissue) Joint surfaces, rib cage, ear, nose Three subtypes: hyaline, elastic, fibro‑cartilage Type Primary Tissue Replaced Typical Bones Key Features Intramembranous Mesenchymal tissue Flat (dermal) bones
- e.g., frontal, parietal, clavicle Direct differentiation of mesenchyme into
Growth Mechanisms
- Appositional (width) growth – osteoblasts add new layers to the periosteal surface while osteoclasts resorb inner endosteal layers, widening the shaft.
- Interstitial (length) growth – proliferation of chondrocytes at the epiphyseal plate expands the cartilage model; subsequent ossification lengthens the bone. Timeline: Endochondral ossification of long bones may continue up to ~25 years, after which the epiphyseal plate becomes the epiphyseal line. ⚖ Bone Remodeling & Homeostasis Definition: Continuous renewal of bone tissue to maintain structural integrity and mineral balance. Osteoblasts lay down new osteoid. Osteocytes regulate mineral deposition via signaling through canaliculi. Osteoclasts resorb old bone, releasing calcium into the bloodstream when needed. This coordinated activity allows the entire skeleton to be completely replaced roughly every 7– 10 years, though the rate declines with age. 🦴 Intramembranous Ossification – Step ‑ by ‑ Step 🌟 Definition: Direct bone formation from mesenchymal tissue without a cartilage intermediary. osteoblasts; forms bone within a membrane Endochondral Hyaline cartilage Most long bones, many short bones Cartilage model first formed; later replaced by bone; epiphyseal plate mediates lengthwise growth
Sequence of Events
- Primary ossification center forms in the diaphysis (shaft). Hypertrophic chondrocytes undergo apoptosis. Blood vessels penetrate, bringing osteoprogenitor cells that differentiate into osteoblasts. Osteoblasts secrete osteoid on the remnants of cartilage, producing spongy bone that later remodels.
- Secondary ossification centers appear in each epiphysis. Process mirrors the primary center but occurs later, establishing the epiphyseal plate between diaphysis and epiphysis.
- Perichondrium → Periosteum transition – the outer cartilage layer (perichondrium) is replaced by a fibrous periosteum as bone forms, providing attachment for tendons and additional vascular supply.
- Calcification – calcium salts deposit in the cartilage matrix, turning it into a hard scaffold for osteoblast activity.
- Growth plate closure – by ~25 years, the epiphyseal plate ossifies completely, becoming the epiphyseal line and ceasing longitudinal growth. As discussed earlier, the same mineral species ( , ) that harden spongy bone in intramembranous ossification also mineralize the cartilage scaffold in endochondral ossification. Proliferative zone Chondrocytes divide, aligning in columns; matrix expands. Hypertrophic zone Chondrocytes enlarge (hypertrophy) and begin to die, creating space for bone deposition. Calcification zone Matrix mineralizes; cartilage is invaded by blood vessels. Ossification zone Osteoblasts lay down bone matrix, forming primary and secondary ossification centers.
Ca 3 (PO 4 ) 2 CaCO 3
🧩 Linking Ossification Types to Specific Bones 🦴 Metaphor: Think of intramembranous ossification as building a house directly on a cleared lot (mesenchyme → bone), whereas endochondral ossification is erecting a house on a wooden frame (cartilage → bone). 🏔 Cranial Bones and Sutures 📏 Definition: The eight cranial bones form the protective vault of the brain; they are joined by dense fibrous sutural joints.
Cranial Bones (Mnemonic: "F ‑ P ‑ O ‑ T ‑ E ‑ S")
Ossification Type Representative Bones Typical Location Intramembranous Frontal, parietal, part of occipital, clavicle, mandible (portion) Dermal (membrane) bones of the skull and clavicle Endochondral Femur, tibia, humerus, vertebrae, most facial bones Long bones and many facial structures Bone Position Notable Feature Frontal Forehead Forms the frontal sinus Parietal (2) Sides & roof Joined by the coronal and sagittal sutures Occipital Posterior skull Contains the foramen magnum, external occipital protuberance, superior & inferior nuchal lines, occipital condyles Temporal (2) Lateral skull Mastoid process, styloid process, zygomatic process, houses the external auditory meatus
Orbital (Eye Socket) Overview
Seven bones compose the orbit: frontal, maxilla, zygomatic, lacrimal, ethmoid, sphenoid, and the palatine (posterior). These bones interlock via sutures and provide attachment sites for extraocular muscles and the optic nerve (passes through the optic canal of the sphenoid’s lesser wing). 📚 Integrating the Concepts Mesenchymal stem cells are the common origin for both ossification pathways (see earlier Bone Cells section). Osteoprogenitor → osteoblast → osteocyte progression is identical in intramembranous and endochondral ossification; the difference lies in the intermediate cartilage scaffold present only in the latter. The primary and secondary ossification centers correspond to the diaphysis and epiphyses, respectively, and together generate the epiphyseal plate that drives lengthwise growth until adulthood. Spicules → trabeculae → compact bone describes the morphological transition from early porous bone to mature, load‑bearing tissue, a process visualized in both ossification types. Takeaway: Understanding the cellular lineage, sequence of matrix deposition, and anatomical contexts (cranial vs. long bones) provides a cohesive picture of how the Palatine Palatine bone (posterior portion of hard palate) Completes the palate posteriorly Vomer Forms the inferior portion of the nasal septum together with the ethmoid’s perpendicular plate Inferior nasal concha Curved “turbinate” plates Turbulent airflow for humidifying inhaled air Mandible Body, ramus, condylar process, coronoid process, mental protuberance, mental foramina Only movable skull bone; houses lower teeth
skeletal system is built, grows, and remodels throughout life. 👁 Orbital Bones & the Bony Orbit The bony orbit is the cavity that houses the eye, formed by the fusion of seven cranial bones. Mnemonic: PLE S F M Z → Palatine, Lacrimal, Ethmoid, Spinoid, Frontal, Maxilla, Zygomatic (note the “PLE” is spelled P ‑ L ‑ E ‑ S). 🦴 Vertebral Column Overview The vertebral column is divided into cervical, thoracic, lumbar, sacral, and coccygeal regions. Each region has distinguishing morphological features useful for identification on exams.
🔹 Cervical Vertebrae (C1 ‑ C7)
Bone Position / Contribution Frontal Forms the superior roof of the orbit; extends from the forehead. Zygomatic Forms the lateral wall and part of the orbital rim (cheekbone). Maxilla Forms the inferior floor and contributes to the medial wall; also part of the hard palate. Sphenoid (spinoid) Contributes to the posterior wall and floor of the middle cranial fossa. Palatine Completes the medial floor of the orbit. Ethmoid Supplies the medial wall (perpendicular plate) and the anterior cranial fossa. Lacrimal Small bone in the medial corner; houses the nasolacrimal duct.
Note: The spinal cord terminates around L1 ‑ L2; the cauda equina (horse’s tail) continues within the sacral canal. ✋ Hand Skeleton The hand consists of carpals, metacarpals, and phalanges, organized from proximal to distal.
🟢 Carpals (8 bones)
Mnemonic “S ‑ L ‑ T ‑ T — H ‑ C ‑ T ‑ T” (from lateral → medial, then back medial → lateral). Structure Composition Notable Features Sacrum (^) 5 fused vertebrae (S1‑S5) Sacral canal with sacral hiatus; sacral foramina laterally; median sacral crest (fusion of spinous processes); auricular surface for articulation with the ilium. Coccyx (^3) ‑5 fused vertebrae (commonly 4) Small, vestigial; varies between individuals. Lateral → Medial Mnemonic Description Scaphoid S “S‑shaped” bone, articulates with radius. Lunate L (^) Crescent‑shaped, central in the proximal row. Triquetrum T Triangular, articulates with ulna via the fibrocartilaginous triangular fibrocartilage complex. Pisiform P Small sesamoid bone within the flexor carpi ulnaris tendon.
🟢 Metacarpals (5)
Numbered 1 (thumb) to 5 (little finger). Each metacarpal has a base, shaft, and head (articulates with proximal phalanx).
🟢 Phalanges
Thumb (pollux): 2 phalanges – proximal and distal. Fingers: 3 phalanges each – proximal, middle, distal. 🦶 Foot Skeleton The foot mirrors the hand but with distinct naming conventions.
🟢 Tarsals (7 bones)
Return Medial → Lateral Hamate H Has a hook (“hamulus”) for ligament attachment. Capitate C Largest carpal, centrally located. Trapezoid T Small, articulates with the second metacarpal. Trapezium T Supports the thumb’s thenar muscles. Digit Proximal Middle Distal 1 (thumb) (^) ✔ — (^) ✔ 2 ‑ 5 ✔ ✔ ✔ Bone Position / Mnemonic Calcaneus Heel bone – “C” for calcaneus (supports the plantar arch).
🟢 Rib Anatomy (Typical Rib)
Sternal end – smooth, connects to costal cartilage of the sternum. Vertebral end – rough, with three landmarks: Head (articulates with thoracic vertebrae). Neck (narrow region between head and tubercle). Tubercle (articulates with the transverse process of the corresponding thoracic vertebra). Costal groove (inferior posterior surface) protects the intercostal vessels and nerves. Orientation tip: The costal groove must face inferiorly and posteriorly; the sternal end always faces medially toward the sternum. 🦴 Clavicle (Collarbone) A long, S‑shaped bone that connects the sternum to the scapula. Right vs. left: When the sternal end is positioned medially and the acromial end points laterally (away from the body), the clavicle is a right clavicle. End Landmark Directional Cue Sternal end Broad, flattened; articulates with the manubrium. Faces medially toward the sternum. Acromial (lateral) end Spoon‑shaped; articulates with the acromial facet of the scapula. Points laterally away from the sternum. Conoid tubercle Small bump on the inferior surface of the acromial end; attachment for the conoid ligament of the coracoclavicular ligament. Costal tuberosity Rough area near the sternal end; site for the attachment of the first rib’s costal cartilage.
🦴 Scapula (Shoulder Blade) A flat, triangular bone with three borders and several important processes.
Borders
Processes & Fossae
🦾 Humerus – Detailed Surface Anatomy The humerus is the long bone of the upper arm; its proximal and distal landmarks determine right‑left orientation and serve as attachment sites for muscles and ligaments. Border Alternate Name Key Feature Superior border — Forms the superior edge; contains the suprascapular notch. Lateral (axillary) border — Faces the armpit; contains the glenoid cavity laterally. Medial (vertebral) border — Adjacent to the thoracic wall; supports the spine of the scapula. Structure Location Function Spine of scapula Posterior surface, runs from medial to lateral border. Terminates laterally as the acromion (acromial process). Acromion Lateral extension of the spine; articulates with the clavicle. Forms the superior point of the shoulder. Coracoid process Anterior surface, projects an
🦴 Ulna & Radius – Proximal ‑ Distal Relationships The ulna (medial, “pinky‑side”) and radius (lateral, “thumb‑side”) articulate at both proximal and distal ends, forming the elbow and forearm joints.
Ulna
Radius
Feature Position Function / Mnemonic Trochlear (semilunar) notch Proximal, anterior (^) “Half‑moon” that receives the humeral trochlea. Olecranon process Posterior, proximal Prominent tip of the elbow; fits into the olecranon fossa of the humerus. Coronoid process Anterior, proximal Slides into the coronoid fossa of the humerus during flexion. Radial notch Anterior, distal Receives the radial head; helps form the proximal radioulnar joint. Ulnar tuberosity Mid‑shaft, distal Rough area for forearm flexor muscle attachment. Styloid process Distal, medial Ligamentous attachment; the most medial projection of the forearm. Feature Position Function / Mnemonic Radial head Proximal, lateral Articulates with the radial notch of the ulna and the capitulum of the humerus. Radial tuberosity Anterior, proximal Insertion point for the biceps brachii tendon. Radial styloid process Distal, lateral Prominent “thumb‑like” projection; aids in wrist
Right‑left check: The radial notch must face laterally (thumb side) for a correct right ulna‑radius relationship; the styloid processes point outward on the appropriate side. 🦴 Coxal (Hip) Bone – Three ‑ Part Fusion The coxal bone is formed by the fusion of the ilium, ischium, and pubis. Each component contributes distinct landmarks for muscle and ligament attachment.
Ilium
articulation. Distal radioulnar (ER) notch Anterior, distal Receives the ulnar head; permits pronation‑supination. Landmark Surface Key Points Anterior superior iliac spine (ASIS) Anterior Prominent “talking” point; attachment for the sartorius. Anterior inferior iliac spine (AIIS) Anterior, below ASIS Origin of the rectus femoris. Posterior superior iliac spine (PSIS) Posterior Gives the sacroiliac (SI) joint its posterior contour. Posterior inferior iliac spine (PIIS) Posterior, inferior Less prominent. Iliac crest Superior margin Continuous ridge; site for abdominal wall muscle attachment. Iliac fossa Medial internal surface Concave area for the iliacus muscle. Iliac tuberosity (upper half) Medial Rough area for ligament attachment. Auricular surface (lower half) Medial, posterior Articulates with the sacrum.
