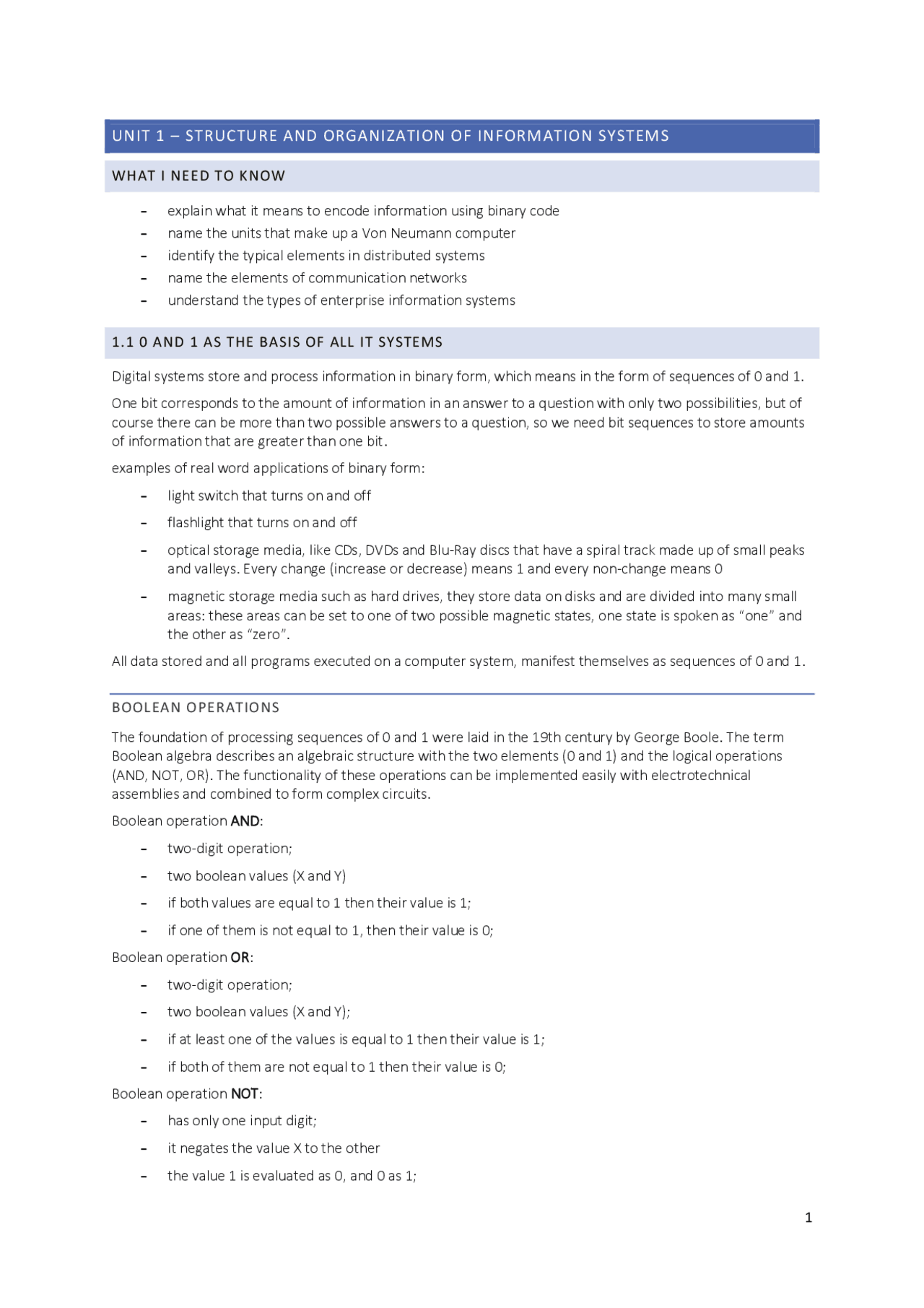

1
UNIT 1 STRUCTURE AND ORGANIZA TION OF INFOR MATION SYSTEM S
WH AT I N EED TO KN OW
- explain what it means to encode information using binary code
- name the units that make up a Von Neumann computer
- identify the typical elements in distributed systems
- name the elements of communication networks
- understand the types of enterprise information systems
1. 1 0 AN D 1 AS TH E B ASI S O F A LL IT SYS TEMS
Digital systems store and process information in binary form, which means in the form of sequences of 0 and 1.
One bit corresponds to the amount of information in an answer to a question with only two possibilities, but of
course there can be more than two possible answers to a question, so we need bit sequences to store amounts
of information that are greater than one bit.
examples of real word applications of binary form:
- light switch that turns on and off
- flashlight that turns on and off
- optical storage media, like CDs, DVDs and Blu-Ray discs that have a spiral track made up of small peaks
and valleys. Every change (increase or decrease) means 1 and every non-change means 0
- magnetic storage media such as hard drives, they store data on disks and are divided into many small
areas: these areas can be set to one of two possible magnetic states, one state is spoken as “one” and
the other as “zero”.
All data stored and all programs executed on a computer system, manifest themselves as sequences of 0 and 1.
BO OLE AN OPE RAT ION S
The foundation of processing sequences of 0 and 1 were laid in the 19th century by George Boole. The term
Boolean algebra describes an algebraic structure with the two elements (0 and 1) and the logical operations
(AND, NOT, OR). The functionality of these operations can be implemented easily with electrotechnical
assemblies and combined to form complex circuits.
Boolean operation AND:
- two-digit operation;
- two boolean values (X and Y)
- if both values are equal to 1 then their value is 1;
- if one of them is not equal to 1, then their value is 0;
Boolean operation OR:
- two-digit operation;
- two boolean values (X and Y);
- if at least one of the values is equal to 1 then their value is 1;
- if both of them are not equal to 1 then their value is 0;
Boolean operation NOT:
- has only one input digit;
- it negates the value X to the other
- the value 1 is evaluated as 0, and 0 as 1;
