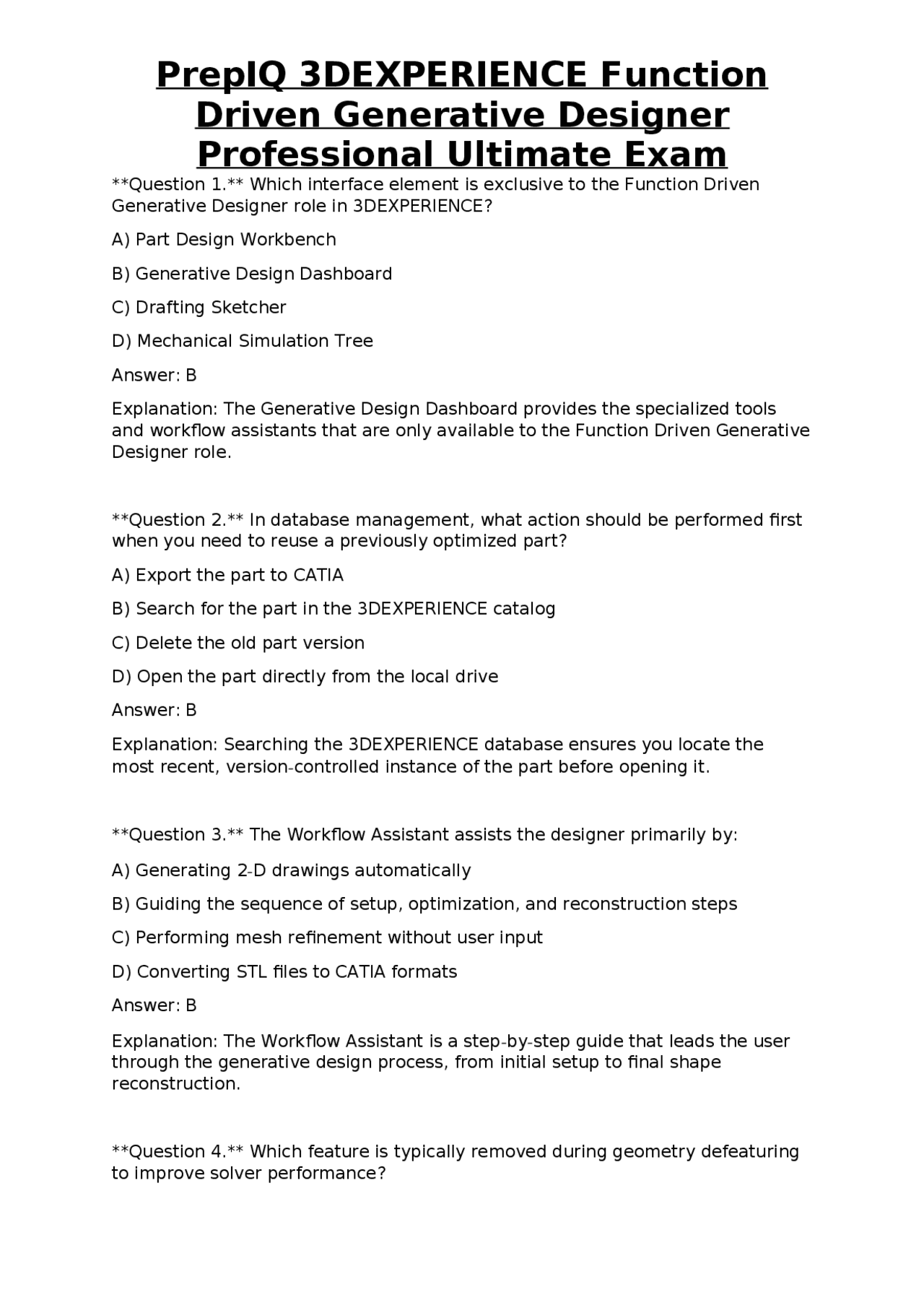

Driven Generative Designer
Professional Ultimate Exam
Question 1. Which interface element is exclusive to the Function Driven Generative Designer role in 3DEXPERIENCE? A) Part Design Workbench B) Generative Design Dashboard C) Drafting Sketcher D) Mechanical Simulation Tree Answer: B Explanation: The Generative Design Dashboard provides the specialized tools and workflow assistants that are only available to the Function Driven Generative Designer role. Question 2. In database management, what action should be performed first when you need to reuse a previously optimized part? A) Export the part to CATIA B) Search for the part in the 3DEXPERIENCE catalog C) Delete the old part version D) Open the part directly from the local drive Answer: B Explanation: Searching the 3DEXPERIENCE database ensures you locate the most recent, version-controlled instance of the part before opening it. Question 3. The Workflow Assistant assists the designer primarily by: A) Generating 2-D drawings automatically B) Guiding the sequence of setup, optimization, and reconstruction steps C) Performing mesh refinement without user input D) Converting STL files to CATIA formats Answer: B Explanation: The Workflow Assistant is a step-by-step guide that leads the user through the generative design process, from initial setup to final shape reconstruction. Question 4. Which feature is typically removed during geometry defeaturing to improve solver performance?
Driven Generative Designer
Professional Ultimate Exam
A) Primary load-bearing ribs B) Large external faces C) Small fillets under 0.5 mm radius D) Main mounting holes Answer: C Explanation: Small fillets add unnecessary mesh density without influencing structural performance, so they are removed to reduce computational cost. Question 5. When defining a design space, which geometric entity best represents the volume available for material addition? A) A bounding box B) A sketch plane C) A datum axis D) A surface offset Answer: A Explanation: The bounding box (or similar volumetric envelope) encloses the region where the optimizer may place material. Question 6. A “keep-out” region is used to: A) Force material to be added in that area B) Prevent any change to the geometry inside the region C) Define the location of the design space origin D) Set the mesh size for the solver Answer: B Explanation: Keep-out zones are non-design spaces that must remain untouched, such as bolt holes or clearance zones. Question 7. Functional regions within an assembly are assigned to: A) Control the color of the part in the viewport B) Specify different material properties or load priorities for each region C) Create a separate file for each region
Driven Generative Designer
Professional Ultimate Exam
Explanation: Pressure loads apply a uniform normal force per unit area, ideal for representing fluid pressure on internal or external surfaces. Question 11. When setting up connections between two parts, the “contact” option is used to: A) Rigidly merge the parts into a single body B) Allow sliding or separation based on defined friction properties C) Automatically generate bolts between the parts D) Freeze the relative motion of both parts Answer: B Explanation: Contact definitions enable realistic interaction, permitting separation or sliding while respecting friction and penetration limits. Question 12. A linear static scenario differs from a frequency scenario primarily in that it: A) Considers inertial effects and natural mode shapes B) Uses a non-linear material model C) Applies only thermal loads D) Generates a density map instead of a mesh Answer: A Explanation: Frequency (modal) analysis accounts for mass and stiffness to compute natural vibration modes, whereas linear static analysis evaluates response under static loads only. Question 13. Load case management allows a designer to: A) Export each load case as a separate part file B) Combine several load cases into a single optimization study using weighting factors C) Run only one load case at a time D) Automatically ignore overloads that exceed material limits Answer: B Explanation: By assigning weights, multiple load cases can be merged, letting the optimizer seek a design that satisfies all defined conditions simultaneously.
Driven Generative Designer
Professional Ultimate Exam
Question 14. Which optimization target would you select to obtain the lightest possible bracket while maintaining a specified stiffness? A) Minimize Mass only B) Maximize Stiffness only C) Minimize Mass with a stiffness constraint D) Maximize Displacement Answer: C Explanation: Minimizing mass with an added stiffness constraint forces the solver to reduce weight while ensuring the required stiffness is met. Question 15. In additive manufacturing constraints, a minimum wall thickness of 1.2 mm is set to: A) Reduce the part’s overall mass B) Ensure the part can be printed without collapse or excessive support material C) Increase surface roughness for better bonding D) Guarantee a perfect surface finish Answer: B Explanation: Minimum wall thickness guarantees sufficient material to support the printed geometry and avoid defects such as warping or breakage. Question 16. When defining milling constraints, the “tool access direction” refers to: A) The direction of grain flow in the material B) The orientation from which the cutting tool can approach the part without interference C) The direction of the applied load during simulation D) The direction of the part’s principal axes Answer: B Explanation: Tool access direction ensures that the generated geometry is reachable by the milling cutter, preventing under-cut features. Question 17. For casting, a “draft angle” is required to:
Driven Generative Designer
Professional Ultimate Exam
C) Manual sketching of each feature D) Reverse engineering scanners Answer: B Explanation: IMA leverages subdivision surface techniques to wrap and smooth the voxel data into a manufacturable CAD model. Question 21. Before reconstruction, shape validation is performed to: A) Verify that the density map satisfies the original load and constraint conditions B) Convert the map into a mesh file for 3D printing C) Apply colors to different stress regions D) Generate a bill of materials automatically Answer: A Explanation: Validation checks that the optimized density distribution meets structural performance requirements before committing to geometry creation. Question 22. Which primitive is most suitable for approximating a cylindrical load-bearing shaft during the reconstruction phase? A) Sphere B) Cone C) Cylinder D) Torus Answer: C Explanation: A cylinder directly matches the geometry of a shaft, facilitating accurate scaling and alignment with functional interfaces. Question 23. To achieve G2 continuity in the final surface, the designer must ensure: A) Positional continuity only (C0) B) Tangential continuity (C1) and curvature continuity (C2) across surface patches C) That the surface is made of planar faces only D) That the surface has constant thickness
Driven Generative Designer
Professional Ultimate Exam
Answer: B Explanation: G2 continuity requires both first-derivative (tangent) and second-derivative (curvature) continuity, resulting in smooth, aesthetically pleasing surfaces. Question 24. KPI comparison between two design variants includes all EXCEPT: A) Mass B) Maximum displacement C) Color of the part in the viewport D) Von Mises stress Answer: C Explanation: KPI (Key Performance Indicator) metrics focus on quantitative performance; viewport color is a visual attribute, not a performance metric. Question 25. In a trade-off analysis, a Pareto front is used to: A) Identify the single best design based on all KPIs B) Show the set of non-dominated designs where improving one KPI would worsen another C) Rank designs alphabetically D) Convert the density map into a solid model Answer: B Explanation: The Pareto front represents optimal trade-offs, illustrating designs that cannot be improved in one objective without degrading another. Question 26. After reconstruction, the final FEA validation step is essential because: A) It reduces the file size of the CAD model B) It confirms that the reconstructed geometry still satisfies the original engineering requirements C) It automatically generates machining code D) It changes the material properties to a default value Answer: B
Driven Generative Designer
Professional Ultimate Exam
Explanation: The revision number indicates version control; the highest revision typically corresponds to the latest optimized iteration. Question 30. The “guided assistant” in the Workflow Assistant is most helpful during which phase? A) Exporting the final part to STL B) Defeaturing the imported geometry C) Setting up load cases and constraints D) Performing post-processing of results Answer: C Explanation: The guided assistant walks the user through the critical setup steps, including defining loads, restraints, and optimization targets. Question 31. Which of the following features would you keep during defeaturing because it directly influences load transfer? A) Small fillet on a non-critical edge B) Large external chamfer for aesthetics C) A reinforcing rib that aligns with the primary load path D) A decorative embossing pattern Answer: C Explanation: Reinforcing ribs are structural elements that affect stiffness and stress distribution, so they must remain in the model. Question 32. In defining a design space, the term “growth direction” refers to: A) The orientation of the coordinate axes B) The vector along which material can be added during optimization C) The direction of the applied load D) The direction of the mesh element normals Answer: B Explanation: Growth direction specifies the permissible direction(s) for material addition, guiding the optimizer’s search space.
Driven Generative Designer
Professional Ultimate Exam
Question 33. A “keep-out” region for a bolt hole is typically defined as: A) A solid cylinder matching the bolt diameter plus clearance B) An empty space that the optimizer can fill with material C) A surface mesh that must be removed after optimization D) A color-coded region for visual reference only Answer: A Explanation: The keep-out cylinder preserves the bolt hole geometry, preventing the optimizer from filling or altering it. Question 34. When assigning functional regions, a “stiffness-critical” region is usually given which type of optimization weighting? A) Low priority, allowing large deformation B) High priority, encouraging material to be placed there C) Zero weighting, so it is ignored D) Random weighting to explore alternatives Answer: B Explanation: Stiffness-critical regions receive higher weighting to ensure the optimizer allocates sufficient material to meet stiffness goals. Question 35. Which element type is generally preferred for representing complex organic shapes in generative design meshing? A) Hexahedral elements only B) Linear tetrahedral elements with adaptive refinement C) 2-D shell elements D) Beam elements Answer: B Explanation: Linear tetrahedral elements can easily conform to irregular geometries, and adaptive refinement improves accuracy where needed. Question 36. Applying a “slider” constraint in a structural scenario allows: A) No movement at all B) Rotation about a fixed axis only
Driven Generative Designer
Professional Ultimate Exam
Explanation: Mode shapes illustrate how the structure would deform at each natural frequency, critical for vibration analysis. Question 40. When combining three load cases with equal importance, the weighting factor for each case should be set to: A) 0.33, 0.33, 0. B) 1, 0, 0 C) 0.5, 0.5, 0 D) 1, 1, 1 Answer: A Explanation: Equal weighting means each case contributes roughly one-third to the overall objective; minor rounding differences are acceptable. Question 41. Selecting “Maximize Stiffness” as the sole optimization target typically results in: A) The lightest possible part B) The heaviest possible part, because more material increases stiffness C) No change to the original geometry D) A part optimized for thermal conductivity Answer: B Explanation: Maximizing stiffness without mass constraints drives the solver to add material wherever it improves rigidity, often increasing weight. Question 42. Which manufacturing constraint would you apply to ensure a design is printable on a standard FDM printer without excessive support structures? A) Minimum wall thickness of 2 mm B) Maximum overhang angle of 45° C) Draft angle of 5° for all vertical faces D) Tool radius of 10 mm for milling Answer: B Explanation: Limiting overhang angles reduces the need for support material on FDM (Fused Deposition Modeling) printers.
Driven Generative Designer
Professional Ultimate Exam
Question 43. In milling constraints, “tool radius compensation” is used to: A) Increase the part’s mass artificially B) Adjust the generated geometry so that the cutter radius does not gouge the part C) Apply a surface finish texture automatically D) Convert the part to a sheet metal model Answer: B Explanation: Tool radius compensation offsets the tool path to account for the cutter’s size, preventing unintended material removal. Question 44. When defining a casting constraint, the “parting line” is required to: A) Indicate where the mold halves separate, influencing the final geometry’s draft and surface finish B) Set the maximum allowable mass of the part C) Define the location of reinforcement ribs D) Create a symmetry plane for the part Answer: A Explanation: The parting line determines mold split location, affecting draft angles, under-cut handling, and surface quality. Question 45. Planar symmetry constraints are most useful when the design must be: A) Rotationally balanced around an axis B) Identical on both sides of a central plane, such as a bracket with mirrored halves C) Completely free of any symmetry D) Designed for additive manufacturing only Answer: B Explanation: Planar symmetry enforces mirroring across a plane, reducing design space and ensuring balanced geometry.
Driven Generative Designer
Professional Ultimate Exam
Question 49. Achieving G2 continuity across a surface patch transition improves: A) Structural stiffness only B) Both aerodynamic performance and aesthetic quality due to smoother curvature C) The part’s mass reduction D) The number of required manufacturing steps Answer: B Explanation: G2 continuity ensures curvature continuity, which benefits fluid flow, optics, and visual appeal. Question 50. Which KPI would you monitor to evaluate a design’s resistance to fatigue under cyclic loading? A) Maximum displacement B) Mass C) Von Mises stress amplitude or equivalent stress range D) Number of faces Answer: C Explanation: Fatigue performance is linked to stress amplitude; monitoring von Mises stress range helps predict fatigue life. Question 51. In a trade-off study, a design that has 10 % lower mass but 15 % higher maximum displacement compared to the baseline is considered: A) Always superior because mass reduction is the only goal B) Potentially acceptable if the displacement increase remains within allowable limits C) Unacceptable regardless of other factors D) Automatically selected by the optimizer Answer: B Explanation: Trade-offs require balancing criteria; if the extra displacement is within design tolerances, the lighter design may be preferred.
Driven Generative Designer
Professional Ultimate Exam
Question 52. Re-running a high-fidelity simulation on the reconstructed CAD model is necessary because: A) The density map solver uses simplified material models that may not capture all stress concentrations in the final geometry B) It reduces the file size of the model C) It automatically generates CNC code D) It changes the part’s color scheme to match corporate standards Answer: A Explanation: The final CAD may contain features (e.g., fillets, sharp corners) not represented in the voxel optimization; a detailed FEA validates the true performance. Question 53. When exporting a generative design to CATIA Part Design, which property must be retained to preserve the defined functional regions? A) Layer colors B) Physical properties (material, density) and datum references for keep-outs C) The viewport orientation D) The solver convergence history file Answer: B Explanation: Keeping material definitions and datum references ensures that functional regions, keep-outs, and constraints remain recognizable in CATIA. Question 54. The primary benefit of using a “role-based workflow” in 3DEXPERIENCE is: A) Faster loading of the software B) Tailored toolsets and permissions that streamline the generative design process for specific tasks C) Ability to work offline without a license D) Automatic generation of marketing materials Answer: B Explanation: Role-based workflows expose only the relevant tools and data, reducing clutter and preventing accidental misuse.
Driven Generative Designer
Professional Ultimate Exam
B) Keep-out region C) Functional region D) Mesh refinement zone Answer: B Explanation: Non-design volume (keep-out) specifies areas where material cannot be added or removed. Question 59. Which meshing strategy is most appropriate for a design space that contains both thin-walled regions and bulky blocks? A) Uniform mesh size throughout B) Local refinement in thin-walled areas and coarser mesh in bulky sections C) Only use hexahedral elements D) No meshing is required for generative design Answer: B Explanation: Adaptive refinement captures stress gradients in thin walls while keeping the overall element count manageable. Question 60. A “pin” constraint applied at a point on a beam will primarily restrict: A) All translational degrees of freedom while allowing rotation about all axes B) Translation in the direction of the pin axis only C) All rotational degrees of freedom while allowing translation D) Both translation and rotation completely Answer: A Explanation: A pin (or hinge) fixes the point in space but permits rotation about any axis, matching a real hinge. Question 61. When defining a pressure load on an internal cavity, which direction should the pressure vector be oriented? A) Outward, from the cavity to the solid B) Inward, from the solid toward the cavity C) Tangential to the cavity surface
Driven Generative Designer
Professional Ultimate Exam
D) Parallel to the global X-axis Answer: B Explanation: Internal pressure pushes outward on the cavity walls, so the load vector points from the solid interior toward the cavity surface. Question 62. Contact definitions that include “friction coefficient = 0.0” represent: A) Perfectly bonded contact (no slip) B) Frictionless contact, allowing sliding without resistance C) A welded joint D) A flexible rubber interface Answer: B Explanation: A friction coefficient of zero removes resistance to sliding, modeling a frictionless interface. Question 63. In a frequency analysis, the first natural frequency is most critical for which type of design consideration? A) Static load bearing capacity B) Avoiding resonance with operating excitation frequencies C) Thermal expansion behavior D) Color matching with adjacent parts Answer: B Explanation: Designers must ensure that operational loads do not excite the first natural frequency, preventing resonance. Question 64. When merging three load cases with weighting factors 0.5, 0.3, and 0.2, what does the highest weight represent? A) The load case that will dominate the optimization objective B) The load case that will be ignored C) The load case with the smallest effect on the final design D) The load case that defines the mesh size Answer: A
