Driven Generative Designer
Ultimate Exam

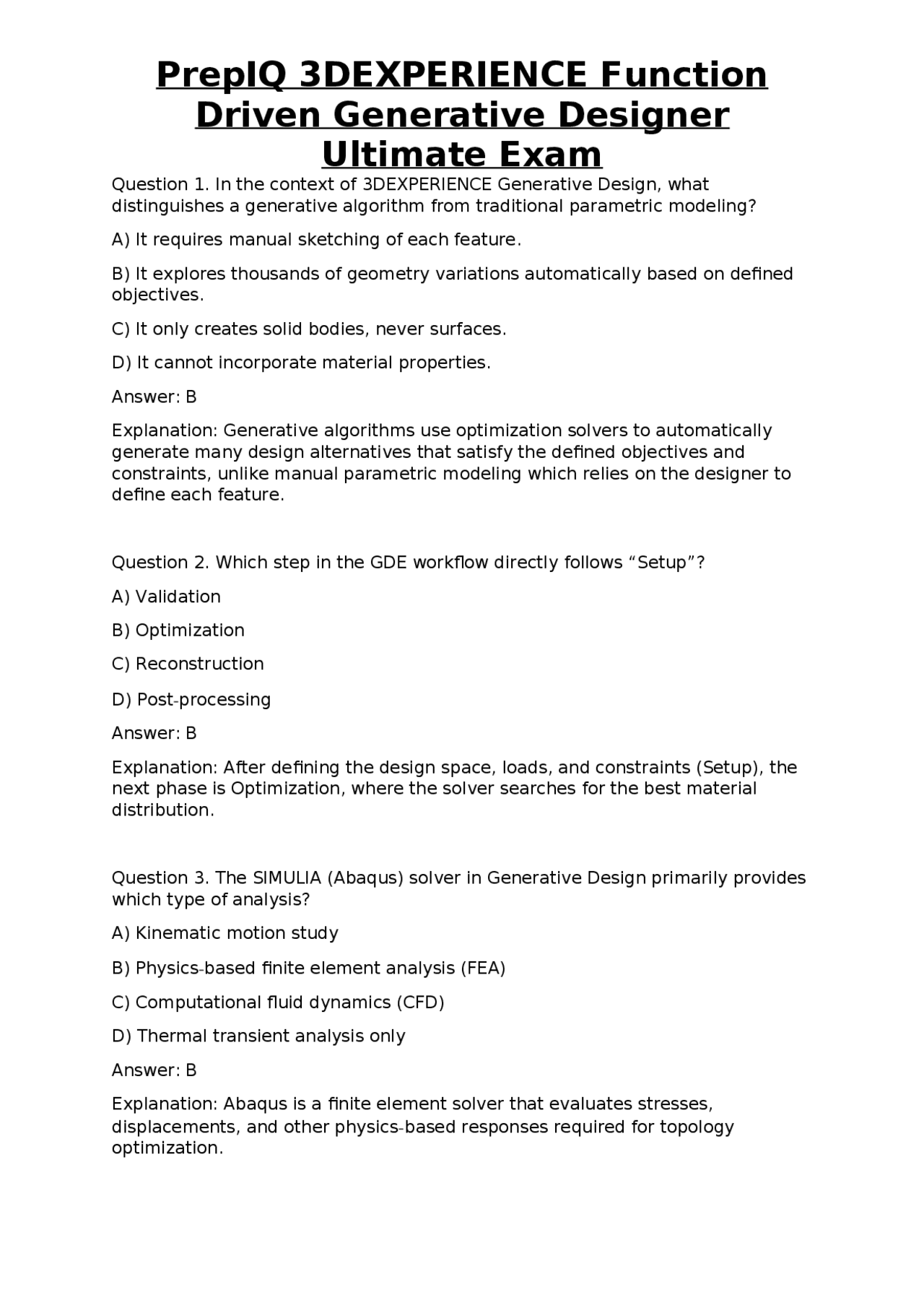

Question 1. In the context of 3DEXPERIENCE Generative Design, what distinguishes a generative algorithm from traditional parametric modeling? A) It requires manual sketching of each feature. B) It explores thousands of geometry variations automatically based on defined objectives. C) It only creates solid bodies, never surfaces. D) It cannot incorporate material properties. Answer: B Explanation: Generative algorithms use optimization solvers to automatically generate many design alternatives that satisfy the defined objectives and constraints, unlike manual parametric modeling which relies on the designer to define each feature. Question 2. Which step in the GDE workflow directly follows “Setup”? A) Validation B) Optimization C) Reconstruction D) Post-processing Answer: B Explanation: After defining the design space, loads, and constraints (Setup), the next phase is Optimization, where the solver searches for the best material distribution. Question 3. The SIMULIA (Abaqus) solver in Generative Design primarily provides which type of analysis? A) Kinematic motion study B) Physics-based finite element analysis (FEA) C) Computational fluid dynamics (CFD) D) Thermal transient analysis only Answer: B Explanation: Abaqus is a finite element solver that evaluates stresses, displacements, and other physics-based responses required for topology optimization.
Driven Generative Designer
Ultimate Exam
Question 4. Which industry application most benefits from “part consolidation” in generative design? A) Aerospace weight reduction B) Injection molding tooling C) Assembly of multi-component mechanical linkages D) Additive manufacturing of lattice structures Answer: C Explanation: Part consolidation reduces the number of separate components by merging them into a single optimized geometry, simplifying assembly and improving reliability. Question 5. When defining a design space, a “non-design space” is used to: A) Indicate the region where material must be removed completely. B) Preserve existing geometry such as bolt holes or mounting surfaces. C) Set the maximum allowable volume for the final part. D) Define the mesh size for the solver. Answer: B Explanation: Non-design spaces are protected zones that the optimizer cannot modify, ensuring functional features remain intact. Question 6. In 3DEXPERIENCE, where are material properties for generative design typically sourced from? A) External Excel spreadsheets only. B) The 3DEXPERIENCE material library. C) User-defined custom scripts. D) The default steel material without modification. Answer: B Explanation: The platform provides a comprehensive material library that can be assigned to the design space for realistic simulation. Question 7. The purpose of “part simplification” before running a generative study is to:
Driven Generative Designer
Ultimate Exam
B) To evaluate the part’s performance under simultaneous real-world conditions. C) To automatically generate CAD geometry. D) To define the mesh size for each case. Answer: B Explanation: Load combinations superimpose multiple load cases, ensuring the optimized design can withstand realistic, concurrent loading scenarios. Question 11. Virtual parts are used in generative design primarily to: A) Replace the need for physical prototypes. B) Simulate the influence of neighboring components without modeling them fully. C) Export the final geometry as a STEP file. D) Define material properties for the design space. Answer: B Explanation: Virtual parts act as placeholders that provide boundary conditions and load transfer from surrounding assembly elements, simplifying the model. Question 12. Which objective would you select if the primary goal is to minimize mass while maintaining structural integrity? A) Maximize stiffness B) Minimize volume/mass C) Maximize natural frequency D) Minimize surface area Answer: B Explanation: The “Minimize volume/mass” objective directly drives the optimizer to remove unnecessary material, reducing weight. Question 13. A performance constraint that limits the maximum displacement of a point to 0.5 mm is an example of a constraint on: A) Stress B. Factor of safety C. Displacement
Driven Generative Designer
Ultimate Exam
D. Frequency Answer: C Explanation: Displacement constraints set a permissible limit on how far a node may move under load. Question 14. When preparing a generative study for milling, which manufacturing constraint must be defined? A) Overhang angle limit. B) Tool access direction(s). C) Build orientation. D) Parting line location. Answer: B Explanation: Milling constraints require specifying the direction(s) from which the cutting tool can approach the geometry to ensure manufacturability. Question 15. In additive manufacturing constraints, the “overhang limit” typically refers to: A) The maximum allowable wall thickness. B) The maximum angle relative to the build platform that can be printed without support. C) The minimum feature size. D) The required surface roughness. Answer: B Explanation: Overhang limits define angles beyond which support structures are needed; keeping within the limit reduces post-processing. Question 16. Enforcing planar symmetry in a generative study results in: A) A design that is mirrored across a specified plane, halving computational effort. B) A cyclic repetition of the geometry around an axis. C) No impact on the final shape. D) Automatic generation of a lattice structure. Answer: A
Driven Generative Designer
Ultimate Exam
Question 20. Adjusting the iso-surface threshold during iso-surface analysis primarily changes: A) The mesh element type. B) The material density cutoff that defines solid vs. void regions. C) The color scheme of the result plot. D) The solver algorithm. Answer: B Explanation: The iso-surface threshold determines which parts of the density field are interpreted as solid material, shaping the visualized “bone” structure. Question 21. After topology optimization, the Conceptual Shape Generation step aims to: A) Convert the density field into a smooth, watertight CAD surface. B) Increase the number of non-design spaces. C) Apply a new set of loads to the model. D) Export the mesh as a .stl file only. Answer: A Explanation: Conceptual shape generation creates a clean, manufacturable surface that approximates the optimized material distribution. Question 22. The IMA (Imagine & Shape) Integration feature is used to: A) Perform linear static analysis on the optimized part. B) Refine organic, free-form shapes using subdivision modeling tools. C) Generate a detailed bill of materials. D) Convert the model into a lattice structure. Answer: B Explanation: IMA provides advanced surfacing tools to edit and smooth the generated geometry, especially useful for organic shapes. Question 23. A final validation simulation on the reconstructed CAD model is necessary because: A) The optimizer may have introduced geometric errors that affect performance.
Driven Generative Designer
Ultimate Exam
B) It automatically reduces the part’s mass. C) It eliminates the need for a physical prototype. D) It converts the model to a solid body. Answer: A Explanation: Validation ensures that the simplified, reconstructed geometry still satisfies the original functional requirements under the defined loads. Question 24. To bring a generative design result back into CATIA Part Design, you must: A) Export the result as a .catpart file and import it. B. Use the native CAD integration feature to link the result directly. C. Re-model the geometry manually. D. Convert the result into a 2D drawing first. Answer: B Explanation: 3DEXPERIENCE provides a seamless native integration that allows the optimized geometry to be transferred back into CATIA without intermediate file formats. Question 25. In the 3DEXPERIENCE platform, 6W Tagging is primarily used for: A) Defining load directions. B) Filtering and locating simulation data based on Who, What, When, Where, Why, and How. C. Setting mesh refinement levels. D. Exporting results to PDF. Answer: B Explanation: 6W Tagging adds metadata to assets, enabling efficient search and organization of simulation data. Question 26. Which lifecycle state indicates a generative design study is ready for peer review? A) Draft B) Review
Driven Generative Designer
Ultimate Exam
Answer: B Explanation: FoS = material strength / allowable stress; a FoS of 2.0 limits the permissible stress to 50 % of the material’s yield strength. Question 30. Which of the following is not a typical manufacturing constraint in generative design? A) Draft angle for casting. B) Tool access direction for milling. C) Overhang angle for additive manufacturing. D) Electrical conductivity of the material. Answer: D Explanation: Electrical conductivity is a material property, not a manufacturing constraint related to geometry or process. Question 31. When defining a non-design space around a bolt hole, which attribute must be set to ensure the hole remains untouched? A) “Preserve material” flag. B) “Allow removal” flag. C) “Mesh refinement” flag. D) “Load transfer” flag. Answer: A Explanation: The “Preserve material” (or similar) attribute protects that region from being altered during optimization. Question 32. The Design Space Identification step is crucial because: A) It determines the maximum number of load cases allowed. B) It defines the volume where material can be added or removed, directly influencing optimization results. C) It sets the color scheme for the result visualization. D) It disables the solver. Answer: B Explanation: The design space outlines the region the optimizer can manipulate, shaping the final geometry.
Driven Generative Designer
Ultimate Exam
Question 33. In a generative study for a lightweight bracket, which load case is most likely to be included? A) Thermal expansion due to temperature rise. B) Axial compression of 10 kN on the mounting flange. C) Acoustic pressure from surrounding environment. D) Magnetic field interaction. Answer: B Explanation: Brackets typically experience structural loads such as axial compression; this load case directly influences the stiffness and stress distribution. Question 34. Which statement best describes a load combination that uses the “linear superposition” method? A) Loads are applied sequentially, one after another. B) Each load case is multiplied by a factor and summed before analysis. C) Only the maximum load magnitude is considered. D) Non-linear material behavior is ignored. Answer: B Explanation: Linear superposition involves scaling each load case (e.g., 1.2 × Force) and adding them together to form a combined load scenario. Question 35. The Optimization Constraints panel allows you to set a limit on which of the following? A) Number of design iterations. B) Maximum allowable von Mises stress. C) Color of the final CAD model. D) The license type of the software. Answer: B Explanation: Constraints such as stress limits are defined here to ensure the optimized design does not exceed material strength.
Driven Generative Designer
Ultimate Exam
B) Faster computation due to scalable high-performance resources. C) Automatic generation of manufacturing drawings. D) Elimination of the need for a license. Answer: B Explanation: Cloud execution leverages distributed computing resources, often reducing solution time for large problems. Question 40. The Iso-Surface Analysis threshold is set to 0.5. This means that: A) All voxels with density ≥ 0.5 are considered solid material. B) The solver will stop after 0.5 % of the maximum iterations. C) The model will be exported at 50 % of its original size. D) The mesh element size will be reduced by 50 %. Answer: A Explanation: A threshold of 0.5 defines the cutoff between solid and void in the density field. Question 41. During geometry reconstruction, which feature ensures the resulting CAD model is watertight? A) Automatic hole filling algorithm. B) Removal of all non-design spaces. C) Application of a surface smoothing filter. D) Export as a mesh file only. Answer: A Explanation: The reconstruction process includes algorithms that close gaps and seal openings, producing a watertight solid. Question 42. Which of the following is a key benefit of using the IMA (Imagine & Shape) module after topology optimization? A) It reduces the part’s mass by 30 % automatically. B) It enables free-form sculpting to improve aesthetic and manufacturability. C) It converts the part into a lattice structure.
Driven Generative Designer
Ultimate Exam
D) It directly generates CNC toolpaths. Answer: B Explanation: IMA provides artistic-level surfacing tools that let designers refine organic shapes for better aesthetics and manufacturability. Question 43. In a validation simulation, if the reconstructed geometry shows a maximum stress exceeding the material’s yield strength, the appropriate next step is: A) Accept the design – the optimizer already accounted for safety. B) Increase the mesh density and re-run validation. C) Adjust the optimization constraints (e.g., lower stress limit) and re-optimize. D) Change the color scheme of the result plot. Answer: C Explanation: Exceeding material limits indicates the design does not meet requirements; constraints must be tightened and the optimization repeated. Question 44. Which data management action is required to keep track of multiple design iterations in 3DEXPERIENCE? A) Overwrite the previous file each time. B) Use version control and assign a new version number for each iteration. C) Delete old iterations to save storage. D) Rename each file with a random string. Answer: B Explanation: Versioning preserves the history of each iteration, enabling rollback and comparison. Question 45. The 6W Tagging acronym includes “Why”. In the context of a generative study, “Why” would typically capture: A) The justification for a specific load case or objective. B) The geometric dimensions of the part. C) The mesh element type. D) The software license key. Answer: A
Driven Generative Designer
Ultimate Exam
Question 49. A design objective that targets “maximum stiffness” will primarily influence which of the following? A) The part’s color. B) The distribution of material to resist deformation under load. C) The number of non-design spaces. D) The mesh element shape. Answer: B Explanation: Maximizing stiffness drives the optimizer to allocate material where it most effectively reduces deflection. Question 50. When defining a material assignment, selecting a material with a higher Young’s modulus will generally result in: A) Higher mass for the same volume. B) Lower stiffness for the same geometry. C) Higher stiffness for the same geometry, potentially allowing mass reduction. D) No effect on the optimization outcome. Answer: C Explanation: A higher modulus material provides greater stiffness, enabling the optimizer to meet stiffness targets with less material. Question 51. In the GDE workflow, the step “Validation” occurs after: A) Setup. B) Reconstruction. C) Optimization. D) Mesh generation. Answer: C Explanation: Validation follows the Optimization phase, using the reconstructed geometry to confirm performance. Question 52. Which of the following is a common non-design space in a bracket that must remain unchanged? A) The interior lattice.
Driven Generative Designer
Ultimate Exam
B) The bolt hole where a fastener passes. C) The outer shell that will be removed later. D) The region designated for material removal. Answer: B Explanation: Bolt holes are functional features that cannot be altered by the optimizer. Question 53. A load case that applies a 5 kN shear force on a face while also applying a 2 kN axial force on the same face is an example of: A) A single load case with multiple load components. B) Two separate load cases that cannot be combined. C) A thermal load case. D) A constraint, not a load. Answer: A Explanation: Multiple load components can be defined within a single load case to represent combined actions. Question 54. Which simulation result is most directly used to evaluate a “maximum displacement” constraint? A) Von Mises stress distribution. B) Nodal displacement field. C) Temperature contour plot. D) Natural frequency spectrum. Answer: B Explanation: Displacement constraints are assessed using the nodal displacement results from the FEA. Question 55. In cloud-based topology optimization, which factor can most affect the total solution time? A) The color of the user interface. B) The number of design variables (e.g., mesh elements) in the design space. C) The operating system of the local workstation.
Driven Generative Designer
Ultimate Exam
Explanation: Validation typically uses a linear static structural analysis to verify that stress, displacement, and safety criteria are met. Question 59. In the 3DEXPERIENCE platform, what does the “Lifecycle” state “Released” indicate? A) The study is still being edited. B) The design has been approved and is ready for production or further downstream use. C) The study has been archived and cannot be modified. D) The study is pending review. Answer: B Explanation: “Released” denotes a finalized, approved version that can be used for manufacturing or as a reference. Question 60. When using Virtual Parts to simulate a surrounding assembly, which property of the virtual part is most critical? A) Its visual color. B) Its defined contact or load transfer behavior. C) Its file size. D) Its version number. Answer: B Explanation: Virtual parts must correctly represent how they interact (contact, load transfer) with the generative design to provide realistic boundary conditions. Question 61. Which optimization constraint would you use to ensure that a generative design does not exceed a specific natural frequency requirement? A) Displacement limit. B) Stress limit. C) Frequency lower-bound constraint. D) Mass upper-bound constraint. Answer: C
Driven Generative Designer
Ultimate Exam
Explanation: A frequency constraint sets a minimum acceptable natural frequency, ensuring the part avoids resonant behavior. Question 62. In a generative study for a lightweight aerospace component, why might you choose Additive Manufacturing constraints over traditional machining constraints? A) AM constraints always produce lighter parts. B) AM allows complex internal lattices that are impossible with subtractive processes. C) AM does not require any material property definition. D) AM constraints are less computationally intensive. Answer: B Explanation: Additive manufacturing enables internal features such as lattices, which can dramatically reduce weight while maintaining stiffness. Question 63. What is the effect of setting a higher overhang limit angle (e.g., 60° instead of 45°) in an additive manufacturing constraint? A) It forces the optimizer to produce only vertical walls. B) It allows the optimizer to generate steeper unsupported features, potentially reducing support material. C) It disables the constraint entirely. D) It changes the material density. Answer: B Explanation: A larger permissible overhang angle relaxes the support requirement, giving the optimizer more freedom to create steep features. Question 64. During mesh generation, which element type is most commonly used for linear static topology optimization? A) Tetrahedral solid elements. B) Shell elements. C) Beam elements. D. 2-D triangular elements. Answer: A
