Driven Generative Designer Professional
Certification Exam Preparation

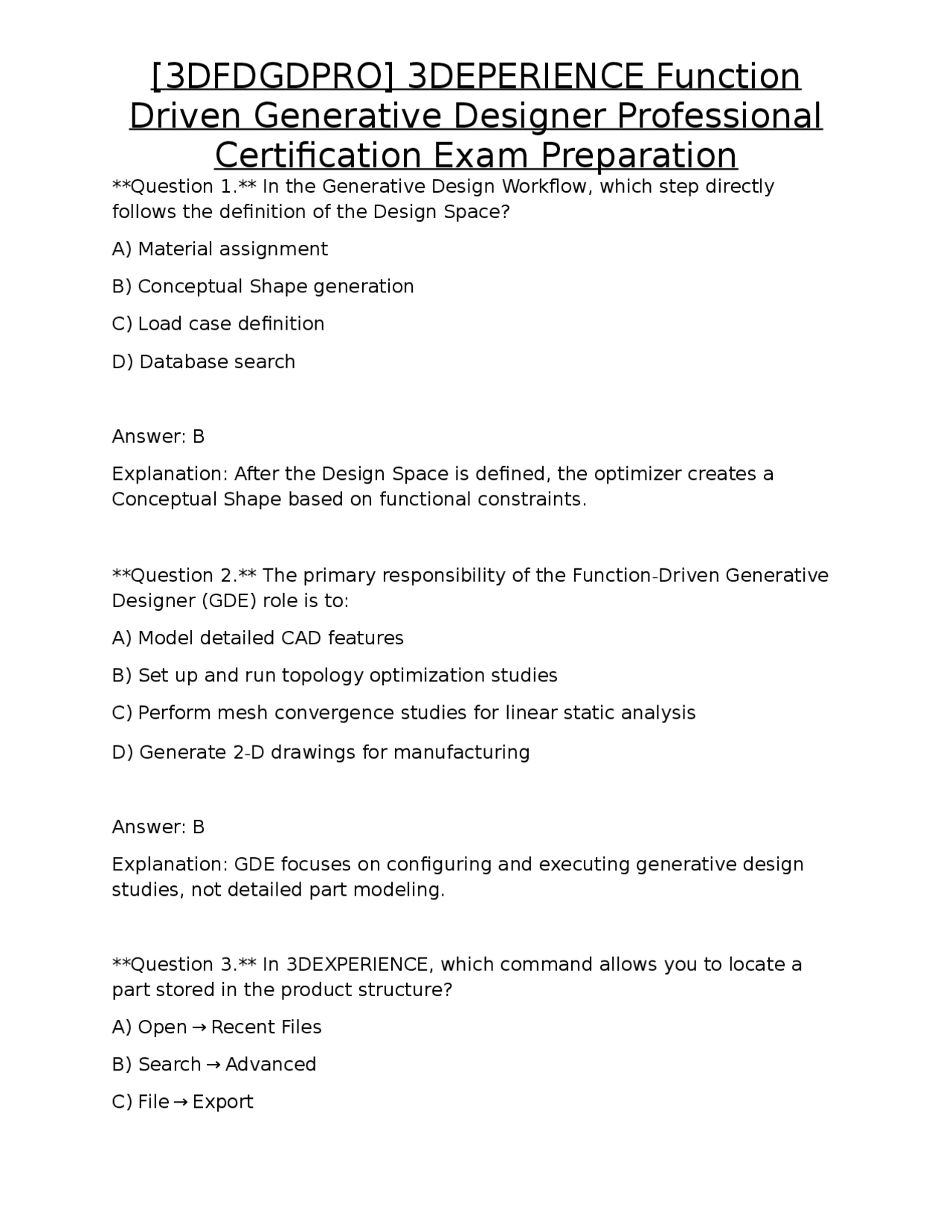

Question 1. In the Generative Design Workflow, which step directly follows the definition of the Design Space? A) Material assignment B) Conceptual Shape generation C) Load case definition D) Database search Answer: B Explanation: After the Design Space is defined, the optimizer creates a Conceptual Shape based on functional constraints. Question 2. The primary responsibility of the Function-Driven Generative Designer (GDE) role is to: A) Model detailed CAD features B) Set up and run topology optimization studies C) Perform mesh convergence studies for linear static analysis D) Generate 2-D drawings for manufacturing Answer: B Explanation: GDE focuses on configuring and executing generative design studies, not detailed part modeling. Question 3. In 3DEXPERIENCE, which command allows you to locate a part stored in the product structure? A) Open → Recent Files B) Search → Advanced C) File → Export
Driven Generative Designer Professional
Certification Exam Preparation
D) Insert → Component Answer: B Explanation: The Advanced Search tool lets users query the database for specific parts or assemblies. Question 4. When designing within a larger assembly, which concept ensures that the new part does not interfere with existing components? A) Keep-in zone B) Mesh refinement C) Load case isolation D) Frozen region Answer: D Explanation: Frozen (non-design) regions preserve existing geometry to prevent interference. Question 5. A “Keep-out zone” is best described as: A) An area where material must be added for strength B) A region where material removal is prohibited C) A surface that defines the external shape of the part D) A location for bolt holes Answer: B Explanation: Keep-out zones restrict material removal to protect moving parts, fluid channels, etc.
Driven Generative Designer Professional
Certification Exam Preparation
C) Young’s modulus D) Poisson’s ratio Answer: C Explanation: Young’s modulus quantifies material stiffness, affecting deformation under load. Question 9. To model a fixed support in a generative design study, you would use which constraint type? A) Clamp B) Pinned C) Symmetry D) Roller Answer: A Explanation: A clamp fully restricts translational and rotational degrees of freedom. Question 10. Symmetry constraints are valuable because they: A) Increase the number of design variables B) Double the computational time C) Reduce the solution domain and enforce balanced designs D) Eliminate the need for load cases Answer: C
Driven Generative Designer Professional
Certification Exam Preparation
Explanation: By mirroring the domain, symmetry halves the mesh and ensures mirrored performance. Question 11. Which load case would you select to simulate the effect of internal fluid pressure on a hollow cylinder? A) Force B) Pressure C) Torque D) Acceleration Answer: B Explanation: Pressure load applies a uniform normal stress, ideal for fluid-induced loading. Question 12. Combining a force load with a pressure load in the same study primarily influences: A) Mesh size only B) Material selection C) The resulting topology, as the optimizer must satisfy both load paths D) The number of design variables Answer: C Explanation: The optimizer balances material distribution to meet all applied loads. Question 13. Virtual connections between a design part and surrounding components are established using:
Driven Generative Designer Professional
Certification Exam Preparation
Answer: B Explanation: Overhangs exceeding ~30° typically require support; limiting to 30° promotes self-supporting geometry. Question 16. Minimum wall thickness in additive manufacturing constraints is important because: A) Thin walls improve stiffness B) They prevent warping and ensure print reliability C) They increase the number of design variables D) They reduce the need for mesh refinement Answer: B Explanation: Walls thinner than the printer’s capability may not form correctly, leading to defects. Question 17. In milling-compatible generative design, “pull direction” refers to: A) The direction of material removal during machining B) The flow of heat during cutting C) The orientation of grain structure D) The direction of applied loads Answer: A Explanation: Pull direction aligns the part’s geometry with tool paths, ensuring manufacturability.
Driven Generative Designer Professional
Certification Exam Preparation
Question 18. A finer mesh generally: A) Decreases solution accuracy B) Increases computational time but captures more detail C) Eliminates the need for design space partitioning D) Reduces the number of design variables Answer: B Explanation: Smaller elements improve result fidelity at the cost of longer solve times. Question 19. The “Solver Loop” in generative design primarily monitors: A) The number of CAD features created B) Convergence of the objective function (e.g., mass) and change in geometry C) The color scheme of the result view D) The licensing status of Abaqus Answer: B Explanation: Convergence indicates when the optimizer has met the target criteria. Question 20. An “Isosurface” in the result view represents: A) The mesh nodes only B) A surface of constant density within the material distribution C) The boundary of the optimized solid at a chosen density threshold D) The load path lines
Driven Generative Designer Professional
Certification Exam Preparation
Question 23. The “Imagine & Shape (IMA)” tools operate on which type of geometry? A) NURBS curves only B) Point clouds derived from the optimized mesh C. Solid bodies with exact thickness D. 2-D sketches Answer: B Explanation: IMA uses the cloud of points to generate smooth, organic surfaces. Question 24. Maintaining G2 continuity in IMA modeling ensures: A) First-order derivative continuity (tangency) only B) Second-order derivative continuity, providing smooth curvature transitions C) No continuity at all D) Only positional continuity Answer: B Explanation: G2 continuity guarantees smooth curvature, essential for high-quality organic surfaces. Question 25. When scaling a refined IMA shape, which constraint must remain unchanged to preserve functionality? A) Overall color B) Functional region boundaries (keep-in/keep-out zones) C) Mesh element count
Driven Generative Designer Professional
Certification Exam Preparation
D) Export file format Answer: B Explanation: Scaling must not violate the original functional zones that define load paths and clearances. Question 26. Re-simulation of the reconstructed geometry is performed to verify: A) The visual appeal of the surface B) That the original safety factors and performance targets are still met C) The file size of the exported model D) The naming convention of parts Answer: B Explanation: A final FEA confirms that the manufactured shape still satisfies design criteria. Question 27. Which geometric property is NOT directly evaluated during the final validation stage? A) Mass B) Center of gravity (CoG) C) Color shading D) Volume Answer: C Explanation: Color is a visual attribute; mass, CoG, and volume are engineering metrics.
Driven Generative Designer Professional
Certification Exam Preparation
C) A region that defines the external surface of the part D) A region used only for aesthetic purposes Answer: B Explanation: Frozen regions are locked to preserve existing geometry or interface requirements. Question 31. When defining a “Keep-in zone” for bolt holes, which modeling technique is most appropriate? A) Boolean subtract the hole volume from the Design Space B) Boolean intersect a cylinder representing the hole with the Design Space C) Apply a material property with zero stiffness D) Use a symmetry constraint Answer: B Explanation: Intersecting ensures material must exist within the cylinder, preserving the hole location. Question 32. The primary purpose of mesh control in topology optimization is to: A) Change the solver from Abaqus to ANSYS B) Influence the level of geometric detail captured in the result C) Automatically generate a 2-D drawing D. Reduce the number of load cases Answer: B
Driven Generative Designer Professional
Certification Exam Preparation
Explanation: Mesh size determines how finely the optimizer can represent complex features. Question 33. Which load case combination would be most appropriate for evaluating a rotating shaft subjected to bending? A) Force only B) Torque only C) Force + Torque D) Pressure only Answer: C Explanation: Bending arises from transverse forces, while torque adds torsional loading; both are needed. Question 34. In generative design, “Volume Fraction” is expressed as: A) Percentage of the total design space occupied by material B) Ratio of mass to density C) Number of elements divided by number of nodes D) Length of the longest edge Answer: A Explanation: Volume fraction defines the allowable material proportion within the design space. Question 35. When applying an additive manufacturing constraint, the “minimum wall thickness” is typically set to: A) 0.1 mm for all printers
Driven Generative Designer Professional
Certification Exam Preparation
Explanation: The optimizer outputs a point cloud representing material distribution for later surface generation. Question 38. In IMA tools, the command to merge two adjacent vertices is called: A) Fuse B) Weld C. Stitch D. Collapse Answer: D Explanation: Collapsing vertices merges them into a single point, simplifying topology. Question 39. To ensure a reconstructed shape meets a target displacement under load, you would: A) Increase mesh size B) Re-run the optimization with a higher stiffness objective C) Change the file format D. Remove all constraints Answer: B Explanation: Adjusting the optimization goal to prioritize stiffness helps achieve lower displacement. Question 40. Which of the following is NOT a typical manufacturing constraint in generative design?
Driven Generative Designer Professional
Certification Exam Preparation
A) Overhang angle limit B) Minimum wall thickness C) Pull direction for milling D. Color of the part surface Answer: D Explanation: Surface color is aesthetic, not a manufacturability constraint. Question 41. When a design study uses a “Pinned” support, the degrees of freedom that remain free are: A) All translational and rotational B) Only translational in the normal direction C) Rotational about the pin axis only D. Translational in the plane of the pin, rotation about the pin axis Answer: D Explanation: A pinned support restrains translation normal to the pin but allows rotation and in-plane translation. Question 42. The term “load path” in topology optimization refers to: A) The sequence of load case definitions B) The route through which material carries applied loads efficiently C. The file path where results are saved D. The order of solver iterations Answer: B
Driven Generative Designer Professional
Certification Exam Preparation
B) Boolean subtraction C. Shape reconstruction (solidification) D. Constraint removal Answer: C Explanation: Shape reconstruction creates a watertight solid from the isosurface. Question 46. The “Additive Manufacturing” constraint of overhang angle is most critical for which printing technology? A) Stereolithography (SLA) B) Fused Deposition Modeling (FDM) C) Selective Laser Sintering (SLS) D) All of the above Answer: D Explanation: All AM processes benefit from overhang control to reduce support material. Question 47. During the Solver Loop, a sudden increase in the change-in-mass metric indicates: A) Convergence has been reached B) The optimizer is diverging or stuck in a local optimum C) Mesh size is too coarse D. Material properties are invalid
Driven Generative Designer Professional
Certification Exam Preparation
Answer: B Explanation: Large changes suggest instability or lack of convergence. Question 48. Which of the following is a primary benefit of using “Virtual Links” instead of physical contacts in a generative design study? A) Faster solve times due to reduced non-linear contact calculations B) Ability to export as a solid body directly C. Automatic generation of manufacturing drawings D. Improved visual appearance Answer: A Explanation: Virtual links simplify the analysis, reducing computational cost. Question 49. In the context of IMA, “G2 continuity” ensures that: A) Surfaces meet at a sharp edge B) Curvature is continuous across surface patches C. Only vertex positions are matched D. The model is watertight Answer: B Explanation: G2 continuity preserves smooth curvature, essential for organic shapes. Question 50. When exporting a generative design for CNC milling, the most suitable file format is: A) .STL
