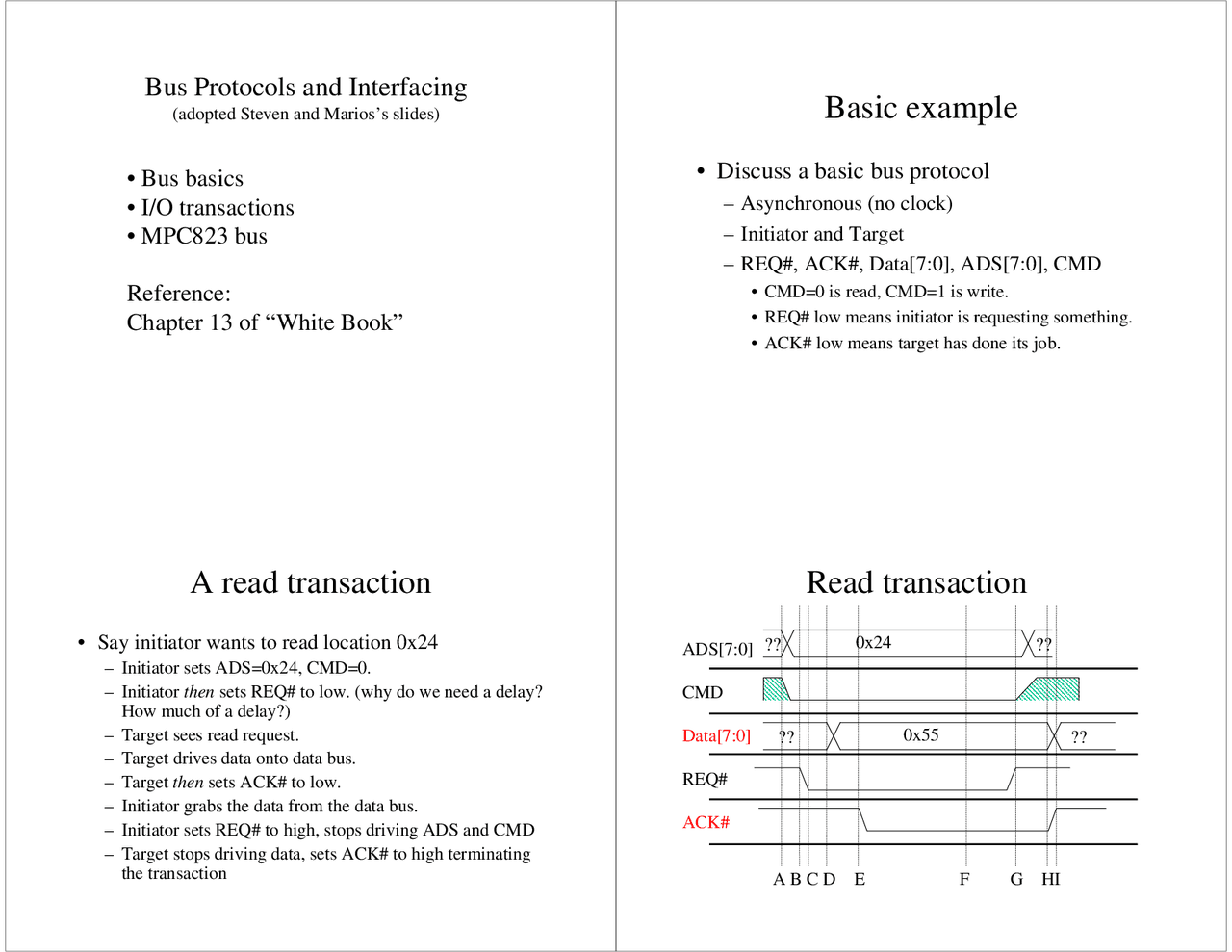

Bus Protocols and Interfacing
(adopted Steven and Marios’s slides)
• Bus basics• I/O transactions• MPC823 busReference:Chapter 13 of “White Book”
Basic example
• Discuss a basic bus protocol
- Asynchronous (no clock)– Initiator and Target– REQ#, ACK#, Data[7:0], ADS[7:0], CMD
- CMD=0 is read, CMD=1 is write.• REQ# low means initiator is requesting something.• ACK# low means target has done its job.
A read transaction
-^
Say initiator wants to read location 0x24– Initiator sets ADS=0x24, CMD=0.– Initiator
then
sets REQ# to low. (why do we need a delay?
How much of a delay?)
- Target sees read request.– Target drives data onto data bus.– Target
then
sets ACK# to low.
- Initiator grabs the data from the data bus.– Initiator sets REQ# to high, stops driving ADS and CMD– Target stops driving data, sets ACK# to high terminating
the transaction
Read transaction
ADS[7:0]CMD Data[7:0] REQ# ACK#
0x
0x
A B C D
E
F^
G
HI
A write transaction
(write 0xF4 to location 0x31)
- Initiator sets ADS=0x31, CMD=1, Data=0xF4– Initiator
then
sets REQ# to low.
- Target sees write request.– Target reads data from data bus. (Just has to store in a
register, need not write all the way to memory!)
then
sets ACK# to low.
- Initiator sets REQ# to high & stops driving other lines.– Target sets ACK# to high terminating the transaction
The push
button
(if ADS=0x04 write 0 or 1 depending on button)
ADS[0]ADS[1]ADS[2]ADS[3]ADS[4]ADS[5]ADS[6]ADS[7]REQ#
Button (0 or 1) 0
Data[0]^ .. .. .. .. .. Data[7]
Delay
ACK#
What aboutCMD?
The LED
(1 bit reg written by LSB of address 0x05)
ADS[0]ADS[1] ADS[2]ADS[3]ADS[4]ADS[5]ADS[6]ADS[7]REQ#
Flip-flopwhichcontrols LED
clock D
DATA[0]DATA[1] DATA[2]DATA[3]DATA[4]DATA[5]DATA[6]DATA[7]
Delay
ACK#
MPC823 Bus
The basic function of the MPC823 bus is similar, though slightlymore complicated. (Chapter 13 of “White Book”)• Timing is controlled by a global clock; all signals are in referenceto the rising edge of this clock.• 32-bit data bus D[0:31]• 26-bit address bus A[6:31]
- A[0:5] not sent off chip• On-chip peripherals still see 32 address bits
- Basic control lines:
- RD/#WR• #TS (transfer start)—like #REQ but only asserted on first
clock cycle of transaction
- #TA (transfer acknowledge)—like #ACK
MPC823 Write
CLK
A[6:31]D[0:31]RD/#WR
#TS #TA
A
D
A
D
write @ A
write @ A
•^
TSI[0:1]
- Specifies the size of the data to be transferred.
•^
DP[0:3]
•^
#Burst
- Indicates a burst transaction
•^
#BDIP
- Burst Data In Progress (more burst stuff)
•^
#BI
- Burst Inhibit. Indicates that the slave doesn’t support burst transactions -^
Many More…
Of course, things aren’t that simple
Example of complexity:
The Burst Mechanism (13.4.4)
•^
Burst transfers are used to move 16 bytes at a time
-^
#BURST must be asserted by master
-^
#BI must
not
be asserted by slave
•^
Must be a 16-byte aligned access
-^
Supports critical word first.
Arbitration
(page 13-28)
Requesting device
Arbiter
Request the bus •Assert #BR ACK bus mastership •Wait for #BB to be deasserted•Assert #BB•Negate #BR
Perform data transfer Release bus mastership •Negate #BB
Grant bus arbitration Assert #BG^ Terminate Arbitration^ Negate #BG
Transfer Alignment
0x
MPC823 external bus supports natural address alignment
- Byte access: Any address alignment• Half-word access: Address bit 31 equal to 0• Word access: Address bits 31 and 30 equal to 0
Dealing with Smaller Accesses: Reads
0x
Assume that the word value 0x12345678 is stored at 0x1000 andthat r4 contains 0x1000. What happens on the following transfers?
D[0:7]
D[8:15]
D[16:23]
D[24:31]
- lbz r3 , 0 (r4)• lbz r3 , 1 (r4)• lbz r3 , 2 (r4)• lbz r3 , 3 (r4)• lhz r3 , 0 (r4)• lhz r3 , 2 (r4)
Unaligned Accesses
0x
0x100_
Consider two adjacent 32-bit memory locations and assume thatr4 = 0x1000. What happens when the CPU executes thefollowing instructions?
r3 , 2 (r4)
r3 , 1 (r4)
Problems with Unaligned Accesses
What are some problems with unaligned accesses?
Basic bus issues
•^
What are the basic wires for specifying the transaction andmoving the data–
What are the types of transactions? How are they specified?– How is length of data transfer specified?
-^
Who can delay (insert wait states?)
-^
How is arbitration done?
-^
Out-of-order transfers allowed?–
Any restrictions?
-^
Error reporting?
-^
Weirdness?–
Alignment for example.
Transaction types
• Usually read/write with a length
- But in a given domain, other info might be
important.
- Data vs. Code access.• I/O vs. memory access• Hints to target device
- Length might be arbitrary.
Delaying
• Who can delay and how
- Usually a target (slave) can delay– Sometimes initiator (master) can delay– Sometimes initiator can drop the transaction– Sometimes the target has options on
how
to
delay.
Arbitration
-^
Fairness– Even sharing, priority sharing, weighted sharing
-^
Mechanism– Centralized arbiter– Distributed arbiter– Combination
-^
Duration– Until done– Until someone else requests– Until certain time passes.– Combination
Out-of-order
• Does the bus allow transactions to complete
out-of-order?– If so, can increase bandwidth (why?)– If so, might have to worry about ordering issues
- Memory consistency models not a topic for this
class (take EECS 570!) but basics are pretty easy tograsp
Out-of-order: Ordering problem
Processor 1
write I=1write J=
-^
Processor 2^ Write J=2Write I=
If both programs are executed in order, is there anysetting of J and I which is impossible?
