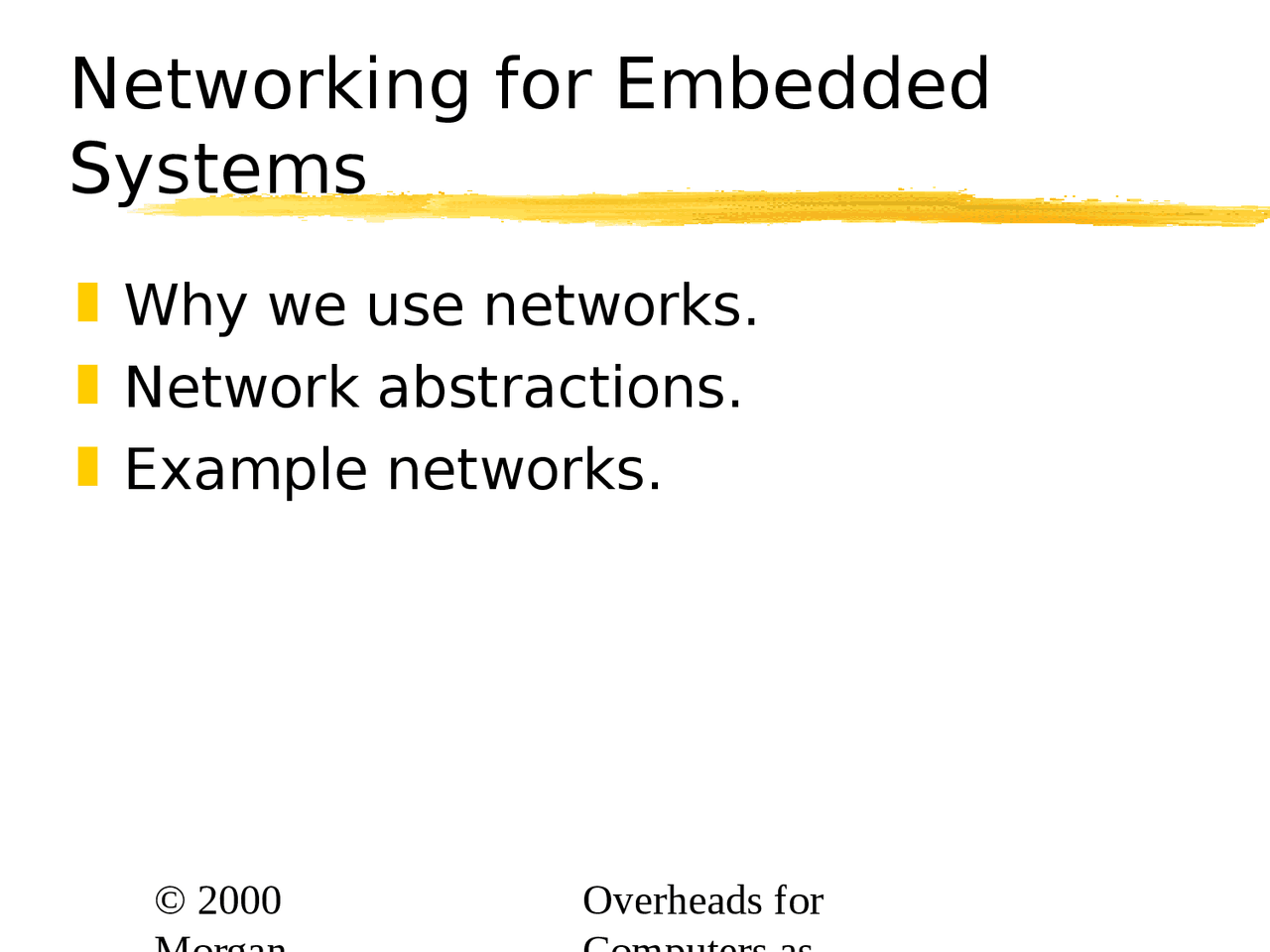

Networking for Embedded

Systems

 Why we use networks.

 Network abstractions.

 Example networks.

Network elements

PE

PE

PE

network

communication link

distributed computing platform:

PEs may be CPUs or ASICs.

Why distributed?

 Higher performance at lower cost.

 Physically distributed activities---time

constants may not allow transmission

to central site.

 Improved debugging---use one CPU in

network to debug others.

 May buy subsystems that have

embedded processors.

Network abstractions

 International Standards Organization

(ISO) developed the Open Systems

Interconnection (OSI) model to

describe networks:

 7-layer model.

 Provides a standard way to classify

network components and operations.

OSI layers

 Physical: connectors, bit formats, etc.

 Data link: error detection and control

across a single link (single hop).

 Network: end-to-end multi-hop data

communication.

 Transport: provides connections; may

optimize network resources.

OSI layers, cont’d.

 Session: services for end-user

applications: data grouping,

checkpointing, etc.

 Presentation: data formats,

transformation services.

 Application: interface between

network and end-user programs.

Point-to-point networks

 One source, one or more

destinations, no data switching

(serial port):

PE 1 PE 2 PE 3

link 1 (^) link 2

Bus networks

 Common physical connection:

PE 1 PE 2 PE 3 PE 4

header address data ECC packet format

Crossbar

• in1 in2 in3 in - out - out
  • out
  • out

Crossbar characteristics

 Non-blocking.

 Can handle arbitrary multi-cast

combinations.

 Size proportional to n^2.

Message-based programming

 Transport layer provides message-

based programming interface:

send_msg(adrs,data1);

 Data must be broken into packets at

source, reassembled at destination.

 Data-push programming: make things

happen in network based on data

transfers.

I^2 C bus

 Designed for low-cost, medium data

rate applications.

 Characteristics:

 serial;

 multiple-master;

 fixed-priority arbitration.

 Several microcontrollers come with

built-in I^2 C controllers.

I^2 C data format

SCL

SDL

start MSB

ack

I^2 C electrical interface

SDL

 Open collector interface: +

SCL
