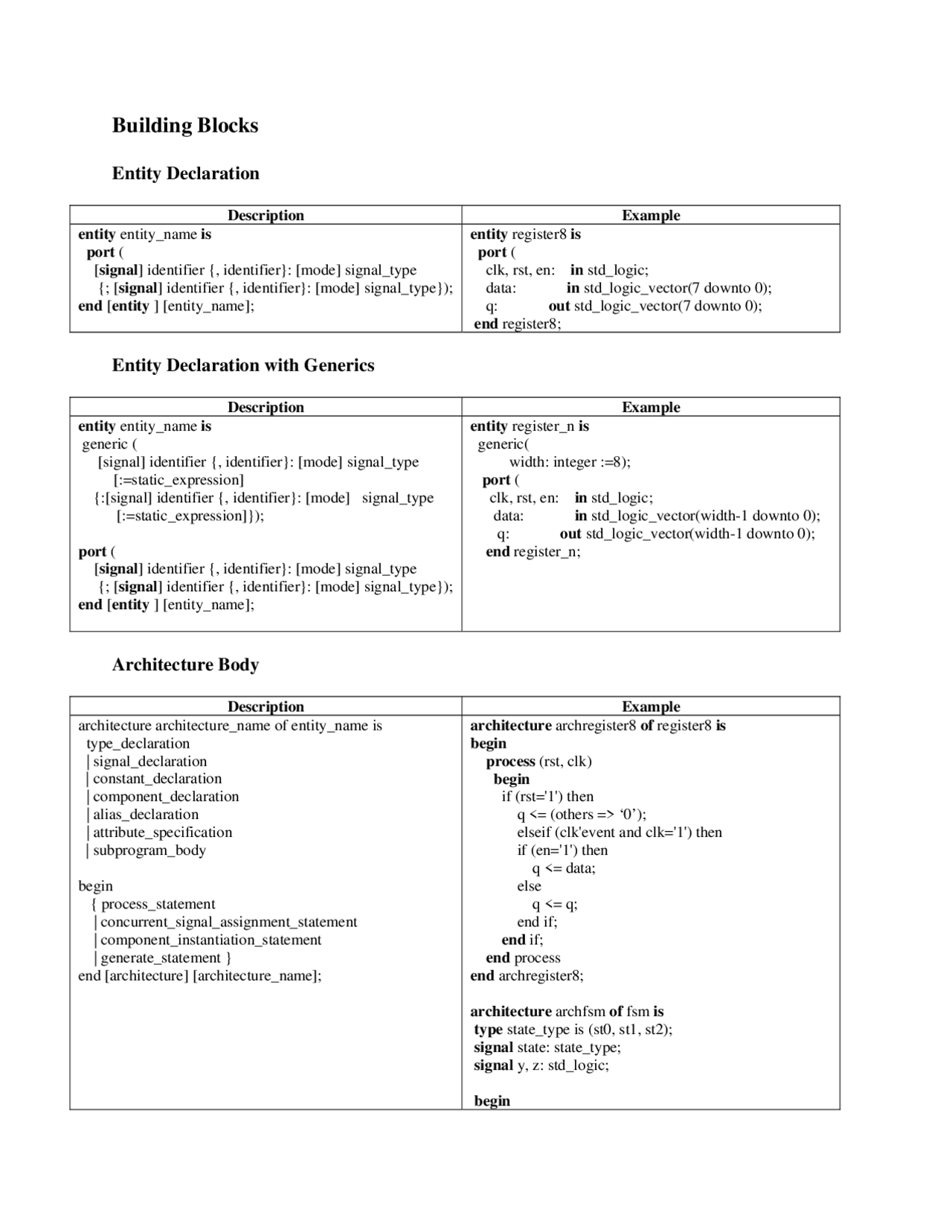

Building Blocks
Entity Declaration
Description Example entity entity_name is port ( [ signal ] identifier {, identifier}: [mode] signal_type {; [ signal ] identifier {, identifier}: [mode] signal_type}); end [ entity ] [entity_name];
entity register8 is port ( clk, rst, en: in std_logic; data: in std_logic_vector(7 downto 0); q: out std_logic_vector(7 downto 0); end register8;
Entity Declaration with Generics
Description Example entity entity_name is generic ( [signal] identifier {, identifier}: [mode] signal_type [:=static_expression] {:[signal] identifier {, identifier}: [mode] signal_type [:=static_expression]});
port ( [ signal ] identifier {, identifier}: [mode] signal_type {; [ signal ] identifier {, identifier}: [mode] signal_type}); end [ entity ] [entity_name];
entity register_n is generic( width: integer :=8); port ( clk, rst, en: in std_logic; data: in std_logic_vector(width-1 downto 0); q: out std_logic_vector(width-1 downto 0); end register_n;
Architecture Body
Description Example architecture architecture_name of entity_name is type_declaration | signal_declaration | constant_declaration | component_declaration | alias_declaration | attribute_specification | subprogram_body
begin { process_statement | concurrent_signal_assignment_statement | component_instantiation_statement | generate_statement } end [architecture] [architecture_name];
architecture archregister8 of register8 is begin process (rst, clk) begin if (rst='1') then q <= (others => ‘0’); elseif (clk'event and clk='1') then if (en='1') then q <= data; else q <= q; end if; end if; end process end archregister8;
architecture archfsm of fsm is type state_type is (st0, st1, st2); signal state: state_type; signal y, z: std_logic;
begin
process begin wait until clk’ = ‘1’; case state is when st0 => state <= st1;; y <= ‘1’; when st1 => state <= st2;; z <= ‘1’; when others => state <= st3;; y <= ‘0’; z <= ‘0’; end case ; end process; end archfsm;
Declaring a Component
Description Example component component _name port ( [signal] identifier {, identifier}: [mode] signal_type {; [signal] identifier {, identifier}: [mode] signal_type}); end component [component _name];
component register generic ( width: integer :=8); port ( clk, rst, en: in std_logic; data: in std_logic_vector(7 downto 0); q: out std_logic_vector(7 downto 0); end component ;
Declaring a Component with Generics
Description Example component component _name generic ( [signal] identifier {, identifier}: [mode] signal_type [:=static_expression] {:[signal] identifier {, identifier}: [mode] signal_type [:=static_expression]});
port ( [signal] identifier {, identifier}: [mode] signal_type {; [signal] identifier {, identifier}: [mode] signal_type}); end [component ] [component _name];
component register generic ( width: integer :=8); port ( clk, rst, en: in std_logic; data: in std_logic_vector(width-1 downto 0); q: out std_logic_vector(width-1 downto 0); end component ;
Component Instantiation (named association)
Description Example instantiation_label: component_name port map ( port_name => signal_name | expression | variable_name | open
architecture arch8 of reg8 is signal clock, reset, enable: std_logic; signal data_in, data_out: std_logic_vector(7 downto 0); begin First_reg8: register port map (
Component instantiation with Generics (positional association)
Description Example
instantiation_label: component_name generic map( signal_name| expression| variale_name|open {, signal_name | expression | variable_name | open}) port map (signal_name|expression |variable_name | open {, signal_name | expression| variable_name | open});
architecture archreg5 of reg5 is signal clock, reset, enable: std_logic; signal data_in , data_out: std_logic_vector( downto 0);
begin first_reg5: register_n generic map(5) port map (clock, reset, enable, data_in, data_out); end archreg5;
Concurrent statements
Boolean equations
Description Example
relation { and relation} |relation {or relation} |relation {xor relation} |relation {nand relation} |relation {nor relation}
v<= (a and b and c) or d;-- parenthesis req'd w/ 2- level logic w<= a or b or c; x<= a xor b xor c; y<= a nand b nand c; z<= a nor b nor c;
When-else conditional signal assignment
Description Example {expression when condition else} expression; x<= '1' when b = c else '0'; y<= j when state = idle else l when state = secon_state else m when others;
With-select-when Selected Signal Assignment
Description Example with selection_expression select {identifier<= expression when identifier| expression| discrete_range|others,} indentifier<= expression when indentifier |expression|discrete_range|others;
architecture archfsm of fsm is type state_type is ( st0, st1, st2, st3, st4, st5, st6, st7, st8); signal state: state_type; signal y,z: std_logic_vector(3 downto 0); begin with state select x<= "0000" when st0|st1; --st
"or" st "0010" when st2|st3; y when st4; z when others; end archfsm;
Generate scheme for component instantiation or equations
Description Example generate_label: (for identifier in discret_range) | ( if condition) generate {concurrent_statement} end generate[generate_label];
g1: for i in 0 to 7 generate reg1: register8 prot map( clock, reset, enable, data_in(i), data_out(i); end generate g1;
g2: for j in 0 to 2 generate a(j)<= b(j) xor c(j); end generate g2;
Sequential statements
Process statement
Description Example
process ( sensitivity_list) {type_declaration|constant_declaration| variable_declaration| alias_declaration}
begin { wait_statement| signal_assignment_statement| variable_assignment_statement|
if_statement|case_statement|loop_statement end process[process_label];
my_process; process(rst,clk) constant zilch: std_logic_vector(7 downto 0):= "0000_0000"; begin wait until clk = '1'; if (rst = '1') then q<= zilch; elsif (en = '1') then q<= data; else q<= q; end my_process;
If-then-else statement
Description Example if condition then sequence_of_statements {elsif condition then sequence_of_statements} [else sequence_of_statements] end if;
if (count = "00") then a<= b; elsif( count = "10") then a<=c; else a<=d; end if;
Synchronous Reset
Description Example [process_label:] process (clock) begin if clock’event and clock = ‘1’ then if synch_reset_signal = ‘1’ then synchronous_signal_assignment_statement; else synchronous_signal_assignment_statement; end if ; end if ; end process [process_label];
reg8_no_reset: process (clk) begin if clk’event and clk = ‘1’ then if synch_reset = ‘1’ then q <= “0000_0000”; else q <= data; end if; end if; end process;
Asynchronous Reset or Preset
Description Example [process_label:] process (reset, clock) begin if reset = ‘1’ then asynchronous_signal_assignment_statement; elsif clock’event and clock = ‘1’ then synchronous_signal_assignment_statement; end if ; end process [process_label];
reg8_async_reset: process (asyn_reset, clk) begin if asynch_reset = ‘1’ then q <= (others => ‘0’); elsif clk’event and clk = ‘1’ then q <= data; end if; end process reg8_async_reset ;
Asynchronous Reset and Preset
Description Example [process_label:] process (reset, preset, clock) begin if reset = ‘1’ then asynchronous_signal_assignment_statement; elsif preset = ‘1’ then synchronous_signal_assignment_statement; elsif clock’event and clock = ‘1’ then synchronous_signal_assignment_statement; end if ; end process [process_label];
reg8_async: process (asyn_reset,async_preset, clk) begin if asynch_reset = ‘1’ then q <= (others => ‘0’); els if asynch_preset = ‘1’ then q <= (others => ‘1’); elsif clk’event and clk = ‘1’ then q <= data; end if; end process reg8_async ;
Conditional Synchronous Assignment (enables)
Description Example [process_label:] process (reset,clock) begin if reset = ‘1’ then asynchronous_signal_assignment_statement; elsif clock’event and clock = ‘1’ then if enable = ‘1’ then
reg8_sync_assign: process (rst, clk) begin if rst = ‘1’ then q <= (others => ‘0’); elsif clk’event and clk = ‘1’ then if enable = ‘1’ then
synchronous_signal_assignment_statement; else synchronous_signal_assignment_statement; end if ; end if ; end process [process_label];
q <= data; else q <= q; end if; end if; end process reg8_sync_assign ;
bit and bit_vector
Description Example
- Bit values are: ‘0’ and ‘1.
- Bit vector is an array of bits.
- Pre-defined by the IEEE 1076 standard.
- This type was used extensi vely prior to the introduction and synthesis-tool vendor support of std_logic_1064.
- Useful when metalogic values not required.
signal x: bit;
... if x = ‘1’ then state <= idle; else state < = start; end if ;
Boolean
Description Example
- Values are true and false
- Often used as return values of function.
signal a: boolean;
... if a = ‘1’ then state <= idle; else state < = start; end if ;
Integer
Description Example
- Values are the set of integers.
- Data objects of this type are often used for defining widths of signals or as an operand in an addition or subtraction.
- The types std_logic_vector work better than integer for components such as counters because the use of integers may cause “out of range” run-time simulation errors when the counter reaches its maximum value.
Entity counter_n is Generic ( Width: integer := 8); port ( clk, rst: in std_logic; count: out std_logic_vector(width-1 downto 0)); end counter_n;
... Process (clk) Begin If (rst = ‘1’) then Count ,+ 0; Elsif (clk’event and clk = ‘1’) then Count End if;
<= count + 1;
End process ;
Enumeration Types
Description Example
- Values are user-defined.
- Commonly used to define states for a state machine.
architecture archfsm of fsm is type state_type is (st0, st1, st2); signal state: state_type; signal y, z: std_logic; begin process begin
Std_ulogic
Description Example
- Values are: 'U', -- Uninitialized 'X', -- Forcing unknown '0', -- Forcing 0 '1', -- Forcing 1 'Z', -- High impedance 'W', -- Weak unknown 'L', -- Weak 0 'H', -- Weak 1 '-', -- Don't care
- An unresolved type (i.e., a signal of this type may have only one driver).
- Along with its subtypes, std_ulogic should be used over user-defined types to ensure interoperability of VHDL models among synthesis and simulation tools.
- To use must include the following two lines: Library ieee; Use ieee.std_ilogic_1164.all;
signal x, data, enable: std_ulogic;
... x <= data when enable = ‘1’ else ‘Z’;
Std_logic_vector and std_ulogic_vector
Description Example
- Are arrays of type std_logic and std_ulogic.
- Along with its subtypes, std_logic_vector should be used over user defined types to ensure interoperability of VHDL models among synthesis and simulation tools.
- To use must include the following two lines: Library ieee; Use ieee.std_logic_1164.all;
signal mux: std_logic_vector(7 downto 0);
... if state = address or state = ras then mux <= dram_a; else mux <= ( others => 'Z'); end if ;
In, Out, Buffer, Inout
Description Example
- In: Used for signals (ports) that are inputs-only to an entity.
- Out: Used for signals that are outputs-only and for which the values are not required internal to the entity.
- Buffer: Used for signals that are outputs, but for which the alues are required internal to the given entity. Caveat with usage: If the local port of an instantiated component is of mode buffer, then if the actual is also a port, it must be of mode buffer as well. For this
entity dff_extra is port( D : in STD_LOGIC_vector(3 downto 0); clock : in STD_LOGIC; E : in STD_LOGIC; Q : out STD_LOGIC_vector(3 downto 0) ); end dff_extra;
architecture behavior of dff_extra is begin process(clock) begin if(clock = '1' and clock'EVENT) then if(E = '1') then Q <= D;
reason, some designers standardize on mode buffer as well.
- Inout: Used for signals that are truly bidirectional. May also be used for signals that are inputs- only or outputs, at the expense of code readability.
end if; end if; end process; -- enter your statements here --
end behavior;
Operator
All operators of the class have the same level of precedence. The classes of operators are listed here in order of the decreasing precedence. Many of the operators are overloaded in the std_logc_1164, numeric_bit, and nmeric_std packages.
Miscellaneous Operators
Description Example
- Operator: **, abs, not.
- The not operator is used frequently, the other two are rarely used for designs to be synthesized.
- Predefined for any integer type (, /, mod, rem), and any floating point type (,/).
variable a, b: integer range 0 to 255; … a <= b *2;
Sign
Description Example
- Operators: +, -.
- Rarely used for synthesis.
- Predefined for any numeric type (floating point or integer).
variable a, b, c: integer range 0 to 255; … b <= - (a + 5);
Adding Operators
Description Example
- Operators: +,-
- Used frequently to describe incrementers, decrementers, adders, and subtractors.
- Predefined for any numeric type.
signal count: integer range 0 to 255; … count <= count -5;
Shift Operators
Description Example
- Opertors: sll, srl, sla, sra, rol, ror.
- Used occasionally.
- Predefined for any one-dimesional array with elements of type bit or Boolean. Overloaded for std_logic arrays.
signal a, b: bit_vector(4 downto 0); signal c: integer range 0 to 4; … a <= b ror c;
