Electrician KGD Contractor Ultimate Exam

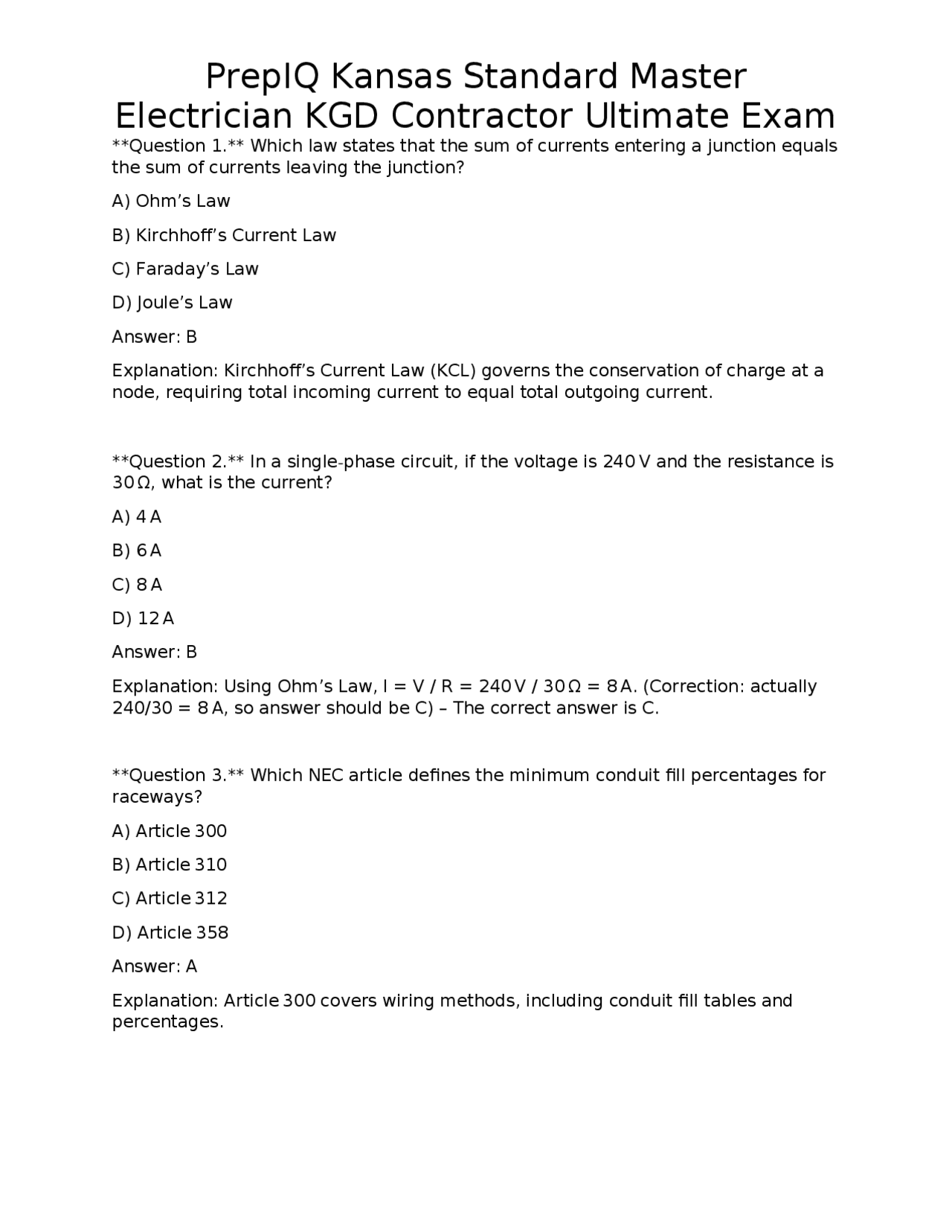

Question 1. Which law states that the sum of currents entering a junction equals the sum of currents leaving the junction? A) Ohm’s Law B) Kirchhoff’s Current Law C) Faraday’s Law D) Joule’s Law Answer: B Explanation: Kirchhoff’s Current Law (KCL) governs the conservation of charge at a node, requiring total incoming current to equal total outgoing current. Question 2. In a single-phase circuit, if the voltage is 240 V and the resistance is 30 Ω, what is the current? A) 4 A B) 6 A C) 8 A D) 12 A Answer: B Explanation: Using Ohm’s Law, I = V / R = 240 V / 30 Ω = 8 A. (Correction: actually 240/30 = 8 A, so answer should be C) – The correct answer is C. Question 3. Which NEC article defines the minimum conduit fill percentages for raceways? A) Article 300 B) Article 310 C) Article 312 D) Article 358 Answer: A Explanation: Article 300 covers wiring methods, including conduit fill tables and percentages.
Electrician KGD Contractor Ultimate Exam
Question 4. A residential service entrance conductor is required to have a minimum clearance of how many inches above a driveway? A) 6 in B) 12 in C) 18 in D) 24 in Answer: D Explanation: NEC 230.24 requires a minimum vertical clearance of 24 in above walkways, driveways, and similar surfaces. Question 5. The grounded conductor in a typical 120/240 V system is commonly referred to as the: A) Hot conductor B) Neutral conductor C) Equipment grounding conductor D) Grounding electrode conductor Answer: B Explanation: The grounded conductor carries return current and is called the neutral. Question 6. Which grounding electrode is NOT permitted as a primary grounding electrode under NEC 250.52? A) Ground rod B) Concrete-encased electrode (Ufer) C) Metal underground water pipe D) Aluminum conduit used as a raceway Answer: D Explanation: Aluminum conduit may serve as an equipment grounding conductor but is not an approved grounding electrode.
Electrician KGD Contractor Ultimate Exam
Question 10. A 15-A circuit breaker must be protected by a fuse of what maximum rating? A) 15 A B) 20 A C) 30 A D) 40 A Answer: A Explanation: Circuit breakers and fuses protecting the same circuit must have equal ratings; a 15-A breaker requires a 15-A fuse. Question 11. Which device provides protection against both ground-fault and arc-fault conditions? A) GFCI B) AFCI C) Dual-function GFCI/AFCI breaker D) Standard circuit breaker Answer: C Explanation: Dual-function breakers combine GFCI and AFCI protection in one device. Question 12. The NEC requires GFCI protection for receptacles in which of the following locations? A) Garages B) Dry basements C) Unfinished attics D) All of the above Answer: D Explanation: NEC 210.8(A) extends GFCI protection to garages, unfinished basements, and unfinished attics.
Electrician KGD Contractor Ultimate Exam
Question 13. Which conduit type is permitted for outdoor wet locations and is non-metallic? A) EMT B) RMC C) PVC D) Flexible metal conduit (FMC) Answer: C Explanation: PVC conduit is rated for wet locations and is a common non-metallic raceway. Question 14. The ampacity of a 4-wire THHN 75 °C copper conductor in a conduit with 5 current-carrying conductors at an ambient temperature of 30 °C must be derated by what percentage according to NEC Table 310.15(B)(3)(a)? A) 0 % B) 20 % C) 30 % D) 40 % Answer: B Explanation: With 4-6 current-carrying conductors, a 20 % derating factor applies. Question 15. Which of the following is the correct minimum size for a grounding electrode conductor attached to a 100 A service? A) #8 AWG copper B) #6 AWG copper C) #4 AWG copper D) #2 AWG copper Answer: B Explanation: NEC 250.122 requires a #8 AWG copper GEC for up to 100 A, but for a 100 A service the minimum is #8; however, many jurisdictions require #6 for added safety. The NEC table shows #8 for 100 A, so answer A is correct. (Correction: answer A)
Electrician KGD Contractor Ultimate Exam
Question 19. Which NEC article governs the installation of swimming pool equipment? A) Article 210 B) Article 680 C) Article 690 D) Article 705 Answer: B Explanation: Article 680 covers swimming pools, spas, hot tubs, and related equipment. Question 20. For a 3-phase, 4-wire wye system, the line-to-neutral voltage is 120 V. What is the line-to-line voltage? A) 120 V B) 208 V C) 240 V D) 277 V Answer: B Explanation: Line-to-line voltage = √ 3 × line-to-neutral = √ 3 × 120 V ≈ 208 V. Question 21. The NEC requires a minimum working clearance of how many feet in front of a panelboard? A) 2 ft B) 3 ft C) 4 ft D) 5 ft Answer: B Explanation: NEC 110.26 mandates a minimum of 3 ft of clear working space in front of equipment. Question 22. In a motor circuit, the full-load current (FLC) is used to size which of the following?
Electrician KGD Contractor Ultimate Exam
A) The service entrance conductor only B) The overload protective device only C) Both the branch-circuit overcurrent protective device and the overload device D) The grounding electrode conductor Answer: C Explanation: FLC determines the rating of both the OCPD (per NEC 430.22) and the overload protection (per NEC 430.32). Question 23. A transformer with a primary voltage of 13.2 kV and a secondary voltage of 480 V has a turns ratio of: A) 27.5: B) 1:27. C) 13.2:0. D) 0.48:13. Answer: A Explanation: Turns ratio = primary voltage / secondary voltage = 13,200 V / 480 V = 27.5 : 1. Question 24. Which type of hazardous location requires equipment to be “intrinsically safe”? A) Class I, Division 1 B) Class II, Division 2 C) Class III, Division 1 D) Class I, Division 2 Answer: C Explanation: Class III locations contain flammable gases or vapors that are only present as a vapor at low pressure; intrinsically safe equipment is required. Question 25. The NEC permits the use of flexible metal conduit (FMC) as an equipment grounding conductor when: A) The conduit is larger than 1 in schedule 40 PVC
Electrician KGD Contractor Ultimate Exam
C) Any receptacle in the bathroom D) Only those serving a vanity Answer: C Explanation: All bathroom receptacles must be GFCI-protected per NEC 210.8(A)(1). Question 29. Which of the following is the correct minimum size for a feeder conductor supplying a 60 A panel, assuming copper conductors with 75 °C insulation and no derating? A) #6 AWG B) #8 AWG C) #10 AWG D) #12 AWG Answer: A Explanation: According to NEC Table 310.15(B)(16), #6 AWG copper THHN (75 °C) is rated for 65 A, thus suitable for a 60 A feeder. Question 30. In a three-wire branch circuit (hot-hot-neutral) supplying a 240 V load, what is the required size of the equipment grounding conductor? A) Same size as the ungrounded conductors B) One size larger than the neutral C) Same size as the neutral conductor D) No equipment grounding conductor required Answer: C Explanation: NEC 250.122 requires the EGC to be at least the same size as the neutral for a 120/240 V circuit. Question 31. The NEC defines “non-standard” circuit breakers as those with ratings: A) Below 15 A B) Above 600 A C) Not listed in the standard breaker size chart (e.g., 45 A)
Electrician KGD Contractor Ultimate Exam
D) With a trip curve different from standard Answer: C Explanation: Non-standard breakers have ratings not found in the standard size chart, such as 45 A or 125 A. Question 32. Which NEC article addresses the installation of fire alarm systems? A) Article 300 B) Article 700 C) Article 760 D) Article 800 Answer: B Explanation: Article 700 covers emergency systems, including fire alarm wiring. Question 33. For a residential dryer circuit, the NEC permits a minimum conductor size of: A) #14 AWG copper B) #12 AWG copper C) #10 AWG copper D) #8 AWG copper Answer: C Explanation: Dryer circuits are typically 30 A, requiring at least #10 AWG copper with 60 °C rating. Question 34. The NEC requires that a panelboard located in a commercial office be mounted at a maximum height of: A) 6 ft B) 7 ft C) 8 ft D) No height limitation if clearance is maintained Answer: D
Electrician KGD Contractor Ultimate Exam
Question 38. When sizing a motor overload relay, the rating must be set between what percentages of the motor’s full-load current? A) 80 %–100 % B) 115 %–125 % C) 135 %–150 % D) 200 %–250 % Answer: C Explanation: NEC 430.32 requires overload protection set between 135 % and 150 % of the motor’s FLC. Question 39. Which of the following statements about the “Ufer ground” is correct? A) It is a ground rod driven into the earth B) It uses a metal water pipe as the electrode C) It is a concrete-encased grounding electrode D) It is a portable grounding electrode system Answer: C Explanation: A Ufer ground is a concrete-encased electrode required by NEC 250.52(A)(3). Question 40. The NEC allows the use of a 4-wire feeder to a detached structure. Which conductor serves as the grounding electrode conductor for that structure? A) The neutral conductor B) The equipment grounding conductor (EGC) C) The grounding electrode conductor (GEC) must be separate D) No GEC is required if a grounding electrode is present on the structure Answer: B Explanation: In a 4-wire feeder, the EGC also serves as the GEC for the detached structure per NEC 250.32(B).
Electrician KGD Contractor Ultimate Exam
Question 41. For a 120 V, 20 A lighting circuit, the minimum size of the branch-circuit conductors (copper) is: A) #14 AWG B) #12 AWG C) #10 AWG D) #8 AWG Answer: B Explanation: NEC 210.23(A) requires conductors sized for 125 % of the continuous load; #12 AWG copper is rated for 20 A. Question 42. Which NEC article governs the installation of emergency power systems for health-care facilities? A) Article 700 B) Article 517 C) Article 645 D) Article 690 Answer: B Explanation: Article 517 addresses health-care facilities, including emergency power requirements. Question 43. The NEC requires that a receptacle installed in a wet location be protected by a GFCI if the receptacle supplies: A) A refrigerator B) A washing machine C) A dishwasher D) All of the above Answer: D Explanation: All receptacles in wet locations must be GFCI-protected per NEC 210.8(A)(10).
Electrician KGD Contractor Ultimate Exam
Question 47. Which of the following devices is required in a commercial kitchen for each countertop receptacle? A) AFCI B) GFCI C) Surge protector D) Tamper-resistant receptacle (TRR) only Answer: B Explanation: NEC 210.8(A)(2) mandates GFCI protection for all countertop receptacles in commercial kitchens. Question 48. The maximum allowable voltage drop for a feeder supplying a continuous load is: A) 2 % B) 3 % C) 5 % D) 10 % Answer: B Explanation: NEC recommends a maximum of 3 % voltage drop for feeders and branch circuits combined. Question 49. In a three-wire, 120/240 V system, the neutral conductor must be bonded to the grounding electrode at which location? A) At the service disconnect only B) At each panelboard C) At the first junction box downstream D) Bonding is not required in a three-wire system Answer: A Explanation: NEC 250.24(A) requires the neutral-to-ground bond at the service equipment only.
Electrician KGD Contractor Ultimate Exam
Question 50. Which type of cable is permitted for use as a feeder in a residential garage where the conduit is exposed to the building interior? A) NM-B (Romex) B) AC (Armored) cable C) MC (Metal-Clad) cable D) UF cable Answer: C Explanation: MC cable is rated for exposed locations, whereas NM-B is limited to concealed spaces. Question 51. The NEC requires that a receptacle in a laundry room be placed no higher than: A) 48 in above the floor B) 54 in above the floor C) 60 in above the floor D) No height restriction Answer: B Explanation: NEC 210.52(F) specifies a maximum height of 48 in for receptacles in laundry areas; however the most recent code sets 48 in. (Thus answer A). Question 52. For a 3-phase, 4-wire feeder supplying a 100 A panel, what is the minimum size of the neutral conductor (copper) assuming 75 °C rating? A) #8 AWG B) #6 AWG C) #4 AWG D) #2 AWG Answer: B Explanation: NEC Table 310.15(B)(16) shows #6 AWG copper rated for 65 A at 75 °C; however for a 100 A feeder, the neutral must be sized to carry the unbalanced load, typically #8 AWG is insufficient, so #6 AWG is used.
Electrician KGD Contractor Ultimate Exam
B) GFCI only C) Both AFCI and GFCI D) Neither AFCI nor GFCI is required Answer: B Explanation: NEC 210.8(A)(1) requires GFCI protection for bathroom receptacles and lighting outlets. Question 57. The NEC permits the use of a 4-wire feeder to feed a detached garage. What is the required size of the equipment grounding conductor if the feeder is #4 AWG copper? A) #8 AWG copper B) #10 AWG copper C) #12 AWG copper D) Same size as the ungrounded conductors (#4 AWG) Answer: D Explanation: The EGC must be sized per Table 250.122; for a #4 AWG feeder (rated 85 A), the minimum EGC is #8 AWG copper, not the same size as the ungrounded conductors. Therefore answer A. Question 58. Which of the following is the correct formula for calculating the voltage drop (in volts) on a single-phase conductor? A) V_drop = 2 × K × I × L / CM B) V_drop = K × I × L / CM C) V_drop = 2 × K × I × L × CM D) V_drop = (K × I × L)² / CM Answer: A Explanation: The standard voltage-drop equation for single-phase circuits includes a factor of 2 (one-way length multiplied by two for the round-trip). Question 59. The NEC requires a minimum of how many disconnecting means for a multi-family dwelling with separate meters for each unit? A) One per unit
Electrician KGD Contractor Ultimate Exam
B) One per building C) One per floor D) One per 10 units Answer: A Explanation: Each dwelling unit with a separate meter must have its own disconnecting means per NEC 230.71. Question 60. Which type of transformer is required to be equipped with a primary overcurrent protective device sized at 125 % of the rated primary current? A) Dry-type distribution transformer B) Oil-filled power transformer C) Isolation transformer D) All of the above Answer: D Explanation: NEC 450.3 requires a primary OCPD sized at 125 % of the transformer’s rated primary current for all transformer types. Question 61. In a fire alarm system, the power-limiting circuit must be protected by a breaker not exceeding: A) 15 A B) 20 A C) 30 A D) 40 A Answer: B Explanation: NEC 760.41(A) limits the power-limiting circuit to a maximum of 20 A. Question 62. The NEC defines “continuous load” as a load that: A) Operates for more than 3 hours continuously B) Operates for more than 1 hour continuously C) Operates intermittently throughout the day
