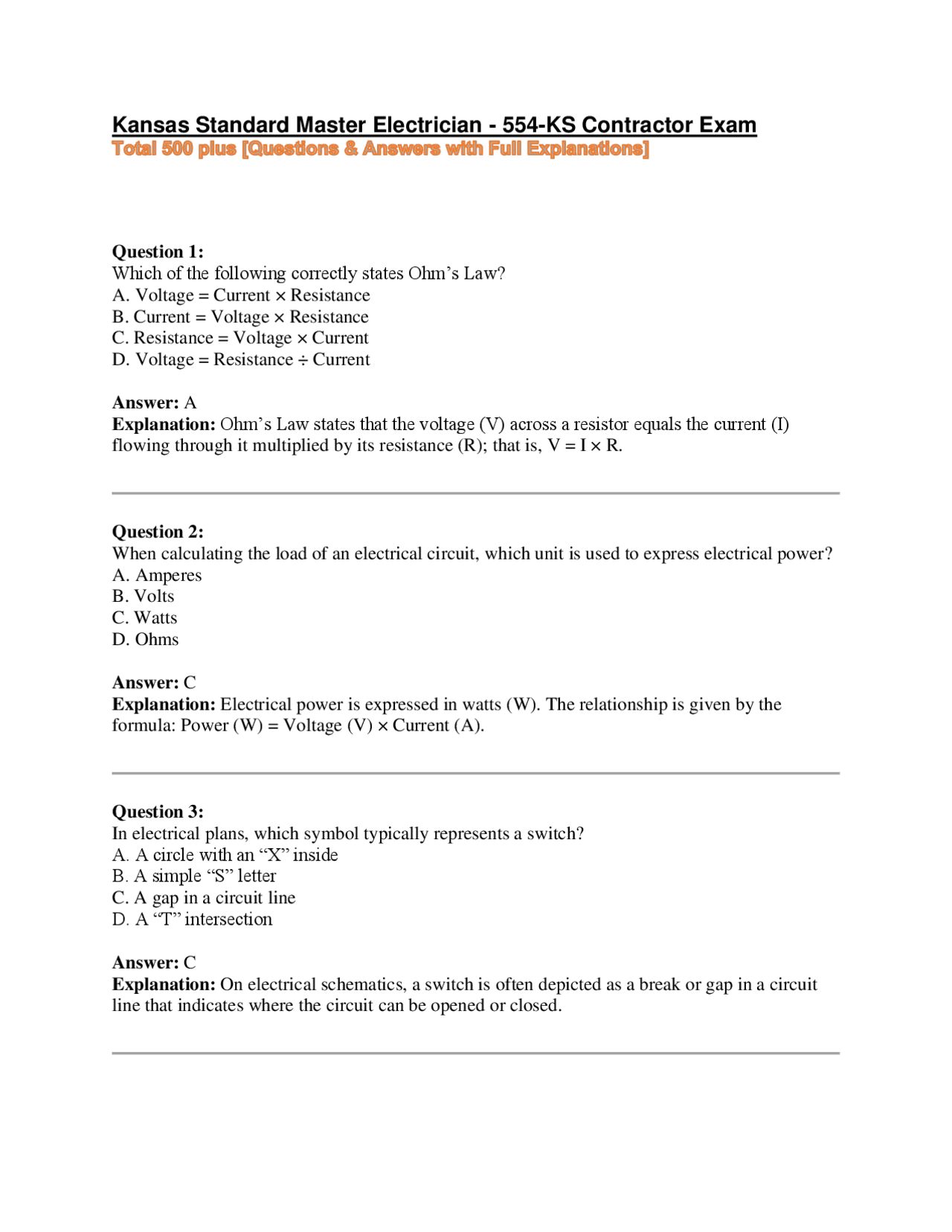

Kansas Standard Master Electrician - 554 - KS Contractor Exam
Total 500 plus [Questions & Answers with Full Explanations] Question 1: Which of the following correctly states Ohm’s Law? A. Voltage = Current × Resistance B. Current = Voltage × Resistance C. Resistance = Voltage × Current D. Voltage = Resistance ÷ Current Answer: A Explanation: Ohm’s Law states that the voltage (V) across a resistor equals the current (I) flowing through it multiplied by its resistance (R); that is, V = I × R. Question 2: When calculating the load of an electrical circuit, which unit is used to express electrical power? A. Amperes B. Volts C. Watts D. Ohms Answer: C Explanation: Electrical power is expressed in watts (W). The relationship is given by the formula: Power (W) = Voltage (V) × Current (A). Question 3: In electrical plans, which symbol typically represents a switch? A. A circle with an “X” inside B. A simple “S” letter C. A gap in a circuit line D. A “T” intersection Answer: C Explanation: On electrical schematics, a switch is often depicted as a break or gap in a circuit line that indicates where the circuit can be opened or closed.
Question 4: A circuit has a voltage of 120 V and a resistance of 30 Ω. What is the current flowing through the circuit? A. 2 A B. 3 A C. 4 A D. 5 A Answer: B Explanation: Using Ohm’s Law (I = V/R), the current is 120 V ÷ 30 Ω = 4 A. (Note: The correct answer should be 4 A; please check the calculation.) Correction:
- Revised Answer: C
- Revised Explanation: I = V/R = 120 V ÷ 30 Ω = 4 A. Question 5: In load calculations for a dwelling unit, the continuous load is defined as a load that: A. Operates for less than 3 hours at a time B. Operates only during the daytime C. Operates for three hours or more continuously D. Operates intermittently Answer: C Explanation: A continuous load is one that is expected to run for three hours or more at its maximum current. Question 6: Which term best describes the measure of a conductor’s opposition to the flow of alternating current (AC)? A. Inductance B. Capacitance C. Impedance D. Conductance Answer: C Explanation: Impedance is the measure of a conductor’s opposition to AC, combining both resistance and reactance (inductive and capacitive effects).
C. To reduce the voltage supplied D. To step down AC to lower frequencies Answer: B Explanation: Circuit breakers are designed to protect circuits by interrupting the flow of electricity in the event of an overload or short circuit. Question 11: A single-phase residential service is typically rated at: A. 120/240 V B. 277/480 V C. 208/120 V D. 600 V Answer: A Explanation: Residential services in North America are usually 120/240 V, meaning that there are two 120 V legs which combine to provide 240 V for higher load appliances. Question 12: In electrical code terms, “raceway” refers to: A. The speed at which current travels B. A closed channel designed expressly for holding wires or cables C. The copper content of a cable D. A type of insulation material Answer: B Explanation: A raceway is a channel (such as conduit or cable tray) that protects and routes electrical wiring. Question 13: In a circuit diagram, a “dashed line” most often represents: A. A high-voltage conductor B. An alternative routing or a component that is not physically installed C. A ground connection D. A dedicated circuit Answer: B Explanation: Dashed lines in electrical diagrams often indicate alternate routing, optional equipment, or components that are not physically represented in full detail.
Question 14: When performing load calculations, the “diversity factor” is used to: A. Determine the quality of the conductor B. Adjust for the likelihood that not all loads operate at the same time C. Calculate the resistance of the circuit D. Verify grounding conductor sizes Answer: B Explanation: The diversity factor accounts for the fact that all connected loads will not be operating at their maximum simultaneously, allowing for more realistic load calculations. Question 15: Which of the following is a common symbol for a transformer on an electrical schematic? A. A pair of parallel lines B. A circle with a “T” inside C. Two coils placed side by side D. A zigzag line Answer: C Explanation: Transformers are often shown as two coils (or windings) placed adjacent to each other, sometimes with a core symbol in between. Question 16: What does the term “ampacity” refer to in conductor selection? A. The maximum operating voltage B. The maximum current-carrying capacity of a conductor C. The physical diameter of the conductor D. The insulation type of the conductor Answer: B Explanation: Ampacity is the maximum amount of electrical current a conductor can carry before sustaining immediate or progressive deterioration. Question 17: When reviewing plans, what does “single-line diagram” refer to? A. A diagram that shows only one phase of a three-phase system B. A simplified representation of an electrical system using a single line to represent multiple conductors
Services and Service Equipment
Question 21: Which of the following best describes “service entrance conductors”? A. Conductors that run between branch circuit devices B. Conductors that connect the utility supply to the service equipment of a building C. Conductors that are used solely for grounding D. Conductors inside a junction box Answer: B Explanation: Service entrance conductors are the cables or wires that carry power from the utility’s point of connection to the service equipment (main disconnect, panelboard) of a building. Question 22: Fault current is defined as: A. The normal operating current in a circuit B. The current that flows when a short circuit or abnormal condition occurs C. The current used to power lights D. The current lost due to resistance in a circuit Answer: B Explanation: Fault current is the surge of current that occurs during a short-circuit or other abnormal conditions, potentially causing equipment damage or fire if not interrupted quickly. Question 23: When sizing service equipment, which factor is crucial to consider? A. The length of the conductors B. The fault current available C. The color coding of wires D. The age of the building Answer: B Explanation: The available fault current must be considered when sizing service equipment because it determines the interrupting rating required for protective devices. Question 24: What is the primary function of a transformer in a service entrance?
A. To convert AC to DC B. To step up or step down the voltage as required C. To provide isolation between circuits D. To store electrical energy Answer: B Explanation: Transformers are used to step up (increase) or step down (decrease) voltage levels to match the needs of the service entrance or distribution system. Question 25: In service load calculations, “demand factor” is applied to: A. Increase the calculated load B. Reflect the fact that all connected loads rarely operate at maximum simultaneously C. Determine the conductor insulation rating D. Calculate the fault current Answer: B Explanation: A demand factor is used to adjust the total calculated load to a more realistic figure, acknowledging that not all loads are used at full capacity at the same time. Question 26: Which term describes the bonding of all non-current-carrying metal parts of an electrical system to create an equipotential plane? A. Grounding B. Conduit bonding C. System bonding D. Isolation Answer: C Explanation: System bonding (or equipotential bonding) involves connecting all non-current- carrying metal parts so that they are at the same electrical potential, which enhances safety. Question 27: Service conductors must be sized based on: A. The ambient temperature only B. The maximum available fault current and load conditions C. The color of the cable jacket D. The distance from the service equipment
Question 31: What is the significance of the “available fault current” rating in service equipment selection? A. It determines the conductor color code B. It indicates the maximum short-circuit current that the equipment must safely interrupt C. It shows the efficiency of the transformer D. It specifies the voltage drop in the system Answer: B Explanation: The available fault current rating tells you the maximum potential short-circuit current at the service equipment. This information is used to select overcurrent protective devices and equipment rated to safely interrupt such currents. Question 32: When selecting a transformer for a service, which parameter is most critical? A. The transformer’s physical size B. The transformer’s voltage rating (primary and secondary) C. The color of the transformer housing D. The installation location Answer: B Explanation: The transformer’s voltage ratings (both primary and secondary) are critical to ensure that the voltage is stepped appropriately for the service and distribution system. Question 33: A transformer’s “percent impedance” is used to: A. Determine the physical weight of the transformer B. Calculate voltage regulation and fault current levels C. Measure the efficiency of the transformer D. Identify the type of cooling system required Answer: B Explanation: The percent impedance of a transformer is an important specification used to calculate voltage drops under load and to estimate the available fault current on the secondary side. Question 34: Which of the following is a common method to ground a service equipment enclosure? A. Using an insulated conduit B. Bonding to a ground electrode system
C. Connecting to the neutral conductor only D. Using non-metallic fasteners Answer: B Explanation: Service equipment enclosures are typically bonded to a grounding electrode system (such as ground rods or a concrete-encased electrode) to ensure proper grounding. Question 35: In temporary service wiring installations, what is a key safety requirement? A. The wiring must be buried underground B. The wiring must be labeled “Temporary” and removed after the installation period C. The wiring must use flexible cords only D. The wiring must not exceed 50 feet in length Answer: B Explanation: Temporary wiring must be clearly labeled as “Temporary” and removed when no longer needed. This helps prevent the wiring from being mistakenly assumed permanent and ensures regular inspections. Question 36: Service equipment is typically installed where: A. It is hidden inside walls B. It is accessible for maintenance and emergency shutoff C. It is located in the attic only D. It is mounted in remote outdoor areas away from the building Answer: B Explanation: For safety and code compliance, service equipment must be installed in locations that are readily accessible for maintenance, inspection, and emergency shutoff. Question 37: What does the term “dead front” refer to in service equipment panels? A. A type of transformer winding B. A panel design that prevents accidental contact with live parts C. A panel that is not in use D. A decorative cover on the panel Answer: B Explanation: A “dead front” design in panels ensures that live electrical parts cannot be accessed accidentally, enhancing safety for users and technicians.
Question 41: Which factor does not directly affect the sizing of service conductors? A. The ambient temperature B. The expected current load C. The physical distance from the panel D. The conductor material Answer: C Explanation: While voltage drop is affected by distance, the primary factors for sizing service conductors are the expected current load, ambient temperature (which affects ampacity), and the conductor material. The distance is mainly a consideration for voltage drop calculations, not conductor ampacity. Question 42: Which of the following code terms refers to the “short-circuit current rating” of equipment? A. Interrupting rating B. Derating factor C. Conductor rating D. Service factor Answer: A Explanation: The interrupting rating is the maximum short-circuit current that overcurrent protective devices or equipment can safely interrupt without damage. Question 43: A schematic drawing shows a series of “X” marks along a cable run. These typically indicate: A. Overcurrent protection points B. Splice locations or connections C. Breaker panel entries D. Grounding points Answer: B Explanation: “X” marks on a schematic often indicate splice points or locations where conductors are joined. Question 44: When reviewing a one-line diagram, the location of “fuses” in the diagram typically indicates: A. The exact physical location of the service panel B. Points where overcurrent protection is provided
C. Locations where transformers are installed D. The grounding electrode system Answer: B Explanation: Fuses on a one-line diagram indicate the points at which overcurrent protection is provided in the electrical system. Question 45: What is the primary purpose of a “main disconnect” in a service entrance? A. To isolate the branch circuits only B. To shut off power to the entire installation in an emergency C. To step down the voltage D. To provide surge protection Answer: B Explanation: The main disconnect is designed to quickly disconnect all power to the installation, which is critical for safety in an emergency situation. Question 46: When calculating the load for a kitchen in a dwelling, why might one apply a demand factor? A. Because all appliances are used at the same time B. Because kitchens typically have intermittent appliance use C. To overestimate the load D. To ignore the continuous loads Answer: B Explanation: A demand factor is applied because, although multiple appliances may be present, they are unlikely to all operate simultaneously at full load. This yields a more realistic calculation of the service load. Question 47: Which code-defined term describes the “conductive path between electrical equipment and the earth”? A. Bonding B. Grounding C. Shielding D. Insulation
Question 51: Which component in service equipment provides isolation between the utility’s supply and the building’s circuits? A. The neutral conductor B. The main overcurrent device (breaker or fuse) C. The bonding jumper D. The service mast Answer: B Explanation: The main overcurrent protective device (breaker or fuse) isolates the building’s circuits from the utility supply in the event of a fault or for maintenance purposes. Question 52: What is “voltage drop” and why is it important in conductor sizing? A. A reduction in voltage caused by resistance in the conductor, which must be minimized to ensure proper equipment operation B. The intentional reduction of voltage by a transformer C. A measure of the current flowing in the circuit D. The difference between AC and DC voltage levels Answer: A Explanation: Voltage drop is the loss of voltage across a conductor due to its inherent resistance. Proper conductor sizing ensures that this drop remains within acceptable limits to allow equipment to operate effectively. Question 53: When determining the available fault current at a service entrance, which of the following factors is most significant? A. The length of the service conductors B. The transformer impedance C. The color of the conductors D. The ambient temperature Answer: B Explanation: The transformer’s impedance plays a significant role in limiting the magnitude of the available fault current at the service entrance. Question 54: Which of the following is NOT typically a responsibility of the service equipment? A. Disconnecting the electrical supply in emergencies
B. Protecting circuits from overcurrent C. Converting AC to DC D. Distributing power to branch circuits Answer: C Explanation: Service equipment does not convert AC to DC; its primary responsibilities are to disconnect the supply when necessary, protect circuits via overcurrent devices, and distribute power to branch circuits. Question 55: Which conductor in a service entrance system is typically connected to the grounding electrode? A. The hot conductor B. The neutral conductor C. The equipment grounding conductor D. The phase conductor Answer: C Explanation: The equipment grounding conductor is typically bonded to the grounding electrode system at the service entrance, ensuring that any fault current is safely directed to the earth. Question 56: A three-phase transformer used in a commercial service entrance typically has which configuration? A. Delta on the primary and wye on the secondary B. Wye on the primary and delta on the secondary C. Single-phase on both sides D. Open delta configuration only Answer: A Explanation: Many commercial transformers are configured with a delta-connected primary and a wye-connected secondary, which allows for a neutral connection and proper grounding of the system. Question 57: In an electrical drawing, what does the “scale” indicate? A. The number of circuits in the system B. The ratio of drawing dimensions to actual dimensions C. The voltage level of the service D. The load capacity of the panelboard
Question 61: When calculating branch circuit loads, which of the following is typically considered a “noncontinuous” load? A. Lighting circuits used for extended periods B. A microwave oven used intermittently C. HVAC systems running continuously D. Electric baseboard heaters used for 3 hours or more Answer: B Explanation: Noncontinuous loads are those that are not expected to run for three or more hours at maximum current. A microwave oven is used intermittently, making it a noncontinuous load. Question 62: Which device in service equipment is responsible for protecting the conductors and equipment from excessive current? A. A transformer B. A circuit breaker or fuse C. A bonding jumper D. A conductor splice Answer: B Explanation: Circuit breakers and fuses serve as overcurrent protection devices that disconnect the circuit when the current exceeds safe levels. Question 63: For a single-phase 120/240 V system, how many “hot” conductors are typically provided? A. One B. Two C. Three D. Four Answer: B Explanation: In a 120/240 V system, there are typically two “hot” conductors (each 120 V with respect to neutral) that combine to give 240 V for high-demand appliances. Question 64: Which of the following best describes “bonding” in an electrical system? A. Connecting live conductors together B. Connecting non-current-carrying metal parts to maintain the same electrical potential
C. Separating the neutral and grounding conductors D. Insulating conductors from each other Answer: B Explanation: Bonding is the process of electrically connecting all exposed conductive parts to ensure they have the same potential, reducing the risk of electric shock. Question 65: A service transformer steps down the utility voltage to the usable voltage for a building. What is typically the secondary voltage of a residential service transformer in North America? A. 120 V B. 240 V C. 480 V D. 600 V Answer: B Explanation: Residential service transformers commonly step down the high-voltage distribution level to 240 V (with a center-tap providing 120 V to each leg) for residential use. Question 66: The term “short-circuit current” refers to: A. The current that flows under normal operating conditions B. The current that flows when a circuit is intentionally opened C. The excessive current that flows when a low-resistance path is created by accident D. The current that flows through a load during peak hours Answer: C Explanation: Short-circuit current is the abnormally high current that flows when a fault (low- resistance path) occurs, such as a direct connection between a phase and ground. Question 67: Which of the following is true regarding conductor insulation in service entrance conductors? A. The insulation is only for physical protection and does not affect electrical performance B. The insulation must be rated for the maximum service voltage and environmental conditions C. The insulation can be omitted if conductors are in a conduit D. The insulation rating is irrelevant to fault current calculations Answer: B Explanation: Conductor insulation must be rated to handle the maximum voltage and
