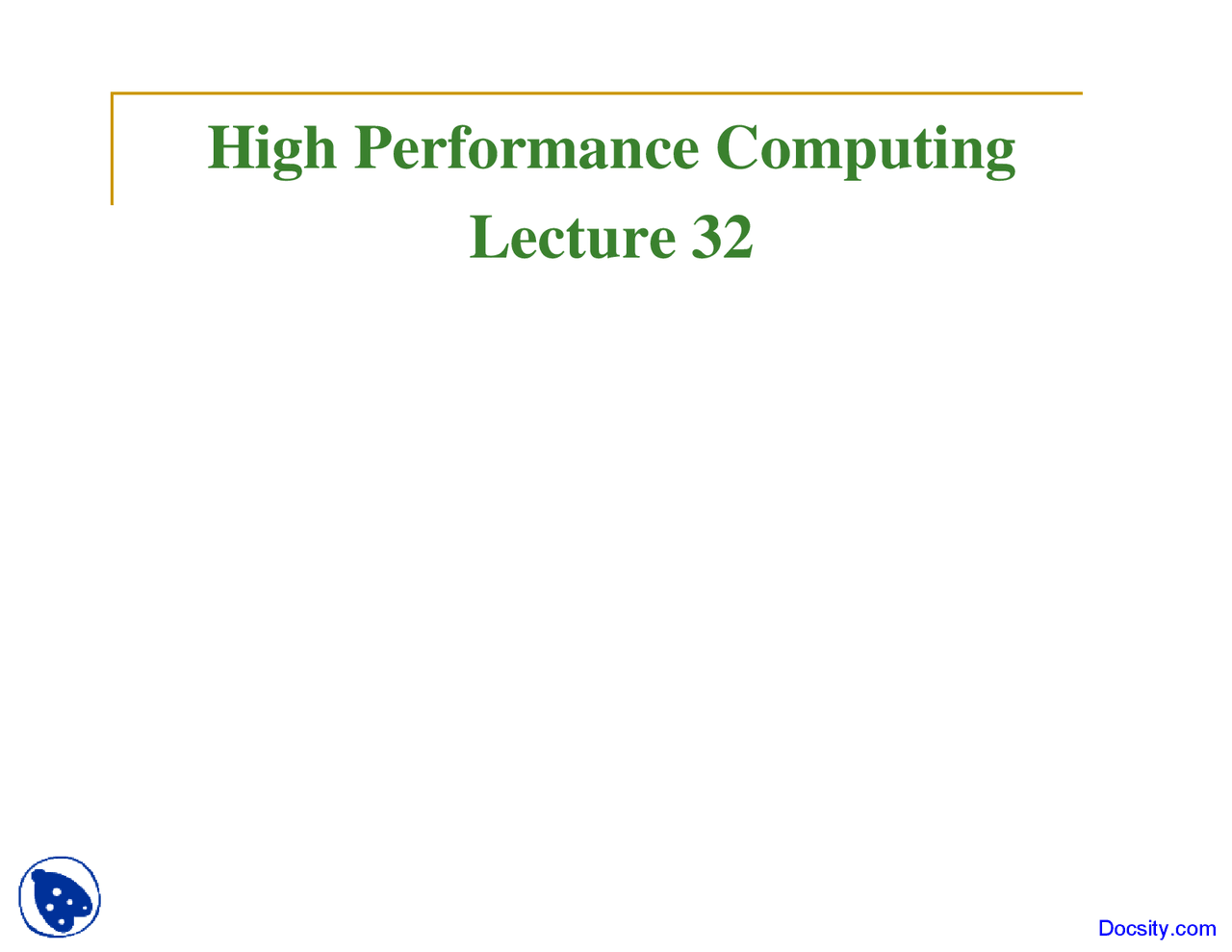

High Performance Computing

Lecture 32

2

Reality Check

 Question 1: Are real caches built to work on

virtual addresses or physical addresses?

 Question 2: Do modern processors use

pipelining of the kind that we studied?

4

Which is less preferable?

 Physical addressed cache

 Hit time higher (cache access after translation)

 Virtual addressed cache

 Data/instruction of different processes with same virtual

address in cache at the same time …

 Flush cache on context switch, or

 Include Process id as part of each cache directory entry

 Synonyms

 Virtual addresses that translate to same physical address

 More than one copy of a block in cache …

5

Another possibility: Overlapped operation

MMU

Cache

Virtual

Address

Physical

Address

Indexing into

cache directory

using virtual

address

Tag comparison

using physical

address

Virtual indexed physical tagged cache

7

Cache Tag

16 bits

Physical Page No

18 bits

Physical Indexed Physical Tagged Cache

Virtual Address

Virtual Page No

18 bits

Page Offset

14 bits

C

offset

MMU

Physical Address

Physical Cache

5

16KB page size

64KB direct mapped

cache with 32B block

size

C-Index

11 bits

Page Offset

14 bits

8

Virtual Index Virtual Tagged Cache

Virtual Address

Physical Address

VPN

18 bits

Block

offset

C-Index

11 bits

MMU

5

Page Offset

14 bits

PPN

18 bits

Hit/Miss

10

Reality Check

 Question 1: Are real caches built to work on

virtual addresses or physical addresses?

 Question 2: Do modern processors use

pipelining of the kind that we studied?

11

Q2: High Performance Pipelined Processors

 Pipelining

 Overlaps execution of consecutive instructions

 Performance of processor improves

 Current processors use more aggressive

techniques for more performance

 Some exploit Instruction Level Parallelism -

often, many consecutive instructions are

independent of each other and can be

executed in parallel (at the same time)

13

Instruction Level Parallelism Processors

 Challenge: identifying which instructions are

independent

 Approach 1: build processor hardware to

analyze and keep track of dependences

 Approach 2: compiler does analysis and

packs suitable instructions together for

parallel execution by processor

 VLIW (very long instruction word) processors

14

Agenda

1. Program execution: Compilation, Object files, Function call

and return, Address space, Data & its representation (4)

2. Computer organization: Memory, Registers, Instruction set

architecture, Instruction processing (6)

3. Virtual memory: Address translation, Paging (4)
4. Operating system: Processes, System calls,

Process management (6)

5. Pipelined processors: Structural, data and control hazards,

impact on programming (4)

6. Cache memory: Organization, impact on programming (5)
7. Program profiling (2)
8. File systems: Disk management, Name management,

Protection (4)

9. Parallel programming: Inter-process communication,

Synchronization, Mutual exclusion, Parallel architecture,

Programming with message passing using MPI (5)

16

Timing

Timing: measuring the time spent in specific

parts of your program

• Examples of `parts’: Functions, loops, …
• Recall: Different kinds of time that can be

measured (real/wallclock/elapsed vs

virtual/CPU)

1. Decide

• which time you are interested in measuring
• at what granularity

2. Find out what mechanisms are available

and their granularity of measurement

17

time command

Usage: % time a.out

Example: % time ls

0.00user 0.002sys 0:0.003elapsed

Example: % time man csh

0.268user 0.032sys 0:15.486elapsed

Reports Real/Elapsed/Wallclock

time, CPU time in user mode,

CPU time in system mode

19

Using gettimeofday( )

struct timeval before, after;

gettimeofday(&before);

/ region of program you want to time

gettimeofday(&after);

printf (“%d\n”, after.tv_sec – before.tv_sec);

Your C program

20

High resolution, real timers

 Most modern processors provide a

hardware cycle counting mechanism

1. A special purpose register that is

incremented every clock cycle

2. An instruction to read the value in that

register

 Example: Intel

®

time stamp counter

and rdtsc instruction
