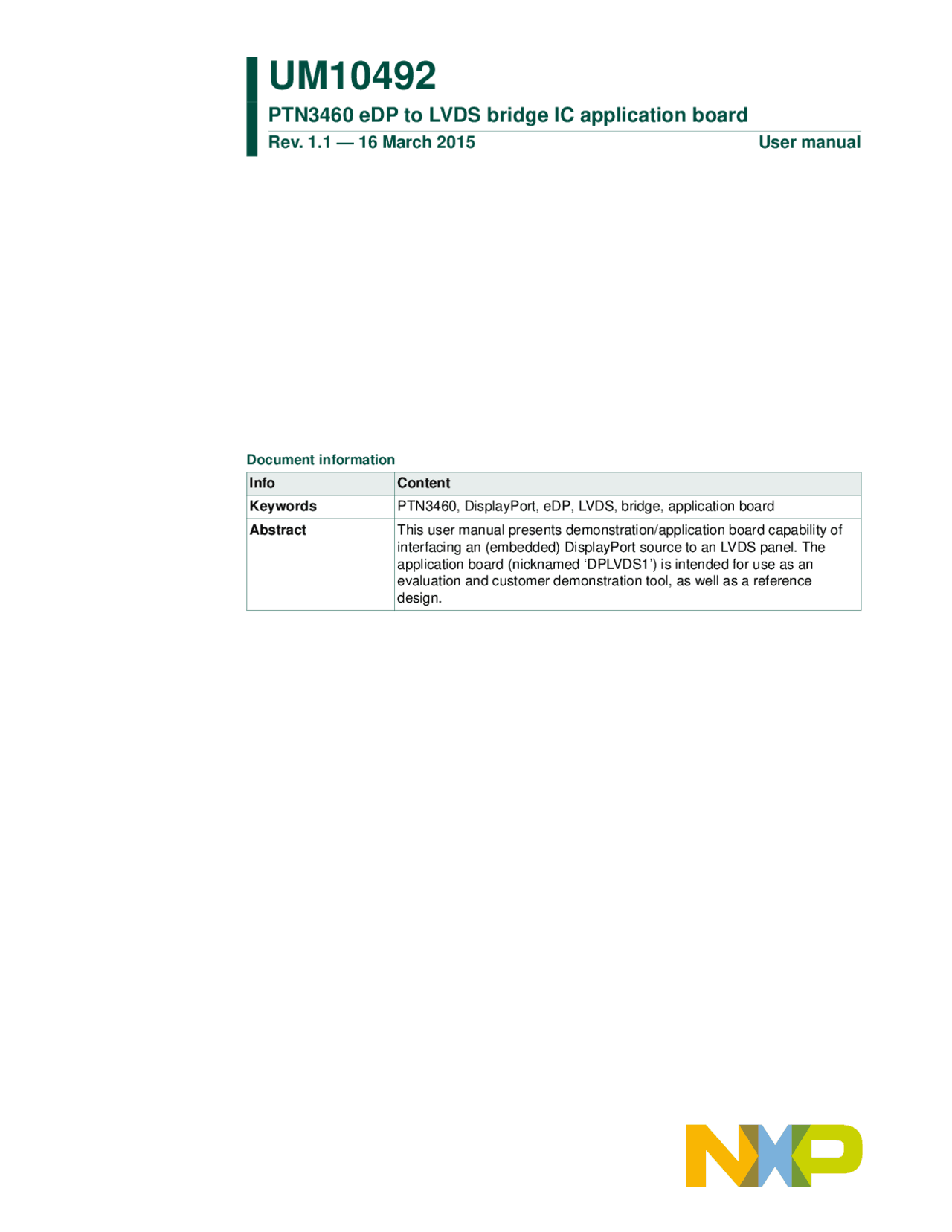

UM10492
PTN3460 eDP to LVDS bridge IC application board
Rev. 1.1 — 16 March 2015 User manual
Document information
Info Content
Keywords PTN3460, DisplayPort, eDP, LVDS, bridge, application board
Abstract This user manual presents demonstration/application board capability of
interfacing an (embedded) DisplayPort source to an LVDS panel. The
application board (nicknamed ‘DPLVDS1’) is intended for use as an
evaluation and customer demonstration tool, as well as a reference
design.
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe

Vista previa parcial del texto

¡Descarga Um10492 datasheet electronica y más Apuntes en PDF de Electrotecnia solo en Docsity!

UM

PTN3460 eDP to LVDS bridge IC application board

Rev. 1.1 — 16 March 2015 User manual

Document information Info Content Keywords PTN3460, DisplayPort, eDP, LVDS, bridge, application board Abstract This user manual presents demonstration/application board capability of interfacing an (embedded) DisplayPort source to an LVDS panel. The application board (nicknamed ‘DPLVDS1’) is intended for use as an evaluation and customer demonstration tool, as well as a reference design.

UM10492 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.

Contact information

For more information, please visit: http://www.nxp.com

For sales office addresses, please send an email to: [email protected]

PTN3460 eDP to LVDS bridge IC application board

Revision history Rev Date Description 1.1 20150316 Table 3; Removed remark for JP 1 20140903 User manual; initial release

UM10492 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.

PTN3460 eDP to LVDS bridge IC application board

2. General description

2.1 Block diagram

Fig 1. DP-LVDS block diagram

UM10492 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.

PTN3460 eDP to LVDS bridge IC application board

2.2 PCB stack ups

Fig 2. DP-LVDS PCB stack up example

xxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx x xxxxxxxxxxxxxx xxxxxxxxxx xxx xxxxxx xxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxx xx xxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxx xxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxx xxxxxx xx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxx xxxxx x x

UM10492 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.

PTN3460 eDP to LVDS bridge IC application board

Fig 4.

PTN3460 application board bottom assembly

BOTTOM ASSEMBLY

UM10492 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.

PTN3460 eDP to LVDS bridge IC application board

The PTN3460 AUO application board has the following features:

- Jumpers select multiplex between DP and eDP (iMac) sources - Stuff options for PTN3460 different pin configurations - Stuff options for PS8615 test - Four (4) groups of jumpers for pin configuration - Other jumpers for test options - One serial EEPROM to store EDID read/write via I 2 C-bus - One I^2 C-bus header bringing out I 2 C-bus pins (SCL, SDA, GND) to interface with an

I^2 C Bird (I 2 C tool device name) dongle to program S-EEPROM or to read iMac

System Bus

- One I^2 C-bus header for DDC control - One JTAG for firmware download - One ATX 20-pin power supply with 12 V/5 V/3.3 V DC inputs - External power supplies: +12 V (2 A), +5 V (1 A), +3.3 V (1 A) - Fixed regulator provides 1.8 V  10 % power supply - Two soft-touch connectors (not loaded) for Agilent differential probes to capture LVDS

signals

- One 30-position, 1 mm connector with cables to connect to AUO 21-inch LVDS panel - One 1  8 connector with cable to connect to backlight inverter 3. Hardware requirements - iMac 27-inch AIO, eDP source with 30-position eDP cable - VTG5225-DP, DP source with DP 1.1 cable - DPA-400, AUX analyzer, via iMac eDP-DP adaptor with two DP 1.1 cables and

two 30-position eDP cables

- UFG-04, LVDS grabber, via AUO-grabber adaptor with two MDR-26 twisted cables - Desktop PC with PCIe slot to install LVDS grabber - AUO 21-inch LVDS panel with 30-position LVDS cable - FS2 with 2  5 JTAG connection for firmware download - I^2 C Bird with 1  4 header connection for s-EEPROM read/write 4. Board specifications - Layers: four layers expected — trace, ground, VCC , trace - Size: 4 inches  6 inches - Material: FR - Thickness: 62 mil - Impedance: 50  single-ended, 100  differential on DP and LVDS signal pairs

UM10492 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.

PTN3460 eDP to LVDS bridge IC application board

JP6 CFG4/TDO 1-2 HIGH — LVDS output swing = 400 mV open — LVDS output swing = 300 mV 2-3 LOW — LVDS output swing = 250 mV

JP7 CFG3/TDI 1-2 HIGH — LVDS clock frequency = 0.5 % open — LVDS clock frequency = 1 % 2-3 LOW — LVDS clock frequency = 0 %

JP8 PD_N 1-2 HIGH — Operation mode 2-3 LOW — Force power-down

JP9 CFG2/TMS 1-2 HIGH — JEIDA or VESA format (18 bpp) open — JEIDA format (24 bpp) 2-3 LOW — VESA format (24 bpp)

JP10 CFG1/TCK 1-2 HIGH — Dual LVDS bus 2-3 LOW — Single LVDS bus

JP11 EPS_N ON — Use external 3.3 V/1.8 V option OFF — Use internal 1.8 V LDO

JP12 WP 1-2 HIGH — WP for S-EEPROM 2-3 LOW — No WP S-EEPROM

JP13 VDD_VOL 1-2 — select +3V3 for panel 2-3 — select +5V for panel

JP14 +INV_PWR 1-2 — select +5V for backlight inverter 2-3 — select +12V for backlight inverter

JP15 BKLTEN_CN 1-2 HIGH — Backlight enable is always ON 2-3 BKLTEN — Control by firmware

JP16 PVCCEN_PTN 1-2 HIGH — PVCCEN is always ON 2-3 PVCCEN — Control by firmware

JP

(for PS only)

PVCCEN

(pin 33 is used as I2C_Addr/GPIO in PS8615)

1-2 HIGH — I2C_ADDR 0xB0h to 0xBFh 2-3 LOW — I2C_ADDR 0x10h to 0x1Fh

not loaded

JP18 +12V 1-2 — select from ATX power supply 2-3 — select from external power supply

JP19 +1V8 1-2 — select from U4 regulator 2-3 — select from external power supply

JP20 +5V 1-2 — select from ATX power supply 2-3 — select from external power supply

JP21 +3V3 1-2 — select from ATX power supply 2-3 — select from external power supply

JP22 AIOC_HPD ON — HPD drives Green LED OFF — No LED drive to measure power

Table 3. Jumpers …continued Jumper number

Signal names Jumper settings Default setting

UM10492 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.

PTN3460 eDP to LVDS bridge IC application board

6. Stuffing options

6.1 PTN3460 NXP pinning

6.2 Stuffing locations

Fig 5. PTN3460 pinning

1μF

4.7μF 0.1μF

0.1μF

FB 0.1μF0.01μF

FB

4.7μF

0.1μF

0.1μF 0.1μF

VDD

VDD

VDD

VDD

1 2 3 4 5 6 7 8 9

10 11 12 13 14 1516171819202122232425262728

42 41 40 39 38 37 36 35 34 33 32 31 30 29

5655545352515049484746454443

PTN

0.1μF

Table 4. Stuffing locations Location Function/value PTN3460 (default pinning) R16 Join +3V3_IO with +3V3_LDO no load R17 Pin 27 = CFG4/TDO load R18 Pin 26 = BKLTEN_PTN load R19 Pin 28 - PWMO_PTN load R20 Pin 32 = LVSDE_N_PTN load R21 Pin 31 = LVSDE_P_PTN load R22 Pin 32 = PWMO no load R23 Pin 31 = BKLTEN no load R24 +3V3_LDO for pin 13, 14 load R25 Pin 28 = GND no load R26 Pin 26 = GND no load R27 Pin 27 = GND no load C27 1 F for RST_N line no load C22 0.47 F no load

UM10492 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.

PTN3460 eDP to LVDS bridge IC application board
