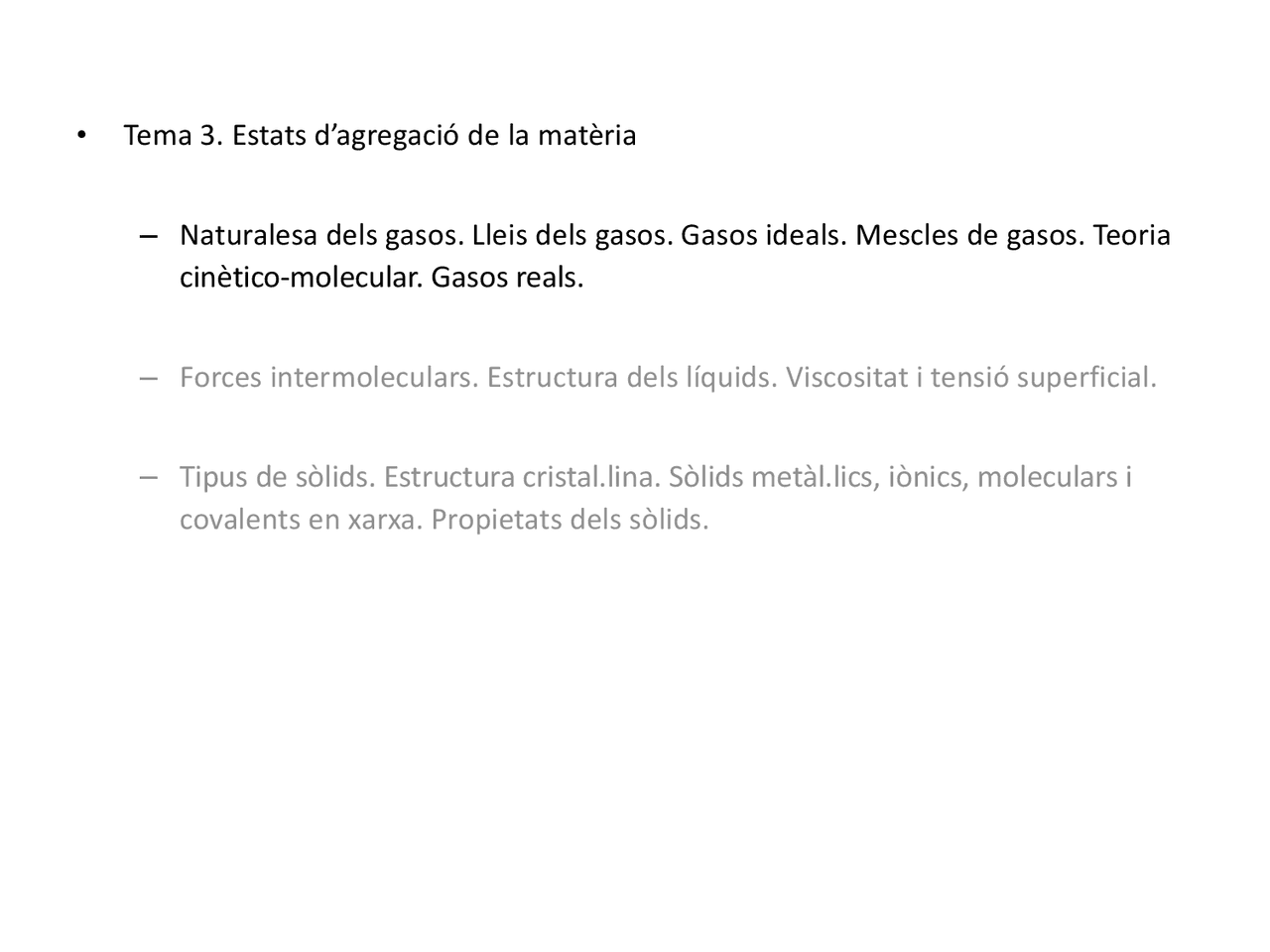

  • Tema 3. Estats d’agregació de la matèria
    • Naturalesa dels gasos. Lleis dels gasos. Gasos ideals. Mescles de gasos. Teoria cinètico-molecular. Gasos reals.
    • Forces intermoleculars. Estructura dels líquids. Viscositat i tensió superficial.
    • Tipus de sòlids. Estructura cristal.lina. Sòlids metàl.lics, iònics, moleculars i covalents en xarxa. Propietats dels sòlids.

Un químico:

  • piensa a nivel microscópico (átomos, moléculas, electrones,…)
  • realiza experimentos a nivel macroscópico (utillaje, instrumentos,…), y
  • representa ambos simbólicamente (fórmulas, ecuaciones,…)

Química: una ciencia en tres niveles

Microscòpia d’efecte túnel http://www.aip.org/png/html/corral.htm

Intermolecular forces and states of matter

  • Any molecule can interact with another molecule by means of intermolecular forces
    • Note: the ion-ion interaction will be considered as a special case of intermolecular forces
  • Intermolecular forces are in the origin of the states of matter
    • “estats d’agregació de la matèria” o “fases condensades”

Intermolecular forces and intramolecular bonds

http://chemistry.tutorvista.com/physical- chemistry/intermolecular-forces.html

Intramolecular

http://www.kentchemistry.com/links/bonding/Hbonding.htm

Common gases

  • What chemical elements are gases?
    • It will depend on the experimental conditions!
    • At standard conditions for temperature (25oC) and pressure (1 bar):
      • Noble gases are monoatomic
      • H 2 , N 2 , O 2 , F 2 , Cl 2 are diatomic gases
  • Apart from elements, many molecules are gases:
    • methane, propane, butane (boiling point around -1oC),...
    • ammonia (boiling point around -33oC) ,
    • hydrogen chloride (boiling point around -85oC),…
  • Which are the key characteristics of gases?
    • They can be compressed easily  The molecules are far apart from each other
    • They fill all available space  The molecules move very rapidly and randomly

When were these gases discovered?

Pressure is caused by collisions between gas molecules and a surface

Collisions exert an almost constant force on the surface

Therefore, P = Force done by a gas / Area

Pressure: a key characteristic of gases

What is the effect of the number of molecules, speed and area, on pressure?

Alternative units for pressure

  • mm Hg (1 Torr = 1 mm Hg)
  • atmosphere (atm)
  • bar and mbar
  • psi (pound-force per square inch)
  • Naturalesa dels gasos
  • Lleis del gasos -> Treball autònom
  • Moviment molecular
  • Gasos reals

Boyle’s law: relationship between V and P

“For a fixed amount of an ideal gas kept at a fixed temperature, P [pressure] and V [volume] are inversely proportional”

fewer collisions  lower pressure

more collisions  higher pressure

Charles’s Law: relationship between V and T

“At constant pressure, the volume of a given mass of an ideal gas increases or decreases by the same factor as its temperature on the absolute temperature scale”

Absolute T is temperature in K

slope of line = k

V  k T

V  k  T (x-intercept)

x-intercept: T when V = 0  absolute zero (William Thomson)

N 2

Cl 2 H 2

O 2

Avogadro’s principle

“Two given samples of an ideal gas, at the same temperature, pressure and volume, contain the same number of molecules” (1811, but not accepted until the Karlsruhe congress in 1860)

at 273.2K and 1atm (standard temperature and pressure conditions)

In other words:

  • the molar volume (Vm) is similar for different gases at the same temperature and pressure
  • Molar volume (Vm) = V / n ; where n is the amount of substance (moles)

Pressure decreases (1 bar < 1 atm), so volume increases.

Temperature increases, so volume increases.

Standard conditions for temperature and pressure

In chemistry, standard condition for temperature and pressure are standard sets of conditions for experimental measurements, to allow comparisons to be made between different sets of data.

There are many different standard conditions!

According to Atkins’s nomenclature:

  • room (or laboratory) temperature and pressure conditions: 25oC and 1bar
  • standard temperature and pressure conditions: 0oC and 1atm

Mixtures of gases: Dalton’s Law of Partial Pressures

At low P, a mixture of gases (which do not react among them) behaves as a pure gas

Atmospheric air (a mixture) at low pressure can be regarded as a pure gas

Dalton’s law of partial pressures: total pressure is equal to the sum of individual pressures of gases in a mixture

How will affect the (hypothetical) interaction among molecules to the total pressure?

Molar fraction of gas A in a mixture (χA): moles of gas A divided by the total number of moles

χA= nA / (nA + nB +…)

χA+ χB+ … = 1

If χA= 1  pure gas

PA = χA· P
