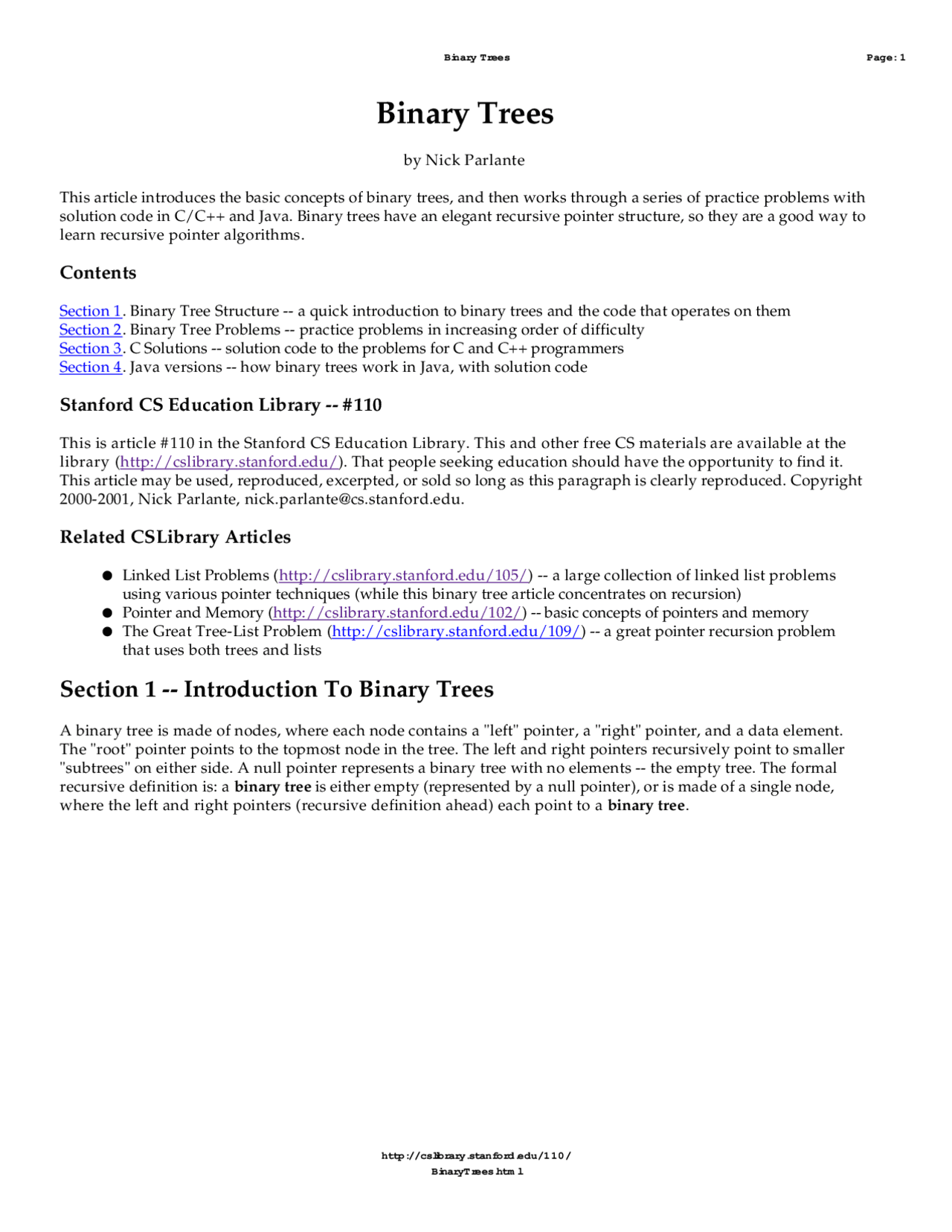

Binary Trees
by Nick Parlante
This article introduces the basic concepts of binary trees, and then works through a series of practice problems with solution code in C/C++ and Java. Binary trees have an elegant recursive pointer structure, so they are a good way to learn recursive pointer algorithms.
Contents
Section 1. Binary Tree Structure -- a quick introduction to binary trees and the code that operates on them Section 2. Binary Tree Problems -- practice problems in increasing order of difficulty Section 3. C Solutions -- solution code to the problems for C and C++ programmers Section 4. Java versions -- how binary trees work in Java, with solution code
Stanford CS Education Library --
This is article #110 in the Stanford CS Education Library. This and other free CS materials are available at the library (http://cslibrary.stanford.edu/). That people seeking education should have the opportunity to find it. This article may be used, reproduced, excerpted, or sold so long as this paragraph is clearly reproduced. Copyright 2000-2001, Nick Parlante, [email protected].
Related CSLibrary Articles
Linked List Problems (http://cslibrary.stanford.edu/105/) -- a large collection of linked list problems using various pointer techniques (while this binary tree article concentrates on recursion) Pointer and Memory (http://cslibrary.stanford.edu/102/) -- basic concepts of pointers and memory The Great Tree-List Problem (http://cslibrary.stanford.edu/109/) -- a great pointer recursion problem that uses both trees and lists
Section 1 -- Introduction To Binary Trees
A binary tree is made of nodes, where each node contains a "left" pointer, a "right" pointer, and a data element. The "root" pointer points to the topmost node in the tree. The left and right pointers recursively point to smaller "subtrees" on either side. A null pointer represents a binary tree with no elements -- the empty tree. The formal recursive definition is: a binary tree is either empty (represented by a null pointer), or is made of a single node, where the left and right pointers (recursive definition ahead) each point to a binary tree.
http://cslibrary.stanford.edu/110/
A "binary search tree" (BST) or "ordered binary tree" is a type of binary tree where the nodes are arranged in order: for each node, all elements in its left subtree are less-or-equal to the node (<=), and all the elements in its right subtree are greater than the node (>). The tree shown above is a binary search tree -- the "root" node is a 5, and its left subtree nodes (1, 3, 4) are <= 5, and its right subtree nodes (6, 9) are > 5. Recursively, each of the subtrees must also obey the binary search tree constraint: in the (1, 3, 4) subtree, the 3 is the root, the 1 <= 3 and 4 > 3. Watch out for the exact wording in the problems -- a "binary search tree" is different from a "binary tree".
The nodes at the bottom edge of the tree have empty subtrees and are called "leaf" nodes (1, 4, 6) while the others are "internal" nodes (3, 5, 9).
Binary Search Tree Niche
Basically, binary search trees are fast at insert and lookup. The next section presents the code for these two algorithms. On average, a binary search tree algorithm can locate a node in an N node tree in order lg(N) time (log base 2). Therefore, binary search trees are good for "dictionary" problems where the code inserts and looks up information indexed by some key. The lg(N) behavior is the average case -- it's possible for a particular tree to be much slower depending on its shape.
Strategy
Some of the problems in this article use plain binary trees, and some use binary search trees. In any case, the problems concentrate on the combination of pointers and recursion. (See the articles linked above for pointer articles that do not emphasize recursion.)
For each problem, there are two things to understand...
The node/pointer structure that makes up the tree and the code that manipulates it The algorithm, typically recursive, that iterates over the tree
When thinking about a binary tree problem, it's often a good idea to draw a few little trees to think about the various cases.
http://cslibrary.stanford.edu/110/
that may change the the root, then a call to change() will look like this...
// suppose the variable "root" points to the tree root = change(root);
We take the value returned by change(), and use it as the new value for root. This construct is a little awkward, but it avoids using reference parameters which confuse some C and C++ programmers, and Java does not have reference parameters at all. This allows us to focus on the recursion instead of the pointer mechanics. (For lots of problems that use reference parameters, see CSLibrary #105, Linked List Problems, http://cslibrary.stanford.edu/105/).
Insert()
Insert() -- given a binary search tree and a number, insert a new node with the given number into the tree in the correct place. The insert() code is similar to lookup(), but with the complication that it modifies the tree structure. As described above, insert() returns the new tree pointer to use to its caller. Calling insert() with the number 5 on this tree...
2 /
1 10
returns the tree...
2 /
1 10 / 5
The solution shown here introduces a newNode() helper function that builds a single node. The base-case/recursion structure is similar to the structure in lookup() -- each call checks for the NULL case, looks at the node at hand, and then recurs down the left or right subtree if needed.
/* Helper function that allocates a new node with the given data and NULL left and right pointers. / struct node NewNode(int data) { struct node* node = new(struct node); // "new" is like "malloc" node->data = data; node->left = NULL; node->right = NULL;
return(node); }
Give a binary search tree and a number, inserts a new node with the given number in the correct place in the tree. Returns the new root pointer which the caller should then use (the standard trick to avoid using reference parameters). / struct node insert(struct node* node, int data) {
http://cslibrary.stanford.edu/110/
// 1. If the tree is empty, return a new, single node if (node == NULL) { return(newNode(data)); } else { // 2. Otherwise, recur down the tree if (data <= node->data) node->left = insert(node->left, data); else node->right = insert(node->right, data);
return(node); // return the (unchanged) node pointer } }
The shape of a binary tree depends very much on the order that the nodes are inserted. In particular, if the nodes are inserted in increasing order (1, 2, 3, 4), the tree nodes just grow to the right leading to a linked list shape where all the left pointers are NULL. A similar thing happens if the nodes are inserted in decreasing order (4, 3, 2, 1). The linked list shape defeats the lg(N) performance. We will not address that issue here, instead focusing on pointers and recursion.
Section 2 -- Binary Tree Problems
Here are 14 binary tree problems in increasing order of difficulty. Some of the problems operate on binary search trees (aka "ordered binary trees") while others work on plain binary trees with no special ordering. The next section, Section 3, shows the solution code in C/C++. Section 4 gives the background and solution code in Java. The basic structure and recursion of the solution code is the same in both languages -- the differences are superficial.
Reading about a data structure is a fine introduction, but at some point the only way to learn is to actually try to solve some problems starting with a blank sheet of paper. To get the most out of these problems, you should at least attempt to solve them before looking at the solution. Even if your solution is not quite right, you will be building up the right skills. With any pointer-based code, it's a good idea to make memory drawings of a a few simple cases to see how the algorithm should work.
1. build123()
This is a very basic problem with a little pointer manipulation. (You can skip this problem if you are already comfortable with pointers.) Write code that builds the following little 1-2-3 binary search tree...
2 /
1 3
Write the code in three different ways...
a: by calling newNode() three times, and using three pointer variables b: by calling newNode() three times, and using only one pointer variable c: by calling insert() three times passing it the root pointer to build up the tree
(In Java, write a build123() method that operates on the receiver to change it to be the 1-2-3 tree with the given coding constraints. See Section 4.)
struct node* build123() {
2. size()
http://cslibrary.stanford.edu/110/
void printPostorder(struct node* node) {
7. hasPathSum()
We'll define a "root-to-leaf path" to be a sequence of nodes in a tree starting with the root node and proceeding downward to a leaf (a node with no children). We'll say that an empty tree contains no root-to-leaf paths. So for example, the following tree has exactly four root-to-leaf paths:
5 /
4 8 / /
11 13 4 / \
7 2 1
Root-to-leaf paths: path 1: 5 4 11 7 path 2: 5 4 11 2 path 3: 5 8 13 path 4: 5 8 4 1
For this problem, we will be concerned with the sum of the values of such a path -- for example, the sum of the values on the 5-4-11-7 path is 5 + 4 + 11 + 7 = 27.
Given a binary tree and a sum, return true if the tree has a root-to-leaf path such that adding up all the values along the path equals the given sum. Return false if no such path can be found. (Thanks to Owen Astrachan for suggesting this problem.)
int hasPathSum(struct node* node, int sum) {
8. printPaths()
Given a binary tree, print out all of its root-to-leaf paths as defined above. This problem is a little harder than it looks, since the "path so far" needs to be communicated between the recursive calls. Hint: In C, C++, and Java, probably the best solution is to create a recursive helper function printPathsRecur(node, int path[], int pathLen), where the path array communicates the sequence of nodes that led up to the current call. Alternately, the problem may be solved bottom-up, with each node returning its list of paths. This strategy works quite nicely in Lisp, since it can exploit the built in list and mapping primitives. (Thanks to Matthias Felleisen for suggesting this problem.)
Given a binary tree, print out all of its root-to-leaf paths, one per line.
void printPaths(struct node* node) {
9. mirror()
Change a tree so that the roles of the left and right pointers are swapped at every node.
So the tree... 4 /
2 5 / \
http://cslibrary.stanford.edu/110/
is changed to... 4 /
5 2 /
3 1
The solution is short, but very recursive. As it happens, this can be accomplished without changing the root node pointer, so the return-the-new-root construct is not necessary. Alternately, if you do not want to change the tree nodes, you may construct and return a new mirror tree based on the original tree.
void mirror(struct node* node) {
10. doubleTree()
For each node in a binary search tree, create a new duplicate node, and insert the duplicate as the left child of the original node. The resulting tree should still be a binary search tree.
So the tree... 2 /
1 3
is changed to... 2 /
2 3 / / 1 3 / 1
As with the previous problem, this can be accomplished without changing the root node pointer.
void doubleTree(struct node* node) {
11. sameTree()
Given two binary trees, return true if they are structurally identical -- they are made of nodes with the same values arranged in the same way. (Thanks to Julie Zelenski for suggesting this problem.)
int sameTree(struct node* a, struct node* b) {
12. countTrees()
This is not a binary tree programming problem in the ordinary sense -- it's more of a math/combinatorics recursion problem that happens to use binary trees. (Thanks to Jerry Cain for suggesting this problem.)
Suppose you are building an N node binary search tree with the values 1..N. How many structurally different binary search trees are there that store those values? Write a recursive function that, given the number of distinct values, computes the number of structurally unique binary search trees that store those values. For example,
http://cslibrary.stanford.edu/110/
Version 1 above runs slowly since it traverses over some parts of the tree many times. A better solution looks at each node only once. The trick is to write a utility helper function isBSTRecur(struct node* node, int min, int max) that traverses down the tree keeping track of the narrowing min and max allowed values as it goes, looking at each node only once. The initial values for min and max should be INT_MIN and INT_MAX -- they narrow from there.
/* Returns true if the given tree is a binary search tree (efficient version). / int isBST2(struct node node) { return(isBSTRecur(node, INT_MIN, INT_MAX)); }
/* Returns true if the given tree is a BST and its values are >= min and <= max. / int isBSTRecur(struct node node, int min, int max) {
15. Tree-List
The Tree-List problem is one of the greatest recursive pointer problems ever devised, and it happens to use binary trees as well. CLibarary #109 http://cslibrary.stanford.edu/109/ works through the Tree-List problem in detail and includes solution code in C and Java. The problem requires an understanding of binary trees, linked lists, recursion, and pointers. It's a great problem, but it's complex.
Section 3 -- C/C++ Solutions
Make an attempt to solve each problem before looking at the solution -- it's the best way to learn.
1. Build123() Solution (C/C++)
// call newNode() three times struct node* build123a() { struct node* root = newNode(2); struct node* lChild = newNode(1); struct node* rChild = newNode(3);
root->left = lChild; root->right= rChild;
return(root); }
// call newNode() three times, and use only one local variable struct node* build123b() { struct node* root = newNode(2); root->left = newNode(1); root->right = newNode(3);
return(root); }
http://cslibrary.stanford.edu/110/
Build 123 by calling insert() three times. Note that the '2' must be inserted first. / struct node build123c() { struct node* root = NULL; root = insert(root, 2); root = insert(root, 1); root = insert(root, 3); return(root); }
2. size() Solution (C/C++)
Compute the number of nodes in a tree. / int size(struct node node) { if (node==NULL) { return(0); } else { return(size(node->left) + 1 + size(node->right)); } }
3. maxDepth() Solution (C/C++)
Compute the "maxDepth" of a tree -- the number of nodes along the longest path from the root node down to the farthest leaf node. / int maxDepth(struct node node) { if (node==NULL) { return(0); } else { // compute the depth of each subtree int lDepth = maxDepth(node->left); int rDepth = maxDepth(node->right);
// use the larger one if (lDepth > rDepth) return(lDepth+1); else return(rDepth+1); } }
4. minValue() Solution (C/C++)
Given a non-empty binary search tree, return the minimum data value found in that tree.
http://cslibrary.stanford.edu/110/
Strategy: subtract the node value from the sum when recurring down, and check to see if the sum is 0 when you run out of tree. / int hasPathSum(struct node node, int sum) { // return true if we run out of tree and sum== if (node == NULL) { return(sum == 0); } else { // otherwise check both subtrees int subSum = sum - node->data; return(hasPathSum(node->left, subSum) || hasPathSum(node->right, subSum)); } }
8. printPaths() Solution (C/C++)
Given a binary tree, print out all of its root-to-leaf paths, one per line. Uses a recursive helper to do the work. / void printPaths(struct node node) { int path[1000];
printPathsRecur(node, path, 0); }
/* Recursive helper function -- given a node, and an array containing the path from the root node up to but not including this node, print out all the root-leaf paths. / void printPathsRecur(struct node node, int path[], int pathLen) { if (node==NULL) return;
// append this node to the path array path[pathLen] = node->data; pathLen++;
// it's a leaf, so print the path that led to here if (node->left==NULL && node->right==NULL) { printArray(path, pathLen); } else { // otherwise try both subtrees printPathsRecur(node->left, path, pathLen); printPathsRecur(node->right, path, pathLen); } }
// Utility that prints out an array on a line. void printArray(int ints[], int len) { int i; for (i=0; i<len; i++) {
http://cslibrary.stanford.edu/110/
printf("%d ", ints[i]); } printf("\n"); }
9. mirror() Solution (C/C++)
Change a tree so that the roles of the left and right pointers are swapped at every node.
So the tree... 4 /
2 5 /
1 3
is changed to... 4 /
5 2 /
3 1 / void mirror(struct node node) { if (node==NULL) { return; } else { struct node* temp;
// do the subtrees mirror(node->left); mirror(node->right);
// swap the pointers in this node temp = node->left; node->left = node->right; node->right = temp; } }
10. doubleTree() Solution (C/C++)
For each node in a binary search tree, create a new duplicate node, and insert the duplicate as the left child of the original node. The resulting tree should still be a binary search tree.
So the tree... 2 / \
http://cslibrary.stanford.edu/110/
binary search trees are possible that store those keys.
Strategy: consider that each value could be the root. Recursively find the size of the left and right subtrees. */ int countTrees(int numKeys) {
if (numKeys <=1) { return(1); } else { // there will be one value at the root, with whatever remains // on the left and right each forming their own subtrees. // Iterate through all the values that could be the root... int sum = 0; int left, right, root;
for (root=1; root<=numKeys; root++) { left = countTrees(root - 1); right = countTrees(numKeys - root);
// number of possible trees with this root == leftright sum += leftright; }
return(sum); } }
13. isBST1() Solution (C/C++)
Returns true if a binary tree is a binary search tree. / int isBST(struct node node) { if (node==NULL) return(true);
// false if the min of the left is > than us if (node->left!=NULL && minValue(node->left) > node->data) return(false);
// false if the max of the right is <= than us if (node->right!=NULL && maxValue(node->right) <= node->data) return(false);
// false if, recursively, the left or right is not a BST if (!isBST(node->left) || !isBST(node->right)) return(false);
// passing all that, it's a BST return(true); }
http://cslibrary.stanford.edu/110/
14. isBST2() Solution (C/C++)
Returns true if the given tree is a binary search tree (efficient version). / int isBST2(struct node node) { return(isBSTUtil(node, INT_MIN, INT_MAX)); }
/* Returns true if the given tree is a BST and its values are >= min and <= max. / int isBSTUtil(struct node node, int min, int max) { if (node==NULL) return(true);
// false if this node violates the min/max constraint if (node->data<min || node->data>max) return(false);
// otherwise check the subtrees recursively, // tightening the min or max constraint return isBSTUtil(node->left, min, node->data) && isBSTUtil(node->right, node->data+1, max) ); }
15. TreeList Solution (C/C++)
The solution code in C and Java to the great Tree-List recursion problem is in CSLibrary # http://cslibrary.stanford.edu/109/
Section 4 -- Java Binary Trees and Solutions
In Java, the key points in the recursion are exactly the same as in C or C++. In fact, I created the Java solutions by just copying the C solutions, and then making the syntactic changes. The recursion is the same, however the outer structure is slightly different.
In Java, we will have a BinaryTree object that contains a single root pointer. The root pointer points to an internal Node class that behaves just like the node struct in the C/C++ version. The Node class is private -- it is used only for internal storage inside the BinaryTree and is not exposed to clients. With this OOP structure, almost every operation has two methods: a one-line method on the BinaryTree that starts the computation, and a recursive method that works on the Node objects. For the lookup() operation, there is a BinaryTree.lookup() method that the client uses to start a lookup operation. Internal to the BinaryTree class, there is a private recursive lookup(Node) method that implements the recursion down the Node structure. This second, private recursive method is basically the same as the recursive C/C++ functions above -- it takes a Node argument and uses recursion to iterate over the pointer structure.
Java Binary Tree Structure
To get started, here are the basic definitions for the Java BinaryTree class, and the lookup() and insert() methods as examples...
http://cslibrary.stanford.edu/110/
return(lookup(node.left, data)); } else { return(lookup(node.right, data)); } }
Inserts the given data into the binary tree. Uses a recursive helper. */ public void insert(int data) { root = insert(root, data); }
Recursive insert -- given a node pointer, recur down and insert the given data into the tree. Returns the new node pointer (the standard way to communicate a changed pointer back to the caller). */ private Node insert(Node node, int data) { if (node==null) { node = new Node(data); } else { if (data <= node.data) { node.left = insert(node.left, data); } else { node.right = insert(node.right, data); } }
return(node); // in any case, return the new pointer to the caller }
OOP Style vs. Recursive Style
From the client point of view, the BinaryTree class demonstrates good OOP style -- it encapsulates the binary tree state, and the client sends messages like lookup() and insert() to operate on that state. Internally, the Node class and the recursive methods do not demonstrate OOP style. The recursive methods like insert(Node) and lookup (Node, int) basically look like recursive functions in any language. In particular, they do not operate against a "receiver" in any special way. Instead, the recursive methods operate on the arguments that are passed in which is the classical way to write recursion. My sense is that the OOP style and the recursive style do not be combined nicely for binary trees, so I have left them separate. Merging the two styles would be especially awkward for the "empty" tree (null) case, since you can't send a message to the null pointer. It's possible to get around that by having a special object to represent the null tree, but that seems like a distraction to me. I prefer to keep the recursive methods simple, and use different examples to teach OOP.
Java Solutions
Here are the Java solutions to the 14 binary tree problems. Most of the solutions use two methods:a one-line OOP
http://cslibrary.stanford.edu/110/
method that starts the computation, and a recursive method that does the real operation. Make an attempt to solve each problem before looking at the solution -- it's the best way to learn.
1. Build123() Solution (Java)
Build 123 using three pointer variables. */ public void build123a() { root = new Node(2); Node lChild = new Node(1); Node rChild = new Node(3);
root.left = lChild; root.right= rChild; }
/** Build 123 using only one pointer variable. */ public void build123b() { root = new Node(2); root.left = new Node(1); root.right = new Node(3); }
Build 123 by calling insert() three times. Note that the '2' must be inserted first. */ public void build123c() { root = null; root = insert(root, 2); root = insert(root, 1); root = insert(root, 3); }
2. size() Solution (Java)
Returns the number of nodes in the tree. Uses a recursive helper that recurs down the tree and counts the nodes. */ public int size() { return(size(root)); }
private int size(Node node) { if (node == null) return(0); else { return(size(node.left) + 1 + size(node.right)); } }
