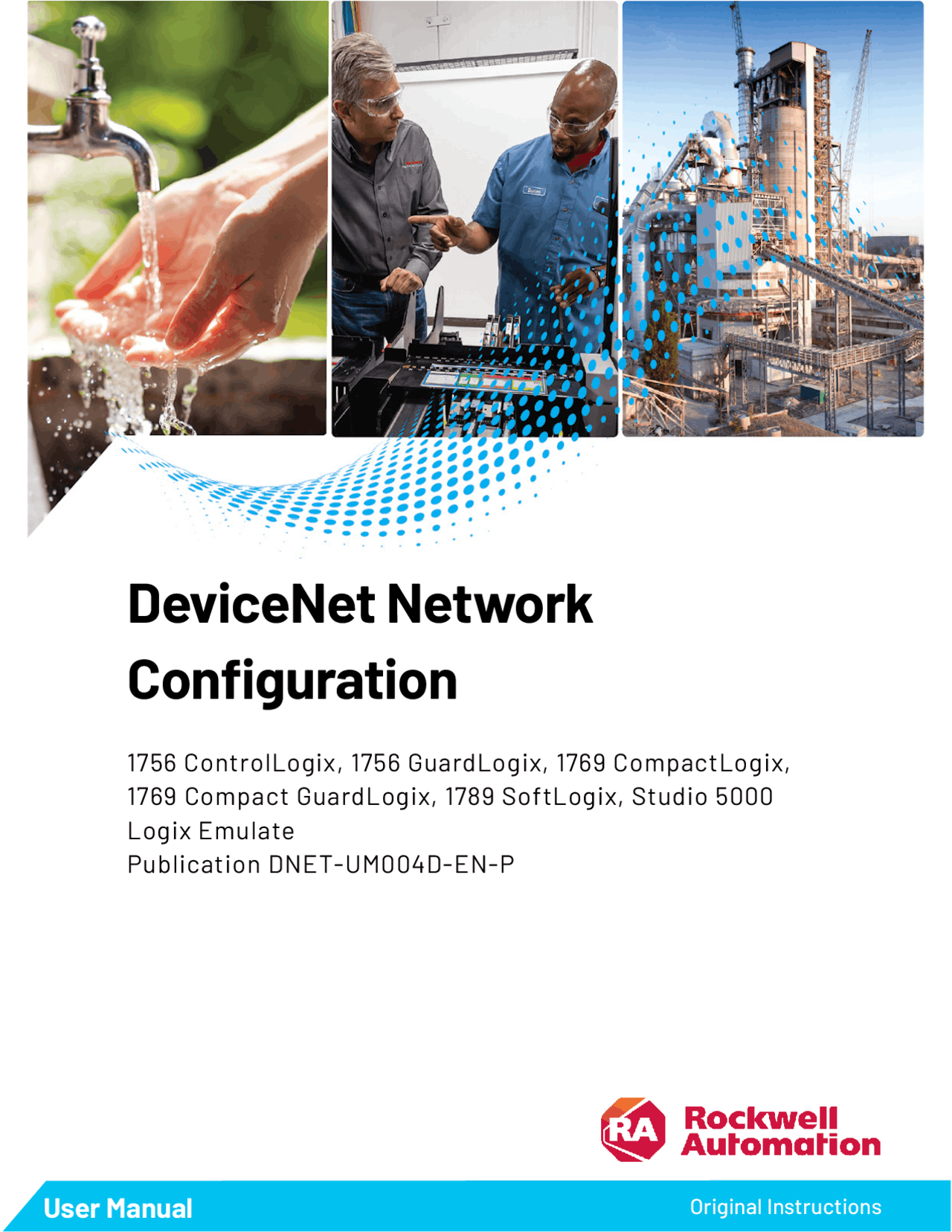

User Manual Original Instructions
DeviceNet Network
Configuration
1756 ControlLogix, 1756 GuardLogix, 1769 CompactLogix,
1769 Compact GuardLogix, 1789 SoftLogix, Studio 5000
Logix Emulate
Publication DNET-UM004D-EN-P
DeviceNet Network Configuration
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual. Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited. Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT (^) Identifies information that is critical for successful application and understanding of the product.
Labels may also be on or inside the equipment to provide specific precautions.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).
Table of Contents
Summary of Changes
Preface
DeviceNet Overview
Connect a Computer to the
DeviceNet Network
Connect Devices to the Network
Control a Device
Communicate with a PanelView
- Network Configuration
- Studio 5000 environment
- Additional Resources
- Legal Notices
- Chapter
- Choose a Single Network or Subnets
- Single Network
- Advantages to Using a Single Network
- Disadvantages to Using a Single Network...................................
- Subnets
- Advantages to Using Subnets
- Disadvantages to Using Subnets
- Single Network
- Choose a Single Network or Subnets
- Choose a Scanner
- Bridge Across Networks.............................................................................
- Choose a Baud Rate for the Network
- Assign an Address to Each Device............................................................
- Required Software......................................................................................
- Chapter
- Connection Options ..................................................................................
- Set Up the DeviceNet Driver
- Obtain the Driver for the Interface Device
- Verify that the Driver Works
- Chapter
- Before You Begin.......................................................................................
- Set the Node Address of a Device
- Set Node Address via Hardware Mechanism
- Set Node Address via Software
- Set Node Address via DeviceNet Node Commissioning Tool
- Make Sure Your Devices Are on Your Network........................................
- Chapter
- Before You Begin........................................................................................
- Create a File for the Network
- Create Your Network in RSNetWorx for DeviceNet Software
- Configure Each Device............................................................................... - Specify a Device Node Address ........................................................... - Change a Device Node Address - Configure Device Parameters Table of Contents
- Configure the Scanner ............................................................................... - Build the Scan List............................................................................... - Set the Alignment Option - SoftLogix 5800 Controller - Manually Assign Each Device to a Memory Location........................
- Save the Configuration File .......................................................................
- Generate an RSNetWorx for DeviceNet Report ......................................
- Go Online to Your Network .......................................................................
- Download Configuration to Your Network.............................................
- Chapter
- Before You Begin........................................................................................
- Verify Communication Between the Computer and Devices
- Create a New File for the Network
- Go Online to Your Network .......................................................................
- Configure Each Device............................................................................... - Upload the Configuration of a Device ................................................ - Change and Download Device Configuration ...................................
- Configure the Scanner - Upload the Current Scanner Configuration - Define the Scanner Properties ............................................................ - Build the Scan List............................................................................... - Set the Alignment Option - SoftLogix 5800 Controller ............................................................. - Manually Assign Each Device to a Memory Location........................ - Download the Configuration to the Scanner.....................................
- Upload and Save the Configuration File...................................................
- Generate an RSNetWorx for DeviceNet Report
- Chapter
- How AutoScan Operates
- Determine If You Can Use AutoScan
- How AutoScan Affects Your Network
- Install the DeviceNet Node Commissioning Tool
- Connect Devices - Install a Scanner or Network Interface Devices - Install Other DeviceNet Devices ......................................................... - Commissioning Tool............................................................................ Set the Node Address and Baud Rate with the DeviceNet Node
- Add the Scanner to the RSLogix 5000 Project.......................................... - Add the Scanner to the I/O Configuration Folder - Define the Properties of the Scanner ................................................. Table of Contents
- Enable AutoScan with RSLogix 5000 Software
- Initiate AutoScan via the User Program - Implementing AutoScan - Configure I/O Allocation Size Via the User Program - Configure I/O Allocation Via a DeviceView Configurator......... - Initiate AutoScan via the User Program - Initiate AutoScan via the DeviceView Configurator - Additional Considerations Regarding AutoScan
- Access Device Data
- Put the Scanner in Run Mode
- Additional Information About AutoScan - Type of Connection that the Scanner Sets Up - Allocating More Memory for Each Device
- Chapter
- Before You Begin.......................................................................................
- RSNetWorx Report for the Network
- Data Map for Each of Your Devices
- Before You Begin.......................................................................................
- Add the Scanner to the Controller’s I/O Configuration - Conserve EtherNet/IP or ControlNet Network Bandwidth - Add the Scanner to the I/O Configuration Folder - Configure the Scanner
- Determine the Address of DeviceNet Data - SoftLogix 5800 Controller
- Determine If a Device Has Failed .............................................................
- Place the Scanner in Run Mode................................................................
- When to Use an MSG Instruction
- Determine the Parameter Number to Access ..........................................
- Determine the Configuration of the Parameter ......................................
- Test the Parameter
- Enter Message Logic - Define the Source or Destination Data - Enter and Configure the MSG Instruction ...................................... - Set the Communication Path
- Chapter
- Interlock
- Choose a Master Controller
- Determine How Much Data to Exchange
- Enable Slave Mode for the Slave Scanner
- Map the Slave Mode Data
- Add the Slave to the Master Scanner’s Scan List ............................. Table of Contents
- Map the Data of the Slave
- Place Both Scanners In Run Mode....................................................
- Interlock
- Share Inputs - Add the Input to the First Scanner - Add the Input to the Second Scanner - Map the Input Data in the Second Scanner
- Chapter
- Choose Data Types
- Choose a Communication Method.........................................................
- I/O Slave Communication
- Explicit Server Communication ........................................................
- Explicit Client Communication .........................................................
- Plan and Configure I/O Slave Tags .......................................................... - Use a Word/Bit Format for Each Tag - For Integers, Skip Every Other Word - Configure an I/O Slave Tag
- Set Up the Terminal on Your Network - Set the Protocol - Set the Node Address and I/O Sizes ..................................................
- Configure the Scanner to Update I/O Slave Tags - Add the Terminal to the Scan List - Edit I/O Parameters - Map Input and Output Data .............................................................
- Project ....................................................................................................... Address I/O Slave Tags in the RSLogix 5000 Programming Software - SoftLogix 5800 Controller
- Plan and Configure Explicit Server Tags - Assign Assembly Instances................................................................ - For Integers, Skip Every Other Word - Configure an Explicit Server Tag
- Program the Controller to Get/Set Explicit Server Tags - Create an Array for the Assembly Instance - Enter and Configure the MSG Instruction - Set the Communication Path
- Configure Explicit Client Tags - Determine the Parameter Number to Access - Determine the Configuration of the Parameter - Configure an Explicit Client Tag
Preface
This manual describes how you can use DeviceNet modules with your Logix5000 controller and communicate with various devices on the DeviceNet network. You should use this manual if you program applications that use DeviceNet with one of these Logix5000 controllers:
- 1756 ControlLogix controllers
- 1768 CompactLogix controllers
- 1769 CompactLogix controllers
- 1789 SoftLogix 5800 controllers
- PowerFlex 700S with DriveLogix controllers You should also understand the following:
- Networking concepts
- RSNetWorx for DeviceNet software
- RSLogix 5000 programming software
- RSLinx Classic communication software The following chapters describe how to set up a DeviceNet network:
- Chapter 2—Connect a Computer to the DeviceNet Network on page 23
- Chapter 3—Connect Devices to the Network on page 73
- Chapter 4—Configure the Network Offline on page 33
- Chapter 5—Configure the Network Online on page 33 You are not required to complete all tasks in each chapter in the exact order presented to set up your DeviceNet application. For example, you can configure your network offline before you connect a computer to the network. However, there are some requirements related to the order in which you complete tasks. For example, you must complete the tasks in chapters 2 and 3 before you can configure the network online. The following table describes optional and required conditions to consider when determining the order in which you plan to complete tasks in your DeviceNet application. Network Configuration Tasks Task Optional Conditions Required Conditions Connect a computer to the network • Can be completed before or after connecting devices to the network
- Can be completed before or after configuring the network offline
Must be completed before configuring the network online
Connect devices to the network • Can be completed before or after connecting a computer to the network
- Can be completed before or after configuring the network offline
Must be completed before configuring the network online
Network Configuration
Preface
Rockwell Automation publishes legal notices, such as privacy policies, license agreements, trademark disclosures, and other terms and conditions on the Legal Notices page of the Rockwell Automation website.
End User License Agreement (EULA)
You can view the Rockwell Automation End-User License Agreement ("EULA") by opening the License.rtf file located in your product's install folder on your hard drive.
Open Source Licenses
The software included in this product contains copyrighted software that is licensed under one or more open source licenses. Copies of those licenses are included with the software. Corresponding Source code for open source packages included in this product are located at their respective web site(s). Alternately, obtain complete Corresponding Source code by contacting Rockwell Automation via the Contact form on the Rockwell Automation website: http://www.rockwellautomation.com/global/about- us/contact/contact.page Please include "Open Source" as part of the request text. A full list of all open source software used in this product and their corresponding licenses can be found in the OPENSOURCE folder. The default installed location of these licenses is C:\Program Files (x86)\Common Files\Rockwell\Help\FactoryTalk Services Platform\Release Notes\OPENSOURCE\index.htm.
Legal Notices
Chapter 1 DeviceNet Overview
There are disadvantages to using a single network for your DeviceNet application:
- The network must use shorter distances from one end to another.
- The more devices on the network, the slower the overall performance of the network.
- Your network may have more power supply requirements than can be handled by one network
- A single network can contain only up to 64 nodes A subnet configuration is a main network that is connected to distributed subnets using a scanner, or linking device. In this option, you must install a ControlNet network or EtherNet/IP network, also known as a backbone, that connects to distributed subnets using a linking device. For example, if you choose an EtherNet/IP network backbone, you must use 1788-EN2DN linking devices to connect the subnets. The following graphic shows a subnet network.
There are advantages to using subnets for your DeviceNet application:
- Typically, there are shorter runs on subnets, which allow a faster communication rate for the DeviceNet network.
- With fewer devices on each subnet, the overall performance of the network is faster.
- There are simpler power requirements. There are disadvantages to using subnets for your DeviceNet application:
- The overall cost to install the network is higher than using a single network.
- You must manage multiple networks.
- The Logix5000 controller is remote from the linking device. For example, with subnets in a 1768 CompactLogix application, a 1768-L controller is remote from the 1788-CN2DN linking device. The DeviceNet scanner connects a Logix5000 controller to the devices on a DeviceNet network. The following graphic shows how a scanner exchanges data between a controller and devices on the DeviceNet network.
Disadvantages to Using a
Single Network
Subnets
Advantages to Using
Subnets
Disadvantages to Using
Subnets
Choose a Scanner
Chapter 1 DeviceNet Overview
The following table describes how to choose a scanner.
If you are using And Use this scanner Single network 1768 or 1769 CompactLogix controller CompactLogix 1769-SDN modules ControlLogix controller ControlLogix 1756-DNB modules DriveLogix controller 1788-DNBO DeviceNet daughtercard SoftLogix 5800 controller 1784-PCIDS card Subnets EtherNet/IP main network EtherNet/IP to DeviceNet Linking Device 1788-EN2DN ControlNet main network ControlNet to DeviceNet Linking Device 1788-CN2DN
Logix5000 controllers can usually communicate with devices on other networks with no additional configuration or programming. A bridge connects two networks. IMPORTANT (^) You cannot bridge from a device on a DeviceNet network to a device on a ControlNet nor EtherNet/IP network. You can only bridge from devices on ControlNet or EtherNet/IP networks to devices on DeviceNet networks. Refer to table Bridging Across Networks on page 17 for more information. The bridge is one of the following:
- A single device with communication ports for two different networks, such as a 1788-EN2DN linking device
- A separate communication device in the same chassis For example, the bridge device shown in the following graphic is connected to both EtherNet/IP and DeviceNet networks. Device 1 on an EtherNet/IP
Bridge Across Networks
Chapter 1 DeviceNet Overview
You must choose a baud rate for the DeviceNet network. There are three rates available for the network:
- 125 kbps—This is the default baud rate for a DeviceNet network. It is the easiest baud rate to use and is usually sufficient.
- 250 kbps
- 500 kbps The following table describes the most common methods to set a baud rate.
Method Description Autobaud feature At powerup, the device automatically sets its baud rate to the baud rate of the first device it hears on the network. The baud rate remains set until the device powers up again. The network requires at least one device with a fixed baud rate so the autobaud devices have something against which to set. Typically, scanners and network interfaces have a fixed baud rate.
Choose a Baud Rate for the
Network
Chapter 1 DeviceNet Overview
Method Description Switches or push button on the device
Some devices have switches or push buttons that set the baud rate as follows:
- The device reads the switch setting at powerup.
- Typically, the switch lets you select either autobaud or a fixed baud rate, that is 125 Kbps, 250 Kbps, or 500 Kbps
- If you change the switch setting, you must cycle power to the device before the change takes effect. There are exceptions. For example, the 1756-DNB module has a push button that only lets you set the baud rate if the module is disconnected from the network or network power is off. Once you change the baud rate, the module automatically resets to the new baud rate. Software Some devices require a programming device to set its address. For example, you can use the computer and the DeviceNet node commissioning tool to set the baud rate of a device. The node commissioning tool is available in either of the following methods:
- Automatically when you install RSNetWorx for DeviceNet software
- As a separate application on the RSLogix 5000 programming software CD, revision 13.0 or later The length of the trunkline and type of cable determines which baud rates you can use.
Baud Rate Maximum Distance Cumulative Drop Line Length
Flat Cable Thick Cable Thin Cable 125K bit/s 420m (1378 ft) 500m (1640 ft) 100m (328 ft) 156 m (512 ft) 250K bit/s 200m (656 ft) 250m (820 ft) 100m (328 ft) 78m (256 ft) 500K bit/s 75m (246 ft) 100m (328 ft) 100m (328 ft) 39m (128 ft) If you change the baud rate of the network, make sure that all devices change to the new baud rate. Mixed baud rates produce communication errors. Complete the following steps to set the baud rate for the network.
- Connect the network interface to the network and set its baud rate.
- Connect the scanner to the network and set its baud rate.
- For each device that has only fixed baud rates ( no autobaud), set the baud rate and connect it to the network.
- Connect the remaining devices to the network and enable autobaud for each of them.
If a device Then has a switch to enable autobaud 1. Set the switch to autobaud.
- Connect the device to the network. does not have a switch to enable autobaud 1. Connect the device to the network.
- Use RSNetWorx for DeviceNet software to enable autobaud.
To communicate on the DeviceNet network, each device requires its own address. In general, a device can use any address in the range of 0…63. However, we recommend that you follow the guidelines in the following table.
