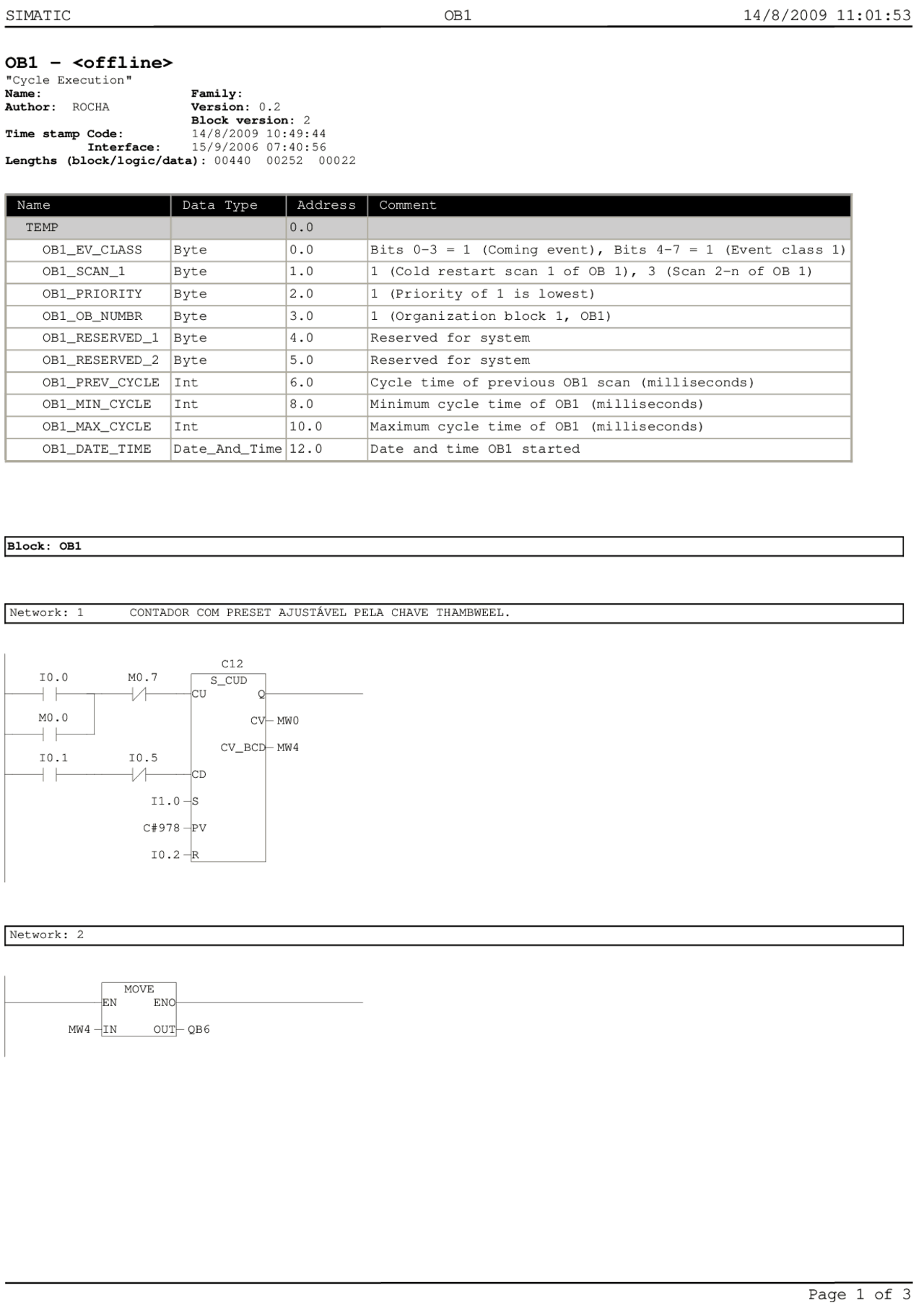

SIMATIC OB1 14/8/2009 11:01:53
Page 1 of 3
OB1 - <offline>
"Cycle Execution"
N
ame: Family:
A
uthor: ROCHA Version: 0.2
Block version: 2
Time stamp Code:
Interface: 14/8/2009 10:49:44
15/9/2006 07:40:56
Lengths (block/logic/data): 00440 00252 00022
Name Data Type Address Comment
TEMP 0.0
OB1_EV_CLASS Byte 0.0 Bits 0-3 = 1 (Coming event), Bits 4-7 = 1 (Event class 1)
OB1_SCAN_1 Byte 1.0 1 (Cold restart scan 1 of OB 1), 3 (Scan 2-n of OB 1)
OB1_PRIORITY Byte 2.0 1 (Priority of 1 is lowest)
OB1_OB_NUMBR Byte 3.0 1 (Organization block 1, OB1)
OB1_RESERVED_1 Byte 4.0 Reserved for system
OB1_RESERVED_2 Byte 5.0 Reserved for system
OB1_PREV_CYCLE Int 6.0 Cycle time of previous OB1 scan (milliseconds)
OB1_MIN_CYCLE Int 8.0 Minimum cycle time of OB1 (milliseconds)
OB1_MAX_CYCLE Int 10.0 Maximum cycle time of OB1 (milliseconds)
OB1_DATE_TIME Date_And_Time 12.0 Date and time OB1 started
Block: OB1
Network: 1 CONTADOR COM PRESET AJUSTÁVEL PELA CHAVE THAMBWEEL.
I0.0
M0.0
M0.7
I0.1 I0.5
S_CUD
C12
CU
CD
I1.0 S
C#978 PV
I0.2 R
Q
CV MW0
CV_BCD MW4
Network: 2
MOVE
EN
MW4 IN
ENO
OUT QB6
