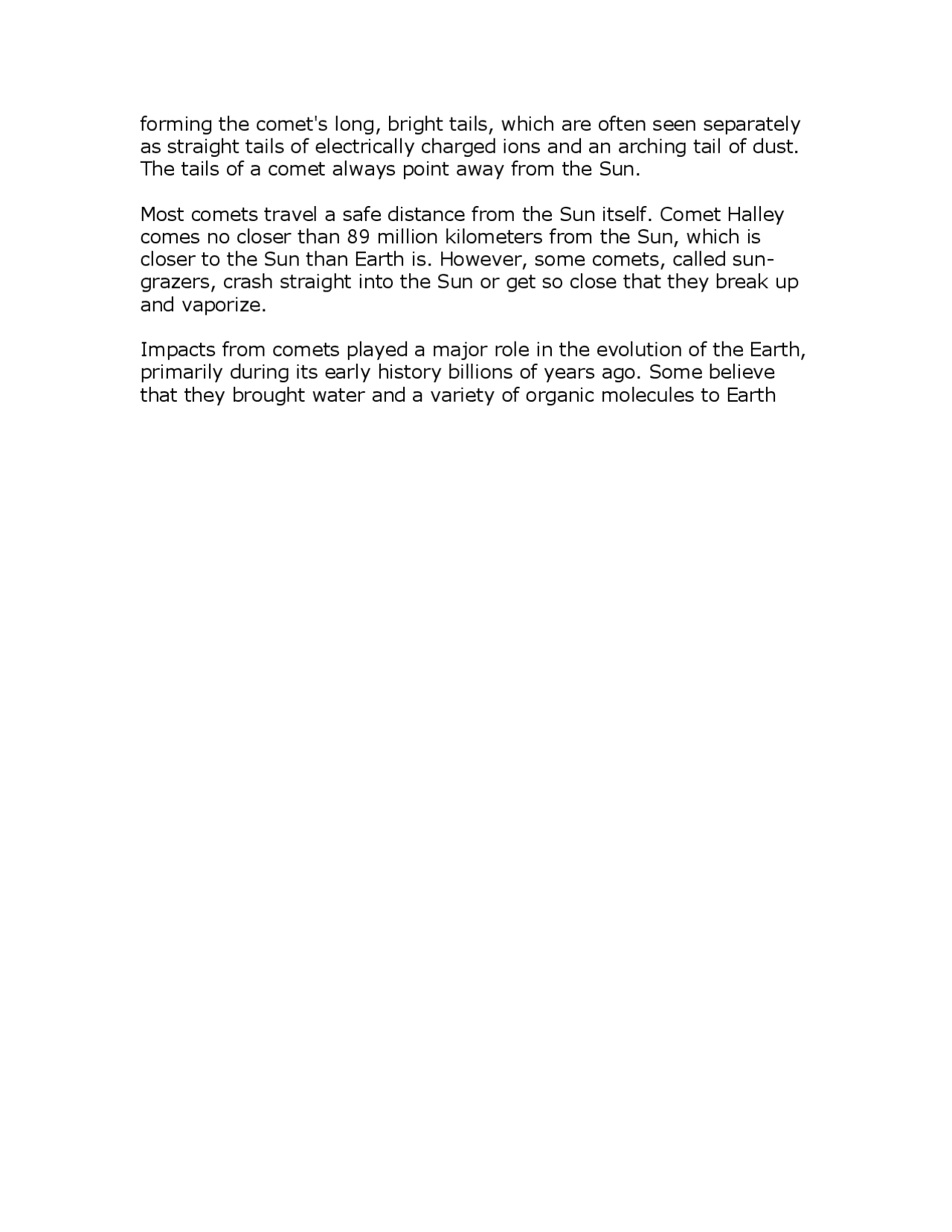

forming the comet's long, bright tails, which are often seen separately as straight tails of electrically charged ions and an arching tail of dust. The tails of a comet always point away from the Sun. Most comets travel a safe distance from the Sun itself. Comet Halley comes no closer than 89 million kilometers from the Sun, which is closer to the Sun than Earth is. However, some comets, called sun- grazers, crash straight into the Sun or get so close that they break up and vaporize. Impacts from comets played a major role in the evolution of the Earth, primarily during its early history billions of years ago. Some believe that they brought water and a variety of organic molecules to Earth
Kuiper Belt
The Kuiper (pronounced Ki-Per) Belt is often called our solar system's 'final frontier.' This disk- shaped region of icy debris is about 12 to 15 billion kilometers (7. billion to 9.3 billion miles) from our Sun. Its existence confirmed only a decade ago, the Kuiper Belt and its collection of icy objects - KBOs - are an emerging area of research in planetary science. The most recent exciting discovery to come out of the Kuiper Belt is "Quaoar" (Kwa-whar), officially known as 2002 LM60, a frozen world orbiting our sun about a billion miles beyond the orbit of Pluto. The tiny world's diameter is 1,300 km (800 miles) - about half the size of Pluto. It is the largest of the more than 500 Kuiper Belt Objects discovered in the last decade. Quaoar/2002 LM60 orbits our Sun in a near circle, more so than any of the other planets or bodies in our solar system. Quaoar is still an unofficial name. The two scientists who discovered 2002 LM60 have asked the International Astronomical Union to name the tiny world "Quaoar" in honor of a Native American creation god. KBOs like Quaoar are tough to spot. The tiny objects are billions of kilometers from Earth and very difficult to pinpoint with ground-based telescopes. Even the powerful cameras of NASA's Hubble Space Telescope can only produce rough images. No spacecraft have visited this distant region, though NASA's proposed New Horizons spacecraft could fly through in 2026. The Search for the Kuiper Belt In 1950, Dutch astronomer Jan Oort hypothesized that comets came from a vast shell of icy bodies about 50,000 times farther from the Sun than the Earth. A year later astronomer Gerard Kuiper suggested that some comet-like debris from the formation of the solar system should also be just beyond Neptune. In fact, he argued, it would be unusual not to find such a continuum of particles since this would imply the primordial solar system has a discrete "edge."
Beyond Our Solar System
In 1991, the nine worlds of our own solar system were the only known planets. Astronomers did not believe that our Sun's environment was the only planet producer in the universe. But they had no evidence of planets outside our solar system. How quickly things change. In 1991 radio astronomers detected the first extrasolar planets orbiting a dying pulsar star. This star was left over from a supernova explosion in the constellation Virgo. The pulsar's beam of radiation changed slightly due to the gravitational pull of three Earth-sized objects revolving around the host star, PSR B1257+12. Although the deadly radiation from the pulsar is not condusive to life, it was the first example of a star other than our Sun producing planets. In 1995 Swiss astronomers found another extra-solar planetary candidate. It was discovered by noting a slight perturbation in the position of 51 Pegasi, a star in our nearby galactic neighborhood. This star, found in the constellation of Pegasus, is much more like our Sun with respect to its temperature, size, rotation speed and emitted radiation. The newly found planet orbiting 51 Peg had a size comparable to Jupiter or Saturn, however, it was positioned extremely close to its parent star - closer than Mercury sits from our own Sun. Although not a good candidate for a life, it was the first ever evidence of an extrasolar planet around a Sun-like star. Since then more than 100 planets have been found orbiting other stars. Some of them are orbiting extremely close to their parent star like the 51 Peg planetary system, while others are found to be at distances comparable to where Mars and Jupiter orbit in our solar system. Plans for Continued Searches The right size, the right distance, the right temperature: we finally have evidence for the existence of extrasolar worlds that may be candidates for life-bearing planets as well. A search of the nearest 1,000 stars to our Sun may reveal evidence of planets very much like Earth. "Earth-type" planets, the most condusive to sustaining life, must be solid bodies (unlike the gas giant planets in our outer solar system) with masses roughly between 0.5 - 10 Earth masses. These planets need to be found at distances from their parent star such that the
planet's temperature and atmospheric pressure are supportive of the existence of liquid water. Direct methods for examining stars in our nearby neighborhood for the existence of planets would involve the detection of starlight reflected by an orbiting planet or perhaps by the emitted thermal radiation from the planet itself. Optical reflected light and infrared thermal radiation could both be analyzed spectroscopically (provided astronomers could actually detect this gentle signal amid the powerful fury of its host star) to present information about the size, sunlight reflectivity (albedo) and temperature of a planet. Indirect methods of planetary detection include measurements of radial velocities of nearby stars, measurements of pulsar rates, actual changes in the position of a host star based on gravitational pull of planets or changes in the apparent brightness of the host star due to transits and microlensing events. Each of these methods can indicate the presence of external bodies around nearby stars.
Stars, like people, have life cycles -- they are born, pass through several phases, and eventually die. The sun was born about 4.6 billion years ago and will remain much as it is for another 5 billion years. Then it will grow to become a red giant. Late in the sun's lifetime, it will cast off its outer layers. The remaining core, called a white dwarf, will slowly fade to become a black dwarf. Other stars will end their lives in different ways. Some will not go through a red giant stage. Instead, they will merely cool to become white dwarfs, then black dwarfs. A small percentage of stars will die in spectacular explosions called supernovae. This article discusses Star (The stars at night) (Names of stars) (Characteristics of stars) (Fusion in stars) (Evolution of stars). The stars at night If you look at the stars on a clear night, you will notice that they seem to twinkle and that they differ greatly in brightness. A much slower movement also takes place in the night sky: If you map the location of several stars for a few hours, you will observe that all the stars revolve slowly about a single point in the sky. Twinkling of stars is caused by movements in Earth's atmosphere. Starlight enters the atmosphere as straight rays. Twinkling occurs because air movements constantly change the path of the light as it comes through the air. You can see a similar effect if you stand in a swimming pool and look down. Unless the water is almost perfectly still, your feet will appear to move and change their shape. This "twinkling" occurs because the moving water constantly changes the path of the light rays that travel from your feet to your eyes. Brightness of stars. How bright a star looks when viewed from Earth depends on two factors: (1) the actual brightness of the star -- that is, the amount of light energy the star emits (sends out) -- and (2) the distance from Earth to the star. A nearby star that is actually dim can appear brighter than a distant star that is really extremely brilliant. For example, Alpha Centauri A seems to be slightly brighter than a star known as Rigel. But Alpha Centauri A emits only 1/100,000 as much light energy as Rigel. Alpha Centauri A seems brighter because it is only 1/325 as far from Earth as Rigel is -- 4.4 light-years for Alpha Centauri A, 1,400 light-years for Rigel. Rising and setting of stars When viewed from Earth's Northern Hemisphere, stars rotate counterclockwise around a point called the celestial north pole. Viewed from the Southern Hemisphere, stars rotate clockwise about the celestial south pole. During the day, the sun moves across the sky in
the same direction, and at the same rate, as the stars. These movements do not result from any actual revolution of the sun and stars. Rather, they occur because of the west-to-east rotation of Earth about its own axis. To an observer standing on the ground, Earth seems motionless, while the sun and stars seem to move in circles. But actually, Earth moves. Names of stars Ancient people saw that certain stars are arranged in patterns shaped somewhat like human beings, animals, or common objects. Some of these patterns, called constellations, came to represent figures of mythological characters. For example, the constellation Orion (the Hunter) is named after a hero in Greek mythology. Today, astronomers use constellations, some of which were described by the ancients, in the scientific names of stars. The International Astronomical Union (IAU), the world authority for assigning names to celestial objects, officially recognizes 88 constellations. These constellations cover the entire sky. In most cases, the brightest star in a given constellation has alpha -- the first letter of the Greek alphabet -- as part of its scientific name. For instance, the scientific name for Vega, the brightest star in the constellation Lyra (the Harp), is Alpha Lyrae. Lyrae is Latin for of Lyra. The second brightest star in a constellation is usually designated beta, the second letter of the Greek alphabet, the third brightest is gamma, and so on. The assignment of Greek letters to stars continues until all the Greek letters are used. Numerical designations follow. But the number of known stars has become so large that the IAU uses a different system for newly discovered stars. Most new names consist of an abbreviation followed by a group of symbols. The abbreviation stands for either the type of star or a catalog that lists information about the star. For example, PSR J1302-6350 is a type of star known as a pulsar -- hence the PSR in its name. The symbols indicate the star's location in the sky. The 1302 and the 6350 are coordinates that are similar to the longitude and latitude designations used to indicate locations on Earth's surface. The J indicates that a coordinate system known as J2000 is being used. Characteristics of stars A star has five main characteristics: (1) brightness, which astronomers describe in terms of magnitude or luminosity; (2) color; (3) surface temperature; (4) size; and (5) mass (amount of matter). These characteristics are related to one another in a complex way. Color depends on surface temperature, and brightness depends on surface temperature and size. Mass affects the rate at which a star of a given
magnitude of 2 is 100 times as luminous as a star with an absolute magnitude of 7. A star with an absolute magnitude of -3 is 100 times as luminous as a star whose absolute magnitude is 2 and 10,000 times as luminous as a star that has an absolute magnitude of 7. Color and temperature If you look carefully at the stars, even without binoculars or a telescope, you will see a range of color from reddish to yellowish to bluish. For example, Betelgeuse looks reddish, Pollux -- like the sun -- is yellowish, and Rigel looks bluish. A star's color depends on its surface temperature. Astronomers measure star temperatures in a metric unit known as the kelvin. One kelvin equals exactly 1 Celsius degree (1.8 Fahrenheit degree), but the Kelvin and Celsius scales start at different points. The Kelvin scale starts at -273.15 degrees C. Therefore, a temperature of 0 K equals -273.15 degrees C, or -459.67 degrees F. A temperature of 0 degrees C (32 degrees F) equals 273.15 K. Dark red stars have surface temperatures of about 2500 K. The surface temperature of a bright red star is approximately 3500 K; that of the sun and other yellow stars, roughly 5500 K. Blue stars range from about 10,000 to 50,000 K in surface temperature. Although a star appears to the unaided eye to have a single color, it actually emits a broad spectrum (band) of colors. You can see that starlight consists of many colors by using a prism to separate and spread the colors of the light of the sun, a yellow star. The visible spectrum includes all the colors of the rainbow. These colors range from red, produced by the photons (particles of light) with the least energy; to violet, produced by the most energetic photons. Visible light is one of six bands of electromagnetic radiation. Ranging from the least energetic to the most energetic, they are: radio waves, infrared rays, visible light, ultraviolet rays, X rays, and gamma rays. All six bands are emitted by stars, but most individual stars do not emit all of them. The combined range of all six bands is known as the electromagnetic spectrum.
Astronomers study a star's spectrum by separating it, spreading it out, and displaying it. The display itself is also known as a spectrum. The scientists study thin gaps in the spectrum. When the spectrum is spread out from left to right, the gaps appear as vertical lines. The spectra of stars have dark absorption lines where radiation of specific energies is weak. In a few special cases in the visible spectrum, stars have bright emission lines where radiation of specific energies is especially strong. An absorption line appears when a chemical element or compound absorbs radiation that has the amount of energy corresponding to the line. For example, the spectrum of the visible light coming from the sun has a group of absorption lines in the green part of the spectrum. Calcium in an outer layer of the sun absorbs light rays that would have produced the corresponding green colors. Although all stars have absorption lines in the visible band of the electromagnetic spectrum, emission lines are more common in other parts of the spectrum. For instance, nitrogen in the sun's atmosphere emits powerful radiation that produces emission lines in the ultraviolet part of the spectrum. Size Astronomers measure the size of stars in terms of the sun's radius. Alpha Centauri A, with a radius of 1.05 solar radii (the plural of radius), is almost exactly the same size as the sun. Rigel is much larger at 78 solar radii, and Antares has a huge size of 776 solar radii. A star's size and surface temperature determine its luminosity. Suppose two stars had the same temperature, but the first star had twice the radius of the second star. In this case, the first star would be four times as bright as the second star. Scientists say that luminosity is proportional to radius squared -- that is, multiplied by itself. Imagine that you wanted to compare the luminosities of two stars that had the same temperature but different radii. First, you would divide the radius of the larger star by the radius of the smaller star. Then, you would square your answer. Now, suppose two stars had the same radius but the first star's surface temperature -- measured in kelvins -- was twice that of the second star. In this example, the luminosity of the first star would be 16 times that of the second star. Luminosity is proportional to temperature to the fourth power. Imagine that you wanted to compare the luminosities of stars that had the same radius but different temperatures. First, you would divide the temperature of the warmer star by the temperature of the cooler star. Next, you would square the result. Then, you would square your answer again.
class and a numeral. The hottest stars in a spectral class are assigned the numeral 0; the coolest stars, the numeral 9. A complete MK designation thus includes symbols for luminosity class and spectral type. For example, the complete designation for the sun is G2V. Alpha Centauri A is also a G2V star, and Rigel's designation is B8Ia. Fusion in stars A star's tremendous energy comes from a process known as nuclear fusion. This process begins when the temperature of the core of the developing star reaches about 1 million K. A star develops from a giant, slowly rotating cloud that consists almost entirely of the chemical elements hydrogen and helium. The cloud also contains atoms of other elements as well as microscopic particles of dust. Due to the force of its own gravity, the cloud begins to collapse inward, thereby becoming smaller. As the cloud shrinks, it rotates more and more rapidly, just as spinning ice skaters turn more rapidly when they pull in their arms. The outermost parts of the cloud form a spinning disk. The inner parts become a roughly spherical clump, which continues to collapse. The collapsing material becomes warmer, and its pressure increases. But the pressure tends to counteract the gravitational force that is responsible for the collapse. Eventually, therefore, the collapse slows to a gradual contraction. The inner parts of the clump form a protostar, a ball-shaped object that is no longer a cloud, but is not yet a star. Surrounding the protostar is an irregular sphere of gas and dust that had been the outer parts of the clump. Combining nuclei When the temperature and pressure in the protostar's core become high enough, nuclear fusion begins. Nuclear fusion is a joining of two atomic nuclei to produce a larger nucleus. Nuclei that fuse are actually the cores of atoms. A complete atom has an outer shell of one or more particles called electrons, which carry a negative electric charge. Deep inside the atom is the nucleus, which contains almost all the atom's mass. The simplest nucleus, that of the most common form of hydrogen, consists of a single particle known as a proton. A proton carries a positive electric charge. All other nuclei have one or more protons and one or more neutrons. A neutron carries no net charge, and so a nucleus is electrically positive. But a complete atom has as many electrons as protons. The net electric charge of a complete atom is therefore zero -- the atom is electrically
neutral. However, under the enormous temperatures and pressures near the core of a protostar, atoms lose electrons. The resulting atoms are known as ions, and the mixture of the free electrons and ions is called a plasma. Atoms in the core of the protostar lose all their electrons, and the resulting bare nuclei approach one another at tremendous speeds. Under ordinary circumstances, objects that carry like charges repel each other. However, if the core temperature and pressure become high enough, the repulsion between nuclei can be overcome and the nuclei can fuse. Scientists commonly refer to fusion as "nuclear burning." But fusion has nothing to do with ordinary burning or combustion. Converting mass to energy When two relatively light nuclei fuse, a small amount of their mass turns into energy. Thus, the new nucleus has slightly less mass than the sum of the masses of the original nuclei. The German-born American physicist Albert Einstein discovered the relationship E = mc- squared (E=mc 2) that indicates how much energy is released when fusion occurs. The symbol E represents the energy; m, the mass that is converted; and c-squared (c2), the speed of light squared. The speed of light is 186,282 miles (299,792 kilometers) per second. This is such a large number that the conversion of a tiny quantity of mass produces a tremendous amount of energy. For example, complete conversion of 1 gram of mass releases 90 trillion joules of energy. This amount of energy is roughly equal to the quantity released in the explosion of 22,000 tons (20,000 metric tons) of TNT. This is much more energy than was released by the atomic bomb that the United States dropped on Hiroshima, Japan, in 1945 during World War II. The energy of the bomb was equivalent to the explosion of 13,000 tons (12,000 metric tons) of TNT. Destruction of light nuclei In the core of a protostar, fusion begins when the temperature reaches about 1 million K. This initial fusion destroys nuclei of certain light elements. These include lithium 7 nuclei, which consist of three protons and four neutrons. In the process involving lithium 7, a hydrogen nucleus combines with a lithium 7 nucleus, which then splits into two parts. Each part consists of a nucleus of helium 4 -- two protons and two neutrons. A helium 4 nucleus is also known as an alpha particle. Hydrogen fusion
At core temperatures of about 600 million K, carbon 12 can fuse to form sodium 23 (11 protons, 12 neutrons), magnesium 24 ( protons, 12 neutrons), and more neon 20. However, not all stars can reach these temperatures. As fusion processes produce heavier and heavier elements, the temperature necessary for further processes increases. At about 1 billion K, oxygen 16 nuclei can fuse, producing silicon 28 (14 protons, 14 neutrons), phosphorus 31 (15 protons, 16 neutrons), and sulfur 32 (16 protons, 16 neutrons). Fusion can produce energy only as long as the new nuclei have less mass than the sum of the masses of the original nuclei. Energy production continues until nuclei of iron 56 (26 protons, 30 neutrons) begin to combine with other nuclei. When this happens, the new nuclei have slightly more mass than the original nuclei. This process therefore uses energy, rather than producing it. Evolution of stars The life cycles of stars follow three general patterns, each associated with a range of initial mass. There are (1) high-mass stars, which have more than 8 solar masses; (2) intermediate-mass stars, with 0.5 to 8 solar masses -- the group that includes the sun; and (3) low-mass stars, with 0.1 to 0.5 solar mass. Objects with less than 0.1 solar mass do not have enough gravitational force to produce the core temperature necessary for hydrogen fusion. The life cycles of single stars are simpler than those of binary systems, so this section discusses the evolution of single stars first. And because astronomers know much more about the sun than any other star, the discussion begins with the development of intermediate-mass stars. Intermediate-mass stars A cloud that eventually develops into an intermediate-mass star takes about 100,000 years to collapse into a protostar. As a protostar, it has a surface temperature of about 4000 K. It may be anywhere from a few times to a few thousand times as luminous as the sun, depending on its mass. T-Tauri phase When hydrogen fusion begins, the protostar is still surrounded by an irregular mass of gas and dust. But the energy produced by hydrogen fusion pushes away this material as a protostellar wind. In many cases, the disk that is left over from the collapse channels the wind into two narrow cones or jets. One jet emerges from each side of the disk at a right angle to the plane of the disk. The protostar has become a T-Tauri star, a type of object named after the star T in the
constellation Taurus (the Bull). A T-Tauri star is a variable star, one that varies in brightness. Main-sequence phase The T-Tauri star contracts for about 10 million years. It stops contracting when its tendency to expand due to the energy produced by fusion in its core balances its tendency to contract due to gravity. By this time, hydrogen fusion in the core is supplying all the star's energy. The star has begun the longest part of its life as a producer of energy from hydrogen fusion, the main-sequence phase. The name of this phase comes from a part of the H-R diagram. Any star -- whatever its mass -- that gets all its energy from hydrogen fusion in its core is said to be "on the main sequence" or "a main- sequence star." The amount of time a star spends there depends on its mass. The greater a star's mass, the more rapidly the hydrogen in its core is used up, and therefore the shorter is its stay on the main sequence. An intermediate-mass star remains on the main sequence for billions of years. Red giant phase When all the hydrogen in the core of an intermediate-mass star has fused into helium, the star changes rapidly. Because the core no longer produces fusion energy, gravity immediately crushes matter down upon it. The resulting compression quickly heats the core and the region around it. The temperature becomes so high that hydrogen fusion begins in a thin shell surrounding the core. This fusion produces even more energy than had been produced by hydrogen fusion in the core. The extra energy pushes against the star's outer layers, and so the star expands enormously. As the star expands, its outer layers become cooler, so the star becomes redder. And because the star's surface area expands greatly, the star also becomes brighter. The star is now a red giant. Horizontal branch phase Eventually, the core temperature reaches 100 million K, high enough to support the triple-alpha process. This process begins so rapidly that its onset is known as helium flash. As the triple-alpha process continues, the core expands, but its temperature drops. This decrease in temperature causes the temperature of the hydrogen-burning shell to drop. Consequently, the energy output of the shell decreases, and the outer layers of the star contract. The star becomes hotter but smaller and fainter than it had been as a red giant. This change occurs over a period of about 100 million years.
High-mass stars on the main sequence are hot and blue. They are 1,000 to 1 million times as luminous as the sun, and their radii are about 10 times the solar radius. High-mass stars are much less common than intermediate- and low-mass stars. Because they are so bright, however, high-mass stars are visible from great distances, and so many are known. A high-mass star has a strong stellar wind. A star of 30 solar masses can lose 24 solar masses by stellar wind before its core runs out of hydrogen and it leaves the main sequence. As a high-mass star leaves the main sequence, hydrogen begins to fuse in a shell outside its core. As a result, its radius increases to about 100 times that of the sun. However, its luminosity decreases slightly. Because the star is now emitting almost the same amount of energy from a much larger surface, the temperature of the surface decreases. The star therefore becomes redder. As the star evolves, its core heats up to 100 million K, enough to start the triple-alpha process. After about 1 million years, helium fusion ends in the core but begins in a shell outside the core. And, as in an intermediate-mass star, hydrogen fuses in a shell outside that. The high-mass star becomes a bright red supergiant. When the contracting core becomes sufficiently hot, carbon fuses, producing neon, sodium, and magnesium. This phase lasts only about 10,000 years. A succession of fusion processes then occur in the core. Each successive process involves a different element and takes less time. Whenever a different element begins to fuse in the core, the element that had been fusing there continues to fuse in a shell outside the core. In addition, all the elements that had been fusing in shells continue to do so. Neon fuses to produce oxygen and magnesium, a process that lasts about 12 years. Oxygen then fuses, producing silicon and sulfur for about 4 years. Finally, silicon fuses to make iron, taking about a week. Supernovae At this time, the radius of the iron core is about 1,900 miles (3, kilometers). Because further fusion would consume energy, the star is now doomed. It cannot produce any more fusion energy to balance the force of gravity. When the mass of the iron core reaches 1.4 solar masses, violent events occur. The force of gravity within the core causes the core to collapse. As a result, the core temperature rises to nearly 10 billion K. At this temperature, the iron nuclei break down into lighter nuclei and eventually into individual protons and neutrons. As the collapse continues, protons combine with electrons, producing neutrons and
neutrinos. The neutrinos carry away about 99 percent of the energy produced by the crushing of the core. Now, the core consists of a collapsing ball of neutrons. When the radius of the ball shrinks to about 6 miles (10 kilometers), the ball rebounds like a solid rubber ball that has been squeezed. All the events from the beginning of the collapse of the core to the rebounding of the neutrons occur in about one second. But more violence is in store. The rebounding of the ball of neutrons sends a spherical shock wave outward through the star. Much of the energy of the wave causes fusion to occur in overlying layers, creating new elements. As the wave reaches the star's surface, it boosts temperatures to 200,000 K. As a result, the star explodes, hurling matter into space at speeds of about 9,000 to 25,000 miles (15,000 to 40,000 kilometers) per second. The brilliant explosion is known as a Type II supernova. Supernovae enrich the clouds of gas and dust from which new stars eventually form. This enrichment process has been going on since the first supernovae billions of years ago. Supernovae in the first generation of stars enriched the clouds with materials that later went into making newer stars. Three generations of stars may exist. Astronomers have not found any of what would be the oldest generation, Population III, stars. But they have found members of the other two generations. Population II stars, which would be the second generation, contain relatively small amounts of heavy elements. The more massive ones aged and died quickly, thereby contributing more nuclei of heavy elements to the clouds. For this reason, Population I stars, the third generation, contain the largest amounts of heavy elements. Yet these quantities are tiny compared with the amount of hydrogen and helium in Population I stars. For example, elements other than hydrogen and helium make up from 1 to 2 percent of the mass of the sun, a Population I star. Neutron stars After a Type II supernova blast occurs, the stellar core remains behind. If the core has less than about 3 solar masses, it becomes a neutron star. This object consists almost entirely of neutrons. It packs at least 1.4 solar masses into a sphere with a radius of about 6 to 10 miles (10 to 15 kilometers). Neutron stars have initial temperatures of 10 million K, but they are so small that their visible light is difficult to detect. However, astronomers have detected pulses of radio energy from neutron stars, sometimes at a rate of almost 1,000 pulses per second.
