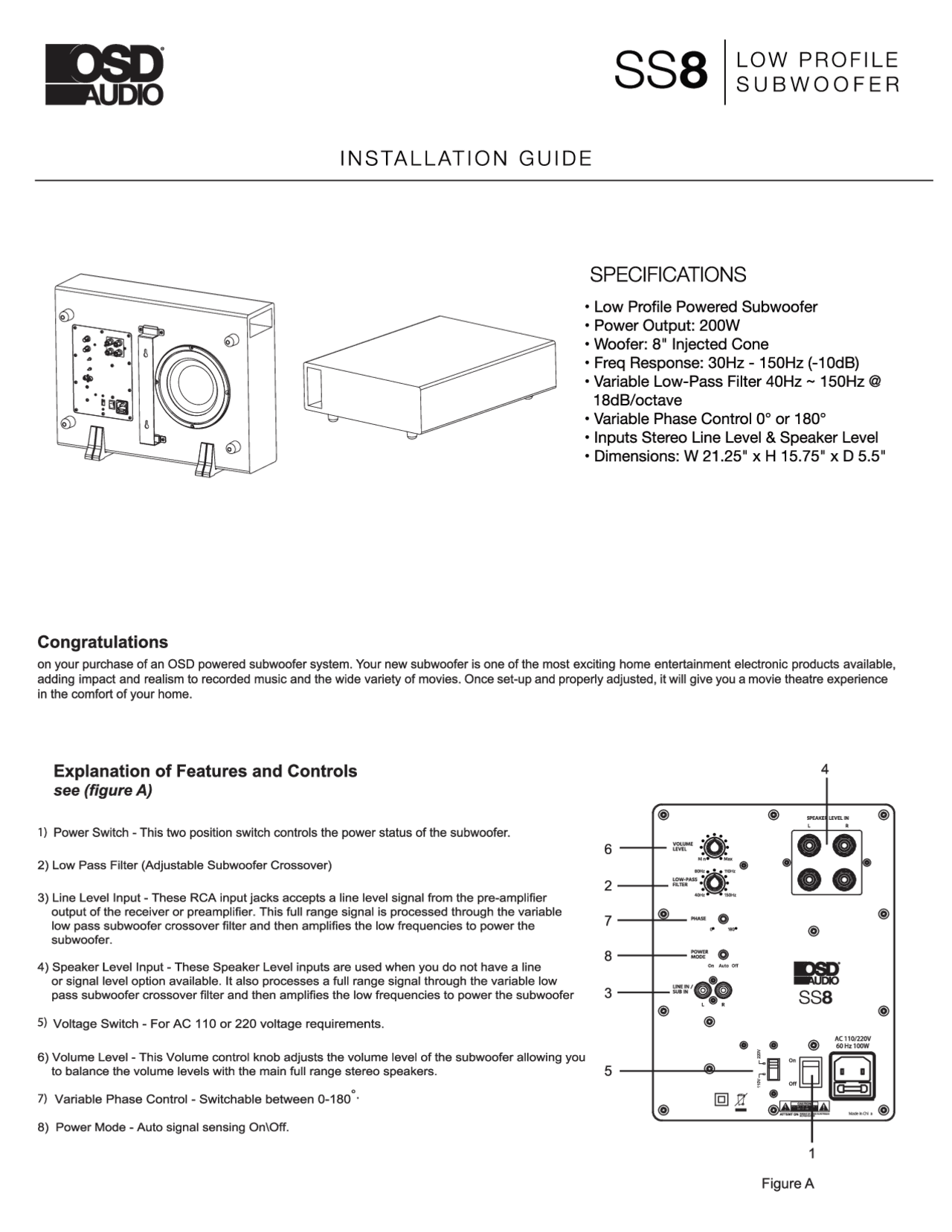

INSTALLATION GUIDE Ss8 LOW PROFILE SUBWOOFER Congratulations SPECIFICATIONS * Low Profile Powered Subwoofer * Power Output: 200W * Woofer: 8" Injected Cone * Freq Response: 30Hz - 150Hz (-10dB) * Variable Low-Pass Filter 40Hz —- 150Hz O 18dB/octave * Variable Phase Control 0º or 180º * Inputs Stereo Line Level & Speaker Level * Dimensions: W 21.25" xH 15.75" xD 5.5" on your purchase of an OSD powered subwoofer system. Your new subwoofer is one of the most exciting home entertainment electronic products available, adding impact and realism to recorded music and the wide variety of movies. Once set-up and properly adjusted, it will give you a movie theatre experience in the comfort of your home. Explanation of Features and Controls see (figure A) 1) Power Switch - This two position switch controls the power status of the subwoofer. 2) Low Pass Filter (Adjustable Subwoofer Crossover) 3) Line Level Input - These RCA input jacks accepts a line level signal from the pre-amplifier output of the receiver or preamplifier. This full range signal is processed through the variable low pass subwoofer crossover filter and then amplifies the low frequencias to power the subwoofer. 4) Speaker Level Input - These Speaker Level inputs are used when you do not have a line or signal level option available. It also processes a full range signal through the variable low pass subwoofer crossover filter and then amplífies the low frequencies to power the subwoofer 5) Voltage Switch - For AC 110 or 220 voltage requirements. 6) Volume Level - This Volume control knob adjusts the volume level of the subwoofer allowing you to balance the volume levels with the main full range stereo speakers. 7) Variable Phase Control - Switchable between 0-180'- 8) Power Mode - Auto signal sensing OnlOff. o sã lo o Figure A
