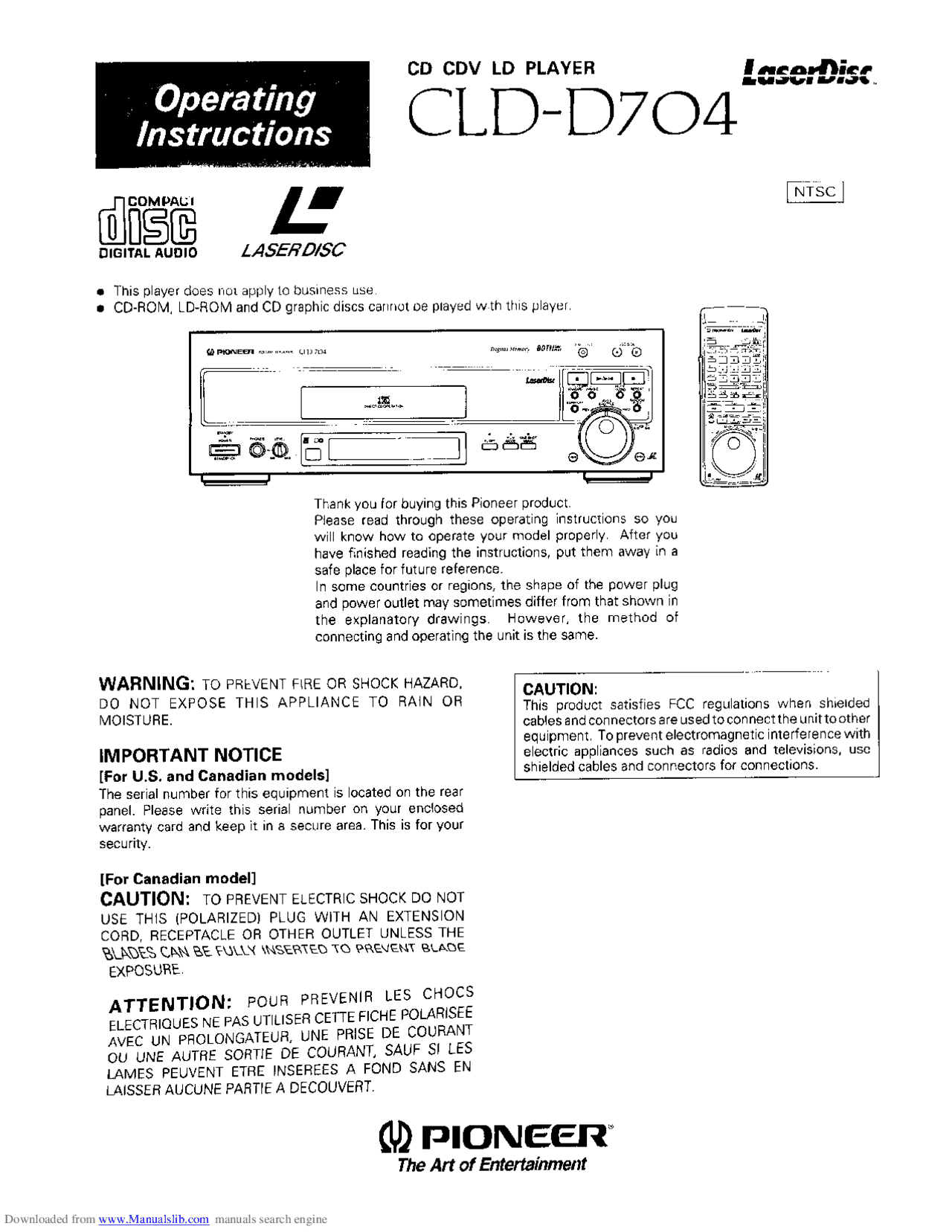

CD CDV LD PLAYER I R=..,'.,,,=.
Mllm=Wql_l il_'ilY_ ,,
CLD-D
DIGITAL AUDIO
L
L A SER D/SC
- This player does not apply to business use.
- CD-ROM, LD-ROM and CD graphic discs cannot be played with this player.
F_y_IIE_I31 _e. CLD 704
I, .I
Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However, the method of connecting and operating the unit is the same.
-,, .B3_i!I **.',-.r4-_** _!, ____ _ i
WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
IMPORTANT NOTICE
[For U.S. and Canadian models] The serial number for this equipment is located on the rear panel. Please write this serial number on your enclosed warranty card and keep it in a secure area. This is for your security.
CAUTION:
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.
[For Canadian model]
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT
USE THIS (POLARIZED) PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE
EXPOSURE.
ATTENTION: POUR PREVENIR LES CHOCS
ELECTRIOUES NE PAS UTILISER CETTE FICHE POLARISEF
AVEC UN PROLONGATEUR, UNE PRISE DE COURANT
OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES
LAMES PEUVENT ETRE INSEREES A FOND SANS EN
LAISSER AUCUNE PARTIE A DECOUVERT.
PIONEER +
The Art of Entertainment
IMPORTANT
The lightning flash wit n a,i uwllead, w_[l/i:l a/_ uquliaIb¢. I triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
CAUTION
CAUTION: TO PREVEN I I HE RISK OF ELECI RIC SHOCK, DO NOT REMOVE COVER fOR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
]he exclamation point within an equilatera triangle_ is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
SAFETY INSTRUCTIONS
READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated. RETAIN INSTRUCTIONS- The safety and operating in- structions should be retained for future reference HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS - All operating and use in- structions should be followed CLEANING - UnpLug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. ATTACHMENTS - Do not use attachments not recom- mended by the video product manufacturer as they may cause hazards, WATER AND MOISTURE - Do not use this video pro- duct near water - for example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. ACCESSORIES - Do not place this video product on an unstable cart, stand, tripod, bracket, or table, The video product may fall, causing serious injury to a child or adult, and serious damage to the ap- pliance. Use onJy with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer's in- structions, and should use a mounting accessory recommended by the manufacturer. CART - An appliance and cart combination should be moved with ca re. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn,
VENTILATION - Slots and openings in the cabinet are provided for ventiiahon and tO ensure reliable operation of the video product and to protect it from overheating These openings must not be blocked or covered, They should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface. This video product should never be placed near or over a radiator or heat reg- ister. This video product should not be placed in a built-in installation such as a bookcase or rack un- less proper ventilation is provided or the manufac- turer's instructions have been adhered to. POWER SOURCES - This video product should be operated only from the type of power source indi- cated on the marking label. If you are not sure of the t'{_e Of ower su_gLy to your home, consult your app\lance ee\er o \oea\ power com£&n, _-or video products intended to operate from batter,/ power, or other sources, refer to the operating in- structions. POWER-CORD PROTECTION Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular atten- tion to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
POLARIZATION - This video product is equipped with a polarized alternating current line plug (a plug hav- ing one blade wider than the other), This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug, LIGHTNING - For added protection for this video pro- duct receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-line surges. POWER LINES-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When install- ing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. OVERLOADING - Do not overload wall outlets and ex- tension cords as this can result in the risk of fire or electric shock. OBJECT AND LIQUID ENTRY - Never push ob}ects of any kind into this video product through openings as they may touch dangerous voltage points or short- out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product. SERVICING - Do not attempt to service this video pro- duct yourself as opening or removing covers may expose you to dangerous voltage or other hazards, Refer all servicing to qualified service personnel.
DAMAGE REQUIRING SERVICE Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a When the power-supply cord or plug is dam- aged. b, If liquid has been spilled, or objects have fallen into the video product. c, If the video product has been exposed to rain or water. d. If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating in- structions. Improper adjustment of other controls may result in damage and will often require exten- sive work by a qualified technician to restore the video product to its normal operation. e, If the video product has been dropped or the cabinet has been damaged. f, When the video product exhibits e distinct change in performance - this indicates a neecl for service, REPLACEMENT PARTS- When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or having the same characteristics as the original part, Unauthorized substitutions may result in fire, electric shock or other hazards, SAFETY CHECK - Upon completion of any service or repairs to this video product, ask the service techni- cian to perform safety checks to determine that the video product is in proper operating condition. OUTDOOR ANTENNA GROUNDING - If an outside an- tenna is connected to the antenna terminal, be sure the antenna system is grounded so as to provide some protection against voltage surges and built- up static charges. In the U.S.A. section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and require- ments for the grounding electrode. See Fig. A.
L ANTENNA
___11I LEADIN
GROUND_ WIRE
I "% ANTENNA
F-_ j:. DISCHARGE UNIT
,-------- POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
FIG. A
NEC - NATIONAL ELECTRIC CODE
CONOUCTORS _NEC ,_ECTtON e'o - **2"V**
)e.a.,t C.'
IJSrE_ING f
Selecting fine audio equipment _uch as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion--and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So what sounds "normal" can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
- Start your volume control at a low setting.
- Slowly increasethe sound until you can hear it comfortably and
clearly, and without distortion.
Once you have established a comfortable sound level:
- Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association's Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection. Decibel Level 30 40 50 60 70 80
Example Quiet library, soft whispers Living room, refrigerator, bedroom away from traffic Light traffic, normal conversation, quiet office Air conditioner at 20 feet, sewing machine Vacuum cleaner, hair dryer, noisy restaurant Average city traffic, garbage disposals, alarm clock at two feet. THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE 90 Subway, motorcycle, truck traffic, lawn mower 100 Garbage truck, chain saw, pneumatic drill 120 Rock band concert in front of speakers, thunderclap 140 Gunshot blast, jet plane 180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
LISTENING
CONTENTS
ACCLSSOHILU ................................................. 5 PRECAUTIONS ................................................................ 6 FEATURES AND FUNCTIONS OF THE PLAYER ............. 7 TYPES OF DISCS THAT CAN BE PLAYED WITH THIS UNIT ............................................... 8 CARE OF DISCS ............................................................ 10 CONNECTIONS ............................................................. 11 NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT COMPONENTS .................................................... 15 NAMES AND FUNCTIONS OF FRONT PANEL COMPONENTS ............................................................. 16 TO PLAY AN LD, CDV OR CD ....................................... 18 PARTICULAR FUNCITONS FOR CD - Direct CD .......... 22 TO ADJUST THE SOUND VOLUME
- Digital Level Control ................................................... 23 WATCHING A MOVIE DISC- Theater Mode ................ 23 TO ADJUST THE PICTURE QUALITY (V-DNR) .............. 24
TO SEARCH FOR A PARTICULAR PASSAGE ............... 25
TO SEARCH FOR A PARTICULAR CHAPER/TRACK .... 26
TO SEARCH FOR A PARTICULAR TIME/FRAME ......... 28
TO PLAY ALL CHAPTERS/TRACKS IN A RANDOM
ORDER - Random Playback .......................................... 29 EXTRA PLAYBACK ........................................................ 30 TO REPEATEDLY PLAY A DESIRED PASSAGE
- Repeat Playback ......................................................... 32 TO PLAY ONLY DESIRED SCENES/TRACKS
- Program Playback ....................................................... 34 PROGRAMMING CHAPTERS/TRACKS TO BE PLAYED BACK WITHIN A SPECIFIED TIME PERIOD
- Compu Program/Auto Program Edit ........................... 36 DISPLAY SWITCH ING ................................................... 38 TROUBLESHOOTING ................................................... 40 SPECIFICATIONS .......................................................... 43
[ ACCESSORIES
-- When unpacking the player, first check to make sure that all of the accessories listed below are supplied. --
- Remote control unit
- Size 'AAA" (IEC R03) dry cell battery x 2 - Video cord (Pin plug --- Pin plug) Use to con nect t he player to a color monitor etc.
Audio cord (Pin plug x 2 ---- Pin plug x 2) Use to connect the player to a stereo amplifier etc.
- Operating instructions
- Warranty card
INSERTING BATTERIES INTO THE
REMOTE CONTROL UNIT
Open the battery compartment cover on the back of the remote control unit. Press the knob and open the cover in the direction of the arrow. Take out the two accessory size "AAA" (IEC R03) dry cell batteries, and insert them into the battery compartment in accordance with the display (:), _:)) inside the compartment.
Incorrect use of batteries may cause leakage or rupture. Always be sure to follow these guidelines: A. Always insert batteries into the battery compartment correctly matching the positive (_ and negative 1_)polarities, as shown by the display inside the compartment. B. Never mix new and used batteries. C. Batteries of the same size may have different voltages, depending on brand. Do not mix different brands of batteries.
%
FEATURES AND FUNCTIONS OF THE PLAYER
L P,a.boo.Funct,o°s 1 { O..er °a.ures ]
Program Playback Up to 24 chapters can be programmed for playback in any desired sequence.
Random Playback (For LDs, this function is available with only discs containing TOC.) All chapters of one side of a disc can be played in random order.
Repeat Playback Eight repeat modes - Memory Repeat, A-B Repeat, 1-chapter/ track Repeat, One-side Repeat, All side Repeat (for two-side LDs only), Program Repeat, Random Repeat and Program Random Repeat - are available. (With discs having no TOC, Random Repeat cannot be carried out.)
Hi-Litellntro Scan Playback Hi-Lite Scan - CD, CDV-audio part Playback starts from a point 1 minute after the beginning of the track, and each track is played for about 8 seconds. Also, Hi-Lite Scan playback can be started from the desired minute and second on each track. Intro Scan - LD, CDV-video part The beginning of each chapter/track is played for about 8 seconds.
Auto Program Editing/Compu Program Editing The player automatically selects and programs the tracks which can be played back within a specified time.
J LD (LaserDisc) Playback Functions ]
Gamma-Turn System - Two-Side Continuous Playback With this function, both sides of a two-sided LD can be played consecutively, eliminating the need to turn the disc over when the first side of completed.
A Side _ B Side Continuous Playback Programs Through the use of the Gamma-Turn system, programs which go from side A to side B or from side B to side A can be freely created.
Special Play Functions Utilizing Digital Video Memory The video system's jitter compensation circuit uses a digital TBC which has a wide compensation range and theoretically no signal degradation, resulting in high picture quality. Moreover, an 8-bit digital memory circuit is incorporated, enabling you to enjoy a variety of special play functions with high picture quality, even with CLV discs.
Last Memory Function With this function, if you turn the power switch off during playback of an LD, a playback position slightly ahead of the last fame to be p\aye 'sstored nmemory/\ast memo_V .'qkl_en the power is turned back on, playback begins from the memorized position by pressing I_/1_1_1.
CD (Compact Disc)/CDV (Compact Disc with
Video) Playback functions
Direct CD function Pressing DIRECT CD on the front panel instructs the unit to use the CD disc table, which reduces the play starting time. In addition, since the picture circuit does not function, the player eliminates the interference between signals and reproduces more pure sound.
Digital NR system Most LD discs contain noise and/or color distortion in the source. This player uses a digital noise reduction system which effectively reduces noise and color distortion and allows you to independently change the brightness and saturation as desired. Digital processing reproduces images with superior picture quality.
Digital TBC system A digital TBC system is used for correcting jitter in the picture processing circuitry, featuring a wide correction range, minimal signal degradation and high-quality picture reproduction.
1-Bit DLC D/A Converters D/A converters are devices for transforming digital signals into analog signals. The D/A converter used in this player employs an advanced 1-bit conversion system. Compared to conventional converters, this system has the following advantages.
- Theoretically no zero cross distortion is generated.
- The system is free of non-liner distortion throughout the frequency range.
- High-precision operation can be obtained without adjustments. With this type of conversion, there is no loss of music quality even at minute signal levels. Moreover, the noise shaping function necessary for 1-bit conversion is implemented using a double-step noise shaping system. This system carries out noise shaping once in the preliminary digital filter stage and then again in the D/A converter section, thus minimizing quantization noise and providing extremely high-precision conversion. Furthermore, two of these D/A converters are used independently for the left and right channels, realizing a high signal-to-noise ratio and excellent separation.
Auto Loading and Automatic Disc Discriminaiton Funcitons This unit has a built-in motor-driven auto loading mechanism which automatically opens and closes the disc table and makes disc loading easy. Also, once a disc is placed on the table and the table is retracted into the player, the player automatically detects which type of disc (LD, CD, or CDV) is loaded.
Compatibility with Many Disc Types and Sizes In addition to conventional LDs (12 inch, 8 inch), CDs (5 inch), and CDV discs (5 inch), the player can play thin-type 8 inch LDs and 3 inch CD singles without an adapter.
Film mode When Film Mode is ON, the front panel display window and £ereen digDlav are turned off during playback, and the screen gOeS b_ack when changing disc sides, Play starting time and the time required to change disc sides is shorter than durir_g normal playback. This mode is most suitable for playback of movie discs.
Provided with S-Video Connector and 3-Line Digital Y-C Separation Circuit.
Digital Level Control Using JOG-Dial Adjustment.
TYPES OF DISCS THAT CAN BE PLAYED WITH THIS UNIT
This unit is a CD VIDEO SYSTEM ('1) compatible player which can play CDs, CDV discs, and LDs.
The five disc types listed in the table below can be played with this unit.
- The marks shown in the left column are printed on the labels and jackets of the corresponding discs.
Mark
DIGITAL AUDIO
<=r=== CDV CD VIDEO
or
L,4 SER D/SC
<gm' LD
CD VI DEO
L orL LASERDISC z_se,s,o,
Disc
CD (Compact Disc) Single
CD (Compact Disc)
CDV VIDEO SINGLE
VIDEO _t, I SINGLE _ DISC _'
CDV (CD with Video)
CD VIDEO LD (*4)
LD (LASERDISC/
LaserVision Disc)
Size
3-inch
5-inch
5-inch
5-inch
12-inch, 8-inch
12-inch, 8-inch
Number of recorded sides
One side
One side
One side
One side
Two sides, one side
Two sides, one side
Audio recording system
Digital (20 minutes max.)
Digital (74 minutes max.)
Digital (5 minutes max.)
Digital (20 minutes max./ 5 minutes max.)
Digital/analog
Digital/analog (*6) or analog only
Video recording system
CLV (*3)
(5 minutes max.)
CLV (*3)
(5 minutes max.)
CAV (*5) CLV
CAV, CLV
Other
TOC (*2)
TOC
TOC
TOC
TOC
- There are some discs marked w_th the L_ mark instead of the _ mark• ** There are some disc without the _,-,.a_Lo mark• OI3 VIDEO
LD GLOSSARY
Chapter number Chapter numbers are used to indicate the boundaries of the sections on a disc, similar to the "chapters" in a book. If chapter numbers are recorded on a disc, it is so indicated on the jacket of the disc, etc. Chapter numbers can be used to search for desired chapters (Chapter Search).
Frame number Frame numbers are the numbers assigned to each picture frame on a CAV (standard p_ay_disc. Frame numbers can be used to search for desired frames (Frame Search).
CDV/CD GLOSSARY
Track number Track numbers indicate the boundaries of the sections, or "tracks", on a disc. Track numbers are assigned consistently throughout the audio part and video part of a CDV disc. Track numbers can be used to search for desired tracks (Track Search)•
TOC (*2) Every CD/CDV-type disc is provided with a section called TOC (Table Of Contents) at the beginning of the disc. The TOC section is just like the table of contents of a book, and contains information on the contents (number of tracks, playing time, etc.) of the disc.
- Some LD discs are also provided with a TOC section.
Time number Time numbers indicate the time elapsed from the beginning of a CLV (extended play) disc. Time numbers can be used to search for desired scenes (Time Search).
I CARE OF DISCS
How to hold discs When loading or removing discs, try not to touch their playing surfaces.
Cleaning Fingerprints or other dirt on the disc may affect sound and picture quality.
To clean your discs, use a soft clean cloth to wipe them. If necessary, moisten a soft cloth with diluted neutral detergent to remove heavy dirt or fingerprints.
Do not wipe in a circular direction
Gently wipe from the inside toward the outer edge.
Discs must not be cleaned with record cleaning sprays, or static prevention sprays, etc. Also do not use volatile liquids such as benzine, or thinner, etc.
NEVER PLAY CRACKED OR WARPED DISCS.
- The disc revolves in the player at a high speed when it is played. Never play a cracked, scratched or warped disc. This may damage the player or cause it to malfunction.
After using discs, store them upright After playing a disc, always remove it from the player and return it to its jacket. Then store it standing upright away from heat and humidity.
- Store discs carefully. If you store discs at an angle, or stacked on top of each other, discs may become warped even when in their jackets.
- Do not leave discs in locations such as the seat of car, which may become excessively hot.
If an LD disc is warped... If an LD disc is warped, put the disc into its protective envelope, and then place it between two flat boards. Then place heavy books on top of the plates so that approximately 4 to 5 kg (10 Ib) is applied. Leave the disc like this for a day or so. This may correct the warp.
Heavy books 4-5 kg (10 Ib)
Flat board
LD disc _.i Protective envelope Flat board
CAUTION WHEN USING THE DISC
All rights reserved. Unauthorized public performance, broadcasting or copying is a violation of applicable laws.
CONNECTIONS. Only televisions equipped with a video input u_. be connected to this unit.
USING TELEVISION WITH AUDIO AND VIDEO JACKS
Player, stereo system, monitor television ]
@
When connection S VIDEO jack, insert the plug with care. Forcing the plug into the jack with the wrong orientation may
jack.damagetheplugand/°rthe••_iiaiamaamAUdiocord _IO_O_I
Stereo amplifier
UHF television antenna
VHF television antenna
1
Audio cable
__ECK SYNCHRO jack (^) To power outlet
- Connection only after all other connections have been made.
Video cord
I
foo (^) IIIIIIIIIIIIIIIIIIIIIIIIIIIIII IIIIIII IIIIIIIIIIIIIIIIIIIIIIIIIII|IIIIII i! S-VIDEO cable JCV-103 (sold separately)
S-video input
- Connect the VIDEO OUT jack of the player to the video input jack of the minitor television.
- When connecting to IV equipped with the S-Video input jack, the S-VIDEO connection is recommended to obtain superior picture quality.
- Connect the AUDIO OUT jacks to the stereo amplifier AUX, CD, LD, VDP or other jacks, except the PHONO input jacks. The television speakers can also be used by connecting the television audio input jacks and the player AUDIO OUT jacks. However connection to a stereo amplifier is recommended to obtain superior audio playback quality for Compact Discs and LaserDiscs. Do not change the television antenna and VCR connections.
- Connect the power cord to an AC wall outlet.
- Combined system control is possible when a Pioneer television and audio/video stereo receiver are connected. Refer to page 13 and 14 for an explanation of the connection procedure.
- hen making conuections to stereo amplifier equipped with a bui_t-in D/A converter and an optical dlgita iack, refer to the connection instructions on the page 12.
CD-DECK synchro function If you have a Pioneer cassette deck provided with the CD- Deck synchro funciton, connect the CDoDECK SYNCHRO jacks of the player and cassette deck. With this function, synchro recording can be carried out between player and deck.
- With CD as well as CDV and LD, the CD-Deck synchro recording can be carried out.
- For details on connections and operation, refer to the operating instructions supplied with the cassette deck. rAC-3 RF OUT terminal This terminal is intended for use with Dolby AC- components ('1) planned for future release. With this terminal, you will be able to connect an AC-3 RF input of amplifiers and surround processors, and playback laser discs formatted with Dolby AC-3 (2). ('1) Indicated with _ (For hardware) (2) Indicated with q;_ (For software) eYou cannot playback currently available laser discs, laser disc players, AV amplifiers, etc., with this terminal. eE)o r_ot connect th'lS terminals to the audio input terminal of normal stereo or A'q \i_iers. 1"
SYSTEM REMOTE CONTROL CONNECTION
WHEN COMBINED WITH OPTIONAL PIONEER
PROJECTION MONITOR (or COMPONENT DISPLAY) Connect the VIDEO OUT jack of the player to the video input jack of the projection monitor (or component display), and connect the AUDIO OUT jacks of the player to the audio input jacks of the projection monitor (or component display).
System Control By connecting the CONTROL IN jack of the player to the remote jack of the projection monitor (or component display), the system can be controlled by the remote control unit of the player at the remote control sensor of the projection monitor (or component display).
- Use a commercially available cord with mini-plugs for the connection. Please also refer to the operating instructions for the projection monitor (or component display).
NOTE:
When system control connections have been made, the player cannot be directly controlled by the remote control unit, To operate the player, aim the remote control unit at the projection monitor (or component display).
Hi-Fi Projection Display SEED
[] (^) Video cord
]] ommercially available cord with mini-plugs (without load)
nl||mllllmsgmm|lmlIO
Audio cord
I CONNECTIONS
PERFORMING SYSTEM CONTROL WHEN THE
PLAYER IS COMBINED WITH A PRODUCT THAT
HAS THE
System control can be performed when the player is combined with an optional AV amplifier, which can provide centralized control of Pioneer products with the _ mark. Connect the VIDEO OUT jack of the player to the video disc video input jack of the AV amplifier and connect the AUDIO OUT jacks of the player to the audio input jacks of the AV amplifier. Connect the CONTROL OUT jack of the AV amplifier to the CONTROL IN jack of the player using a commercially available cord with mini-plugs.
- For details concerning the connection and operation methods, please refer to the operating instructions for the AV amplifier.
NOTE:
When a connecting cord has been connected to the CONTROL IN jack, direct control of the player with the remote control unit is not possible. Operate the player with the remote control unit by aiming it at the AV ampfifier.
Video cord v-
Audio cord
VIDEO INPUT
®
AUDIO
CONTF Iooool
AV amplifier
i _ ii i i i n i i i II i i II n II II II i g I i il Oq
Commercially available cord with mini-plug (without load)
NAMES AND FUNCTIONS OF FRONT PANEL COMPONENTS
A detailed descreption is provided on the indicated page(s). CD Disc table ... p. 22
Disc table ... p. 19
PHONES LEVEL control Turn this control in the 'MAX" direction to increase the output level from the PHONES jack, Turn this control in the 'MIN" direction to decrease the output level from the PHONES jack.
PHONES jack ... p. 19
STANDBY indicator This indicator lights when the power is set to standby and goes out when the power is turned on. POWER STANDBY/ON switch Pressto turn the power on and off.
Remote sensor ... p.
I_I PlONEF-.R CDC{.)vLDPLAYER
r F
STAIDBY POWER
STANDBY/ON
PH NES LE'
CLD--
DIRECT CO OPERATION
Display window
Play indicator (_-) Lights during play. Blinks during search.
PROGRAM indicator Lights during program play.
PGM EDIT indicator Lights when program editing is performed.
I
REPEAT indicator -- Lights during repeat play.
TRACK/CHP indicator Indicates the TRACK number or CHP (chapter) number,
IP" I^ TRACK _ c.P, _....
1"14 P.oG._ I I 'oT;_
rT-iITI r;l rq ITIITII[] rTIFI IZEI
SiDE / O
Iz/
[]
l/L, 2/R indicator Indicates the audio outpu[ channel., RANDOM indicator Lights during random play.
HILITE/INTRO indicator Lights during Hilite scan or Intro Scan mode.
...1 DISC SIDE B indicator
,A_BI^ --
"RANDOM ]
EEl rTI rTI EB EB ED ITq EB I=-I--.
DIGITAL SOUND indicator Lights when the disc being played has a digital sound signal. With LD discs, this indicator lights when the digital sound signal is selected.
DISC SIDE A indicator
Pause indicator (11) Lights when the player is rn pause mode.
TOTAL/REMAIN indicator Indicates the TOTAL TIME (total play time) or REMAIN TIME (remaining play time).
LD/CD/CDV visual calendar When a disc is loaded, all of the chapter/track numbers recorded on the disc light up on the display. If the disc contains more than 19 chapters/tracks, the --* indicator lights. During program play, only the programmed chapter/track numbers light. When a disc without a TOC section is played, only the selection number being played lights. When a CDV disc is loaded,
the track numbers of video part light followed by the track
numbers of theaudio part,
After a chapter/trackisfiniahe,dpJay/ng,thecofre.poRdingnumber_ goes out.
-- FRAME/TIME indicator Indicates the FRAME number or TIME.
Digital Memoly^ BOTH,_,, SlOE
I
:)IRE( T CO ®
5
o FILM MODfi I
HI I • REPEAT -T-T,';; 2 _;-VlJ N'-H_L E /I RAN_
v-o..oFF s_°?_& p y
___ ,f-_- _
Open/Close (_A)button ... p. 18, 20, 22
DIRECT CD button ... p. 22 Play/Still (1_/1_1<) button ... p. 19, 22, 30
DISC SIDE A/B buttons ... p. 18
Stop (11)button ... p. 20 HILITE/INTRO button ... p. 26
REPEAT button ... p. 32
RANDOM PLAY button ... p. 29
Jog dial ... p. 24, 25
Shuttle ring ... p. 23, 24, 25
SKIP (l<v<, _P4) button ... p. 27, 35
V-DNR OFF button ... p. 24
- V-DNR STANDARD button ... p. 24
V-DNR VARIABLE button ... p. 24
ONE SHOT MEMO button/indicator ... p. 3
FILM MODE button/indicator ... p. 23 Set to ON in accordancewith your tastes, particuh ,^ when^ viewing^ movie^ discs.
FL OFF button/:-'=: ..... Pressing this button turns off the display in the front panel display window and causes the FL OFF indicator to light. Press the button again to cause the display to return. Turning off the display prevents low levels of noise from adversely affecting sound quality.
LIGHTING button I
F ""^ When^ the^ LIGHTING button^ is pressed, the buttons^ indicated
_ _ C_:_'_l[/ in theThe lightillustration will become will light dim for and about the 3 seconds. range of the remote
[] (_ [] _ _ control operation will become shorter when the batteries
LIGHTING _ [] {_ [] []JlJJ are exhausted. If this occurs, replace both batteries with bu.on ((((
z-"::z till NOTE:
_J _UTE lIO'UEV_L
(_3 _ _3 _ The JOG MODE button lights up each time the button is These vv]ll buttons _- .......... pressed regardless of the LIGHTING button setting. light up. _ _L____J__JJJlJ (NOTE)*
CDICDV/LD
I
3
Front panel buttons and remote control unit buttons with the same name or mark have the same function.
Operations indicated by the [ _ ] mark are performed with the remote control unit.
4
Load a disc.
As shown in the following diagram, place the disc on the disc table in the groove corresponding to the size of the disc. If the disc is not centered correctly on the disc table, the disc will not be played or the disc or the player may be damaged. Always place the disc correctly according to the required disc size on the disc table.
3-inch CD
5-inch CD/CDV
8-inch LD 12-inch LD
CD/CDV: With the labeled side up LD: With the desired side's label up
5
Start playback.
or
PLAY
- With CDV discs, the video part is played first.
- With two-sided LDs, after the A side of the disc (the side facing upward) is played, a still frame is displayed and then the unit automatically begins playing the B side.
To avoid malfunctions, be especially careful about the following points.
- Do not place any object other than a disc on the disc table.
- Do not move the player while a disc is playing. This will cause the disc to be scratched.
Precautions concerning disc loading
- Do not place more than one disc on the disc table. If two discs are placed one on top of the other on the disc table, discs may be scratched and/or a malfunction may occur.
- With this unit, playback of all types of discs is carried out without the use of adaptors. Therefore, do not use any type of adaptor with this unit.
- With CDs, CDV discs, and single-sided LDs, always be sure to load discs with the label side facing upward.
Lest Memory function: If the power is turned off during LD playback, a playback position slightly ahead of the current frame is stored in the unit's memory (Last Memory). When the power is turned back on and playback begins from the memorized position by pressing /=,-<.
To play and listen to a disc without connecting this unit to an audio system: Plug headphones into the PHONES jack on the front panel of this unit and adjust the volume with LEVEL control.
19
I TO PLAY AN LD, CDV OR CD (Continued) ..................
A
m
® 0 0
! i
I_ rl_l_l
II A m
To pause playback temporarily
PAUSE
B
The sound and/or video image disappears and the II indicator lights in the display window. Press PAUSE II again to resume playback from the position where pause mode was entered,
- During playback of CD or CDVaudio part, front panel./l is also used to pause playback temporarily,
To stop playback
I'
Or
Once
When /I,-I is next pressed, disc playback starts again from the beginning.
To stop playback and take out the
disc
or
EJECT
8 Twice
After removing the disc from the disc table, press & or I_/I_P< to close the table.
Discs marked with the l-V< mark
Discs marked C_[qare recorded with the CX noise reduction system for powerful audio reproduction with little noise. (Analog audio only) However, some discs marked E)[_ are not encoded with the signals necessary to instruct the unit to automatically switch on the CX system. If sound is noisy or undulates when a disc with a IC_I, mark is played, press D/A/CX on the remote control unit.
- _ & _ t_et. O_ C_ _(3. _s _3_N,er meets t_e CX EXPANDING SPECtFICA-fION.
To watch a TV broadcast: Switch to the broadcast using the controls of your "IV.
Automatic picture stop Some of discs contain recording of a special code called the "picture stop code", which turns normal play or slow play automatically into still frame display. To cancel the automatic picture stop operation, press and hold _,-/l,P< isp\a./ed on the screen,, ]0 [e-activate, p_ess a ho_ -/-_q o more than 2 seconds again until "PSC OFF" is displayed.
2O
