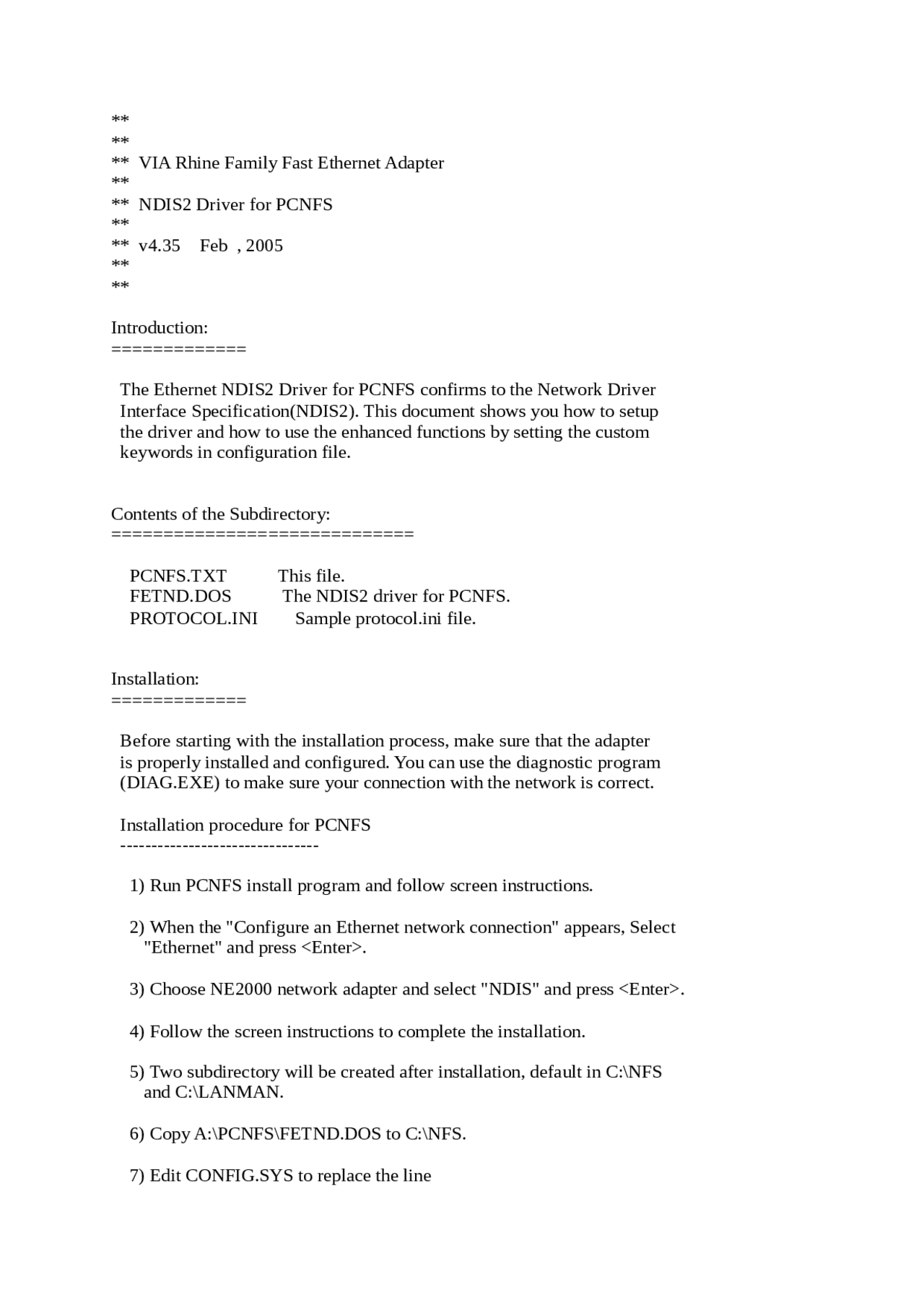

** VIA Rhine Family Fast Ethernet Adapter
**
** NDIS2 Driver for PCNFS
**
** v4.35 Feb , 2005
**
**
Introduction:
=============
The Ethernet NDIS2 Driver for PCNFS confirms to the Network Driver
Interface Specification(NDIS2). This document shows you how to setup
the driver and how to use the enhanced functions by setting the custom
keywords in configuration file.
Contents of the Subdirectory:
=============================
PCNFS.TXT This file.
FETND.DOS The NDIS2 driver for PCNFS.
PROTOCOL.INI Sample protocol.ini file.
Installation:
=============
Before starting with the installation process, make sure that the adapter
is properly installed and configured. You can use the diagnostic program
(DIAG.EXE) to make sure your connection with the network is correct.
Installation procedure for PCNFS
--------------------------------
1) Run PCNFS install program and follow screen instructions.
2) When the "Configure an Ethernet network connection" appears, Select
"Ethernet" and press <Enter>.
3) Choose NE2000 network adapter and select "NDIS" and press <Enter>.
4) Follow the screen instructions to complete the installation.
5) Two subdirectory will be created after installation, default in C:\NFS
and C:\LANMAN.
6) Copy A:\PCNFS\FETND.DOS to C:\NFS.
7) Edit CONFIG.SYS to replace the line
