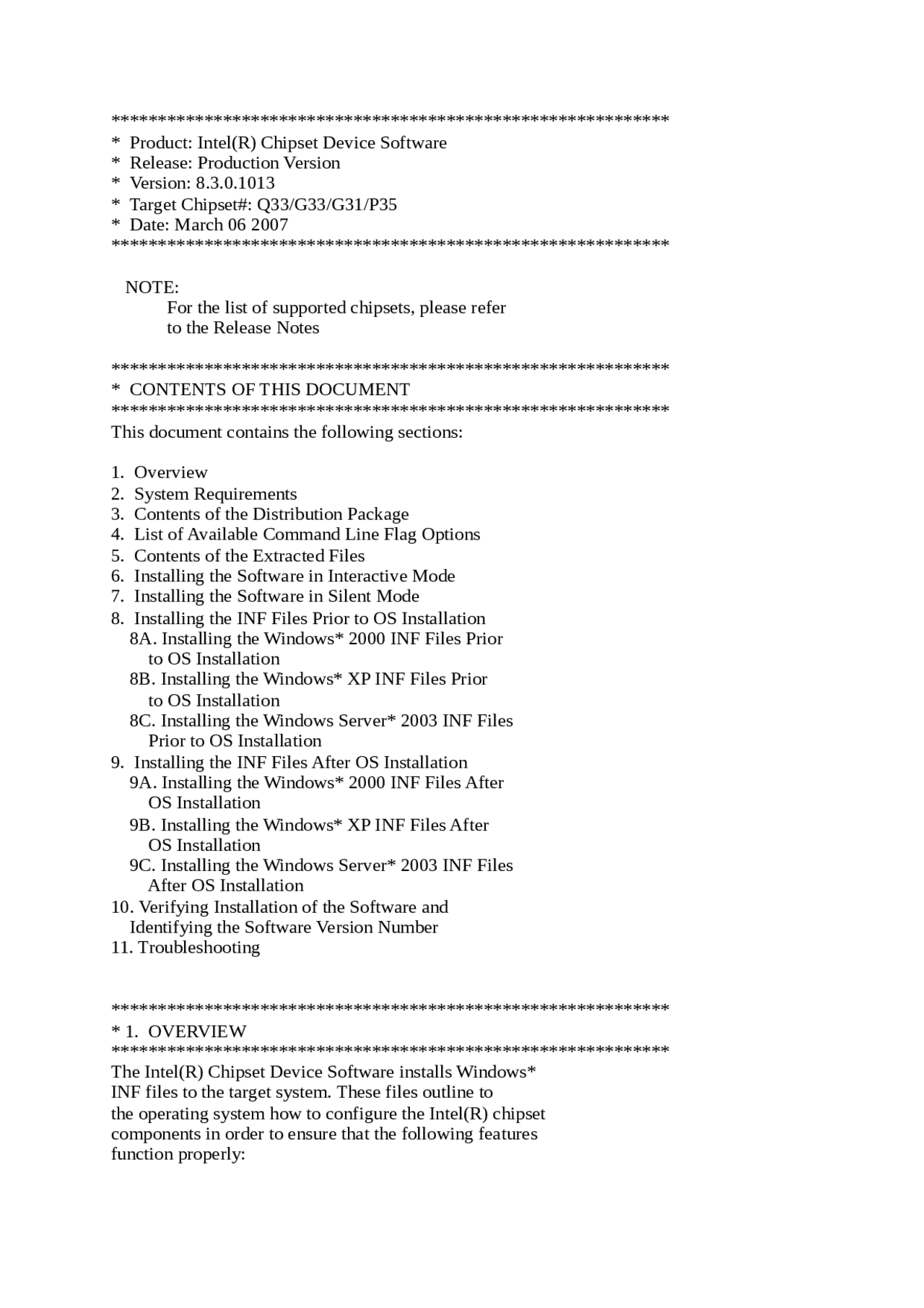

- Product: Intel(R) Chipset Device Software
- Release: Production Version
- Version: 8.3.0.
- Target Chipset#: Q33/G33/G31/P
- Date: March 06 2007
NOTE:
For the list of supported chipsets, please refer to the Release Notes
* CONTENTS OF THIS DOCUMENT
This document contains the following sections:
- Overview
- System Requirements
- Contents of the Distribution Package
- List of Available Command Line Flag Options
- Contents of the Extracted Files
- Installing the Software in Interactive Mode
- Installing the Software in Silent Mode
- Installing the INF Files Prior to OS Installation 8A. Installing the Windows* 2000 INF Files Prior to OS Installation 8B. Installing the Windows* XP INF Files Prior to OS Installation 8C. Installing the Windows Server* 2003 INF Files Prior to OS Installation
- Installing the INF Files After OS Installation 9A. Installing the Windows* 2000 INF Files After OS Installation 9B. Installing the Windows* XP INF Files After OS Installation 9C. Installing the Windows Server* 2003 INF Files After OS Installation
- Verifying Installation of the Software and Identifying the Software Version Number
- Troubleshooting
* 1. OVERVIEW
The Intel(R) Chipset Device Software installs Windows* INF files to the target system. These files outline to the operating system how to configure the Intel(R) chipset components in order to ensure that the following features function properly:
- Core PCI and ISAPNP Services
- PCIe Support
- IDE/ATA33/ATA66/ATA100 Storage Support
- SATA Storage Support
- USB Support
- Identification of Intel(R) Chipset Components in the Device Manager
This software can be installed in three modes: Interactive, Silent and Unattended Preload. Interactive Mode requires user input during installation; Silent Mode and Unattended Preload do not.
This software also offers a set of command line flags, which provide additional installation choices. The command line flags are not case sensitive. Refer to Section 4 for detailed descriptions of these flags.
Important Note: The Intel(R) Chipset Device Software is distributed in two formats: self extracting .EXE files (INFINST_AUTOL.EXE) or compressed .ZIP files (INFINST_AUTOL.ZIP). Depending on which distribution format is being executed, the commandline syntax may differ. Refer to Section 4 for more details.
* 2. SYSTEM REQUIREMENTS
- Please refer to the Release Notes to view the list of chipsets that the software included with this distribution package is designed to operate with.
- One of the following operating systems must be fully installed and running on the system before installing this software:
Microsoft Windows* Server 2003 Microsoft Windows Server 2003 x64 Edition* Microsoft Windows XP Professional x64 Edition* Microsoft Windows XP Microsoft Windows 2000 Microsoft windows Vista
This software is designed for the latest Service packs releases of above operating systems.
To verify which operating system has been installed onto the target system, follow the steps below:
a. Click on Start. b. Select Settings.
Below is a list of all the available command line flags that may be used with the program call. Note that the '-L' and the '-S' flags MUST be specified at the end of the command line flag list.
Flag Description
-? Displays the list of available command line flags. This flag works in Interactive Mode only.
-A
Extracts the INF files and Readme to either "C:\Program Files\Intel\InfInst" or the directory specified using the '-P' flag. The software will NOT install these INF files to the system. This flag can be combined only with the '-P' flag. All other options will be ignored if the '-A' flag is specified. This flag works in Interactive Mode only.
-Aonly Extracts the needed INF files to install on the current system. If the install has been run once successfully, '-Aonly' will not return any INFs when used in conjunction with '-overall' switch, all the needed INFs for the system will be extracted.
-B
Automatically reboots the system after installation. This flag is ignored if '-A' flag is specified. This flag works in either Silent Mode or Interactive Mode.
-f2<path\Logfile> Specifies an alternate location and name of the log file created by InstallShield Silent. This option is used for silent installation from a CD. 'Path' indicates the directory path where installation status is logged in file 'Logfile'
-L Forces the InstallShield* user interface to display the specified language during setup. Note that there should be NO space between '-L' and the 4-digit language code (see below). This flag must be placed at the end of the command line flag list. This flag works in Interactive Mode only.
-NOLIC
Does not display the license agreement dialog box during installation. This parameter works in Interactive Mode only.
-NOREAD Does not display the Readme display during installation. This flag works in Interactive Mode only.
-NOWEL Does not display the welcome screen during installation. This flag works in Interactive Mode only.
-OVERALL
Updates ALL INF drivers on all available devices even if third party drivers are currently installed. This flag works in Interactive Mode only.
-OVERIDE
Updates the storage drivers even if a third party storage driver is currently installed. This flag works in Interactive Mode only.
-P Specifies the hard disk location to which the INF program files are copied. If this flag is not specified at the command line, the directory is as follows:
C:\Program Files\Intel\INFInst
If this flag is used without the '-A' option, only the Readme will be copied to . The directory name can include spaces, but then a pair of double quotes (") must enclose the directory name. There should not be any space between the switch '-p' and the directory name. This flag works in either Silent Mode or Interactive Mode.
-S
Runs the Installer in Silent Mode (no user interface is displayed). This flag and the '-L' flag must be placed at the end of the command line flag list.
Below are the language codes used with the '-L' flag:
Language
0001 Arabic (International)
"" is abbreviated "" in the remainder of this section.
The directories are classified according to the following:
All
Contains INF files designed for Windows* 2000, Windows* XP, and Windows Server* 2003.
Vista
Contains INF files designed for Windows* Vista ONLY.
NOTE:
INFAnswr.TXT makes a CUSTOM.INF template that installs the INF files for Intel(R) chipsets during operating system setup. OEMs can incorporate this file into the Setup directory for the OEM Preload Kit. (Refer to Section 8 for more details.)
* 6. INSTALLING THE SOFTWARE IN INTERACTIVE MODE
- Verify that all system requirements have been met as described in Section 2 above.
- Run the InstallShield* installation program: Self-extracting .EXE distribution: INFINST_AUTOL.EXE Compressed .ZIP distribution: SETUP.EXE
- You will be prompted to agree to the license agreement. If you do not agree, the installation program will exit before extracting any files.
- Once the operating system reboots, follow the on-screen instructions and accept default settings to complete the setup.
* 7. INSTALLING THE SOFTWARE IN SILENT MODE
- Verify that all system requirements have been met as described in section 2.
- Run the InstallShield* installation program: For silent install with auto-reboot: Self-extracting .EXE distribution: INFINST_AUTOL.EXE -b -s Compressed .ZIP distribution: SETUP.EXE -b -s
For silent install without auto-reboot: Self-extracting .EXE distribution: INFINST_AUTOL.EXE -s Compressed .ZIP distribution: SETUP.EXE -s
- The utility will perform the necessary updates and record the installation status in the following system registry key: HKEY_LOCAL_MACHINE\Software\Intel\INFInst
- If the utility was invoked with the "-b" flag, the system will automatically reboot if the update was successful.
NOTE: The system MUST be rebooted for all device updates to take effect.
- To determine whether the install was successful, verify the "install" value in the registry key specified in Step 3.
- In Silent Mode the utility will not display the license agreement. When using Silent Mode the license agreement, license.txt, will be placed in the following folder: Program Files/Intel/INFInst folder. Please read this agreement.
The following describes the various parameters:
Name: "install" Type: String Data: "success" The installation was successful.
Data: "fail" The installation was not successful. No INF files were copied to the system.
Name: "reboot" Type: String Data: "Yes" A reboot is required to complete the installation.
Data: "No" No reboot is required to complete the installation.
Name: "version" Type: String Data: Current version number of the Intel(R) Chipset Device Software
$OEM$$1\drivers\IntelINF
NOTE: XXXX is the directory name for the chipset of interest. Refer to Section 8 for more details.
- Either modify the default Windows* 2000 installation answer file, UNATTEND.TXT, located in , or create a customized answer file. The answer file must include the following information:
[Unattended] OemPreinstall = Yes OemPnPDriversPath="drivers\IntelINF"
A sample answer file for preloading the Intel(R) Chipset Device Software files is available at: \XXXX\All\INFAnswr.TXT
For more information about Windows* 2000 answer files and unattended installations, please refer to the Microsoft* Windows* 2000 Guide to Unattended Setup. If you are a computer manufacturer, refer to the Microsoft Windows* 2000 OEM Preinstallation Kit (OPK) User Guide for more information about the $OEM$ folder. Otherwise, refer to the Microsoft Windows* 2000 Deployment Guide.
- Run "WINNT.EXE /u: /s:" to install Windows* 2000.
* 8B. INSTALLING THE WINDOWS* XP INF FILES PRIOR TO
* OS INSTALLATION
NOTE: The Windows* XP OEM Preload Kit distribution CD contains a setup directory with all the base operating system setup files and installation programs (WINNT.EXE and WINNT32.EXE).
The name of the directory may vary depending on the distribution CD (e.g., \I386).
- Create the following directory structure under the :
$OEM$$$\INF
- Copy the Windows* XP INF files from \XXXX\All to the directory created in Step 1 above:
$OEM$$$\INF
NOTE: XXXX is the directory name for the chipset of interest. Refer to Section 8 for more details.
- Create the following directory structure under the :
$OEM$$1\drivers\IntelINF
- Copy the Windows* XP INF files AND the catalog files (.CAT) from \XXXX\All to the directory created in Step 4 above:
$OEM$$1\drivers\IntelINF
NOTE: XXXX is the directory name for the chipset of interest. Refer to Section 8 for more details.
- Either modify the default Windows* XP installation answer file, UNATTEND.TXT, located in , or create a customized answer file. The answer file must include the following information:
[Unattended] OemPreinstall = Yes OemPnPDriversPath="drivers\IntelINF"
A sample answer file for preloading the Intel(R) Chipset Device Software files is available: \XXXX\All\INFAnswr.TXT
If you are a computer manufacturer, refer to the Microsoft* Windows* XP Guide to Unattended Setup for more information about Windows* XP answer files and unattended installations. For more information about the $OEM$ folder, refer to the Microsoft Windows* XP OEM Preinstallation Kit (OPK) User Guide. If you are not a manufacturer, refer to the Microsoft Windows* XP Deployment Guide.
- Run "WINNT.EXE /u: /s:" to install Windows* XP.
* 8C. INSTALLING THE WINDOWS SERVER* 2003 INF FILES PRIOR
* TO OS INSTALLATION
NOTE: The Windows Server* 2003 OEM Preload Kit distribution CD contains a setup directory with all the base operating system setup files and installation programs (WINNT.EXE and WINNT32.EXE).
Deployment Guide.
- Run "WINNT.EXE /u: /s:" to install Windows* 2000.
* 9. INSTALLING THE INF FILES AFTER OS INSTALLATION
* 9A. INSTALLING THE WINDOWS* 2000 INF FILES AFTER OS
* INSTALLATION
Some Intel(R) chipset platforms already are supported by Windows* 2000, so it may not be necessary to use the INF files provided by this software to update Windows* 2000.
The following steps describe the installation process of the Windows* 2000 INF files. You may need to repeat these steps to update all Intel(R) chipset devices not supported by Windows* 2000.
- Copy the contents of the \XXXX\All directory to the root directory of the floppy disk (A:).
NOTE:
XXXX is the directory name for the chipset of interest. Refer to Section 8 for more details.
- Close all programs currently running on the system.
- Click on Start.
- Select Settings.
- Select Control Panel.
- Double-click on the System icon.
- Click on the Hardware tab.
- Click on the Device Manager button.
- Select "Devices by connection" under the View menu.
- Click on MPS Uniprocessor PC -OR- MPS Multiprocessor PC.
NOTE: Only one of the above items will be displayed for a given system.
- Click on PCI bus.
- Right-click on the line containing the description PCI standard host CPU bridge -or- PCI standard ISA bridge
-or- PCI standard PCI-to-PCI bridge -or- PCI System Management Bus -or- Standard Dual PCI IDE Controller -or- Standard Universal PCI to USB Host Controller (This line will be selected.)
- Select Properties from the pull-down menu.
- Click on the Driver tab.
- Click on the Update Driver button.
- Windows* 2000 will launch the Upgrade Device Driver Wizard. Select Next.
- Ensure that the following choice is selected: Search for a suitable driver for my device (recommended)
- Insert the floppy containing the Windows* 2000 INF files into the floppy drive.
- Select Next.
- Windows* 2000 will list locations from where the updated driver file can be found. Ensure that the following choice is selected: Floppy disk drives
- Select Next.
- Windows* 2000 should report that a driver has been found: (The detected device name will be displayed.) Select Next.
- Select Finish.
- Reboot the system when prompted to do so.
- 9B. INSTALLING THE WINDOWS* XP INF FILES AFTER OS
- INSTALLATION
Some Intel(R) chipset platforms already are supported by Windows* XP so it may not be necessary to use the INF files provided by this software to update Windows* XP.
The following steps describe the installation process of the Windows* XP INF files. You may need to repeat these steps to update all Intel(R) chipset devices not supported by Windows* XP.
- Copy the contents of the \XXXX\All directory to the root directory of the floppy disk (A:).
NOTE: XXXX is the directory name for the chipset of interest. Refer to Section 8 for more details.
- Close all programs currently running on the system.
* OS INSTALLATION
Some Intel(R) chipset platforms already are supported by Windows Server* 2003 so it may not be necessary to use the INF files provided by this software to update Windows Server* 2003.
The following steps describe the installation process of the Windows* XP INF files. You may need to repeat these steps to update all Intel(R) chipset devices not supported by Windows Server* 2003.
- Copy the contents of the \XXXX\All directory to the root directory of the floppy disk (A:).
NOTE:
XXXX is the directory name for the chipset of interest. Refer to Section 8 for more details.
- Close all programs currently running on the system.
- Click on Start.
- Select Settings.
- Select the Control Panel.
- Double-click on the System icon.
- Click on the Hardware tab.
- Click on the Device Manager button.
- Select "Devices by connection" under the View menu.
- Click on MPS Uniprocessor PC -OR- MPS Multiprocessor PC.
NOTE: Only one of the above items will be displayed for a given system.
- Click on PCI bus.
- Right-click on the line containing the description PCI standard host CPU bridge -or- PCI standard ISA bridge -or- PCI standard PCI-to-PCI bridge -or- PCI System Management Bus -or- Standard Dual PCI IDE Controller -or- Standard Universal PCI to USB Host Controller (This line will be selected.)
- Select Properties from the pull-down menu.
- Click on the Driver tab.
- Click on the Update Driver button.
- Windows Server* 2003 will launch the Upgrade Device
Driver Wizard. Select Next.
- Ensure that the following choice is selected: Search for a suitable driver for my device (recommended)
- Insert the floppy containing the Windows Server* 2003 INF files into the floppy drive.
- Select Next.
- Windows Server* 2003 will list locations from where the updated driver file can be found. Ensure that the following choice is selected: Floppy disk drives
- Select Next.
- Windows Server* 2003 should report that a driver has been found: (The detected device name will be displayed.) Select Next.
- Select Finish.
- Reboot the system when prompted to do so.
- IDENTIFYING THE SOFTWARE VERSION NUMBER
The version numbers displayed by Device Manager for a given device may not be the same as the Intel(R) Chipset Device Software version.
The correct version number is shown at the top of this file.
* 11. TROUBLESHOOTING
It is assumed that the system requirements in Section 2 above have been satisfied.
Issue: USB devices no longer work correctly after you install the Intel Chipset Software Installation Utility in Windows XP or in Windows Server 2003.
Solution: A recommended fix has been provided by Microsoft in Knowledge Base article(921411). For additional information, please refer to the KB article located at http://support.microsoft.com/kb/921411/en-us
Please use the following installation procedures:
- Windows XP or Windows Server 2003 installed
- QFE (921411) installed
- Latest Intel(R) Chipset Device Software
Issue: At the end of executing the Chipset Device Software, the USB keyboard and mouse will stop functioning. This problem only occurs when using Windows XP with
USBHUB.SYS
Solution: Click Browse in the dialog box where this issue occurs and locate the following directory:
\System32\drivers
Click OK. The system should be able to locate the files in this directory and continue re-enumerating for the new devices.
Issue: After running the setup program and rebooting the machine, Windows reports that it cannot find the following file: ISAPNP.VXD
Solution: Click Browse in the dialog box where this issue occurs and locate the \System directory. Click OK. The system should be able to locate this file in this directory and continue re-enumerating for the new devices.
Issue: After performing the silent install, the HKLM\Software\Intel\InfInst key was not created or the data of the value "install" is not "success".
Solution: This is caused by one of the following scenarios:
- The current system does not contain a supported operating system, or -or-
- The current system does not contain a supported chipset.
Verify that the System Requirements are met as outlined in Section 2.
* DISCLAIMER
Intel is making no claims of usability, efficacy or warranty. The Intel(R) SOFTWARE LICENSE AGREEMENT (OEM / IHV / ISV Distribution & Single User) completely defines the licensed use of this software.
Information in this document is provided in connection with
Intel(R) products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty relating to sale and/or use of Intel(R) products, including liability or warranties relating to fitness for a particular purpose, merchantability or infringement of any patent, copyright or other intellectual property right. Intel(R) products are not intended for use in medical, life saving, or life-sustaining applications.
Intel Corporation disclaims all warranties and liabilities for the use of this document and the information contained herein, and assumes no responsibility for any errors which may appear in this document, nor does Intel make a commitment to update the information contained herein. Intel reserves the right to make changes to this document at any time, without notice.
- Intel is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries.
- Other brands and names are the property of their respective owners.
Copyright (c) Intel Corporation, 1997-
